YY211L-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )YY211..LHD

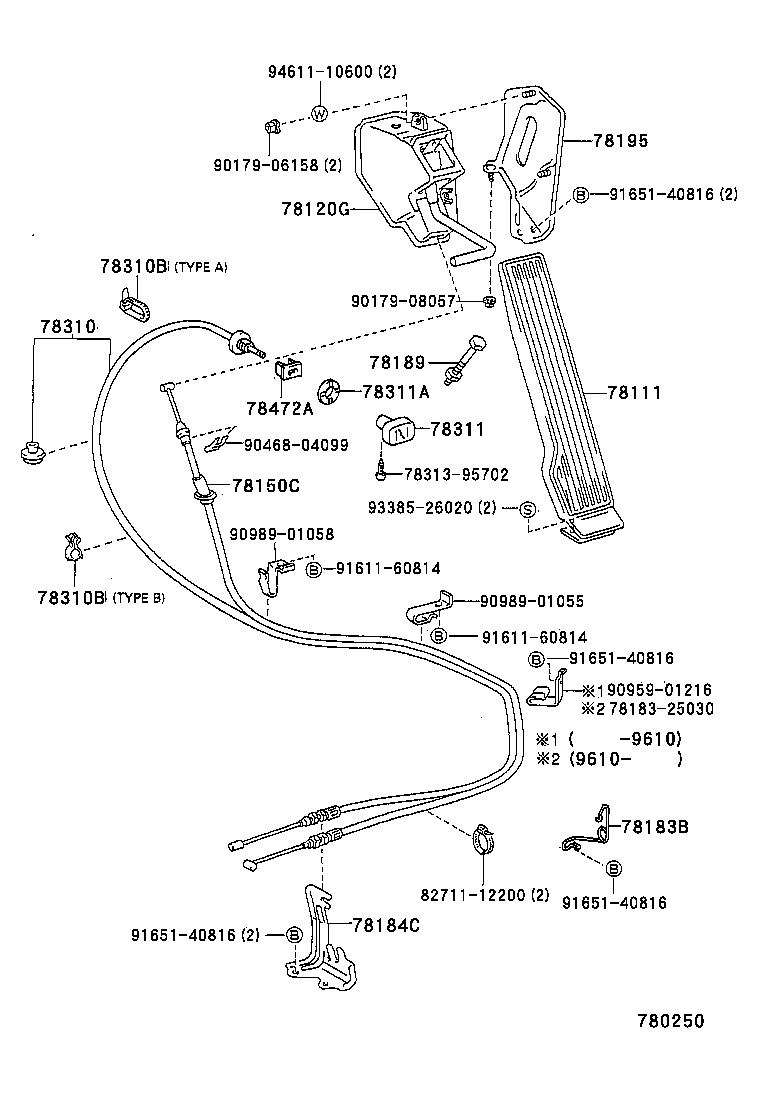

Click highlighted areas on diagram

diagram 78111 78120G 78150C 7818325030 78183B 78184C 78189 78195 78310 78310B 78310B 78311 78311A 7831395702 78472A 8271112200 9017906158 9017908057 9046804099 9095901216 9098901055 9098901058 9161160814 9161160814 9165140816 9165140816 9165140816 9165140816 9338526020 9461110600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78010-37010

LY21#,YY211..LHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78202-95011

LY21#,YY211..LHD

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-25130

YY211..LHD

CHINA SPEC

 1
78150-25031

YY211..LHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-25010

LY21#,YY211

 1
78183-25030

YY211..LHD

CHINA SPEC

 1
78184C - BRACKET, ACCELERATOR CONTROL CABLE
78184-95010

YY211..ST

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95402

LY21#,YY211..LHD

 1
78195 - BRACKET, ACCELERATOR LINK
78195-37020

LY21#,YY211..LHD

 1
78310 - CABLE ASSY, CHOKE
78304-25050

YY211..LHD

CHINA SPEC

 1
78304-25030

YY211..LHD

 1
78310B - CLAMP, CHOKE CABLE
82711-95410

YY211..ST

TYPE B

 1
82711-12200

YY211..ST

TYPE A

 1
78310B - CLAMP, CHOKE CABLE
82711-95410

YY211..ST

TYPE B

 1
82711-12200

YY211..ST

TYPE A

 1
78311 - KNOB, CHOKE CONTROL CABLE
78311-25010

YY211..LHD

 1
78311A - NUT, CHOKE SHAFT SET
78314-95010

YY211..ST

 1
78472A - SUPPORT, THROTTLE CONTROL CABLE
78472-95700B0

LY21#;YY211..ST

BLUISH GRAY,TRIM1#

 1
78472-95700C0

LY212,YY211..T3;LY211..15T..(ARL,EUR)

BLACK,TRIM11

 1
Common parts
78183-25030
78313-95702
82711-12200
90179-06158
90179-08057
90468-04099
90959-01216
90989-01055
90989-01058
91611-60814
91651-40816
93385-26020
94611-10600
