YY211L-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )YY211

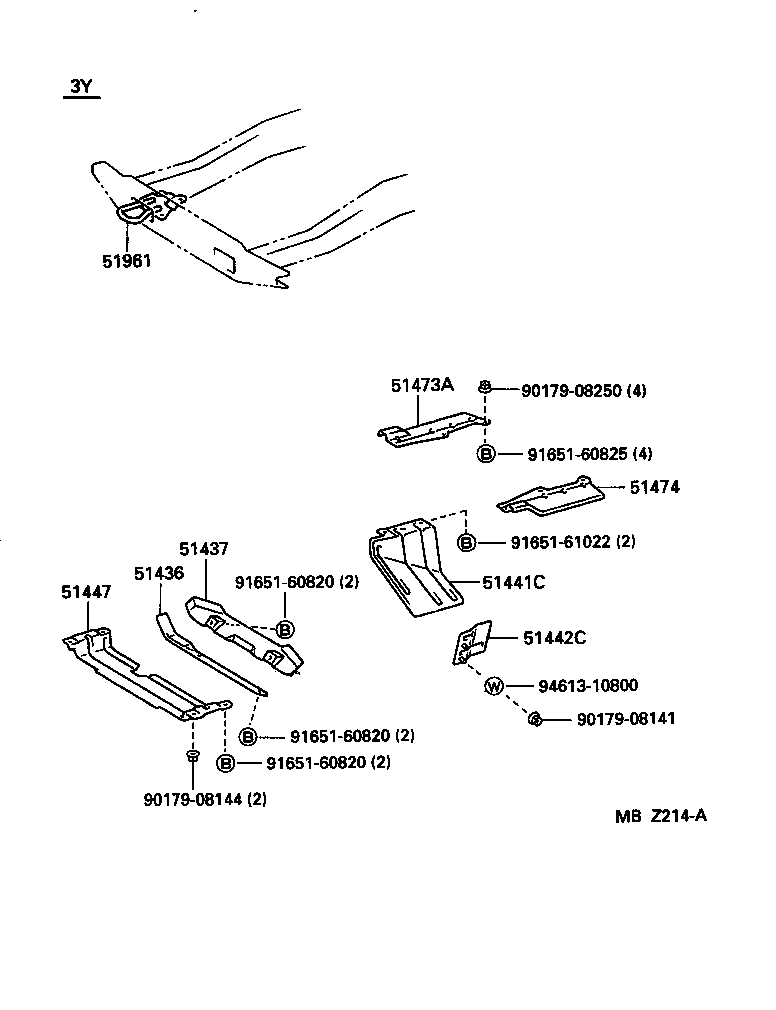

Click highlighted areas on diagram

diagram 51436 51437 51441C 51442C 51447 51473A 51474 51961 9017908141 9017908144 9017908250 9165160820 9165160820 9165160820 9165160825 9165161022 9461310800
Part # Description Qty Price
51436 - PROTECTOR, ENGINE FRONT SUPPORT
51436-25010

LY21#,YY211

 1
51437 - BRACKET, ENGINE FRONT SUPPORT, LOWER RH
51437-25010

LY21#,YY211

 1
51441C - COVER, ENGINE UNDER, RH
51441-25130

YY211

 1
51442C - COVER, ENGINE UNDER, LH
51442-25050

YY211

 1
51447 - GUIDE, ENGINE UNDER COVER AIR
51447-25090

LY21#,YY211

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-25010

LY21#,YY211

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-25010

LY21#,YY211

 1
51961 - HOOK, NO.1
51961-25030

LY21#,YY211

 1
Common parts
90179-08141
90179-08144
90179-08250
91651-60820
91651-60825
91651-61022
94613-10800
