YY211L-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3Y..ST

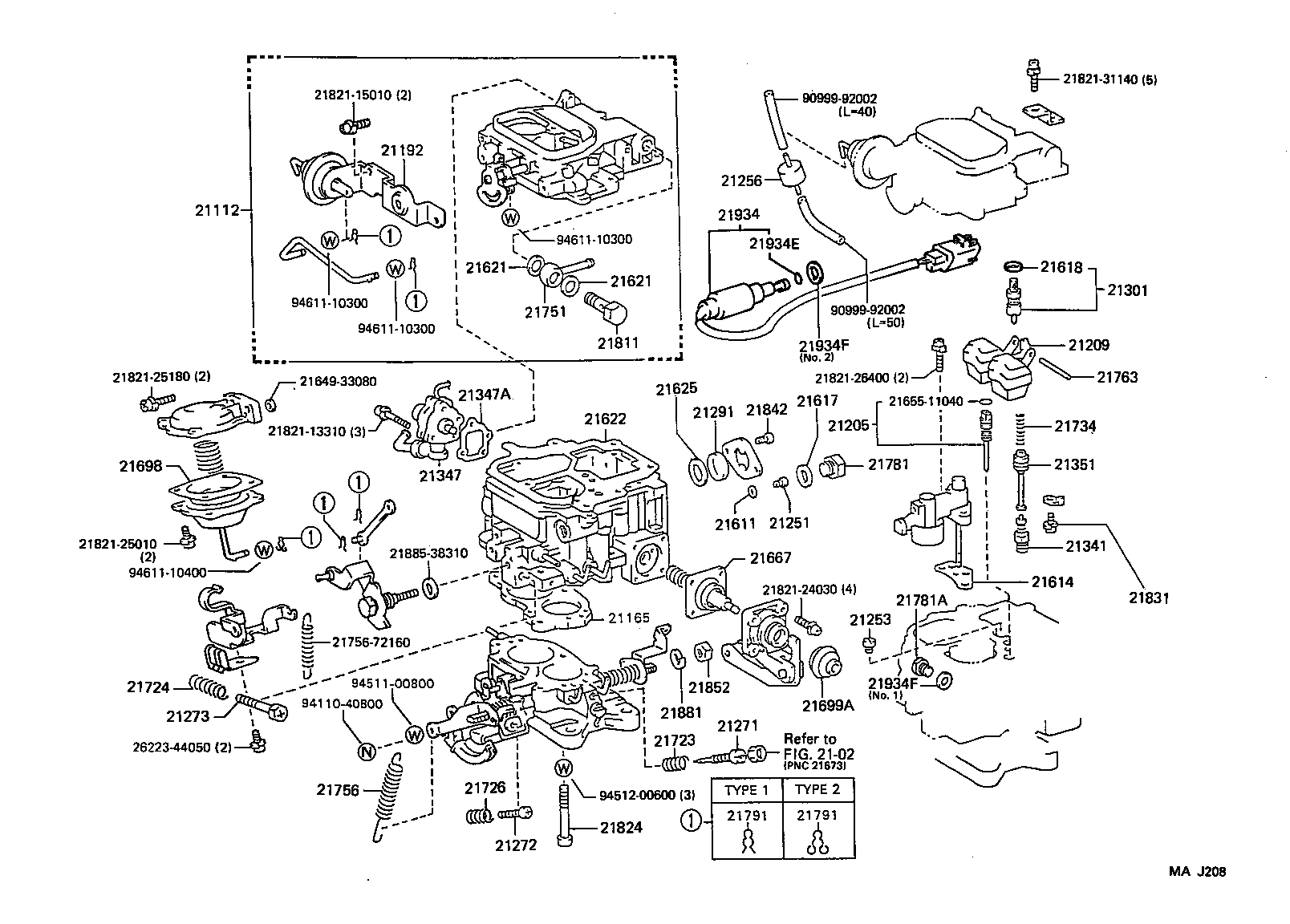

Click highlighted areas on diagram

diagram 2102 21112 21165 21192 21205 21209 21251 21253 21256 21271 21272 21273 21291 21301 21341 21347 21347A 21351 21611 21614 21617 21618 21621 21621 21622 21625 2164933080 2165511040 21667 21698 21699A 21723 21724 21726 21734 21751 21756 2175672160 21763 21781 21781A 21791 21791 21811 2182113310 2182115010 2182124030 2182125010 2182125180 2182126400 2182131140 21824 21831 21842 21852 21881 2188538310 21934 21934E 21934F 21934F 2622344050 9099992002 9099992002 9411040800 9451100800 9451200600 9461110300 9461110300 9461110300 9461110400
Part # Description Qty Price
21112 - HORN, AIR
21112-71100

3Y..YY211..ST

 1
21165 - INSULATOR
21165-72200

3Y..YY211

 1
21192 - BREAKER
21192-71111

3Y..YY211..ST

 1
21205 - JET SUB-ASSY, SLOW
21205-35240

3Y..YY211..ST

 1
21209 - FLOAT SUB-ASSY
21209-72160

3Y..YY211

 1
21251 - JET, 1ST MAIN
90999-41101

3Y..YY211..ST

 1
21253 - JET, 2ND MAIN
21253-71110

3Y..YY211

 1
21256 - JET(FOR CARBURETOR)
90925-04006

3Y..YY211..ST

 1
21271 - SCREW, IDLE ADJUSTING
21271-15230

3Y..YY211

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21272-71010

3Y..YY211

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-72290

3Y..YY211

 1
21291 - GLASS, LEVEL GAGE
21291-34320

3Y..YY211

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-35010

3Y..YY211

 1
21341 - VALVE, POWER
21304-30010

3Y..YY211

 1
21347 - VALVE, SOLENOID
21345-71120

3Y..YY211..ST

 1
21347A - GASKET(FOR VALVE, SOLENOID)
21641-35510

3Y..YY211

 1
21351 - PISTON, POWER
21351-37040

3Y..YY211

 1
21611 - GASKET, MAIN JET
21611-22010

3Y..YY211

 1
21614 - GASKET, VENTURI
21614-72200

3Y..YY211

 1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

3Y..YY211

 1
21618 - GASKET, NEEDLE VALVE SEAT
21618-14010

3Y..YY211

 1
21621 - GASKET, UNION NIPPLE
21633-24030

3Y..YY211

 2
21621 - GASKET, UNION NIPPLE
21633-24030

3Y..YY211

 2
21622 - GASKET, AIR HORN
21622-73330

3Y..YY211..ST

 1
21625 - GASKET, LEVEL GAGE
21655-60200

3Y..YY211

 1
21667 - DIAPHRAGM
21667-73330

3Y..YY211..ST

 1
21698 - DIAPHRAGM
21667-72170

3Y..YY211..ST

 1
21699A - BOOT(FOR ACCELERATION PUMP)
21699-37040

3Y..YY211

 1
21723 - SPRING, IDLE ADJUSTING
21723-21030

3Y..YY211

 1
21724 - SPRING, THROTTLE ADJUSTING
21723-38330

3Y..YY211

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-38310

3Y..YY211

 1
21734 - SPRING, POWER PISTON
21734-33080

3Y..YY211..ST

 1
21751 - UNION, NIPPLE
21894-71010

3Y..YY211

 1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
21869-71110

3Y..YY211..ST

 1
21763 - PIN, FLOAT LEVER
21763-34320

3Y..YY211

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

3Y..YY211

 1
21781A - PLUG, MAIN PASSAGE, NO.2(FOR CARBURETOR JET)
21781-72151

3Y..YY211..ST

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13011

3Y..YY211..ST

 3
21791-13010

3Y..YY211..ST

 3
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13011

3Y..YY211..ST

 3
21791-13010

3Y..YY211..ST

 3
21811 - BOLT, UNION NIPPLE
21811-11060

3Y..YY211

 1
21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21844-26400

3Y..YY211

 3
21831 - SCREW, POWER PISTON STOP
21821-15060

3Y..YY211

 1
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842-33010

3Y..YY211

 2
21852 - NUT, THROTTLE LEVER SET
21852-30010

3Y..YY211

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

3Y..YY211

 1
21934 - SOLENOID, THROTTLE VALVE
21062-71120

3Y..YY211..ST

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

3Y..YY211

 1
21934F - GASKET
21617-10010

3Y..YY211..ST

NO.1

 1
21649-38010

3Y..YY211..ST

NO.2

 1
21934F - GASKET
21617-10010

3Y..YY211..ST

NO.1

 1
21649-38010

3Y..YY211..ST

NO.2

 1
Common parts
21649-33080
21655-11040
21756-72160
21821-13310
21821-15010
21821-24030
21821-25010
21821-25180
21821-26400
21821-31140
21885-38310
26223-44050
90999-92002
94110-40800
94511-00800
94512-00600
94611-10300
94611-10400
Linked diagrams
2102
