YY211L-PSMDS (1995)
Toyota Dyna 150
ILLUST NO. 2 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51772 - PLATE, STEP | ||||
| 51771-37020 |
LY21#,YY211..ARL,GEN,SA RH |
1 | ||
| 51772-37010 |
LY21#,YY211..ARL,GEN,SA LH |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-25020 |
LY21#,YY211..LHD |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58202-37030 |
LY21#,YY211..LHD |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-25051 |
LY211,YY211..LHD..GEN |
1 | ||
| 58407-25050 |
LY211,YY211..LHD..GEN |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-37090 |
LY211,YY211..LHD..GEN |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-95405 |
LY21#,YY211 |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
LY21#,YY211..LHD |
3 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
LY21#,YY211..LHD |
3 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37010 |
LY21#,YY211 |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95401 |
LY21#,YY211 |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-95A01 |
LY21#,YY211 |
1 | ||
| 58936B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58930-95700B0 |
LY211,YY211..LHD..(T3,TW2) GRAY,TRIM1# |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71901-9570401 |
LY21#,YY211..EUR,GEN,SA BLACK,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-08483 | ||||
| 90159-60366 | ||||
| 90201-06204 | ||||
| 90205-05004 | ||||
| 90541-09126 | ||||
| 90950-01209 | ||||
| 90950-01832 | ||||
| 91651-60614 | ||||
| 91652-60816 | ||||
| Linked diagrams | ||||
| 7151 | ||||

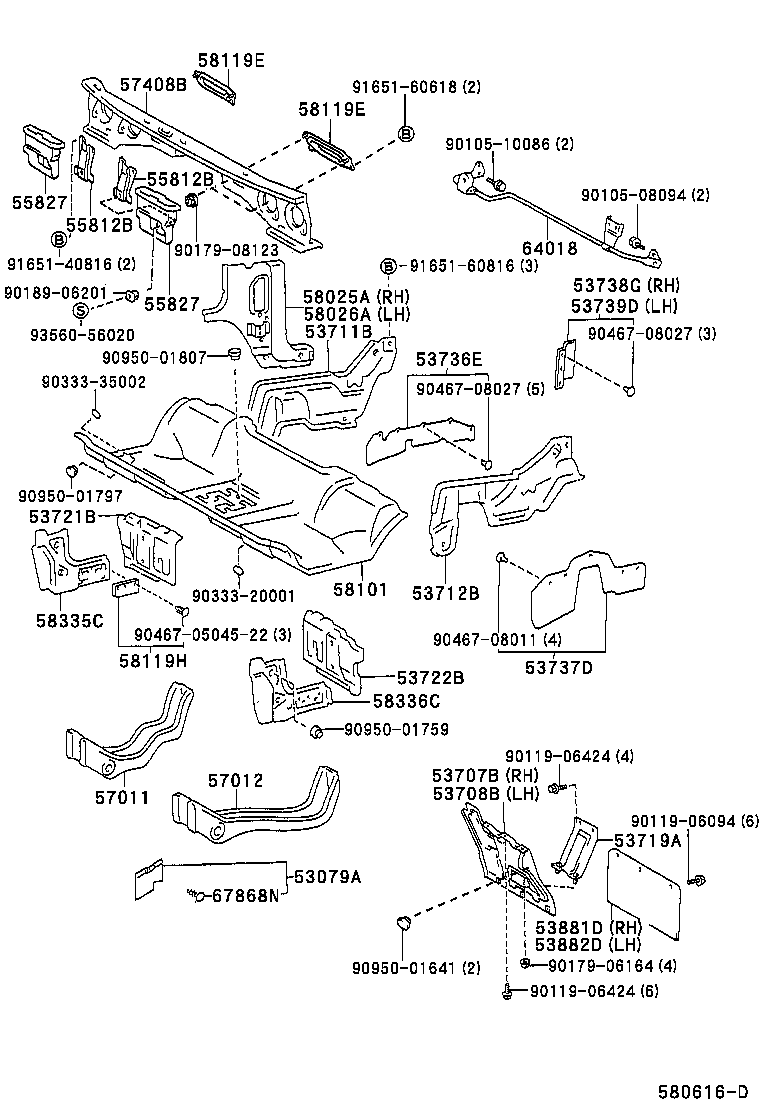

ILLUST NO. 1 OF 2(9505- )125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53079A - SEAL SUB-ASSY, FRONT FENDER APRON, LOWER | ||||
| 53079-25010 |
LY21#,YY211 |
2 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-95405 |
LY21#,YY211..125 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-25010 |
LY21#,YY211..125 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-25010 |
LY21#,YY211 |
1 | ||
| 53711-25040 |
YY211..LHD CHINA SPEC |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-25010 |
LY21#,YY211 |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-92600 |
LY21#,YY211..125 |
2 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-37030 |
LY21#,YY211..LHD |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-37010 |
LY21#,YY211..LHD |
1 | ||
| 53736E - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-25030 |
LY21#,YY211 |
1 | ||
| 53737D - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-25030 |
LY21#,YY211 |
1 | ||
| 53738G - SEAL, FRONT FENDER APRON, REAR RH | ||||
| 53738-25020 |
YY211 |
1 | ||
| 53739D - SEAL, FRONT FENDER APRON TO FRAME, REAR | ||||
| 53739-25020 |
YY211 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-95401 |
LY21#,YY211..125 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-95401 |
LY21#,YY211..125 |
1 | ||
| 55812B - BRACKET, VENTILATOR DUCT | ||||
| 55812-37010 |
LY211,YY211..GEN |
1 | ||
| 55812-37010 |
LY211,YY211..EUR,GEN |
1 | ||
| 55812-37010 |
LY21#,YY211..GEN |
1 | ||
| 55812B - BRACKET, VENTILATOR DUCT | ||||
| 55812-37010 |
LY211,YY211..GEN |
1 | ||
| 55812-37010 |
LY211,YY211..EUR,GEN |
1 | ||
| 55812-37010 |
LY21#,YY211..GEN |
1 | ||
| 55827 - DUCT, VENTILATOR AIR GUIDE | ||||
| 55827-37010 |
LY211,YY211..EUR,GEN |
1 | ||
| 55827-37010 |
LY21#,YY211..GEN |
1 | ||
| 55827-37010 |
LY211,YY211..GEN |
1 | ||
| 55827 - DUCT, VENTILATOR AIR GUIDE | ||||
| 55827-37010 |
LY211,YY211..EUR,GEN |
1 | ||
| 55827-37010 |
LY21#,YY211..GEN |
1 | ||
| 55827-37010 |
LY211,YY211..GEN |
1 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-25020 |
LY21#,YY211 |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-25020 |
LY21#,YY211 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-25200 |
YY211..LHD |
1 | ||
| 57408-25190 |
YY211..LHD W(FRONT HEATER OR BOOSTVENTILATOR) |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-37011 |
LY21#,YY211..125 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58026-95401 |
LY21#,YY211..125 |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-25060 |
LY211,YY211..LHD |
1 | ||
| 58101-25061 |
LY211,YY211..LHD |
1 | ||
| 58101-25064 |
LY21#,YY211..LHD |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 50819-37020 |
LY211,YY211..LHD |
1 | ||
| 50819-37020 |
LY211,YY211..LHD..GEN |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 50819-37020 |
LY211,YY211..LHD |
1 | ||
| 50819-37020 |
LY211,YY211..LHD..GEN |
1 | ||
| 58119H - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-95400 |
LY21#,YY211 |
2 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37010 |
LY21#,YY211 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37010 |
LY21#,YY211 |
1 | ||
| 67868N - CLIP, DOOR WETHERSTRIP, RH | ||||
| 67868-95401 |
LY21#,YY211 |
8 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10086 | ||||
| 90119-06094 | ||||
| 90119-06424 | ||||
| 90179-06164 | ||||
| 90179-08123 | ||||
| 90189-06201 | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90467-0504522 | ||||
| 90467-08011 | ||||
| 90467-08027 | ||||
| 90950-01641 | ||||
| 90950-01759 | ||||
| 90950-01797 | ||||
| 90950-01807 | ||||
| 91651-40816 | ||||
| 91651-60618 | ||||
| 91651-60816 | ||||
| 93560-56020 | ||||
