LY211R-TBMFSQ3 (1995)

Toyota Dyna 150

Production May 1995 - Jul 2001
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

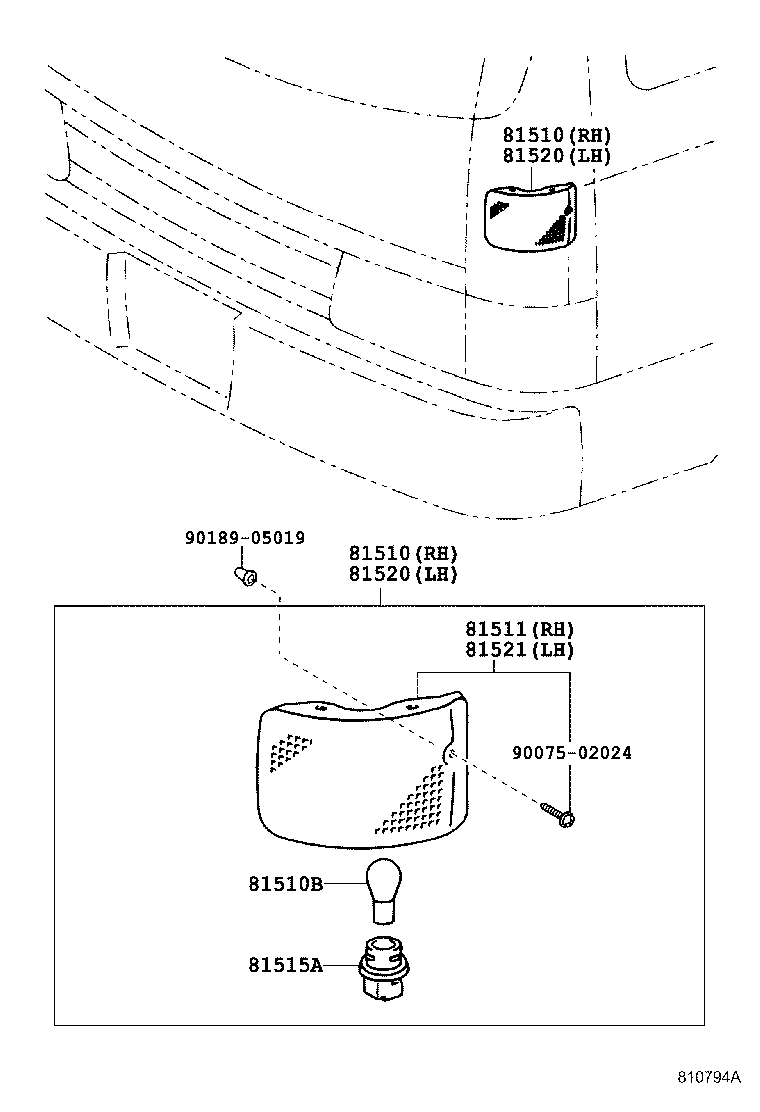

Click highlighted areas on diagram

diagram 81510 81510 81510B 81511 81515A 81520 81520 81521 9007502024 9018905019
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-37070

LY21#..ARL,EUR,SA

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-37070

LY21#..ARL,EUR,SA

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

LY21#,YY211

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-37070

LY21#..ARL,EUR,SA

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99092

LY21#,YY211

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-37070

LY21#..ARL,EUR,SA

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-37070

LY21#..ARL,EUR,SA

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-37070

LY21#..ARL,EUR,SA

 1
Common parts
90075-02024
90189-05019
