LY211R-TBMFS3 (1995)

Toyota Dyna 150

Production May 1995 - Jul 2001
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

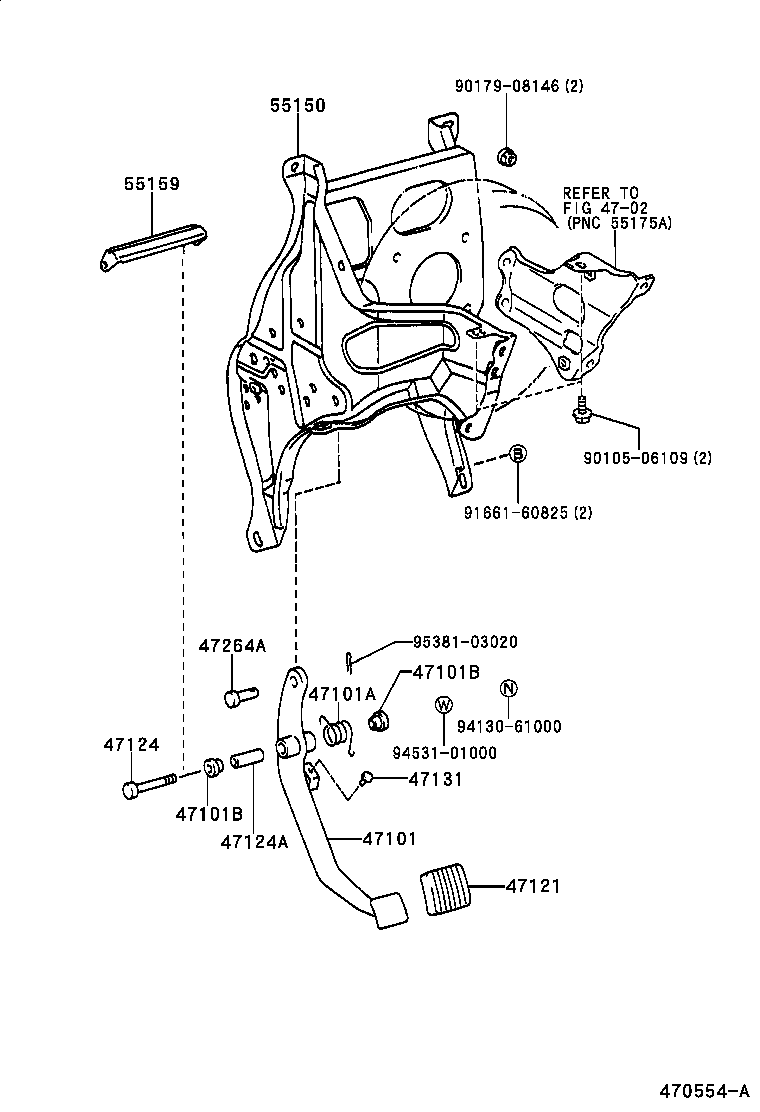

Click highlighted areas on diagram

diagram 4702 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55150 55159 9010506109 9017908146 9166160825 9413061000 9453101000 9538103020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-37040

LY21#,YY211

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35324

LY21#,YY211

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

LY21#,YY211

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

LY21#,YY211

 2
47121 - PAD, BRAKE PEDAL
31321-14020

LY21#,YY211

 1
47124 - SHAFT, BRAKE PEDAL
91121-51070

LY21#,YY211

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

LY21#,YY211

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

LY21#,YY211

 1
47264A - PIN(FOR PUSH ROD)
90240-10015

LY21#,YY211

 1
55150 - BRACKET ASSY, PEDAL
55150-37020

LY21#,YY211

 1
55150-37010

LY211,YY211

 1
55159 - STAY, PEDAL BRACKET
55159-37010

LY21#,YY211

 1
Common parts
90105-06109
90179-08146
91661-60825
94130-61000
94531-01000
95381-03020
Linked diagrams
4702
