LY211R-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - Jul 2001
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

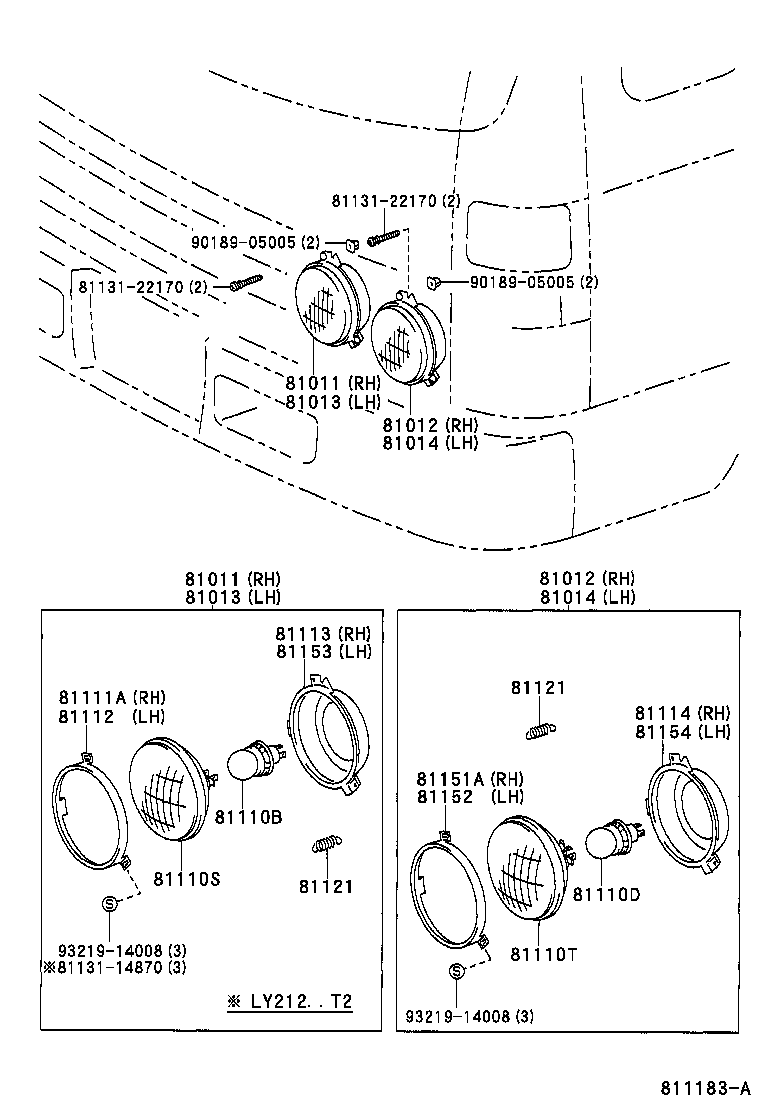

(9505- )GEN,SA

Click highlighted areas on diagram

diagram 81011 81011 81012 81012 81013 81013 81014 81014 81110B 81110D 81110S 81110T 81111A 81112 81113 81114 81121 81121 8113114870 8113122170 8113122170 81151A 81152 81153 81154 9018905005 9018905005 9321914008 9321914008
Part # Description Qty Price
81011 - HEADLAMP SUB-ASSY, NO.1
81011-95408

YY211..RHD;LY21#..GEN,SA

WHITE

 1
81011-95408

LY211..LHD..GEN..IV;LY211,YY211..RHD..GEN

WHITE

 1
81011-95407

LY21#,YY211..GEN

 1
81011 - HEADLAMP SUB-ASSY, NO.1
81011-95408

YY211..RHD;LY21#..GEN,SA

WHITE

 1
81011-95408

LY211..LHD..GEN..IV;LY211,YY211..RHD..GEN

WHITE

 1
81011-95407

LY21#,YY211..GEN

 1
81012 - HEADLAMP SUB-ASSY, NO.2
81012-95409

LY21#,YY211..RHD..GEN

 1
81012-95426

LY21#,YY211..RHD..(GEN,SA)

*SSB(WHITE)

 1
81012 - HEADLAMP SUB-ASSY, NO.2
81012-95409

LY21#,YY211..RHD..GEN

 1
81012-95426

LY21#,YY211..RHD..(GEN,SA)

*SSB(WHITE)

 1
81013 - HEADLAMP SUB-ASSY, TYPE 1, LH
81013-95421

LY211..LHD..GEN..IV;LY211,YY211..RHD..GEN

WHITE

 1
81013-95401

LY21#,YY211..GEN

 1
81013-95421

YY211..RHD;LY21#..GEN,SA

WHITE

 1
81013 - HEADLAMP SUB-ASSY, TYPE 1, LH
81013-95421

LY211..LHD..GEN..IV;LY211,YY211..RHD..GEN

WHITE

 1
81013-95401

LY21#,YY211..GEN

 1
81013-95421

YY211..RHD;LY21#..GEN,SA

WHITE

 1
81014 - HEADLAMP SUB-ASSY, TYPE 2, LH
81014-95401

LY21#,YY211..RHD..GEN

 1
81014-95422

LY21#,YY211..RHD..(GEN,SA)

*SSB(WHITE)

 1
81014 - HEADLAMP SUB-ASSY, TYPE 2, LH
81014-95401

LY21#,YY211..RHD..GEN

 1
81014-95422

LY21#,YY211..RHD..(GEN,SA)

*SSB(WHITE)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22003

LY211..ST..15T..CBU

12V 60/55W,*HAL *WH,HONG KONG SPEC

 2
90981-13013

LY211..LHD..GEN..IV;LY211,YY211..RHD..GEN

12V 45/40W,WHITE

 2
90981-13013

YY211..RHD;LY21#..GEN,SA

12V 45/40W,WHITE

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13013

YY211..RHD;LY21#..GEN,SA

12V 45/40W,WHITE

 2
90981-13013

LY211..LHD..GEN..IV;LY211,YY211..RHD..GEN

12V 45/40W,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-02039

LY211,YY211..GEN

12V 37.5W,*WB

 2
90981-02011

LY21#,YY211..GEN

12V 37.5W,*WB

 2
90981-02018

YY211..RHD;LY21#..GEN,SA

12V 45/40W,*WSB

 2
90981-02018

LY211..LHD..GEN..IV;LY211,YY211..RHD..GEN

12V 45/40W,*WSB

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02026

LY21#,YY211..RHD..(GEN,SA)

12V 45/40W,*WSB

 2
90981-02040

LY211,YY211..RHD..GEN

12V 37.5/50W,*WB

 2
90981-02012

LY21#,YY211..RHD..GEN

12V 37.5/50W,*WB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-14261

LY21#,YY211..GEN,SA

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81111-14261

LY21#,YY211..GEN,SA

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-14100

LY21#,YY211..GEN,SA

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-20210

LY21#,YY211..GEN

 1
81121 - SPRING, HEADLAMP TENSION
81121-95400

LY21#,YY211..GEN,SA

LH

 2
90506-16017

LY21#,YY211..GEN,SA

RH

 2
81121 - SPRING, HEADLAMP TENSION
81121-95400

LY21#,YY211..GEN,SA

LH

 2
90506-16017

LY21#,YY211..GEN,SA

RH

 2
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-14261

LY21#,YY211..GEN

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81111-14261

LY21#,YY211..GEN

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-14100

LY21#,YY211..GEN,SA

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-20170

LY21#,YY211..GEN

 1
Common parts
81131-14870
81131-22170
90189-05005
93219-14008

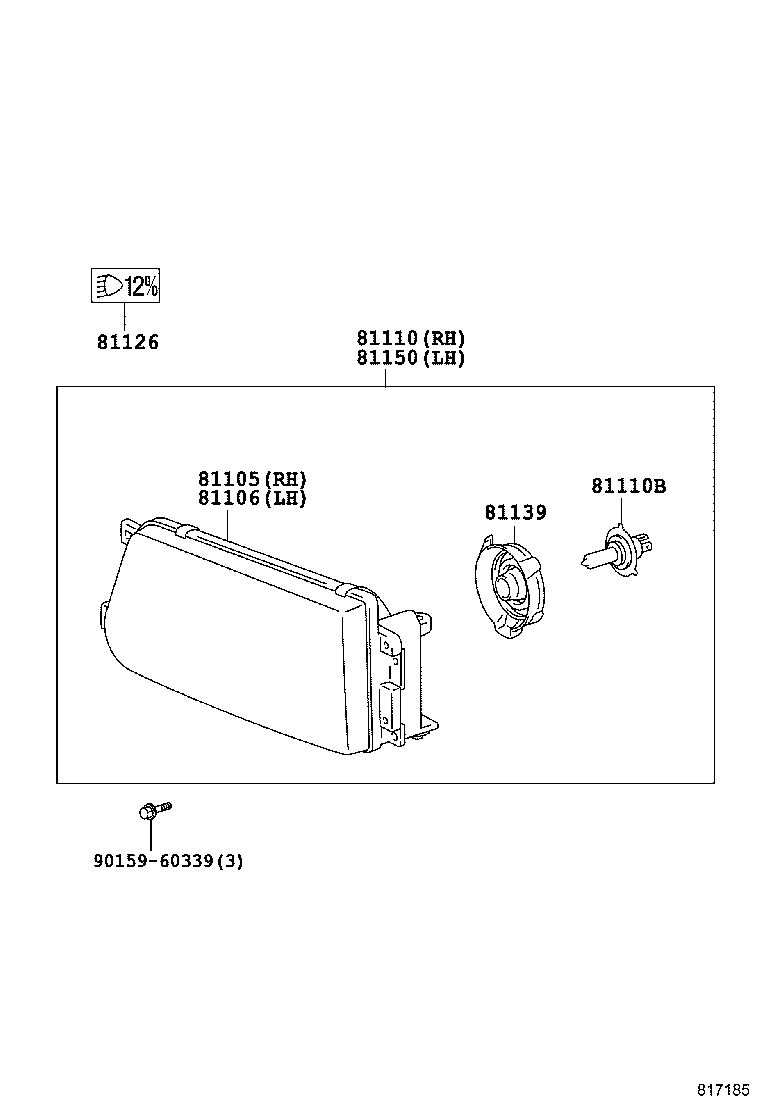

(9505-9610)LY211..15T..CBU ; (9505- )ARL,EUR

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81126 81139 81150 9015960339
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-37030

LY211..ST..15T..CBU

HONG KONG SPEC

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-37030

LY211..ST..15T..CBU

HONG KONG SPEC

 1
81110 - HEADLAMP ASSY, RH
81110-37030

LY211..ST..15T..CBU

HONG KONG SPEC

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22003

LY211..ST..15T..CBU

12V 60/55W,*HAL *WH,HONG KONG SPEC

 2
90981-13013

LY211..LHD..GEN..IV;LY211,YY211..RHD..GEN

12V 45/40W,WHITE

 2
90981-13013

YY211..RHD;LY21#..GEN,SA

12V 45/40W,WHITE

 2
81139 - COVER, HEADLAMP SOCKET
81139-87641

LY211..ARL,EUR;LY211..ST..15T..CBU

 2
81150 - HEADLAMP ASSY, LH
81150-37030

LY211..ST..15T..CBU

HONG KONG SPEC

 1
Common parts
90159-60339
