LY211R-PGMES (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY21#

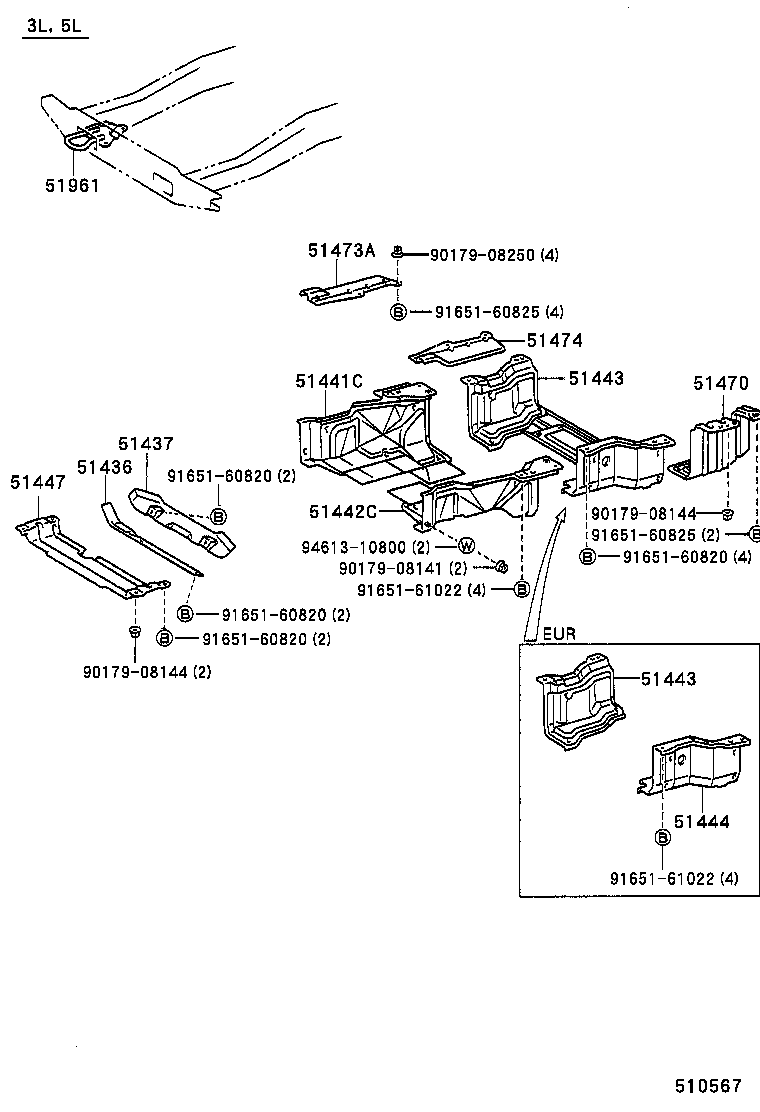

Click highlighted areas on diagram

diagram 51436 51437 51441C 51442C 51443 51443 51444 51447 51470 51473A 51474 51961 9017908141 9017908144 9017908144 9017908250 9165160820 9165160820 9165160820 9165160820 9165160825 9165160825 9165161022 9165161022 9461310800
Part # Description Qty Price
51436 - PROTECTOR, ENGINE FRONT SUPPORT
51436-25010

LY21#,YY211

 1
51437 - BRACKET, ENGINE FRONT SUPPORT, LOWER RH
51437-25010

LY21#,YY211

 1
51442C - COVER, ENGINE UNDER, LH
51407-25040

LY211..GEN

 1
51447 - GUIDE, ENGINE UNDER COVER AIR
51447-25090

LY21#,YY211

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-25010

LY21#,YY211

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-25010

LY21#,YY211

 1
51961 - HOOK, NO.1
51961-25030

LY21#,YY211

 1
Common parts
90179-08141
90179-08144
90179-08250
91651-60820
91651-60825
91651-61022
94613-10800
