LY211L-TBMGSW3 (1995)
Toyota Dyna 150

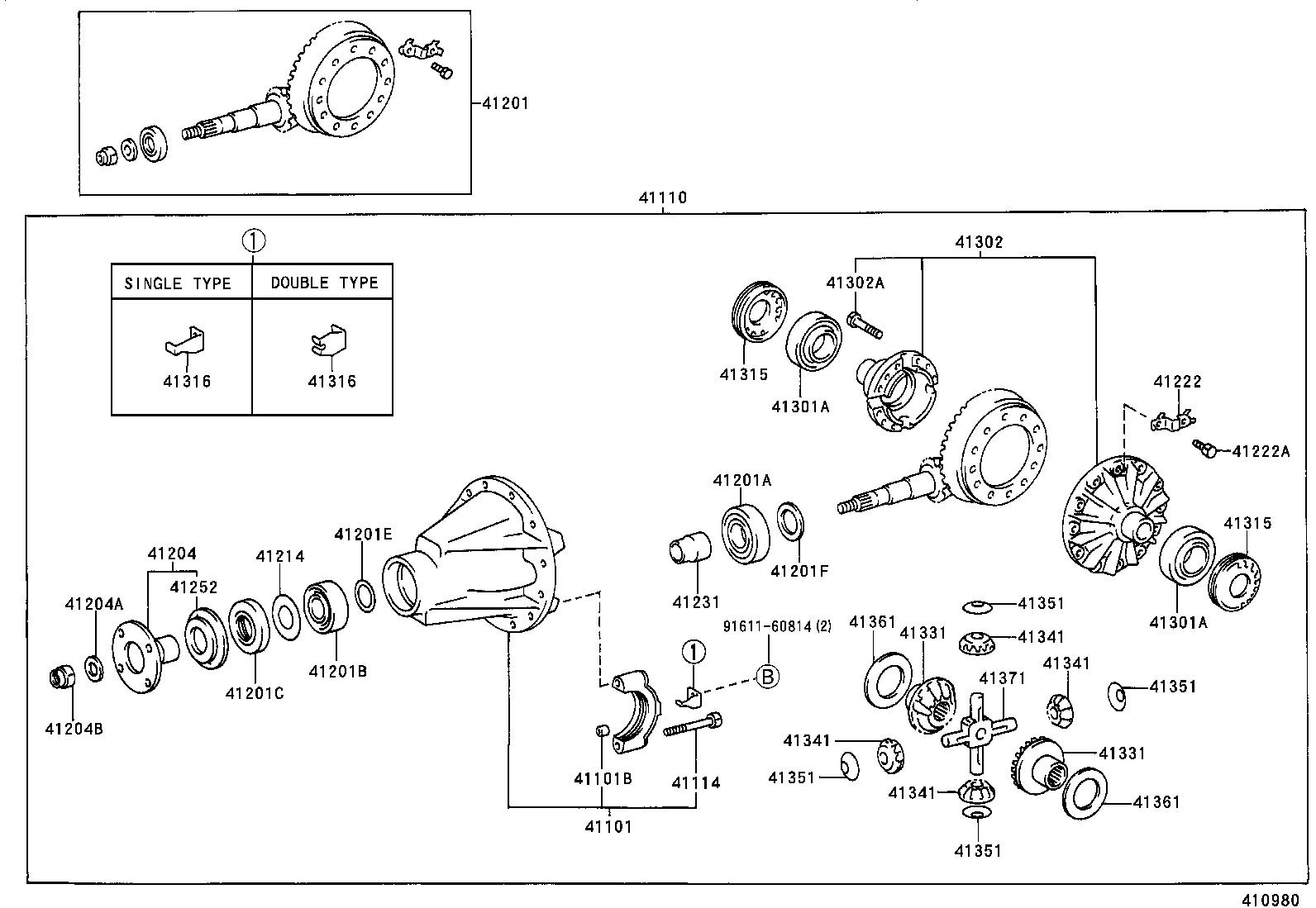

ILLUST NO. 1 OF 2(9505- )WT..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-36030 |
LY21#..WT..IV |
1 | ||
| 41101B - PIN, RING (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90253-21001 |
LY21#..WT..EUR |
4 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-36381 |
LY21#..WT..IV *FGR=37:8=4.625 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16022 |
LY21#..WT..EUR |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29436 |
LY21#..WT..IV *FGR=37:8=4.625 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40001 |
LY21#..WT..IV |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-35023 |
LY21#..WT..IV |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-48135 |
LY21#..WT..IV |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35034 |
LY21#..WT..EUR T=2.90 |
1 | ||
| 90564-35037 |
LY21#..WT..EUR T=1.83 |
1 | ||
| 90564-35038 |
LY21#..WT..EUR T=1.85 |
1 | ||
| 90564-35020 |
LY21#..WT..EUR T=1.82 |
1 | ||
| 90564-35022 |
LY21#..WT..EUR T=1.86 |
1 | ||
| 90564-35023 |
LY21#..WT..EUR T=1.88 |
1 | ||
| 90564-35026 |
LY21#..WT..EUR T=2.10 |
1 | ||
| 90564-35021 |
LY21#..WT..EUR T=1.84 |
1 | ||
| 90564-35024 |
LY21#..WT..EUR T=1.90 |
1 | ||
| 90564-35025 |
LY21#..WT..EUR T=2.00 |
1 | ||
| 90564-35033 |
LY21#..WT..EUR T=2.80 |
1 | ||
| 90564-35032 |
LY21#..WT..EUR T=2.70 |
1 | ||
| 90564-35027 |
LY21#..WT..EUR T=2.20 |
1 | ||
| 90564-35019 |
LY21#..WT..EUR T=1.80 |
1 | ||
| 90564-35031 |
LY21#..WT..EUR T=2.60 |
1 | ||
| 90564-35035 |
LY21#..WT..EUR T=3.00 |
1 | ||
| 90564-35029 |
LY21#..WT..EUR T=2.40 |
1 | ||
| 90564-35039 |
LY21#..WT..EUR T=1.87 |
1 | ||
| 90564-35028 |
LY21#..WT..EUR T=2.30 |
1 | ||
| 90564-35036 |
LY21#..WT..EUR T=1.81 |
1 | ||
| 90564-35030 |
LY21#..WT..EUR T=2.50 |
1 | ||
| 90564-35040 |
LY21#..WT..EUR T=1.89 |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90201-40557 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.35 |
1 | ||
| 90201-40551 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.05 |
1 | ||
| 90201-40553 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.15 |
1 | ||
| 90201-40555 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.25 |
1 | ||
| 90201-40554 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.20 |
1 | ||
| 90201-40560 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.50 |
1 | ||
| 90201-40552 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.10 |
1 | ||
| 90201-40561 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.55 |
1 | ||
| 90201-40556 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.30 |
1 | ||
| 90201-40558 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.40 |
1 | ||
| 90201-40559 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.45 |
1 | ||
| 90564-40004 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.05 |
1 | ||
| 90564-40007 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.10 |
1 | ||
| 90564-40006 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.075 |
1 | ||
| 90564-40008 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.125 |
1 | ||
| 90564-40009 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.15 |
1 | ||
| 90564-40011 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.20 |
1 | ||
| 90564-40013 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.25 |
1 | ||
| 90564-40015 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.30 |
1 | ||
| 90564-40017 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.35 |
1 | ||
| 90564-40020 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.425 |
1 | ||
| 90564-40021 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.45 |
1 | ||
| 90564-40012 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.225 |
1 | ||
| 90564-40010 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.175 |
1 | ||
| 90564-40018 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.375 |
1 | ||
| 90564-40022 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.475 |
1 | ||
| 90564-40019 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.40 |
1 | ||
| 90564-40016 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.325 |
1 | ||
| 90564-40024 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.525 |
1 | ||
| 90564-40025 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.55 |
1 | ||
| 90564-40014 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.275 |
1 | ||
| 90564-40023 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.50 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-36050 |
LY21#..WT..IV |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-23002 |
LY21#..WT..EUR |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22003 |
LY21#..WT..EUR |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-36030 |
LY21#..WT..IV |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-36020 |
LY21#..WT..EUR |
6 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-14315 |
LY21#..WT..EUR |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36040 |
LY21#..WT..EUR |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-36010 |
LY21#..WT..IV |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-52043 |
LY21#..WT..IV |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-52043 |
LY21#..WT..IV |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-36030 |
LY21#..WT..EUR |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12087 |
LY21#..WT..EUR |
12 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
LY21#..WT..EUR |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
LY21#..WT..EUR |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-36011 |
LY21#..WT..EUR SINGLE TYPE |
2 | ||
| 41317-36011 |
LY21#..WT..EUR DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-36011 |
LY21#..WT..EUR SINGLE TYPE |
2 | ||
| 41317-36011 |
LY21#..WT..EUR DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36020 |
LY21#..WT..EUR |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36020 |
LY21#..WT..EUR |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
LY211..WT..IV |
4 | ||
| 41341-55013 |
LY21#..WT..EUR |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
LY211..WT..IV |
4 | ||
| 41341-55013 |
LY21#..WT..EUR |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
LY211..WT..IV |
4 | ||
| 41341-55013 |
LY21#..WT..EUR |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
LY211..WT..IV |
4 | ||
| 41341-55013 |
LY21#..WT..EUR |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
LY21#..WT..EUR |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
LY21#..WT..EUR |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
LY21#..WT..EUR |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
LY21#..WT..EUR |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.60 |
2 | ||
| 41361-60040 |
LY211,YY211..(T3,TW1,TW2)..TS T=2.05 |
2 | ||
| 41361-60031 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.90 |
2 | ||
| 41361-60011 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.60 |
2 | ||
| 41361-60020 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.75 |
2 | ||
| 41361-60041 |
LY21#,YY211..(T3,TW1,TW2)..TS T=2.05 |
2 | ||
| 41361-60480 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.55 |
2 | ||
| 41361-60030 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.90 |
2 | ||
| 41361-60021 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.75 |
2 | ||
| 41361-60490 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.65 |
2 | ||
| 41361-60520 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.85 |
2 | ||
| 41361-60500 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.70 |
2 | ||
| 41361-60530 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.95 |
2 | ||
| 41361-60510 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.80 |
2 | ||
| 41361-60550 |
LY21#,YY211..(T3,TW1,TW2)..TS T=2.10 |
2 | ||
| 41361-60540 |
LY21#,YY211..(T3,TW1,TW2)..TS T=2.00 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.60 |
2 | ||
| 41361-60040 |
LY211,YY211..(T3,TW1,TW2)..TS T=2.05 |
2 | ||
| 41361-60031 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.90 |
2 | ||
| 41361-60011 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.60 |
2 | ||
| 41361-60020 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.75 |
2 | ||
| 41361-60041 |
LY21#,YY211..(T3,TW1,TW2)..TS T=2.05 |
2 | ||
| 41361-60480 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.55 |
2 | ||
| 41361-60030 |
LY211,YY211..(T3,TW1,TW2)..TS T=1.90 |
2 | ||
| 41361-60021 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.75 |
2 | ||
| 41361-60490 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.65 |
2 | ||
| 41361-60520 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.85 |
2 | ||
| 41361-60500 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.70 |
2 | ||
| 41361-60530 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.95 |
2 | ||
| 41361-60510 |
LY21#,YY211..(T3,TW1,TW2)..TS T=1.80 |
2 | ||
| 41361-60550 |
LY21#,YY211..(T3,TW1,TW2)..TS T=2.10 |
2 | ||
| 41361-60540 |
LY21#,YY211..(T3,TW1,TW2)..TS T=2.00 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-36011 |
LY21#..WT..EUR |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||

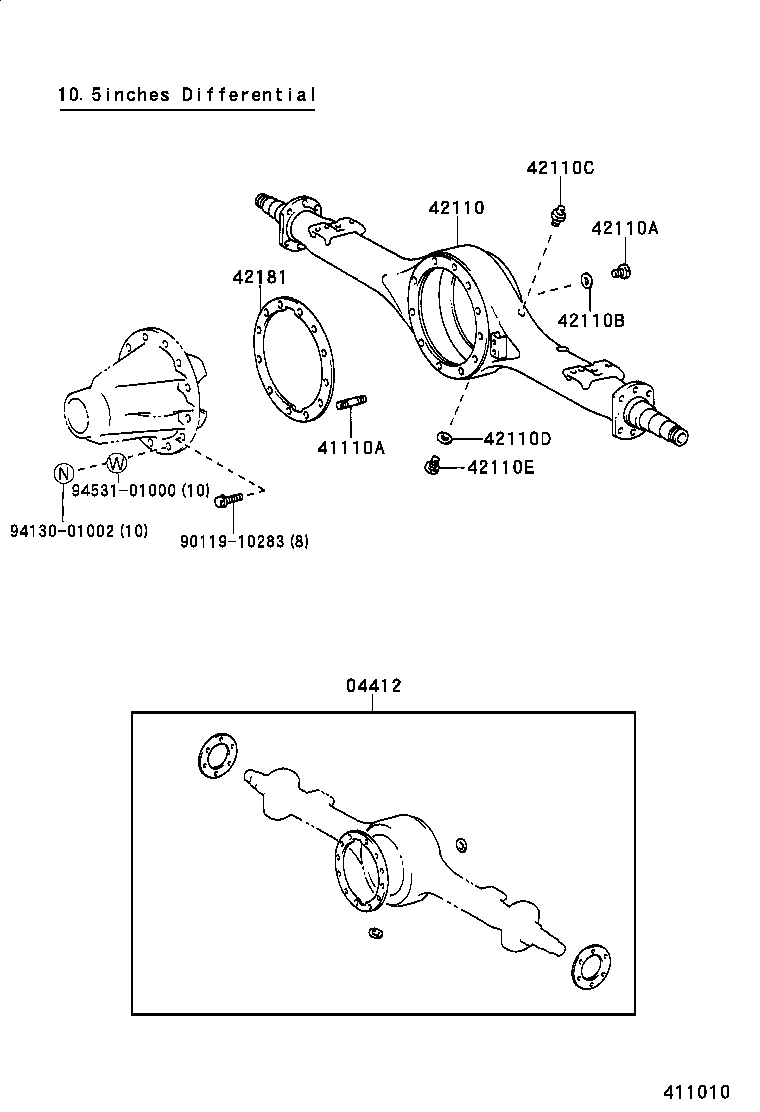

ILLUST NO. 2 OF 2(9505- )WT..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-36090 |
LY21#..WT..IV |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10082 |
LY21#..WT..IV S=19 & 12.5,L=43.5 |
4 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-25290 |
LY21#..WT..EUR |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
LY21#,YY211 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
LY21#,YY211 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LY21#,YY211 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
LY21#,YY211 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
LY21#,YY211..(T3,TW1,TW2)..TS |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36060 |
LY21#..WT..EUR |
1 | ||
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||
