LY211L-TBMGSW3 (1995)

Toyota Dyna 150

Production May 1995 - May 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

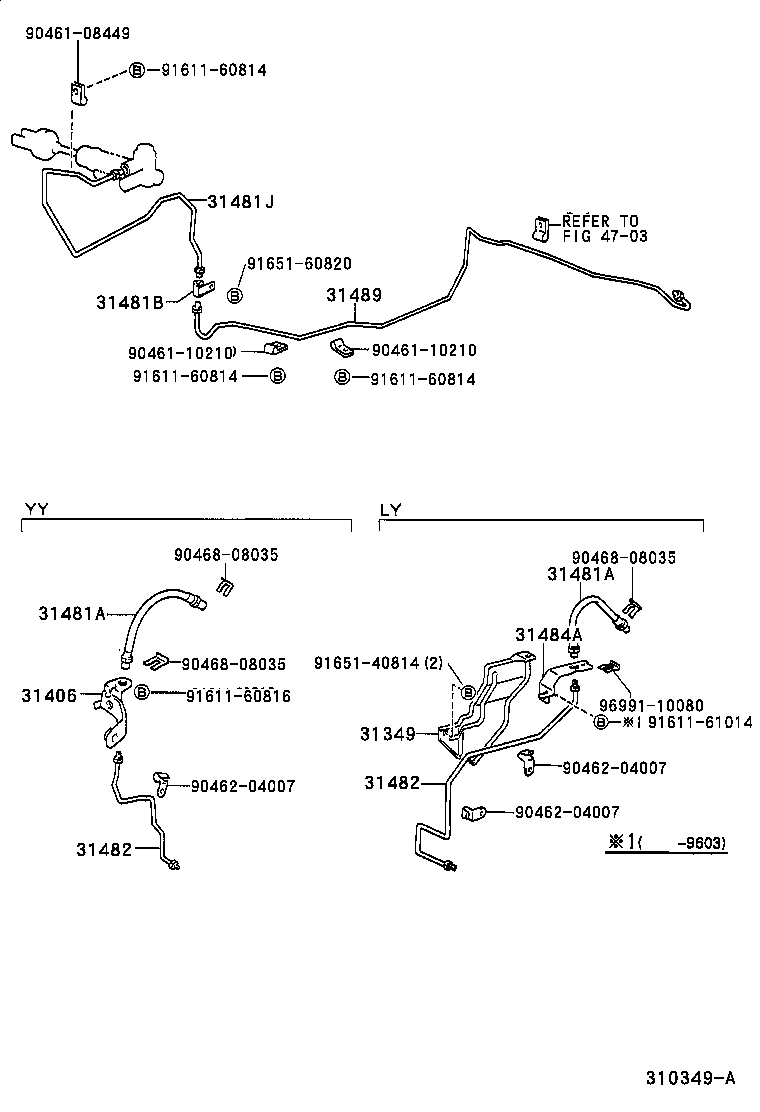

ILLUST NO. 2 OF 2(9505- )LY211,YY211..LHD

Click highlighted areas on diagram

diagram 31349 31406 31481A 31481A 31481B 31481J 31482 31482 31484A 31489 4703 9046108449 9046110210 9046110210 9046204007 9046204007 9046204007 9046808035 9046808035 9046808035 9161160814 9161160814 9161160814 9161160816 9161161014 9165140814 9165160820 9699110080
Part # Description Qty Price
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-25010

LY211;LY212..SA

 1
31481A - HOSE, CLUTCH, NO.1
96817-50310

LY21#

 1
31481A - HOSE, CLUTCH, NO.1
96817-50310

LY21#

 1
31481B - WAY(FOR CLUTCH TUBE)
90412-12050

LY21#,YY211

 1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-25140

LY21#,YY211..LHD

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25130

LY211;LY212..SA

L=758.1

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25130

LY211;LY212..SA

L=758.1

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-25050

LY21#

 1
31484-25060

LY211

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-25110

LY21#,YY211..LHD

 1
Common parts
90461-08449
90461-10210
90462-04007
90468-08035
91611-60814
91611-60816
91611-61014
91651-40814
91651-60820
96991-10080
Linked diagrams
4703

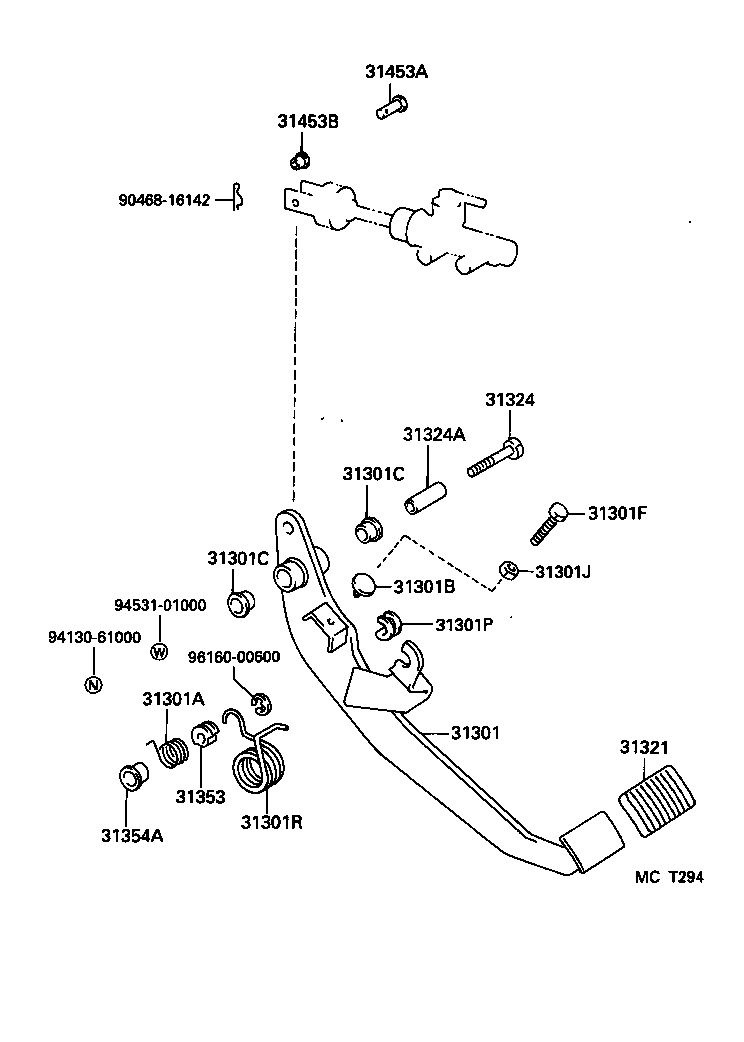

ILLUST NO. 1 OF 2(9708- )LY21#

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31301P 31301R 31321 31324 31324A 31353 31354A 31453A 31453B 9046816142 9413061000 9453101000 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-37090

LY211,YY211

 1
31310-37020

LY21#..LHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35004

LY211,YY211

 1
90949-03010

LY21#

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

LY21#,YY211

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LY21#,YY211

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LY21#,YY211

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

LY21#,YY211

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800

LY21#,YY211

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017

LY21#

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

LY21#,YY211

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

LY21#,YY211

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

LY21#,YY211

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-14010

LY21#

 1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-13015

LY21#

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

LY21#,YY211

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

LY21#,YY211

 1
Common parts
90468-16142
94130-61000
94531-01000
96160-00600

ILLUST NO. 1 OF 2(9505-9708) ; (9708- )YY211

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 31453A 31453B 9046816142 9413061000 9453101000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-37090

LY211,YY211

 1
31310-37020

LY21#..LHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35004

LY211,YY211

 1
90949-03010

LY21#

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

LY21#,YY211

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LY21#,YY211

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LY21#,YY211

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

LY21#,YY211

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800

LY21#,YY211

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

LY21#,YY211

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

LY21#,YY211

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

LY21#,YY211

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

LY21#,YY211

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

LY21#,YY211

 1
Common parts
90468-16142
94130-61000
94531-01000
