LY211L-TBMFSW3 (1995)

Toyota Dyna 150

Production May 1995 - May 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )ARL,EUR,SA

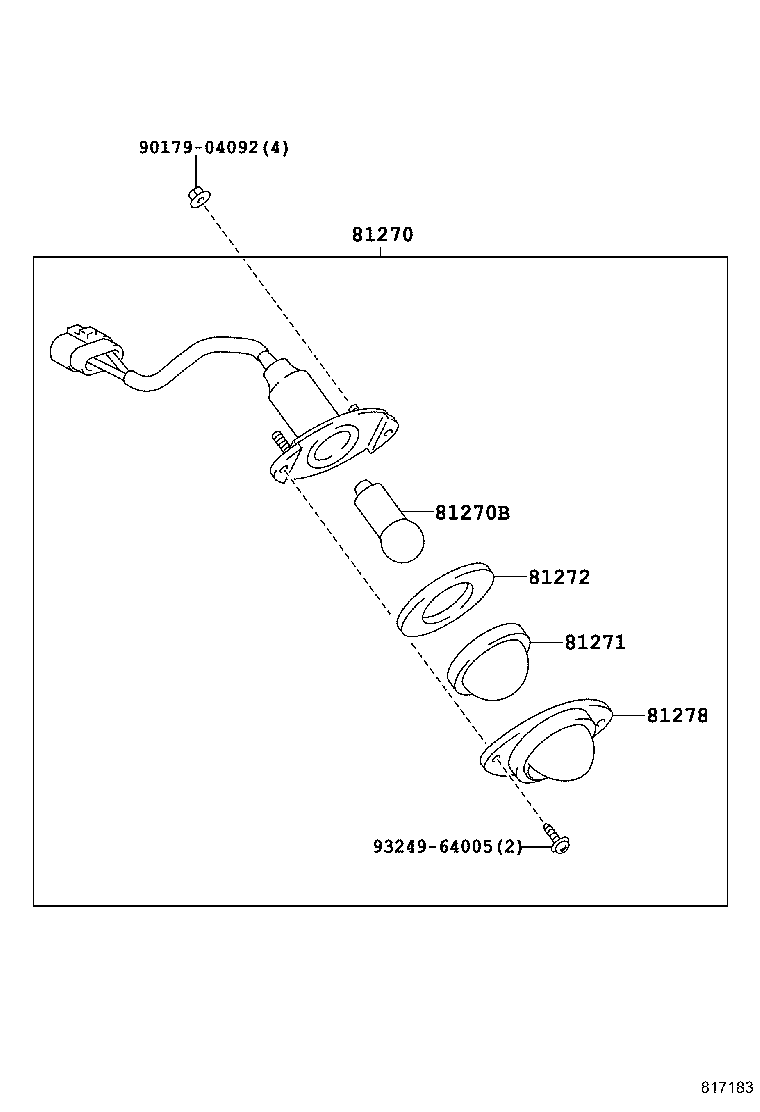

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 9017904092 9324964005
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-25020

LY21#..EUR

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

LY21#..ARL,EUR,SA

12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10010

LY21#..ARL,EUR,SA

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-37020

LY21#..ARL,EUR,SA

 2
81278 - COVER, LICENSE PLATE LAMP
81276-95016

LY21#..ARL,EUR,SA

 2
Common parts
90179-04092
93249-64005
