LY211L-TBMFSW3 (1995)

Toyota Dyna 150

Production May 1995 - May 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )15T

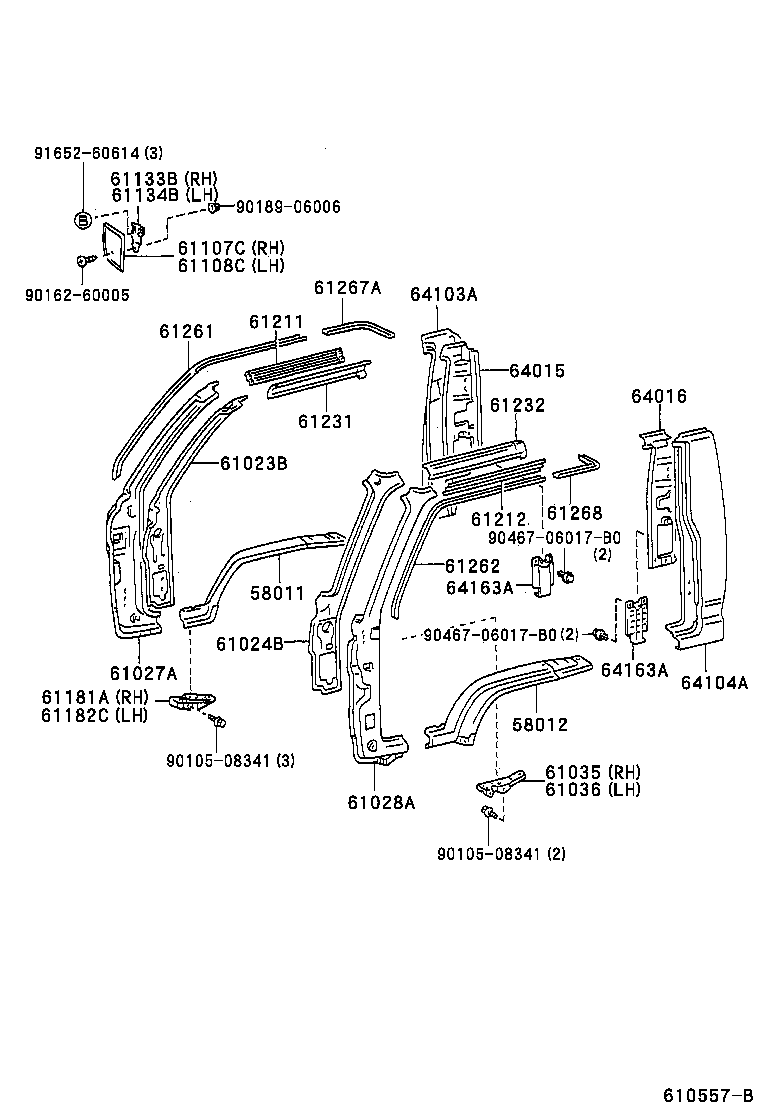

Click highlighted areas on diagram

diagram 58011 58012 61023B 61024B 61027A 61028A 61035 61036 61107C 61108C 61133B 61134B 61181A 61182C 61211 61212 61231 61232 61261 61262 61267A 61268 64015 64016 64103A 64104A 64163A 64163A 9010508341 9010508341 9016260005 9018906006 9046706017B0 9046706017B0 9165260614
Part # Description Qty Price
58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
58011-25010

LY21#,YY211..15T

 1
58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58012-25020

LY21#..15T

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-37030

LY211,YY211..LHD

 1
61023-37031

LY21#,YY211..LHD

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-37051

LY21#,YY211..LHD

 1
61024-37050

LY211,YY211..LHD

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-37021

LY21#,YY211

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-37041

LY21#,YY211..LHD

W(RADIO)

 1
61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61035-37011

LY21#,YY211..LHD

 1
61035-37010

LY211,YY211..LHD

 1
61182C - BRACKET, INSTRUMENT SIDE, LH
61182-37021

LY21#,YY211..LHD

 1
61182-37020

LY211,YY211..LHD

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95403

LY21#,YY211..15T

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95403

LY21#,YY211..15T

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-95406

LY21#,YY211..LHD..15T

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-95405

LY21#,YY211..LHD..15T

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-37020

LY21#,YY211

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-37020

LY21#,YY211

 1
61267A - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-95400

LY21#,YY211..15T

 1
61268 - CHANNEL, ROOF DRIP SIDE, REAR LH
61268-95400

LY21#,YY211..15T

 1
64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH
64015-37060

LY212..15T;LY211,YY211..WT..15T;LY211..ST..15T..(ARL,EUR)

 1
64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH
64016-37060

LY212..15T;LY211,YY211..WT..15T;LY211..ST..15T..(ARL,EUR)

 1
64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH
64103-95403

LY212..15T;LY211,YY211..WT..15T;LY211..ST..15T..(ARL,EUR)

 1
64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH
64104-95403

LY212..15T;LY211,YY211..WT..15T;LY211..ST..15T..(ARL,EUR)

 1
64163A - COVER, BACK CORNER, INNER
64163-37020B0

LY21#..ARL,EUR,SA

BLUISH GRAY,TRIM1#

 2
64163A - COVER, BACK CORNER, INNER
64163-37020B0

LY21#..ARL,EUR,SA

BLUISH GRAY,TRIM1#

 2
Common parts
90105-08341
90162-60005
90189-06006
90467-06017B0
91652-60614
