LY211L-TBMFSW3 (1995)
Toyota Dyna 150

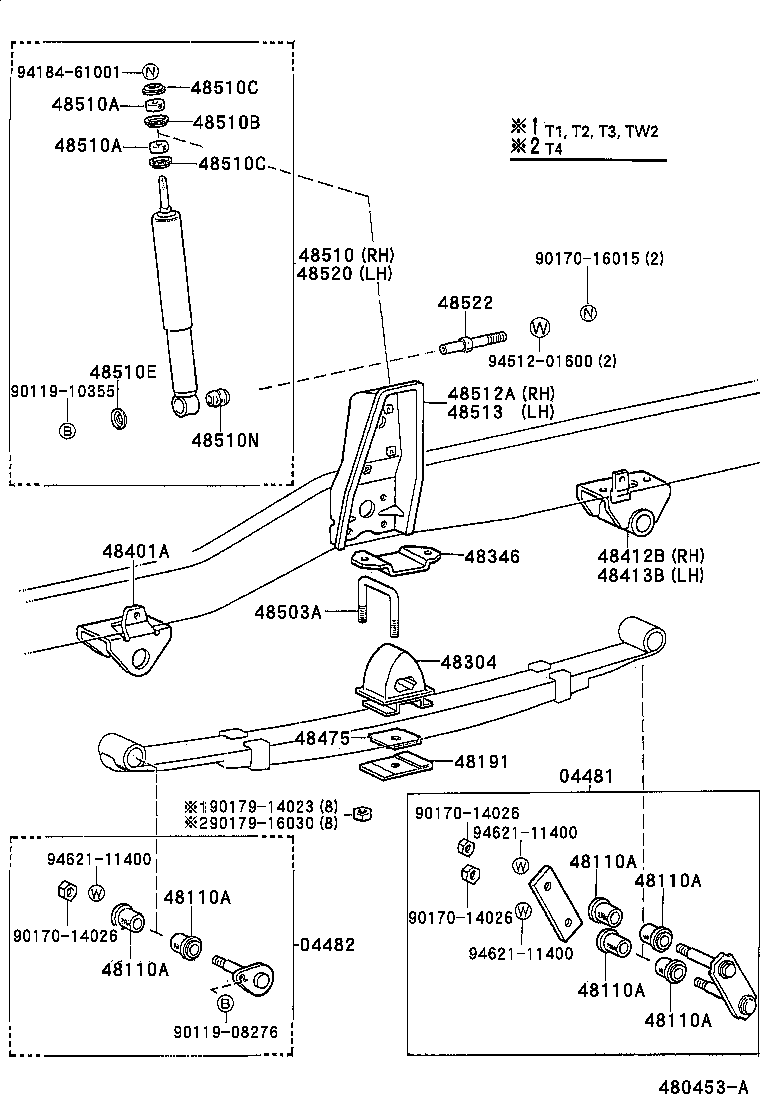

ILLUST NO. 1 OF 3(9505-9607)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-25050 |
LY21#,YY211 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-25020 |
LY21#,YY211 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-35020 |
LY21#,YY211 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36021 |
LY21#,YY211 |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-25091 |
LY21#..ST..15T..EUR;LY21#,YY211..15T..(ARL,GEN,SA) |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48411-25051 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA |
2 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48433-25060 |
LY211,YY211 |
1 | ||
| 48403-25010 |
LY21#,YY211 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48043-25010 |
LY21#,YY211 |
1 | ||
| 48434-25050 |
LY211,YY211 |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
LY21#,YY211 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-14045 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA L=95 |
2 | ||
| 90117-14047 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA L=90 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-29736 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA |
1 | ||
| 48511-29735 |
LY211..ST..EUR;LY211,YY211..ARL,GEN |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LY21#,YY211 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LY21#,YY211 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
LY21#,YY211 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LY21#,YY211 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LY21#,YY211 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY21#,YY211 |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-16010 |
LY21#,YY211 |
2 | ||
| 48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-25080 |
LY21#,YY211 |
1 | ||
| 48513 - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-25080 |
LY21#,YY211 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-29735 |
LY211..ST..EUR;LY211,YY211..ARL,GEN |
1 | ||
| 48511-29736 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25020 |
LY21#,YY211 |
2 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90170-16015 | ||||
| 90179-14023 | ||||
| 90179-16030 | ||||
| 94184-61001 | ||||
| 94512-01600 | ||||
| 94621-11400 | ||||

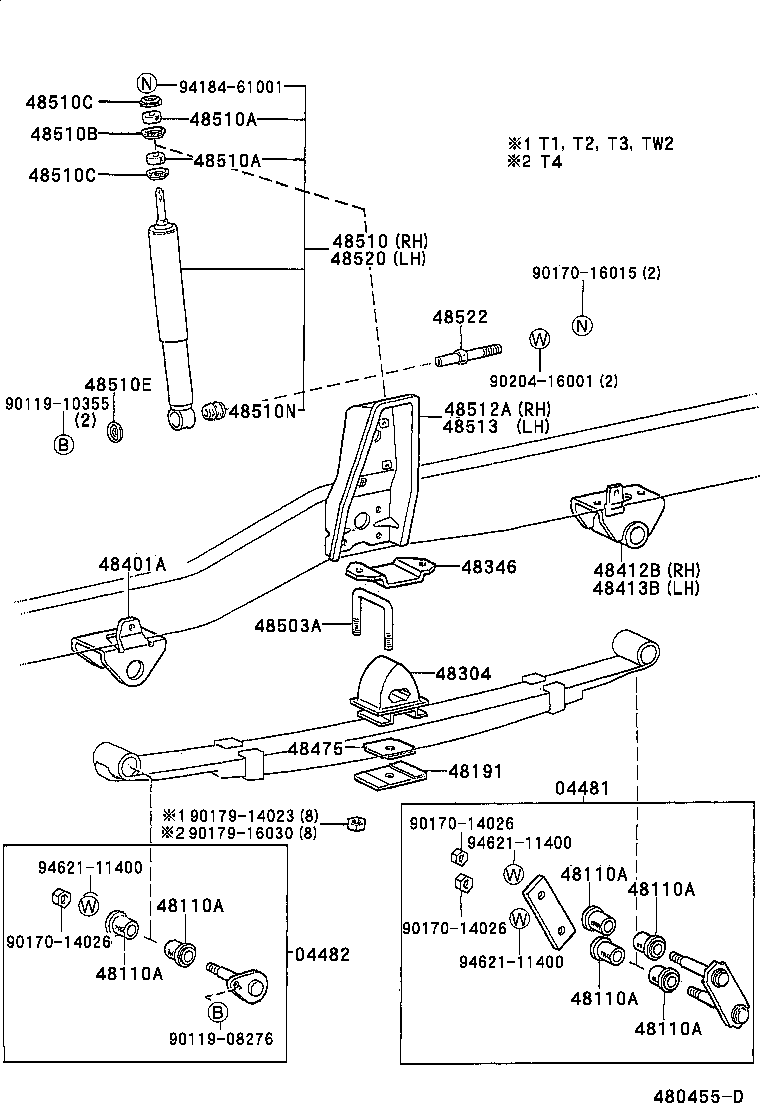

ILLUST NO. 1 OF 3(9607- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-25050 |
LY21#,YY211 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-25020 |
LY21#,YY211 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-35020 |
LY21#,YY211 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36021 |
LY21#,YY211 |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-25091 |
LY21#..ST..15T..EUR;LY21#,YY211..15T..(ARL,GEN,SA) |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48411-25051 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA |
2 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48433-25060 |
LY211,YY211 |
1 | ||
| 48403-25010 |
LY21#,YY211 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48043-25010 |
LY21#,YY211 |
1 | ||
| 48434-25050 |
LY211,YY211 |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
LY21#,YY211 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-14045 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA L=95 |
2 | ||
| 90117-14047 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA L=90 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-29736 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA |
1 | ||
| 48511-29735 |
LY211..ST..EUR;LY211,YY211..ARL,GEN |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LY21#,YY211 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LY21#,YY211 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
LY21#,YY211 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LY21#,YY211 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LY21#,YY211 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY21#,YY211 |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-16010 |
LY21#,YY211 |
2 | ||
| 48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-25080 |
LY21#,YY211 |
1 | ||
| 48513 - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-25080 |
LY21#,YY211 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-29735 |
LY211..ST..EUR;LY211,YY211..ARL,GEN |
1 | ||
| 48511-29736 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25020 |
LY21#,YY211 |
2 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90170-16015 | ||||
| 90179-14023 | ||||
| 90179-16030 | ||||
| 90204-16001 | ||||
| 94184-61001 | ||||
| 94621-11400 | ||||

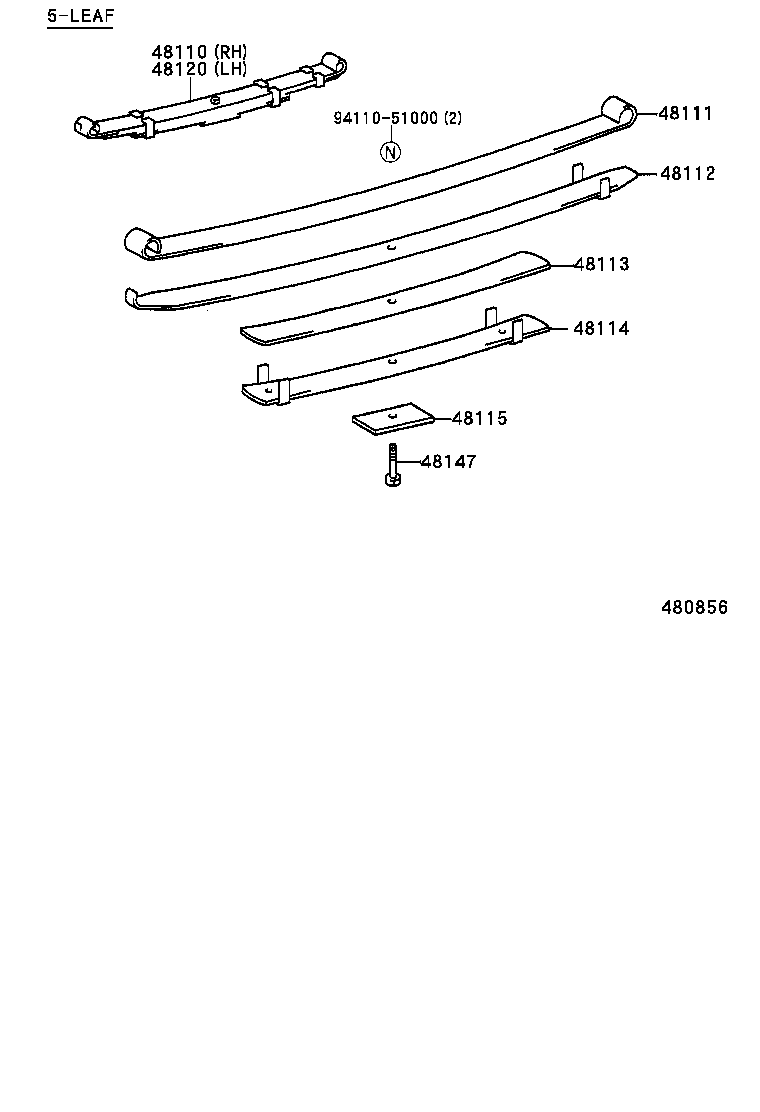

ILLUST NO. 3 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-25520 |
LY21#..ST..EUR;YY211..ST..125 5-LEAF |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-25520 |
LY21#..ST..EUR;YY211..ST..125 |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-25520 |
LY21#..ST..EUR;YY211..ST..125 |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-25520 |
LY21#..ST..EUR;YY211..ST..125 |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48103-25520 |
LY21#..ST..EUR;YY211..ST..125 |
2 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-25450 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-25520 |
LY21#..ST..EUR;YY211..ST..125 5-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-25450 |
LY21#,YY211 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
