LY211L-TBMFS3 (1995)
Toyota Dyna 150

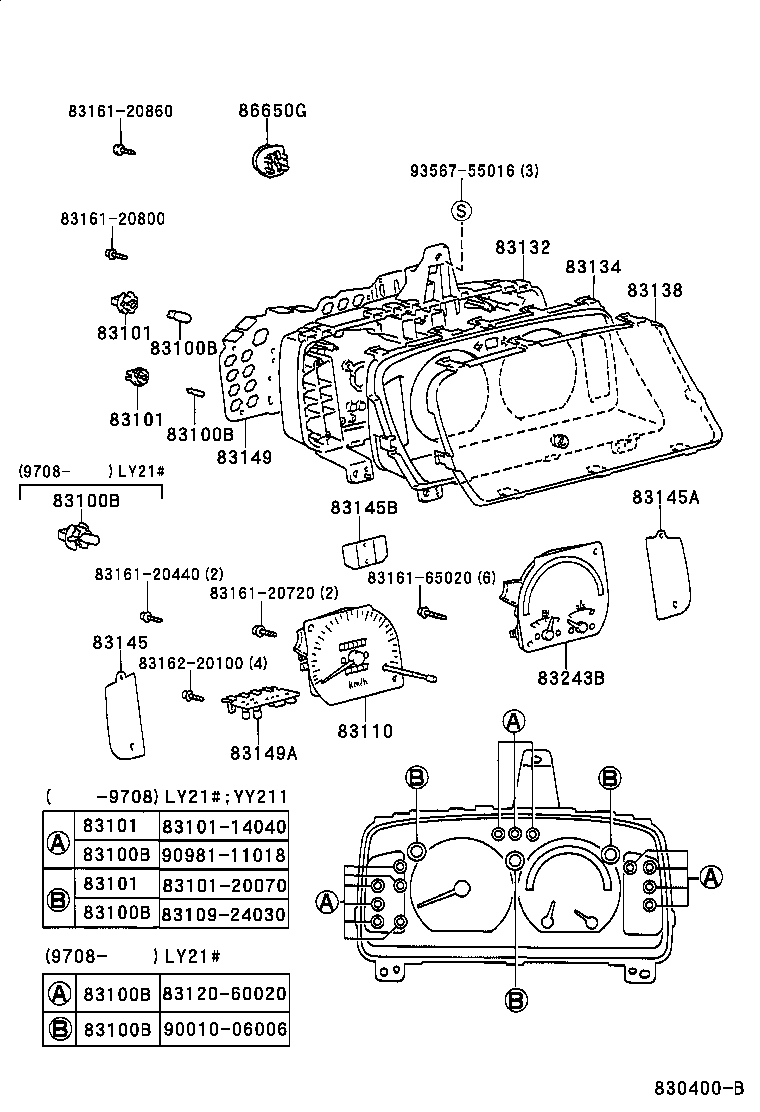

ILLUST NO. 1 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LY211,YY211 TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83101-14040 |
LY211,YY211 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LY211,YY211 TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83101-14040 |
LY211,YY211 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LY211,YY211 TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83101-14040 |
LY211,YY211 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LY211,YY211 TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83101-14040 |
LY211,YY211 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-25150 |
LY211..T2,TW2;LY211..(ARL,GEN)..IV |
1 | ||
| 83110-25160 |
LY211..ST..GEN MILE/KM SPEEDOMETER |
1 | ||
| 83110-25151 |
LY211..ARL,GEN |
1 | ||
| 83110-25161 |
LY211..ST..GEN MILE/KM SPEEDOMETER |
1 | ||
| 83110-25151 |
LY211..ST |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-37020 |
LY21#,YY211 |
1 | ||
| 83132-37020 |
LY212;LY211,YY211..ST |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-37020 |
LY21#,YY211 |
1 | ||
| 83134-37020 |
LY212;LY211,YY211..ST |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83137-37020 |
LY212;LY211,YY211..ST |
1 | ||
| 83137-37020 |
LY21#,YY211 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-37380 |
LY211..GEN..IV;LY211..ST..125..CBU W(MILE/KM SPEEDOMETER) |
1 | ||
| 83146-37180 |
LY211..ST..(ARL,GEN) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-37200 |
LY21#;YY211..ST |
1 | ||
| 83146-37200 |
LY212;LY211,YY211..ST |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83146-37140 |
LY21#,YY211 |
1 | ||
| 83146-37140 |
LY212;LY211,YY211..ST |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-37580 |
LY211..ST..(ARL,GEN) |
1 | ||
| 83149-37600 |
LY211..ST..GEN W(MILE/KM SPEEDOMETER) |
1 | ||
| 83149A - PLATE, METER CIRCUIT, NO.2 | ||||
| 83149-26860 |
LY21#,YY211 |
1 | ||
| 83149-26860 |
LY21#,YY211..(T3,TW1,TW2)..TS |
1 | ||
| 83243B - GAUGE ASSY, COMBINATION | ||||
| 83243-37080 |
LY212..IV;LY211,YY211..(T3,TW1,TW2)..TS |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 83248-20010 |
LY21#..ARL,GEN,SA |
1 | ||
| 83248-20010 |
LY211..ST;LY212..T2 |
1 | ||
| Common parts | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 83161-20800 | ||||
| 83161-20860 | ||||
| 83161-65020 | ||||
| 83162-20100 | ||||
| 93567-55016 | ||||

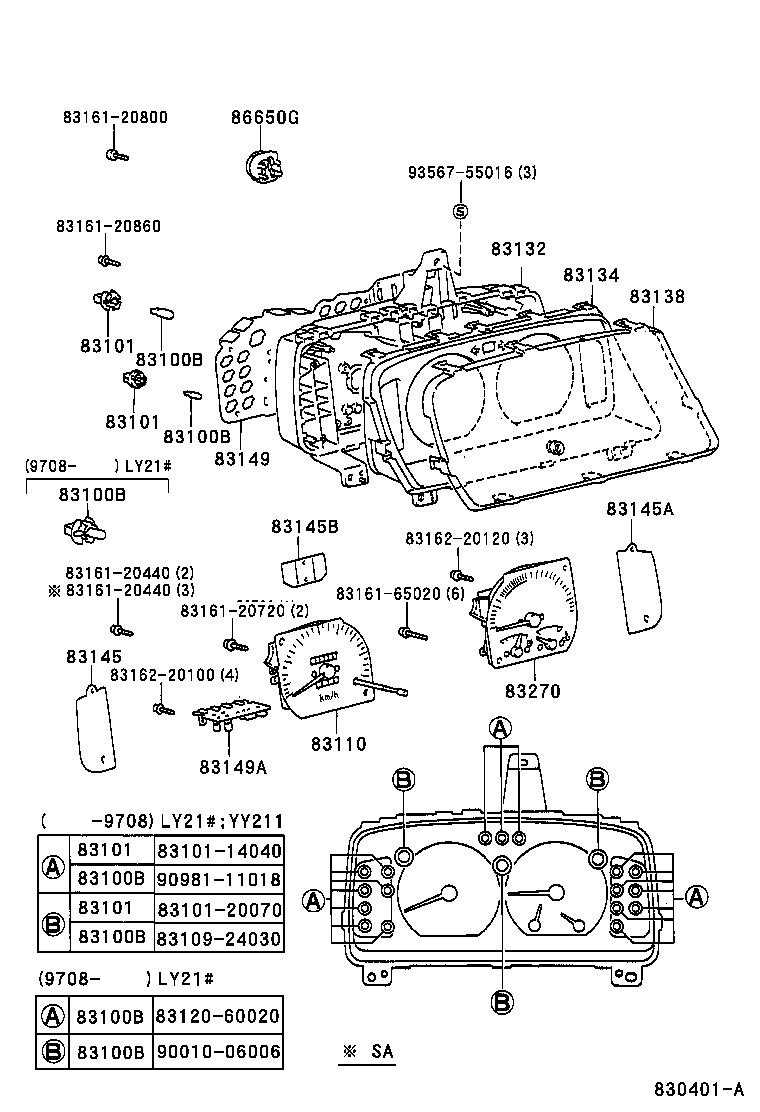

ILLUST NO. 1 OF 3(9505- )
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY211,YY211 12V3.4W W(GREEN CAP) |
3 | ||
| 83120-60020 |
LY21# 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06006 |
LY212;LY211..ST 12V3.4W,W(GREEN CAP) |
3 | ||
| 90010-06006 |
LY21# 12V3.4W,W(GREEN CAP) |
3 | ||
| 90981-11018 |
LY211,YY211 12V 1.2W W/O SOCKET |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LY211,YY211 TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83101-14040 |
LY211,YY211 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LY211,YY211 TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83101-14040 |
LY211,YY211 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LY211,YY211 TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83101-14040 |
LY211,YY211 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LY211,YY211 TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83101-14040 |
LY211,YY211 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-25150 |
LY211..T2,TW2;LY211..(ARL,GEN)..IV |
1 | ||
| 83110-25160 |
LY211..ST..GEN MILE/KM SPEEDOMETER |
1 | ||
| 83110-25151 |
LY211..ARL,GEN |
1 | ||
| 83110-25161 |
LY211..ST..GEN MILE/KM SPEEDOMETER |
1 | ||
| 83110-25151 |
LY211..ST |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-37020 |
LY21#,YY211 |
1 | ||
| 83132-37020 |
LY212;LY211,YY211..ST |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-37020 |
LY21#,YY211 |
1 | ||
| 83134-37020 |
LY212;LY211,YY211..ST |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83137-37020 |
LY212;LY211,YY211..ST |
1 | ||
| 83137-37020 |
LY21#,YY211 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-37380 |
LY211..GEN..IV;LY211..ST..125..CBU W(MILE/KM SPEEDOMETER) |
1 | ||
| 83146-37180 |
LY211..ST..(ARL,GEN) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-37200 |
LY21#;YY211..ST |
1 | ||
| 83146-37200 |
LY212;LY211,YY211..ST |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83146-37140 |
LY21#,YY211 |
1 | ||
| 83146-37140 |
LY212;LY211,YY211..ST |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-37580 |
LY211..ST..(ARL,GEN) |
1 | ||
| 83149-37600 |
LY211..ST..GEN W(MILE/KM SPEEDOMETER) |
1 | ||
| 83149A - PLATE, METER CIRCUIT, NO.2 | ||||
| 83149-26860 |
LY21#,YY211 |
1 | ||
| 83149-26860 |
LY21#,YY211..(T3,TW1,TW2)..TS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83243-37320 |
LY211..15T..IV;LY211..T2,TW1,TW2 |
1 | ||
| 83243-37320 |
LY211..IV;LY212..WT..EUR |
1 | ||
| 83243-37320 |
LY211..T2,TW2;LY21#..WT..15T..EUR;LY211..(ARL,GEN)..IV |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 83248-20010 |
LY21#..ARL,GEN,SA |
1 | ||
| 83248-20010 |
LY211..ST;LY212..T2 |
1 | ||
| Common parts | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 83161-20800 | ||||
| 83161-20860 | ||||
| 83161-65020 | ||||
| 83162-20100 | ||||
| 83162-20120 | ||||
| 93567-55016 | ||||

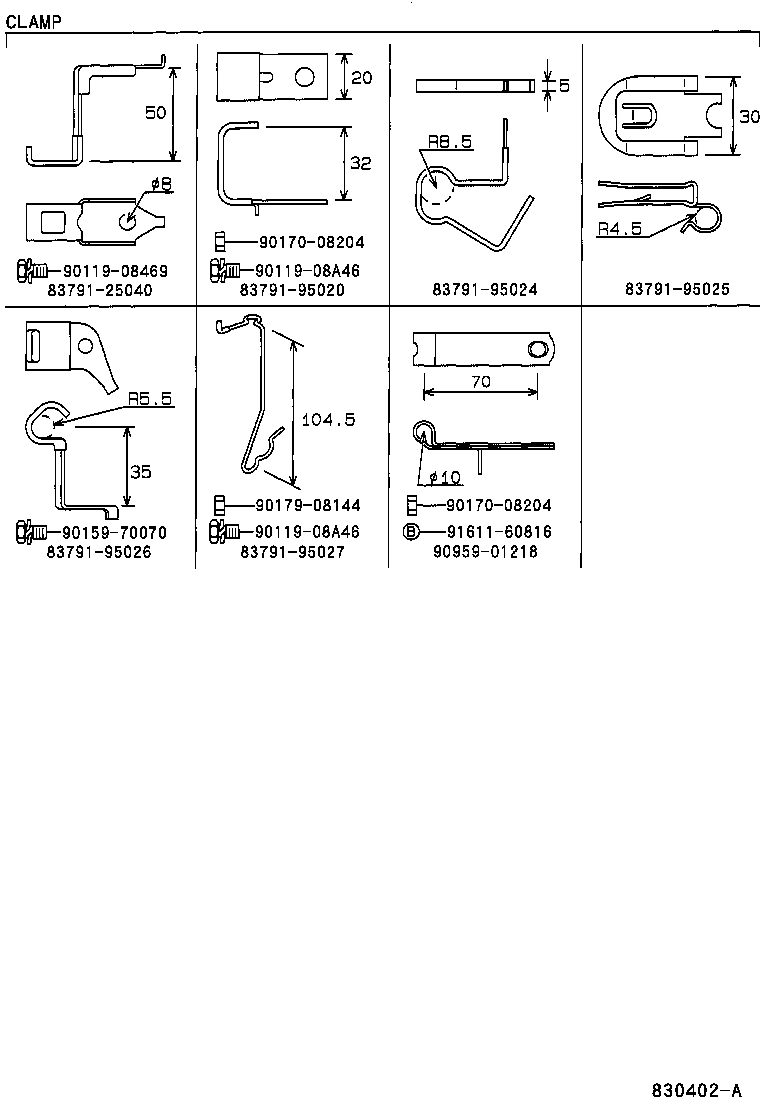

ILLUST NO. 3 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-25040 | ||||
| 83791-95020 | ||||
| 83791-95024 | ||||
| 83791-95025 | ||||
| 83791-95026 | ||||
| 83791-95027 | ||||
| 90119-08469 | ||||
| 90119-08A46 | ||||
| 90159-70070 | ||||
| 90170-08204 | ||||
| 90179-08144 | ||||
| 90959-01218 | ||||
| 91611-60816 | ||||

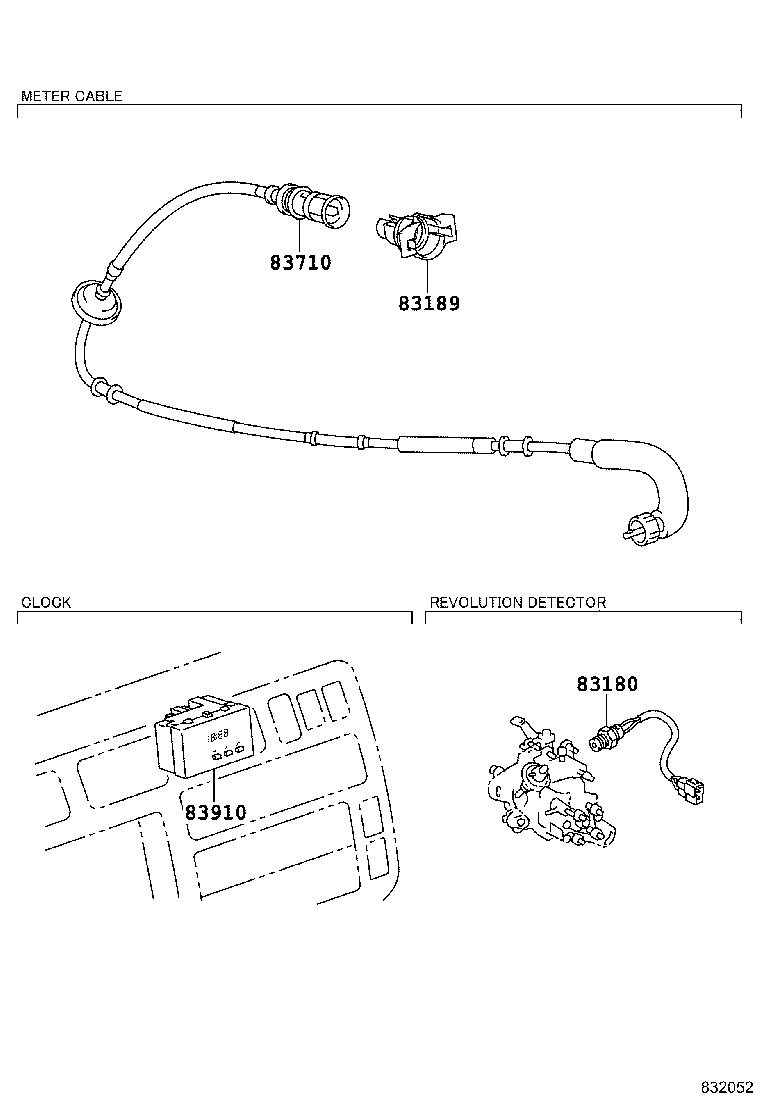

ILLUST NO. 2 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-60080 |
LY211 |
1 | ||
| 83180-60080 |
LY211..ARL,GEN |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
LY21#,YY211 |
1 | ||
| 83189-20020 |
LY212;LY211,YY211..ST |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-25230 |
LY21#..LHD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-37050 |
LY21#,YY211..ARL,EUR,GEN |
1 | ||
| 83910-37050 |
LY212..EUR,GEN;LY211,YY211..ST |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
