LY211L-PSMDS (1995)
Toyota Dyna 150
Production
May 1995
-
May 1999
Engine
3L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

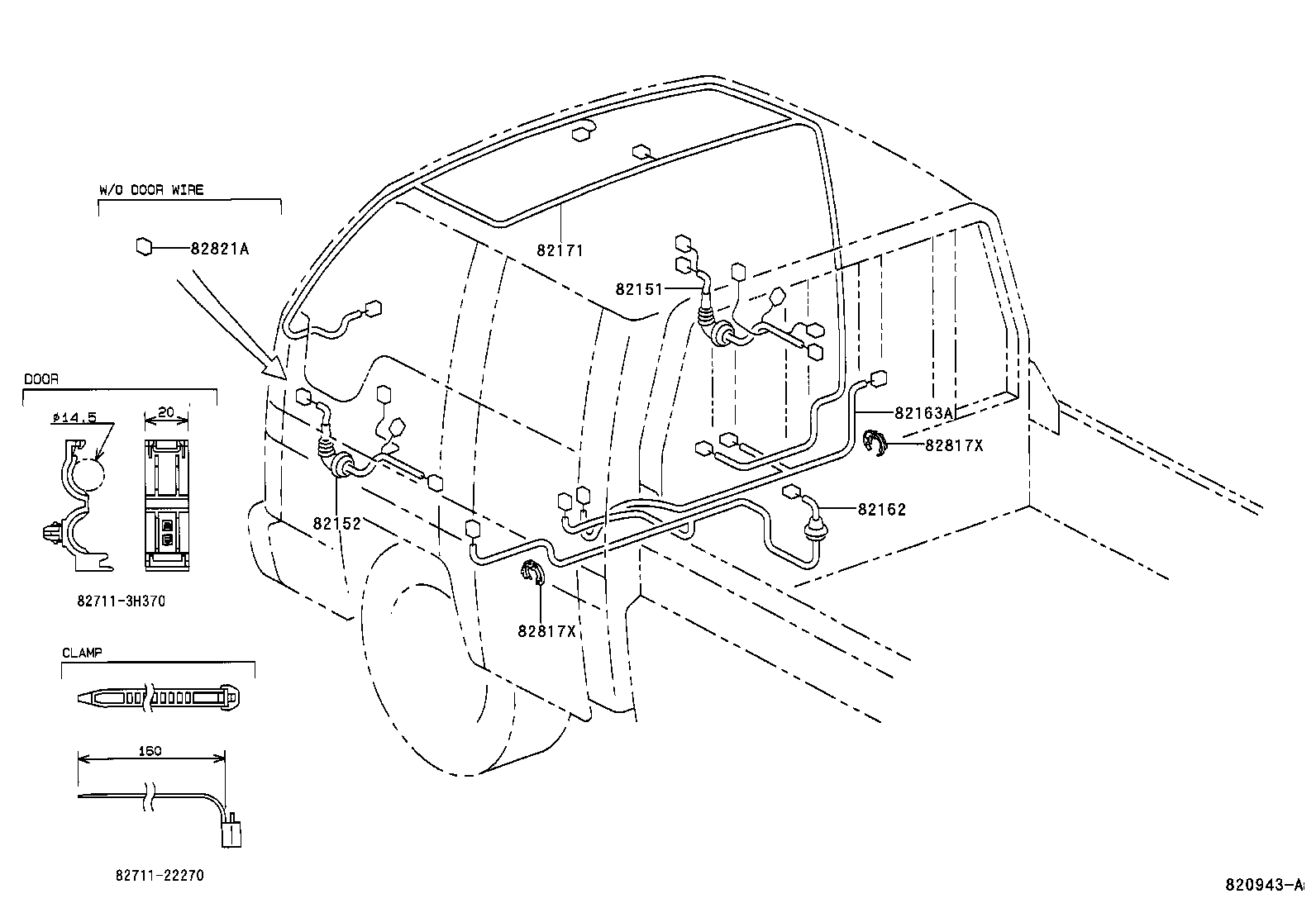

ILLUST NO. 3 OF 5(9505- )
Click highlighted areas on diagram
ROOF & FLOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-37020 |
LY21#,YY211..TS..125 |
1 | ||
| 82163A - WIRE, FLOOR, NO.4 | ||||
| 82163-95010 |
LY21#,YY211..TS..125 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37110 |
LY21#,YY211..125 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-28640 |
LY21#,YY211..TS..125 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-28640 |
LY21#,YY211..TS..125 |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 82711-3H370 | ||||
ILLUST NO. 5 OF 5(9505- )LY21#
Click highlighted areas on diagram
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08103 | ||||
| 91651-60816 | ||||

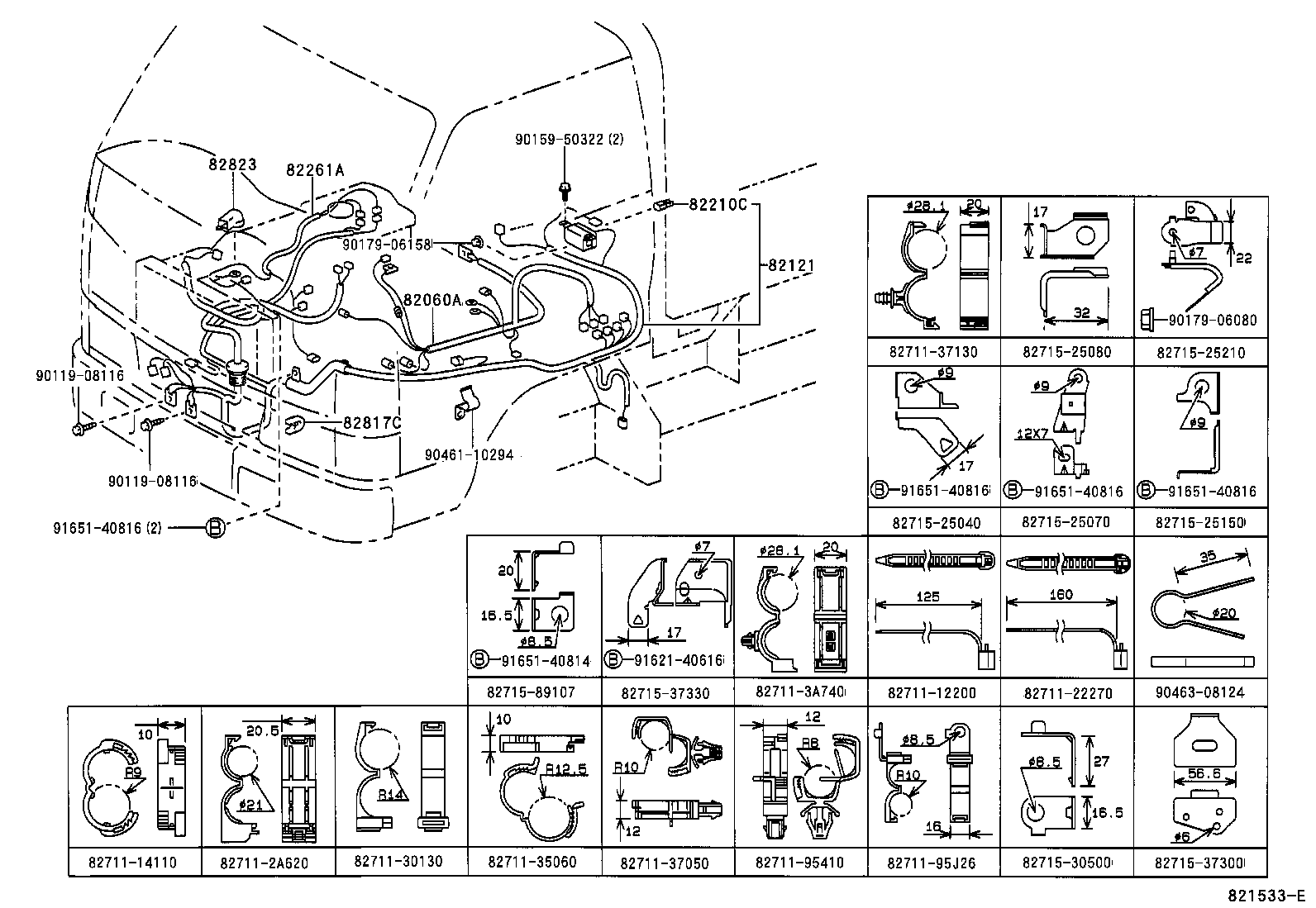

ILLUST NO. 1 OF 5(9505- )LY21#
Click highlighted areas on diagram
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82060A - WIRE ASSY, ENGINE, NO.2 | ||||
| 82060-25033 |
LY211..GEN |
1 | ||
| 82060-25033 |
LY211..ST..GEN |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-25191 |
LY211..LHD..GEN |
1 | ||
| 82121-25192 |
LY211..LHD..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
LY21#,YY211 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
LY21#,YY211 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08203 |
LY21# 80A,TERM.:MALE,BLK |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-25010 |
LY211..ARL,GEN |
1 | ||
| 82261-25020 |
LY21# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-22270 | ||||
| 82711-2A620 | ||||
| 82711-30130 | ||||
| 82711-35060 | ||||
| 82711-37050 | ||||
| 82711-37130 | ||||
| 82711-3A740 | ||||
| 82711-95410 | ||||
| 82711-95J26 | ||||
| 82715-25040 | ||||
| 82715-25070 | ||||
| 82715-25080 | ||||
| 82715-25150 | ||||
| 82715-25210 | ||||
| 82715-30500 | ||||
| 82715-37300 | ||||
| 82715-37330 | ||||
| 82715-89107 | ||||
| 90119-08116 | ||||
| 90159-50322 | ||||
| 90179-06080 | ||||
| 90179-06158 | ||||
| 90461-10294 | ||||
| 90463-08124 | ||||
| 91621-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||

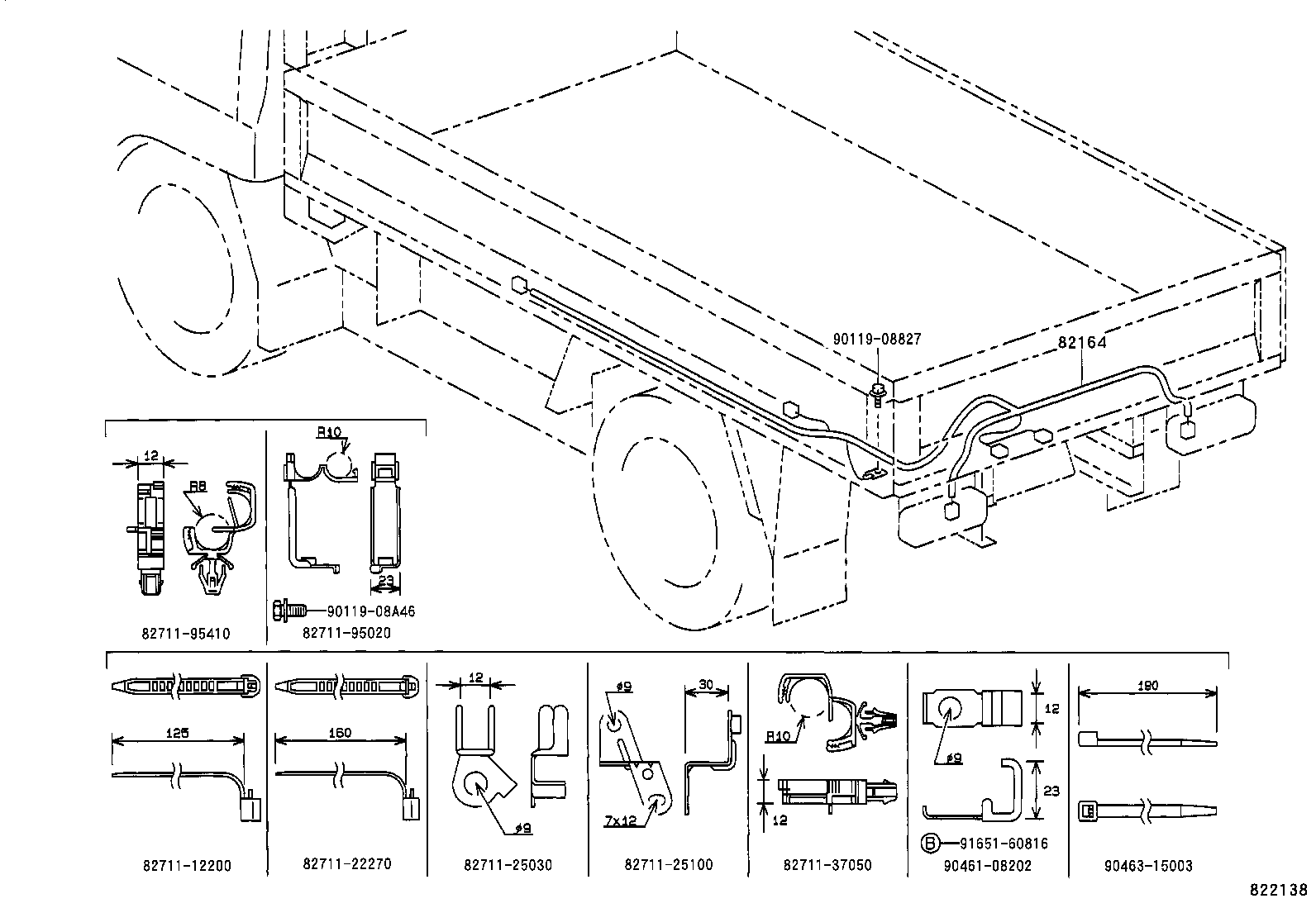

ILLUST NO. 4 OF 5(9505- )
Click highlighted areas on diagram
BODY WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-25311 |
LY211..ST..125..CBU |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 82711-25030 | ||||
| 82711-25100 | ||||
| 82711-37050 | ||||
| 82711-95020 | ||||
| 82711-95410 | ||||
| 90119-08827 | ||||
| 90119-08A46 | ||||
| 90461-08202 | ||||
| 90463-15003 | ||||
| 91651-60816 | ||||

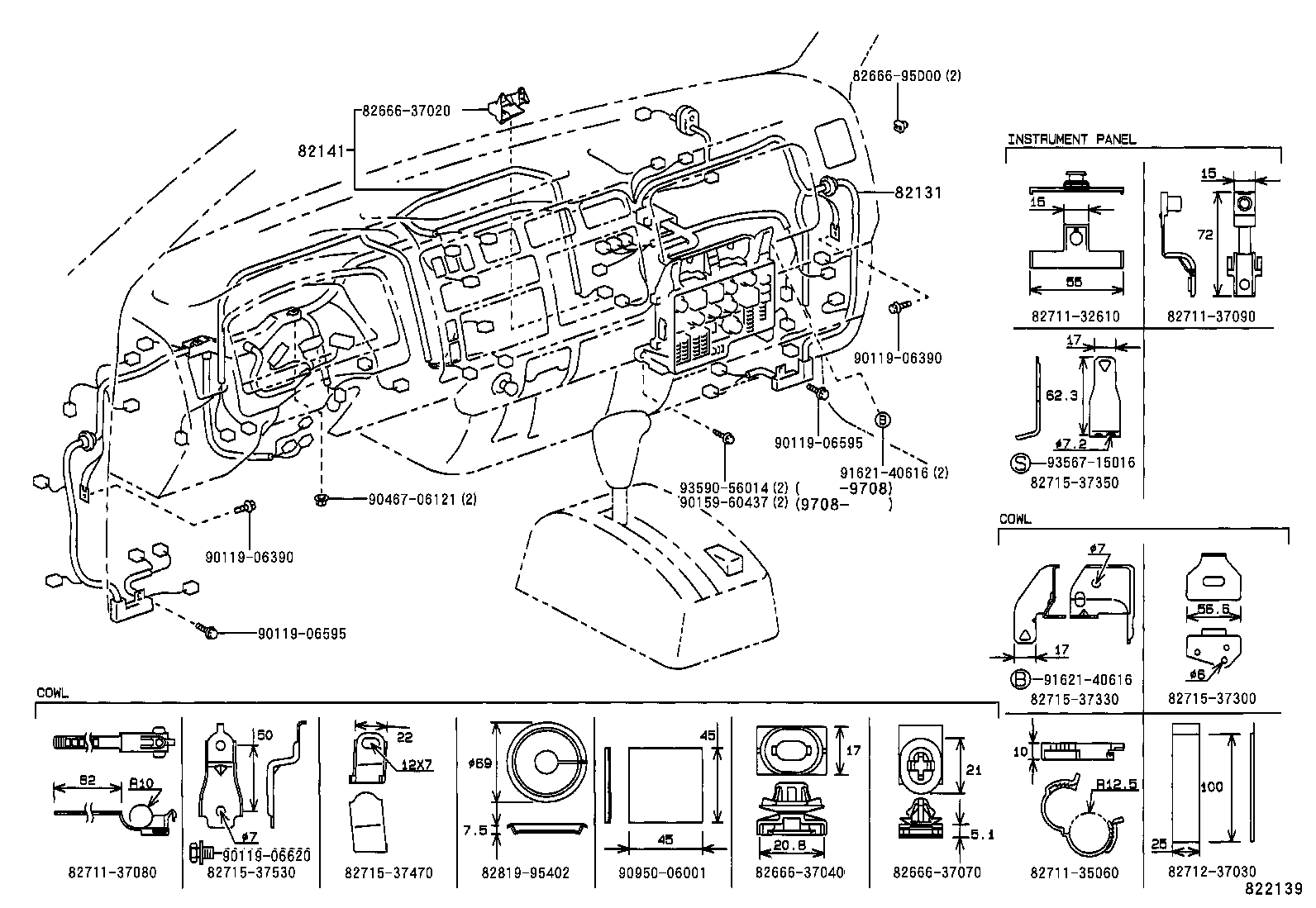

ILLUST NO. 2 OF 5(9505- )LHD
Click highlighted areas on diagram
COWL & INSTRUMENT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-25380 |
LY211..LHD..GEN |
1 | ||
| 82131-25381 |
LY211..LHD..GEN |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-37060 |
LY211,YY211..LHD..GEN |
1 | ||
| 82141-37061 |
LY211,YY211..LHD..GEN |
1 | ||
| Common parts | ||||
| 82666-37020 | ||||
| 82666-37040 | ||||
| 82666-37070 | ||||
| 82666-95D00 | ||||
| 82711-32610 | ||||
| 82711-35060 | ||||
| 82711-37080 | ||||
| 82711-37090 | ||||
| 82712-37030 | ||||
| 82715-37300 | ||||
| 82715-37330 | ||||
| 82715-37350 | ||||
| 82715-37470 | ||||
| 82715-37530 | ||||
| 82819-95402 | ||||
| 90119-06390 | ||||
| 90119-06595 | ||||
| 90119-06620 | ||||
| 90159-60437 | ||||
| 90467-06121 | ||||
| 90950-06001 | ||||
| 91621-40616 | ||||
| 93567-15016 | ||||
| 93590-56014 | ||||
