YY100R-TBMBSQ3 (1995)

Toyota Dyna 100

Production May 1995 - Jul 2001
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )YY100..IV

Click highlighted areas on diagram

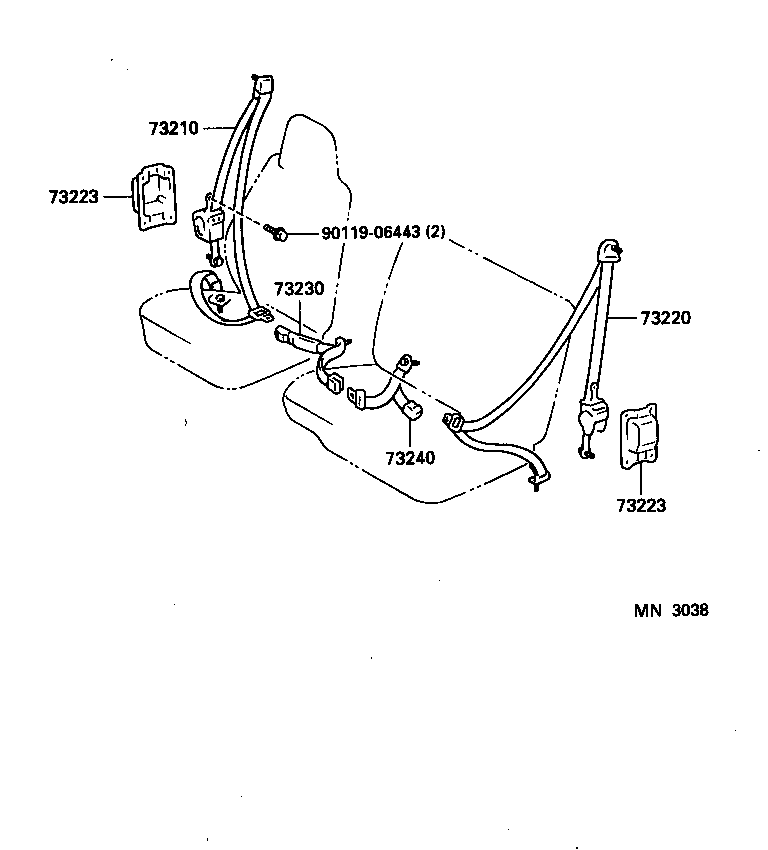

diagram 73210 73220 73223 73223 73230 73240 9011906443
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37010B1

YY100..IV

BLUISH GRAY,TRIM1#

 1
73210-37011B1

YY100..IV

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37010B1

YY100..IV

BLUISH GRAY,TRIM1#

 1
73210-37011B1

YY100..IV

BLUISH GRAY,TRIM1#

 1
73223 - COVER, SEAT BELT RETRACTOR
73223-37010

LY100,YY100..ARL,EUR

 2
73223 - COVER, SEAT BELT RETRACTOR
73223-37010

LY100,YY100..ARL,EUR

 2
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95420B1

YY100..IV

BLUISH GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-37032B1

YY100..IV

BLUISH GRAY,TRIM1#

 1
73240-37031B1

YY100..IV

BLUISH GRAY,TRIM1#

 1
Common parts
90119-06443
