YY100R-TBMBSQ3 (1995)
Toyota Dyna 100
Production
May 1995
-
Jul 2001
Engine
2Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

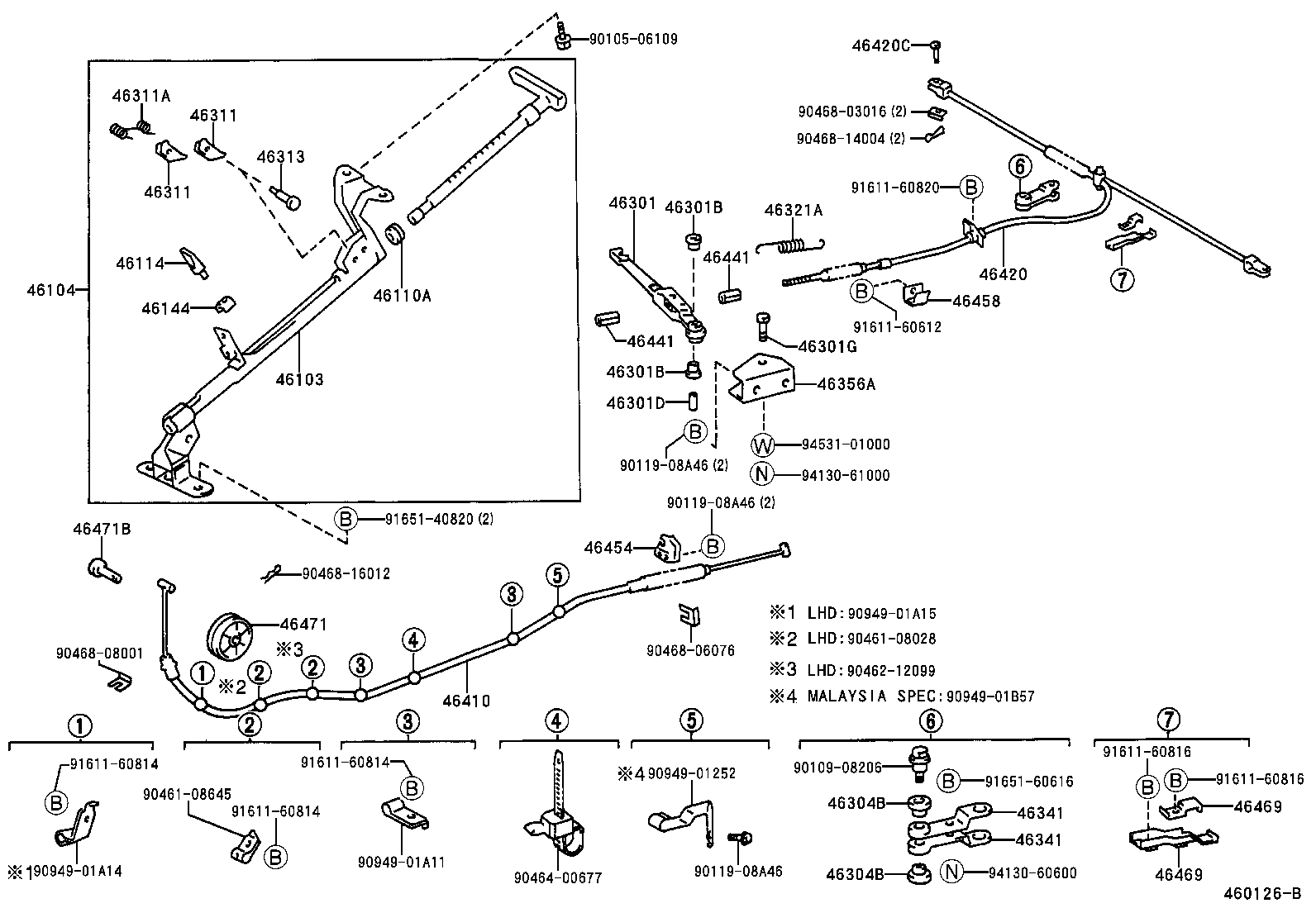

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-26181 |
LY100,YY100..RHD |
1 | ||
| 46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46104-26181 |
LY100,YY100..RHD |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
LY100,YY100 |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LY100,YY100 |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
LY100,YY100 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-26030 |
LY100,YY100..ARL,GEN |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY100,YY100 |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY100,YY100 |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10003 |
LY100,YY100 |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 90101-10039 |
LY100,YY100 |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LY100,YY100 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LY100,YY100 |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
LY100,YY100 |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
LY100,YY100 |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
LY100,YY100 |
1 | ||
| 46313 - PIN, PARKING BRAKE PAWL | ||||
| 46313-40010 |
LY100,YY100 |
2 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-18058 |
LY100,YY100 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35020 |
LY100,YY100 |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35020 |
LY100,YY100 |
2 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-26090 |
LY100,YY100 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26371 |
LY100,YY100..RHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25220 |
LY100,YY100..ARL,GEN |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
LY100,YY100 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LY100,YY100 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LY100,YY100 |
2 | ||
| 46454 - BRACKET, CABLE RETAINER, FRONT | ||||
| 46454-26051 |
LY100,YY100 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
LY100,YY100 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-60020 |
LY100,YY100 UPR |
1 | ||
| 46469-25010 |
LY100,YY100 LWR |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-60020 |
LY100,YY100 UPR |
1 | ||
| 46469-25010 |
LY100,YY100 LWR |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
LY100,YY100 |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
LY100,YY100 |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90109-08206 | ||||
| 90119-08A46 | ||||
| 90461-08028 | ||||
| 90461-08645 | ||||
| 90462-12099 | ||||
| 90464-00677 | ||||
| 90468-03016 | ||||
| 90468-06076 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90468-16012 | ||||
| 90949-01252 | ||||
| 90949-01A11 | ||||
| 90949-01A14 | ||||
| 90949-01A15 | ||||
| 90949-01B57 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40820 | ||||
| 91651-60616 | ||||
| 94130-60600 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
