YY100R-TBMBSQ3 (1995)

Toyota Dyna 100

Production May 1995 - Jul 2001
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9505-9905)YY100..IV

Click highlighted areas on diagram

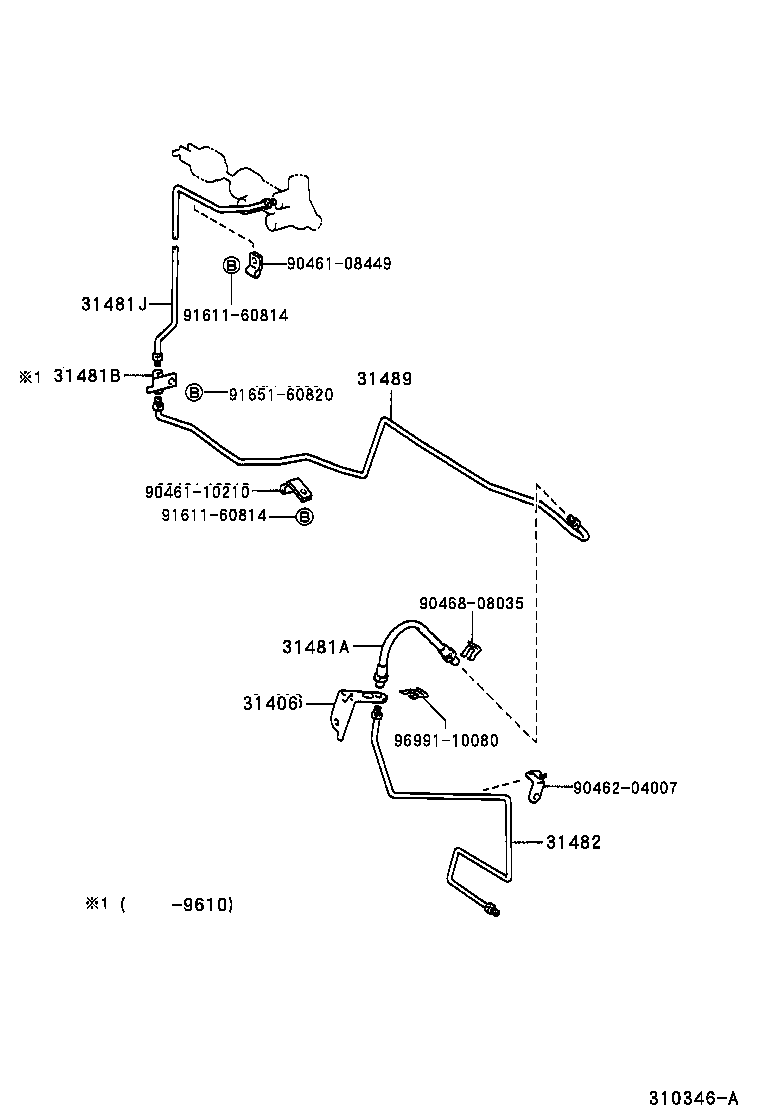

diagram 31406 31481A 31481B 31481J 31482 31489 9046108449 9046110210 9046204007 9046808035 9161160814 9161160814 9165160820 9699110080
Part # Description Qty Price
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26011

YY100

 1
31481A - HOSE, CLUTCH, NO.1
90931-01052

YY100

 1
31481B - WAY(FOR CLUTCH TUBE)
90412-12018

LY100,YY100

 1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-25180

LY100,YY100..RHD

 1
31481-25160

LY100,YY100..RHD

 1
31481-25200

LY100,YY100..RHD

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25110

YY100

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-25130

LY100,YY100..RHD

 1
31489-25150

LY100,YY100..RHD

 1
31489-25170

LY100,YY100..RHD

 1
Common parts
90461-08449
90461-10210
90462-04007
90468-08035
91611-60814
91651-60820
96991-10080

ILLUST NO. 2 OF 2(9905- )YY100

Click highlighted areas on diagram

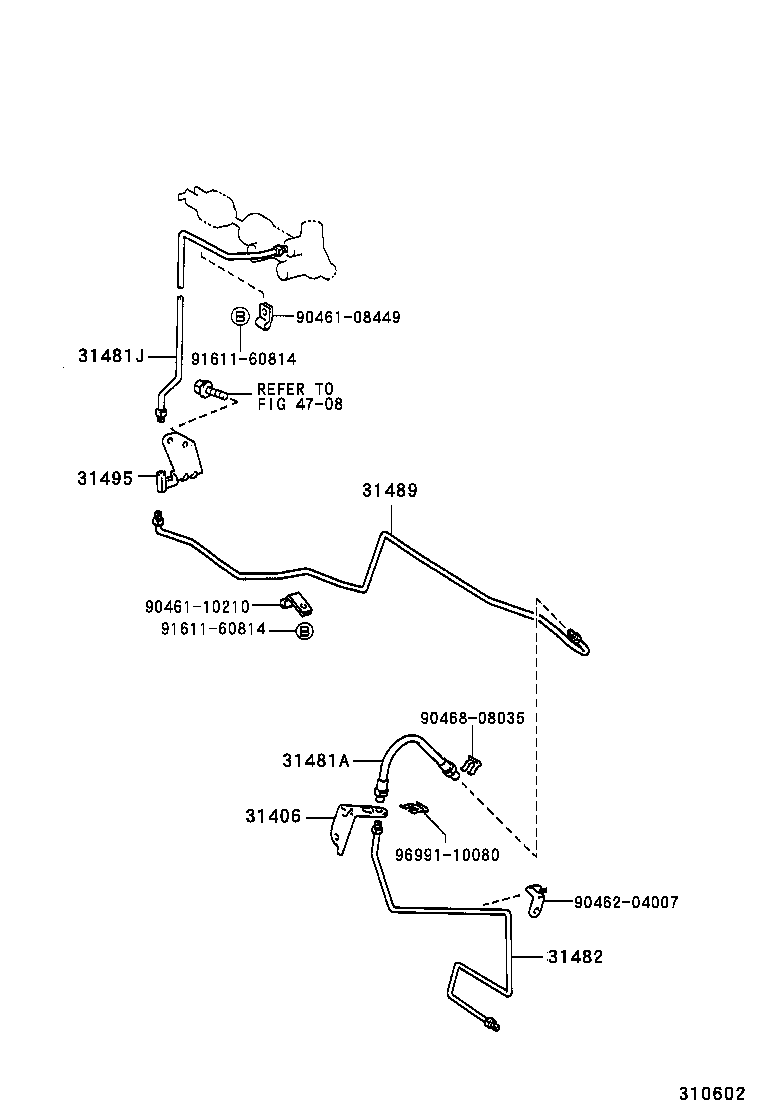

diagram 31406 31481A 31481J 31482 31489 31495 4708 9046108449 9046110210 9046204007 9046808035 9161160814 9161160814 9699110080
Part # Description Qty Price
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26011

YY100

 1
31481A - HOSE, CLUTCH, NO.1
90931-01052

YY100

 1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-25180

LY100,YY100..RHD

 1
31481-25160

LY100,YY100..RHD

 1
31481-25200

LY100,YY100..RHD

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25110

YY100

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-25130

LY100,YY100..RHD

 1
31489-25150

LY100,YY100..RHD

 1
31489-25170

LY100,YY100..RHD

 1
31495 - WAY, CLUTCH TUBE
31495-25010

LY100,YY100..RHD

 1
Common parts
90461-08449
90461-10210
90462-04007
90468-08035
91611-60814
96991-10080
Linked diagrams
4708

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 31453A 31453B 9046816142 9413061000 9453101000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-37090

LY100,YY100

 1
31301-37090

LY100..TW2..IV;LY100,YY100..T3

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35004

LY100,YY100

 1
90508-35004

LY100..TW2..IV;LY100,YY100..T3

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

LY100,YY100

 1
90541-06036

LY100..TW2..IV;LY100,YY100..T3

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LY100..TW2..IV;LY100,YY100..T3

 2
90386-13007

LY100,YY100

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LY100..TW2..IV;LY100,YY100..T3

 2
90386-13007

LY100,YY100

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

LY100..TW2..IV;LY100,YY100..T3

 1
90101-08052

LY100,YY100

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800

LY100,YY100

 1
94130-60800

LY100..TW2..IV;LY100,YY100..T3

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

LY100,YY100

 1
31321-14020

LY100..TW2..IV;LY100,YY100..T3

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

LY100..TW2..IV;LY100,YY100..T3

 1
91121-51070

LY100,YY100

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

LY100,YY100

 1
90387-10004

LY100..TW2..IV;LY100,YY100..T3

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

LY100,YY100

L=23.5

 1
90240-08006

LY100..TW2..IV;LY100,YY100..T3

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

LY100,YY100

 1
90386-08002

LY100..TW2..IV;LY100,YY100..T3

 1
Common parts
90468-16142
94130-61000
94531-01000
