YY100L-TBMBS (1995)
Toyota Dyna 100
Production
May 1995
-
May 1999
Engine
2Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )YY100 ; (9505- )LY100..RHD ; (9505- )LHD..T3..EUR

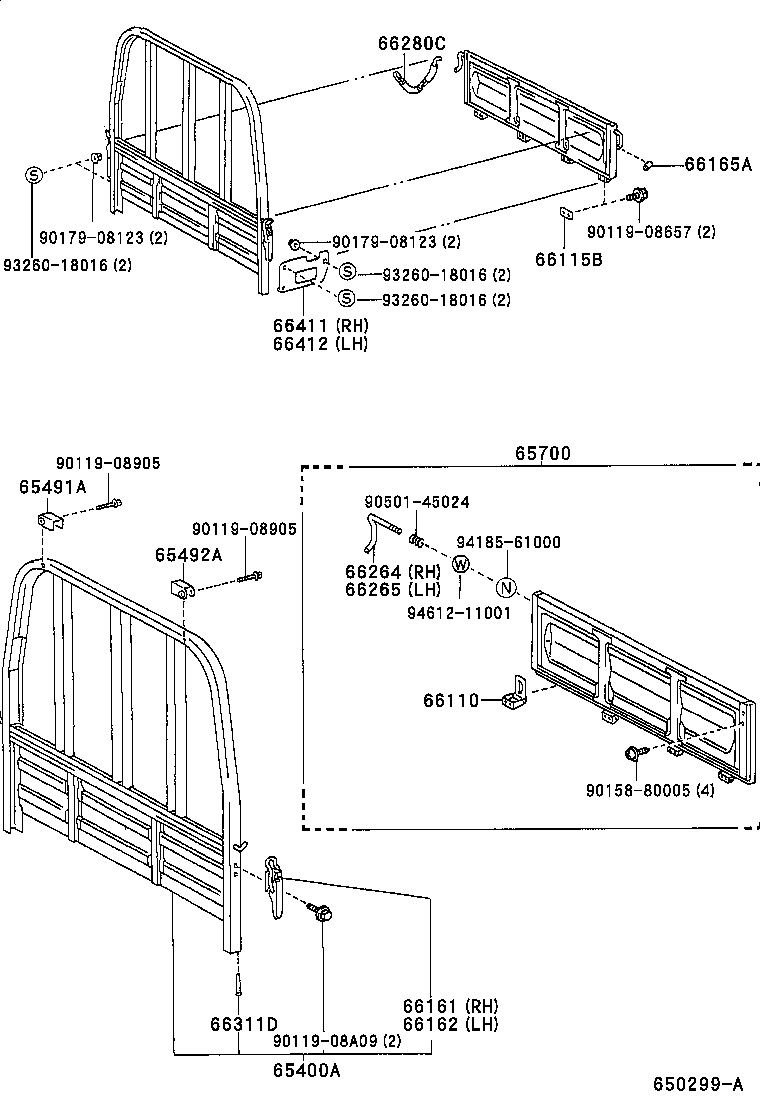

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400A - GUARD ASSY, REAR BODY | ||||
| 65400-26080 |
LY100,YY100..T3..CBU |
1 | ||
| 65491A - STOP, GUARD FRAME LOAD SLIDE, RH | ||||
| 65491-25010 |
LY100,YY100..T3..CBU |
1 | ||
| 65492A - STOP, GUARD FRAME LOAD SLIDE, LH | ||||
| 65492-25010 |
LY100,YY100..T3..CBU |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-26010 |
LY100,YY100..T3..CBU |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-26010 |
LY100,YY100..T3..CBU |
4 | ||
| 66115B - RETAINER, GATE HINGE | ||||
| 66115-95013 |
LY100,YY100..T3..CBU |
4 | ||
| 66161 - HANDLE, SIDE GATE LATCH, RH | ||||
| 65480-92700 |
LY100,YY100..T3..CBU |
1 | ||
| 66162 - HANDLE, SIDE GATE LATCH, LH | ||||
| 65490-92701 |
LY100,YY100..T3..CBU |
1 | ||
| 66165A - CAP, GATE LATCH HANDLE | ||||
| 66165-87402 |
LY100,YY100..T3..CBU |
2 | ||
| 66264 - HANDLE, TAIL GATE LATCH, RH | ||||
| 66264-26010 |
LY100,YY100..T3..CBU |
1 | ||
| 66265 - HANDLE, TAIL GATE LATCH, LH | ||||
| 66265-26010 |
LY100,YY100..T3..CBU |
1 | ||
| 66280C - CHAIN ASSY, TAIL GATE | ||||
| 66280-25010 |
LY100,YY100..T3..CBU |
2 | ||
| 66311D - HOOK, ROPE | ||||
| 66312-95A01 |
LY100,YY100..T3..CBU |
2 | ||
| 66411 - BRACKET, GUARD FRAME, RH | ||||
| 66411-95022 |
LY100,YY100..T3..CBU |
1 | ||
| 66412 - BRACKET, GUARD FRAME, LH | ||||
| 66412-95022 |
LY100,YY100..T3..CBU |
1 | ||
| Common parts | ||||
| 90119-08657 | ||||
| 90119-08905 | ||||
| 90119-08A09 | ||||
| 90158-80005 | ||||
| 90179-08123 | ||||
| 90501-45024 | ||||
| 93260-18016 | ||||
| 94185-61000 | ||||
| 94612-11001 | ||||
