YY100L-TBMBS (1995)

Toyota Dyna 100

Production May 1995 - May 1999
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

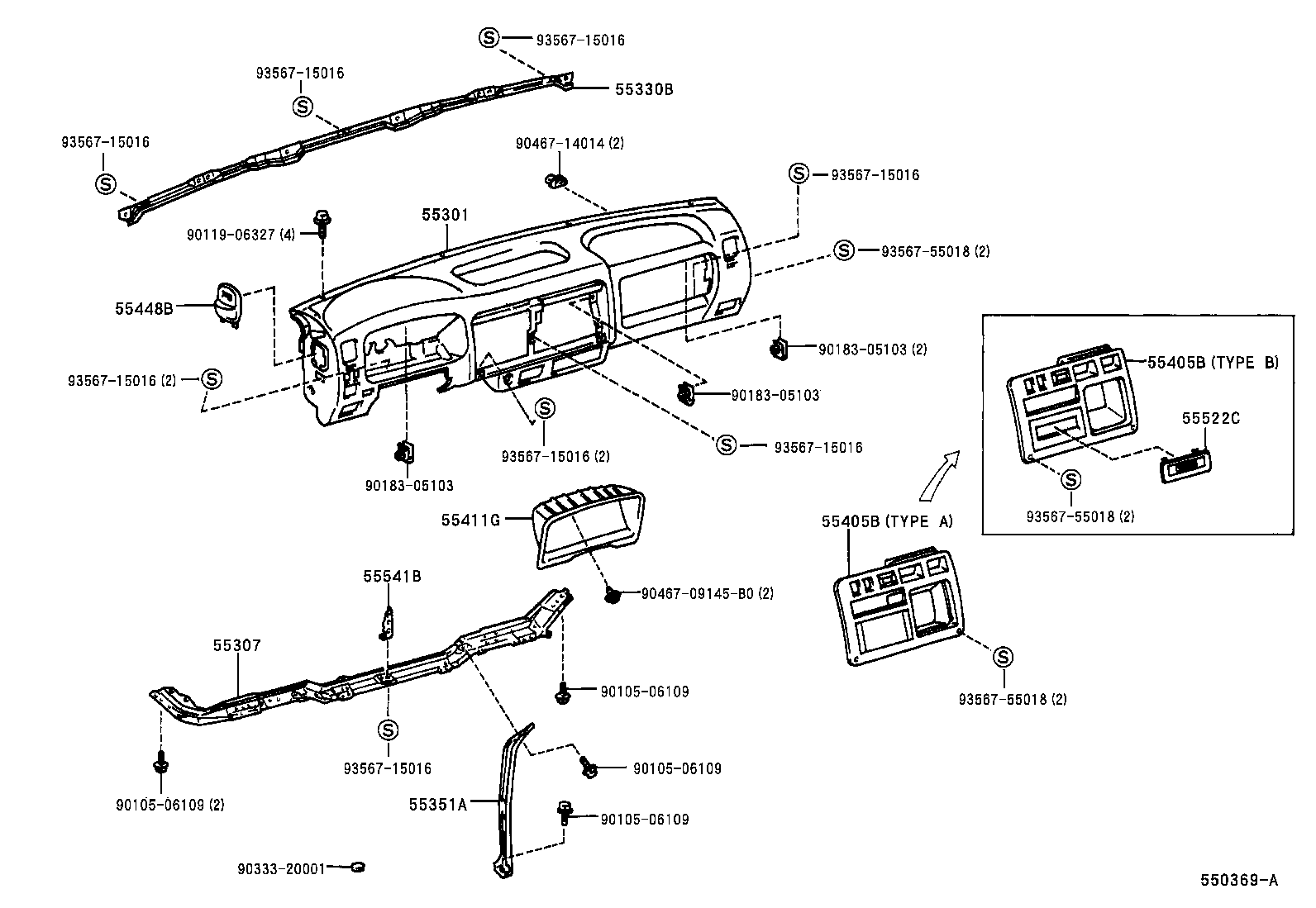

ILLUST NO. 1 OF 2(9505- )LHD

Click highlighted areas on diagram

diagram 55301 55307 55330B 55351A 55405B 55405B 55411G 55448B 55522C 55541B 9010506109 9010506109 9010506109 9010506109 9011906327 9018305103 9018305103 9018305103 9033320001 9046709145B0 9046714014 9356715016 9356715016 9356715016 9356715016 9356715016 9356715016 9356715016 9356715016 9356755018 9356755018 9356755018
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-37030B0

LY100,YY100..LHD

BLUISH GRAY,TRIM1#

 1
55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55307-37020

LY100,YY100..LHD

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-25010

LY100,YY100

 1
55351A - BRACE, INSTRUMENT PANEL TO FLOOR
55351-37020

LY100,YY100..LHD

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-37050C0

LY100,YY100..LHD

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

 1
55405-37070C0

LY100,YY100..LHD

TYPE A:REFER TO ILLUSTRATION & W(FRONT HEATER & CLOCK),BLACK,TRIM1#

 1
55405-37050C0

LY100,YY100..LHD..GEN

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

 1
55405-37060C0

LY100,YY100..LHD

TYPE A:REFER TO ILLUSTRATION & W(FRONT HEATER),BLACK,TRIM1#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-37050C0

LY100,YY100..LHD

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

 1
55405-37070C0

LY100,YY100..LHD

TYPE A:REFER TO ILLUSTRATION & W(FRONT HEATER & CLOCK),BLACK,TRIM1#

 1
55405-37050C0

LY100,YY100..LHD..GEN

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

 1
55405-37060C0

LY100,YY100..LHD

TYPE A:REFER TO ILLUSTRATION & W(FRONT HEATER),BLACK,TRIM1#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-37010C0

LY100,YY100

BLACK,TRIM1#

 1
55411-37010C0

LY100,YY100..LHD

BLACK,TRIM1#

 1
55448B - COVER, OIL RESERVOIR TANK, RH
55448-37010B0

LY100,YY100

BLUISH GRAY,TRIM1#

 1
55541B - RETAINER, RADIO TUNER OPENING, NO.1
55541-37010

LY100,YY100

 1
Common parts
90105-06109
90119-06327
90183-05103
90333-20001
90467-09145B0
90467-14014
93567-15016
93567-55018

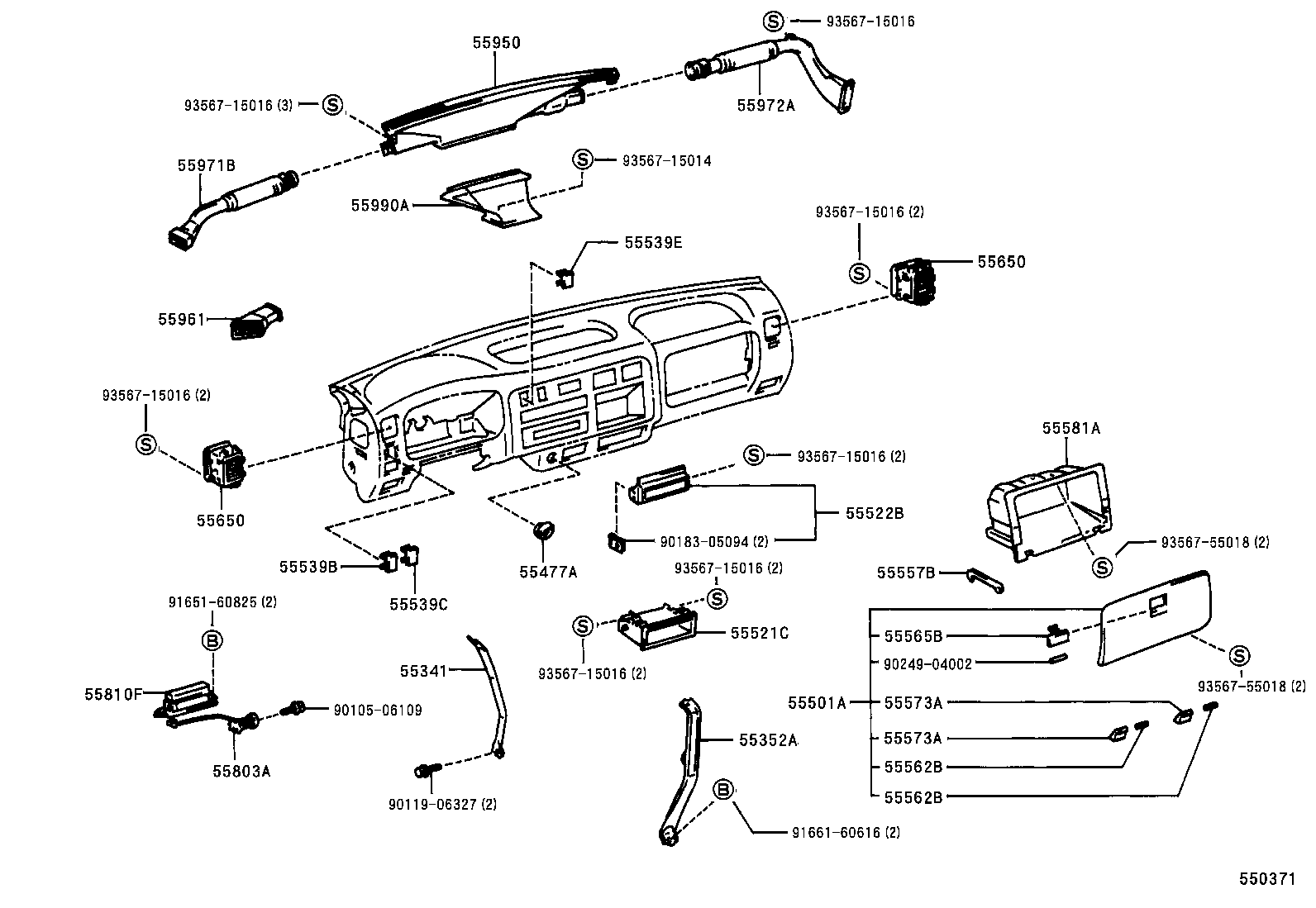

ILLUST NO. 2 OF 2(9505- )LHD

Click highlighted areas on diagram

diagram 55341 55352A 55477A 55501A 55521C 55522B 55539B 55539C 55539E 55557B 55562B 55562B 55565B 55573A 55573A 55581A 55650 55650 55803A 55810F 55950 55961 55971B 55972A 55990A 9010506109 9011906327 9018305094 9024904002 9165160825 9166160616 9356715014 9356715016 9356715016 9356715016 9356715016 9356715016 9356715016 9356715016 9356755018 9356755018
Part # Description Qty Price
55341 - BRACE, INSTRUMENT PANEL, NO.1
55341-25010

LY100,YY100

 1
55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2
55352-37050

LY100,YY100..LHD

 1
55352-37050

LY100,YY100..LHD..GEN

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-37010

LY100,YY100

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-37010B0

LY100,YY100

BLUISH GRAY,TRIM1#

 1
55521C - COVER, STEREO OPENING
55521-16030

LY100,YY100

 1
55522B - COVER, RADIO TUNER OPENING
55522-20070

YY100;LY100..RHD;LY100..LHD..GEN

 1
55522-20070

LY100,YY100

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-95J00B0

LY100,YY100

GRAY,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-95J00B0

LY100,YY100..EUR,GEN

GRAY,TRIM1#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-95J00C0

LY100,YY100

BLACK,TRIM11

 1
55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK
55557-28010

LY100,YY100

 1
55562B - PIN, GLOVE COMPARTMENT DOOR LOCK
55562-95J00

LY100,YY100

 2
55562B - PIN, GLOVE COMPARTMENT DOOR LOCK
55562-95J00

LY100,YY100

 2
55565B - KNOB, GLOVE COMPARTMENT DOOR LOCK
55565-37010

LY100,YY100

 1
55573A - HINGE, GLOVE COMPARTMENT DOOR
55573-37010

LY100,YY100

 2
55573A - HINGE, GLOVE COMPARTMENT DOOR
55573-37010

LY100,YY100

 2
55581A - COMPARTMENT, GLOVE
55581-37010

LY100,YY100

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-37020B0

LY100,YY100

BLUISH GRAY,TRIM1#

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-37020B0

LY100,YY100

BLUISH GRAY,TRIM1#

 2
55803A - CABLE SUB-ASSY, FRONT SIDE VENTILATOR CONTROL
55803-37030

LY100,YY100..LHD

 1
55803-37030

LY100,YY100..LHD..GEN

 1
55810F - VENTILATOR ASSY, FRONT
55810-37030

LY100,YY100..LHD

 1
55810-37030

LY100,YY100..LHD..GEN

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-37020

LY100,YY100..LHD

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-37020B0

LY100,YY100..LHD

BLUISH GRAY,TRIM1#

 1
55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-37020

LY100,YY100..LHD

 1
55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-37020

LY100,YY100..LHD

 1
55990A - NOZZLE ASSY, DEFROSTER, LOWER
55990-37020

LY100,YY100..LHD

 1
Common parts
90105-06109
90119-06327
90183-05094
90249-04002
91651-60825
91661-60616
93567-15014
93567-15016
93567-55018
