LY100R-TBMBS (1995)
Toyota Dyna 100
(9505-0105)T3

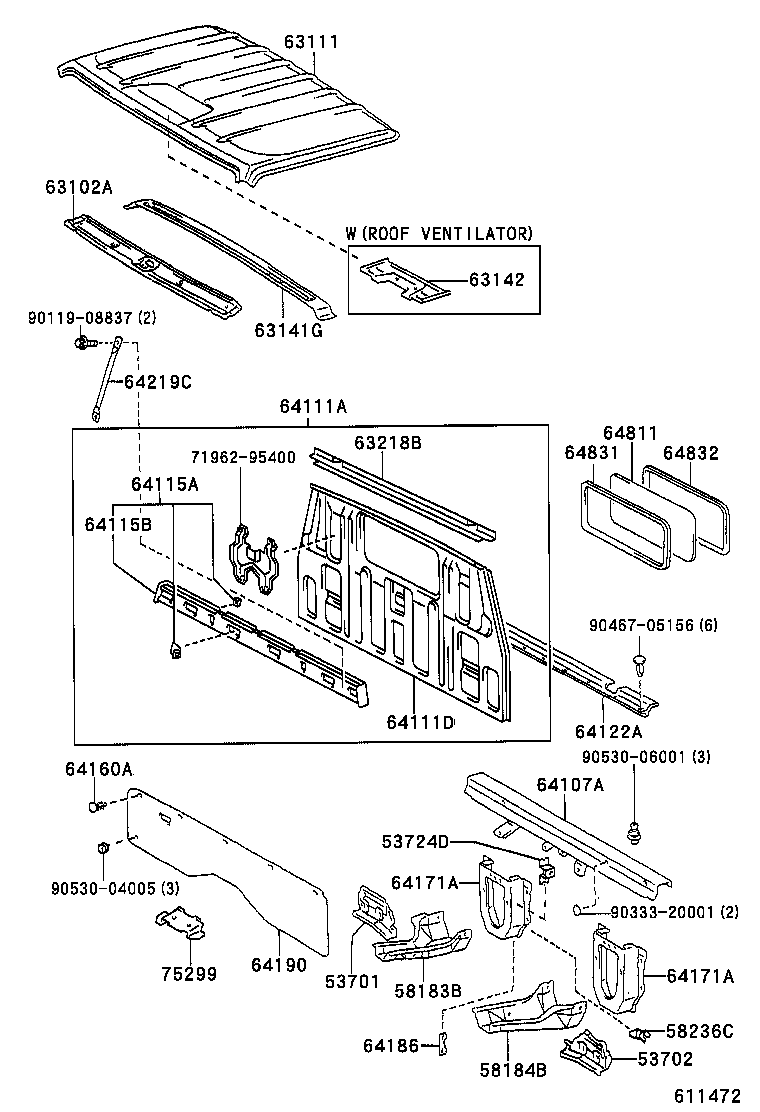

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-25010 |
LY100,YY100..T3 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-25010 |
LY100,YY100..T3 |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58102-25010 |
LY100,YY100 |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58103-25010 |
LY100,YY100 |
1 | ||
| 58236C - BRACKET, CLUTCH TUBE | ||||
| 58236-25010 |
LY100,YY100..T3 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-95420 |
LY100,YY100 W(ROOF VENTILATOR) |
1 | ||
| 63132-95418 |
LY100,YY100 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-37010 |
LY100,YY100..T3 |
1 | ||
| 63111-37020 |
LY100,YY100..T3 W(ROOF VENTILATOR) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-37010 |
LY100,YY100..T3 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-95400 |
LY100,YY100..T3 |
1 | ||
| 64107A - FRAME SUB-ASSY, BACK | ||||
| 64107-25042 |
LY100..RHD..GEN |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-37290 |
LY100..GEN W(FRONT HEAD REST=PASSENGER SEAT) |
1 | ||
| 64100-37300 |
LY100..GEN |
1 | ||
| 64100-37291 |
LY100..RHD..GEN W(FRONT HEAD REST=PASSENGER SEAT) |
1 | ||
| 64100-37301 |
LY100..RHD..GEN |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-25030 |
LY100,YY100..T3..CBU |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-25011 |
LY100,YY100..T3 |
2 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-25011 |
LY100,YY100..T3 |
2 | ||
| 64219C - STAY, BACK PANEL | ||||
| 64219-25010 |
LY100..RHD |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95409 |
LY100,YY100..T3 *TEM,T=3.5 |
1 | ||
| 64811-37020 |
LY100,YY100..GEN *TEM,T=3.5,BRONZE |
1 | ||
| 64811-37070 |
LY100,YY100..T3 *TEM,T=3.5,GREEN |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37050 |
LY100,YY100 |
1 | ||
| 64831-95406 |
LY100,YY100 |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-95013 |
LY100,YY100 |
1 | ||
| 64832-37040 |
LY100,YY100 |
1 | ||
| 75299 - BASE, JACK HOLDER | ||||
| 75209-25010 |
LY100,YY100..T3 |
1 | ||
| Common parts | ||||
| 90119-08837 | ||||
| 90333-20001 | ||||
| 90467-05156 | ||||
| 90530-04005 | ||||
| 90530-06001 | ||||
(0105- )T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-25010 |
LY100,YY100..T3 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-25010 |
LY100,YY100..T3 |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58102-25010 |
LY100,YY100 |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58103-25010 |
LY100,YY100 |
1 | ||
| 58236C - BRACKET, CLUTCH TUBE | ||||
| 58236-25010 |
LY100,YY100..T3 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-95420 |
LY100,YY100 W(ROOF VENTILATOR) |
1 | ||
| 63132-95418 |
LY100,YY100 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-37010 |
LY100,YY100..T3 |
1 | ||
| 63111-37020 |
LY100,YY100..T3 W(ROOF VENTILATOR) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-37010 |
LY100,YY100..T3 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-95400 |
LY100,YY100..T3 |
1 | ||
| 64107A - FRAME SUB-ASSY, BACK | ||||
| 64107-25042 |
LY100..RHD..GEN |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-37290 |
LY100..GEN W(FRONT HEAD REST=PASSENGER SEAT) |
1 | ||
| 64100-37300 |
LY100..GEN |
1 | ||
| 64100-37291 |
LY100..RHD..GEN W(FRONT HEAD REST=PASSENGER SEAT) |
1 | ||
| 64100-37301 |
LY100..RHD..GEN |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-25030 |
LY100,YY100..T3..CBU |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-25011 |
LY100,YY100..T3 |
2 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-25011 |
LY100,YY100..T3 |
2 | ||
| 64219C - STAY, BACK PANEL | ||||
| 64219-25010 |
LY100..RHD |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95409 |
LY100,YY100..T3 *TEM,T=3.5 |
1 | ||
| 64811-37020 |
LY100,YY100..GEN *TEM,T=3.5,BRONZE |
1 | ||
| 64811-37070 |
LY100,YY100..T3 *TEM,T=3.5,GREEN |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37050 |
LY100,YY100 |
1 | ||
| 64831-95406 |
LY100,YY100 |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-95013 |
LY100,YY100 |
1 | ||
| 64832-37040 |
LY100,YY100 |
1 | ||
| 75299 - BASE, JACK HOLDER | ||||
| 75209-25010 |
LY100,YY100..T3 |
1 | ||
| Common parts | ||||
| 71962-95400 | ||||
| 90119-08837 | ||||
| 90333-20001 | ||||
| 90467-05156 | ||||
| 90530-04005 | ||||
| 90530-06001 | ||||
