LY100R-TBMBS (1995)
Toyota Dyna 100
Production
May 1995
-
Jul 2001
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

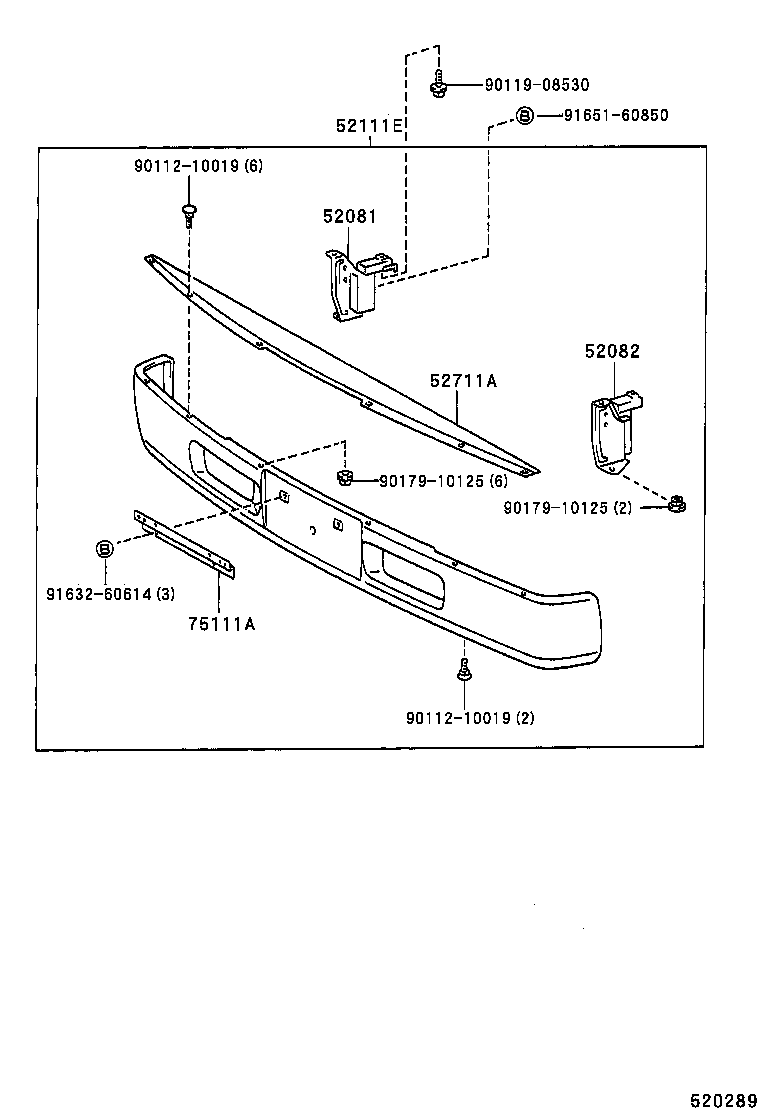

Click highlighted areas on diagram
W(SNORKEL AIR CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52101-26900 |
LY100,YY100 |
1 | ||
| 52101-26901 |
LY100,YY100..GEN W(FRONT FOG LAMP) |
1 | ||
| 75111A - BRACKET, FRONT LICENSE PLATE | ||||
| 75111-37010 |
LY100,YY100 |
1 | ||
| Common parts | ||||
| 90112-10019 | ||||
| 90119-08530 | ||||
| 90179-10125 | ||||
| 91632-60614 | ||||
| 91651-60850 | ||||
(9505- )

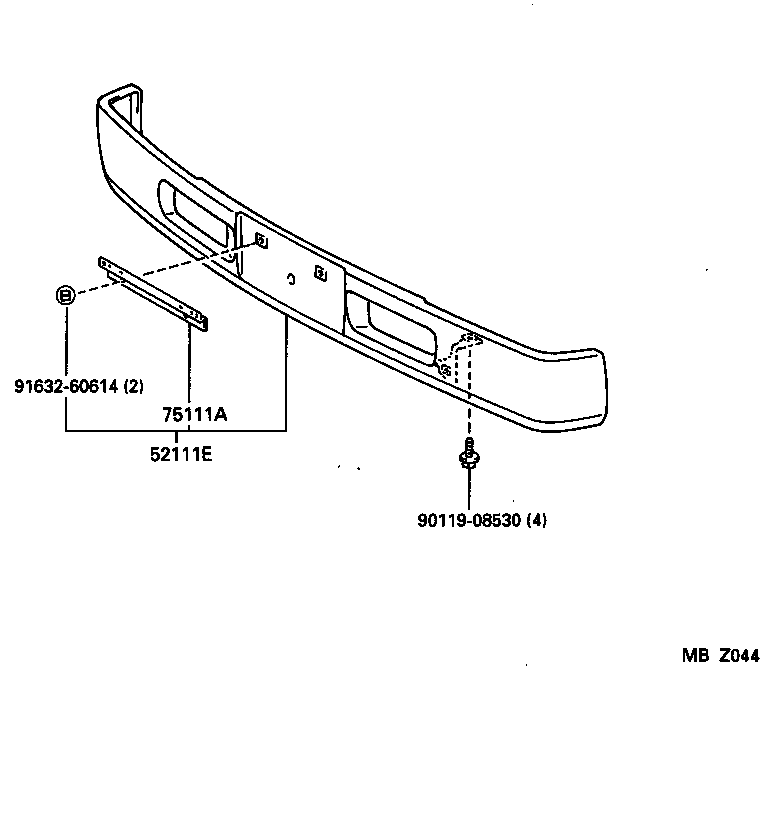

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52101-26900 |
LY100,YY100 |
1 | ||
| 52101-26901 |
LY100,YY100..GEN W(FRONT FOG LAMP) |
1 | ||
| 75111A - BRACKET, FRONT LICENSE PLATE | ||||
| 75111-37010 |
LY100,YY100 |
1 | ||
| Common parts | ||||
| 90119-08530 | ||||
| 91632-60614 | ||||
