LY100L-TBMBSW3 (1995)

Toyota Dyna 100

Production May 1995 - Aug 2001
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 5(9505- )LY100

Click highlighted areas on diagram

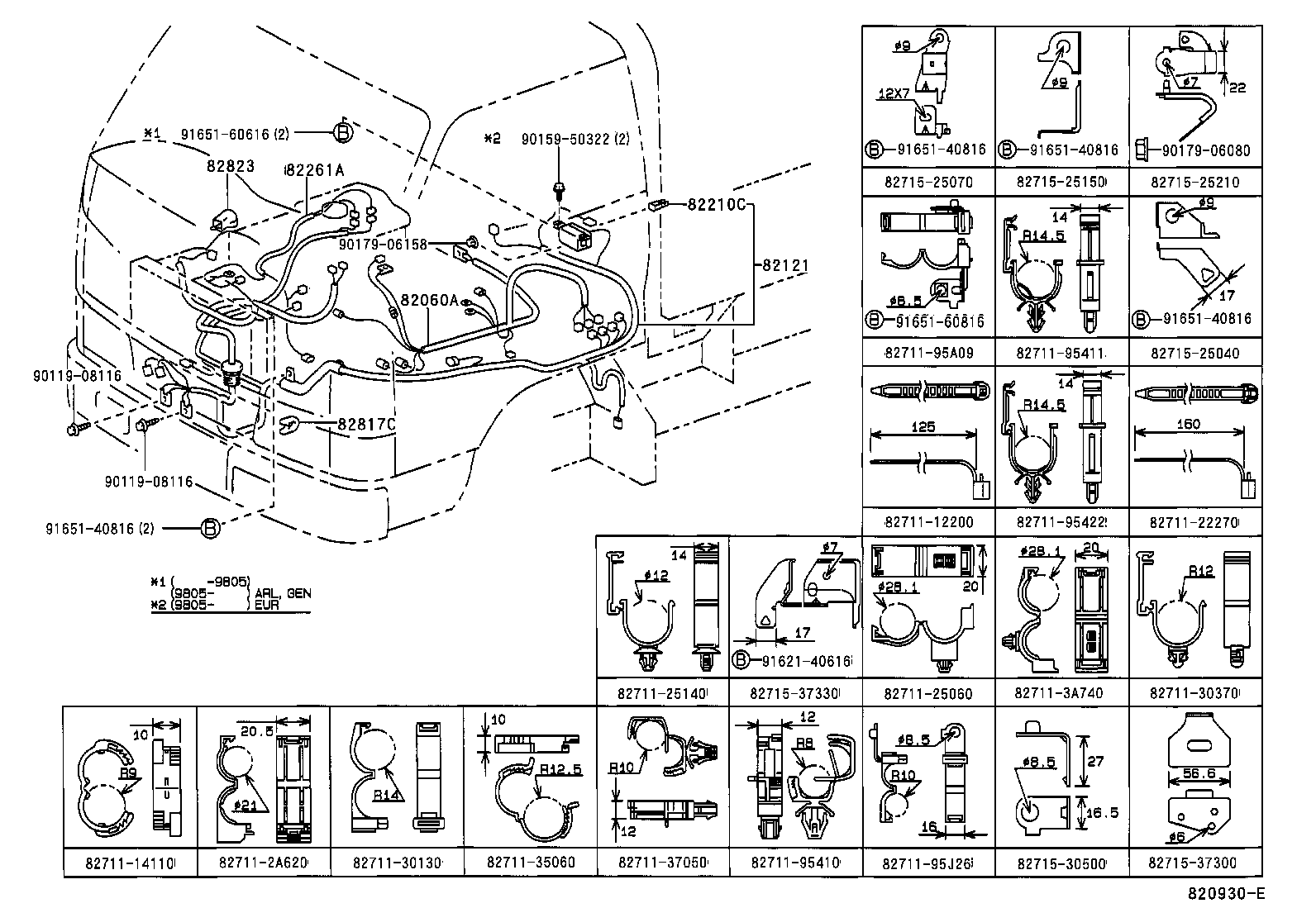

ENGINE WIRE

diagram 82060A 82121 82210C 82261A 8271112200 8271114110 8271122270 8271125060 8271125140 827112A620 8271130130 8271130370 8271135060 8271137050 827113A740 8271195410 8271195411 8271195422 8271195A09 8271195J26 8271525040 8271525070 8271525150 8271525210 8271530500 8271537300 8271537330 82817C 82823 9011908116 9011908116 9015950322 9017906080 9017906158 9162140616 9165140816 9165140816 9165140816 9165140816 9165160616 9165160816
Part # Description Qty Price
82060A - WIRE ASSY, ENGINE, NO.2
82060-25060

LY100..EUR

 1
82060-25080

LY100..T3..EUR

 1
82060-25080

LY100..EUR

 1
82121 - WIRE, ENGINE
82121-26252

LY100..LHD

 1
82121-26253

LY100..LHD..EUR

 1
82121-26254

LY100..LHD..EUR

 1
82121-26255

LY100..LHD..EUR

 1
82210C - FUSIBLE LINK
90982-08203

LY100

80A,TERM.:MALE,BLK

 1
90982-08202

LY100,YY100

60A,TERM.:MALE,YEL

 1
90982-08189

LY100,YY100

40A,TERM.:FEMALE,GRN

 1
82261A - WIRE, ALTERNATOR
82261-25021

LY100

 1
82261-25020

LY100

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

LY100,YY100

 1
Common parts
82711-12200
82711-14110
82711-22270
82711-25060
82711-25140
82711-2A620
82711-30130
82711-30370
82711-35060
82711-37050
82711-3A740
82711-95410
82711-95411
82711-95422
82711-95A09
82711-95J26
82715-25040
82715-25070
82715-25150
82715-25210
82715-30500
82715-37300
82715-37330
90119-08116
90159-50322
90179-06080
90179-06158
91621-40616
91651-40816
91651-60616
91651-60816

ILLUST NO. 2 OF 5(9505- )

Click highlighted areas on diagram

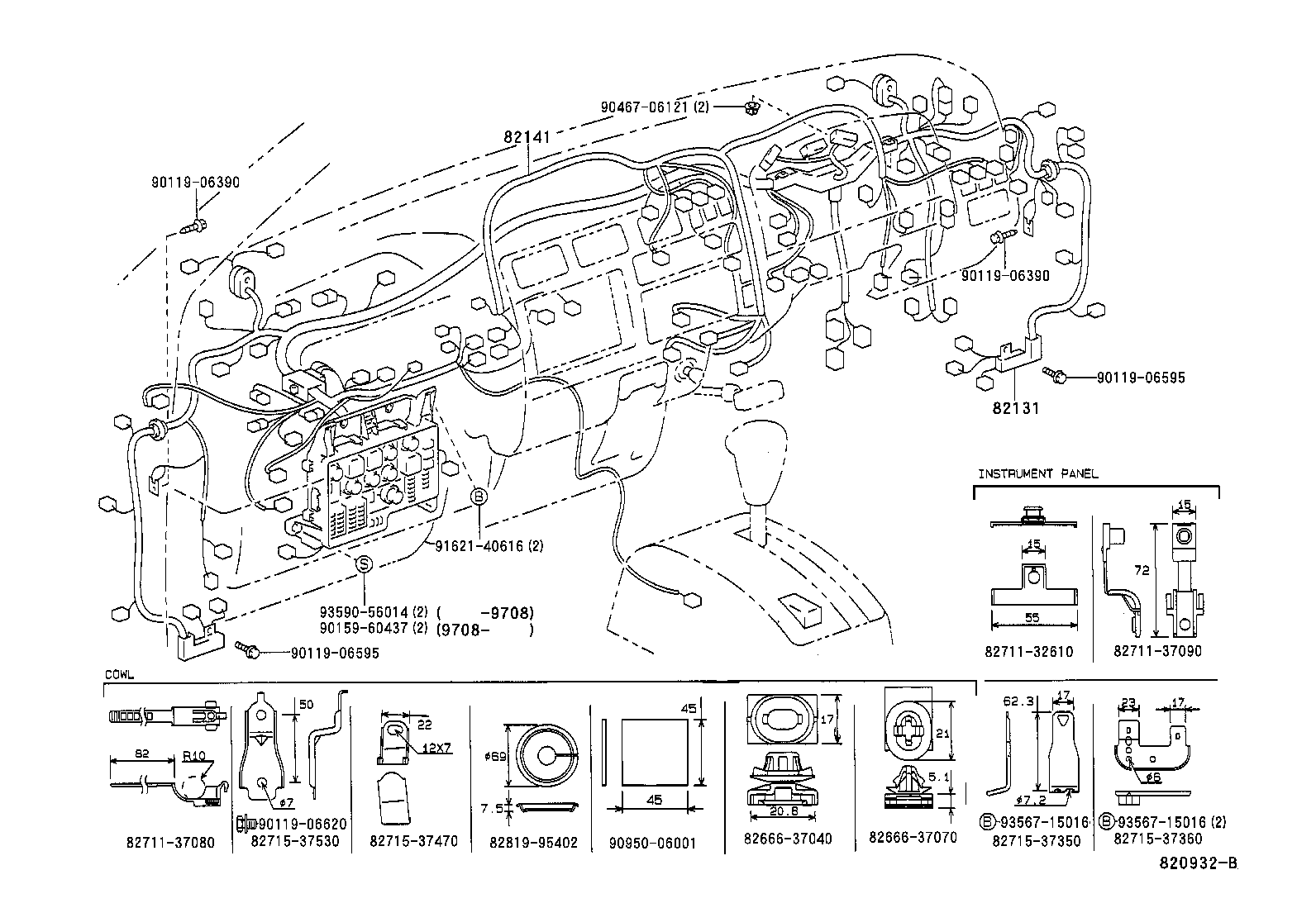

COWL & INSTRUMENT PANEL WIRE

diagram 82131 82141 8266637040 8266637070 8271132610 8271137080 8271137090 8271537350 8271537360 8271537470 8271537530 8281995402 9011906390 9011906390 9011906595 9011906595 9011906620 9015960437 9046706121 9095006001 9162140616 9356715016 9356715016 9359056014
Part # Description Qty Price
82131 - WIRE, COWL
82131-26393

LY100..LHD

 1
82131-25810

LY100..LHD..EUR

 1
82131-26382

LY100..T3..EUR..IV

DENMARK SPEC

 1
82131-26392

LY100..LHD

 1
82131-25821

LY100..TW2..CBU;LY100..LHD..T3..EUR

W(REAR FOG LAMP)

 1
82131-26383

LY100..T3..EUR..IV

DENMARK SPEC

 1
82131-25812

LY100..LHD..EUR

 1
82131-25820

LY100..TW2..CBU;LY100..LHD..T3..EUR

W(REAR FOG LAMP)

 1
82135-25141

LY100..LHD..T3..EUR

FINLAND SPEC & W(POWER WINDOW OR POWER DOOR LOCK);DENMARK SPEC & W(POWER WINDOW OR POWER DOOR LOCK)

 1
82131-25811

LY100..LHD..EUR

 1
82135-25121

LY100..LHD..EUR

W(POWER WINDOW & POWER DOOR LOCK)

 1
82131-25822

LY100..TW2..CBU;LY100..LHD..T3..EUR

DENMARK SPEC OR NORWAY SPEC OR FINLAND SPEC

 1
82135-25140

LY100..TW2..CBU;LY100..LHD..T3..EUR

W(POWER DOOR LOCK & POWER WINDOW & REAR FOG LAMP)

 1
82135-25120

LY100..LHD..EUR

W(POWER WINDOW & POWER DOOR LOCK)

 1
82141 - WIRE, INSTRUMENT PANEL
82141-37201

LY100..LHD

 1
82141-37090

LY100..LHD

 1
82141-25040

LY100..EUR..IV

 1
Common parts
82666-37040
82666-37070
82711-32610
82711-37080
82711-37090
82715-37350
82715-37360
82715-37470
82715-37530
82819-95402
90119-06390
90119-06595
90119-06620
90159-60437
90467-06121
90950-06001
91621-40616
93567-15016
93590-56014

ILLUST NO. 3 OF 5(9505- )

Click highlighted areas on diagram

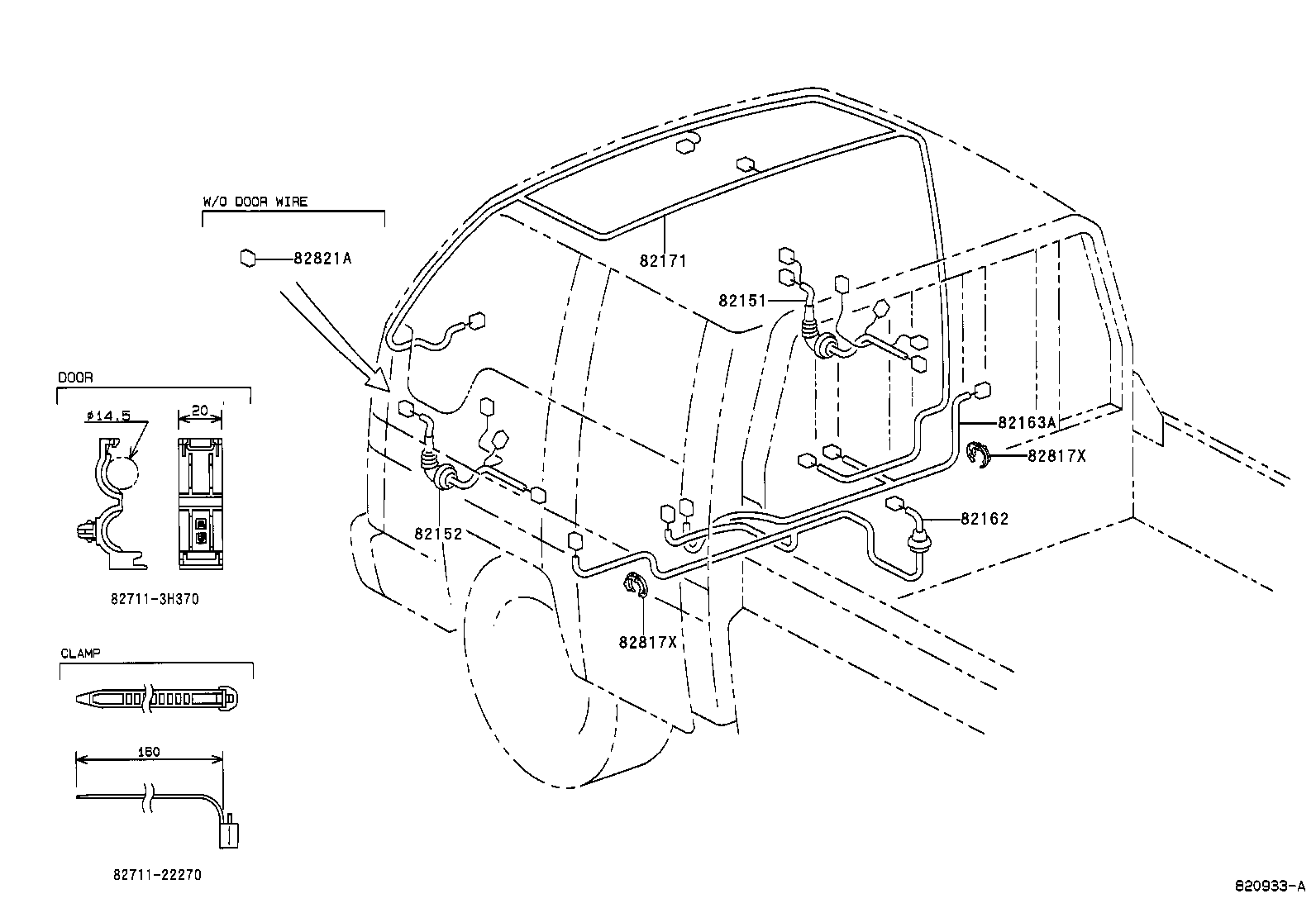

ROOF & FLOOR WIRE

diagram 82151 82152 82162 82163A 82171 8271122270 827113H370 82817X 82817X 82821A
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-25100

LY100..LHD..EUR

W(POWER WINDOW & POWER DOOR LOCK)

 1
82151-37160

LY100..LHD..EUR

W(POWER WINDOW)

 1
82151-25110

LY100..LHD..EUR

W(POWER DOOR LOCK)

 1
82152 - WIRE, FRONT DOOR, LH
82152-25070

LY100..LHD..EUR

W(POWER WINDOW & POWER DOOR LOCK)

 1
82152-25080

LY100..LHD..EUR

W(POWER DOOR LOCK)

 1
82152-37170

LY100..LHD..EUR

W(POWER WINDOW)

 1
82171 - WIRE, ROOF, NO.1
82171-37100

LY100,YY100..T3

 1
82821A - COVER, CONNECTOR
82821-37020

LY100..EUR

W(POWER DOOR LOCK)

 1
Common parts
82711-22270
82711-3H370

ILLUST NO. 4 OF 5(9505- )

Click highlighted areas on diagram

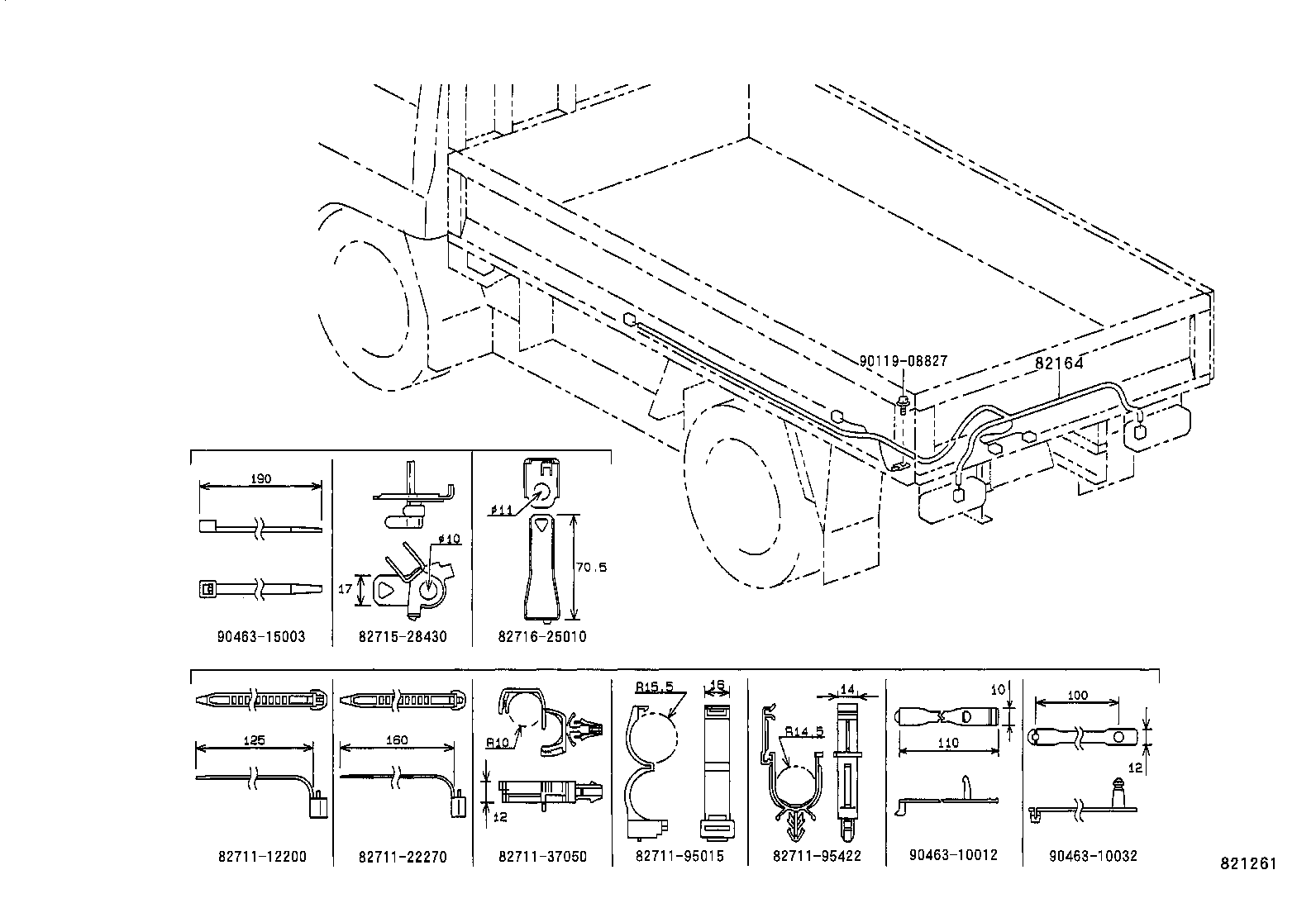

BODY WIRE

diagram 82164 8271112200 8271122270 8271137050 8271195015 8271195422 8271528430 8271625010 9011908827 9046310012 9046310032 9046315003
Part # Description Qty Price
82164 - WIRE, FRAME
82164-26152

LY100..EUR

 1
82164-26153

LY100..EUR

 1
82164-26154

LY100..EUR

 1
Common parts
82711-12200
82711-22270
82711-37050
82711-95015
82711-95422
82715-28430
82716-25010
90119-08827
90463-10012
90463-10032
90463-15003

ILLUST NO. 5 OF 5(9505- )LY100

Click highlighted areas on diagram

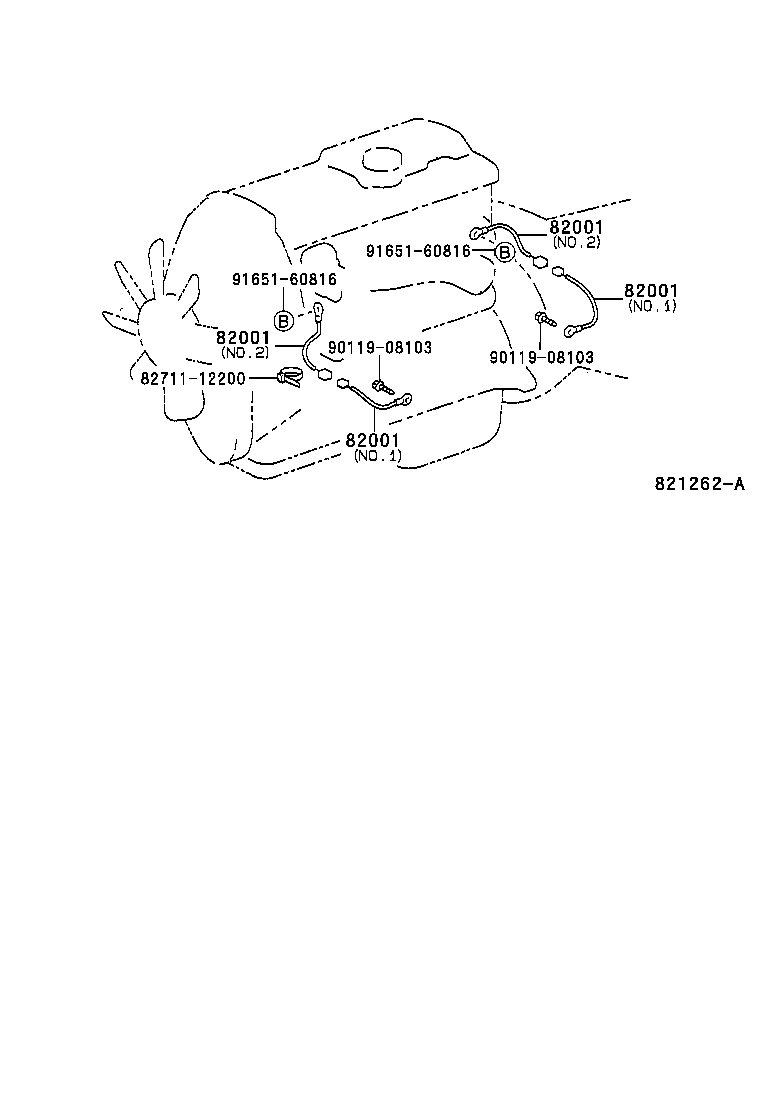

CABLE BOND

diagram 82001 82001 82001 82001 8271112200 9011908103 9011908103 9165160816 9165160816
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07291

LY100..EUR

NO.2

 2
90980-07299

LY100..EUR

NO.1

 2
90980-07353

LY100..EUR

NO.2

 2
90980-07353

LY100

NO.2

 2
90980-07228

LY100..EUR

NO.1

 2
90980-07299

LY100

NO.1

 2
82001 - CABLE, BOND, NO.1
90980-07291

LY100..EUR

NO.2

 2
90980-07299

LY100..EUR

NO.1

 2
90980-07353

LY100..EUR

NO.2

 2
90980-07353

LY100

NO.2

 2
90980-07228

LY100..EUR

NO.1

 2
90980-07299

LY100

NO.1

 2
82001 - CABLE, BOND, NO.1
90980-07291

LY100..EUR

NO.2

 2
90980-07299

LY100..EUR

NO.1

 2
90980-07353

LY100..EUR

NO.2

 2
90980-07353

LY100

NO.2

 2
90980-07228

LY100..EUR

NO.1

 2
90980-07299

LY100

NO.1

 2
82001 - CABLE, BOND, NO.1
90980-07291

LY100..EUR

NO.2

 2
90980-07299

LY100..EUR

NO.1

 2
90980-07353

LY100..EUR

NO.2

 2
90980-07353

LY100

NO.2

 2
90980-07228

LY100..EUR

NO.1

 2
90980-07299

LY100

NO.1

 2
Common parts
82711-12200
90119-08103
91651-60816
