LY100L-TBMBSW (1995)

Toyota Dyna 100

Production May 1995 - Aug 2001
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY100

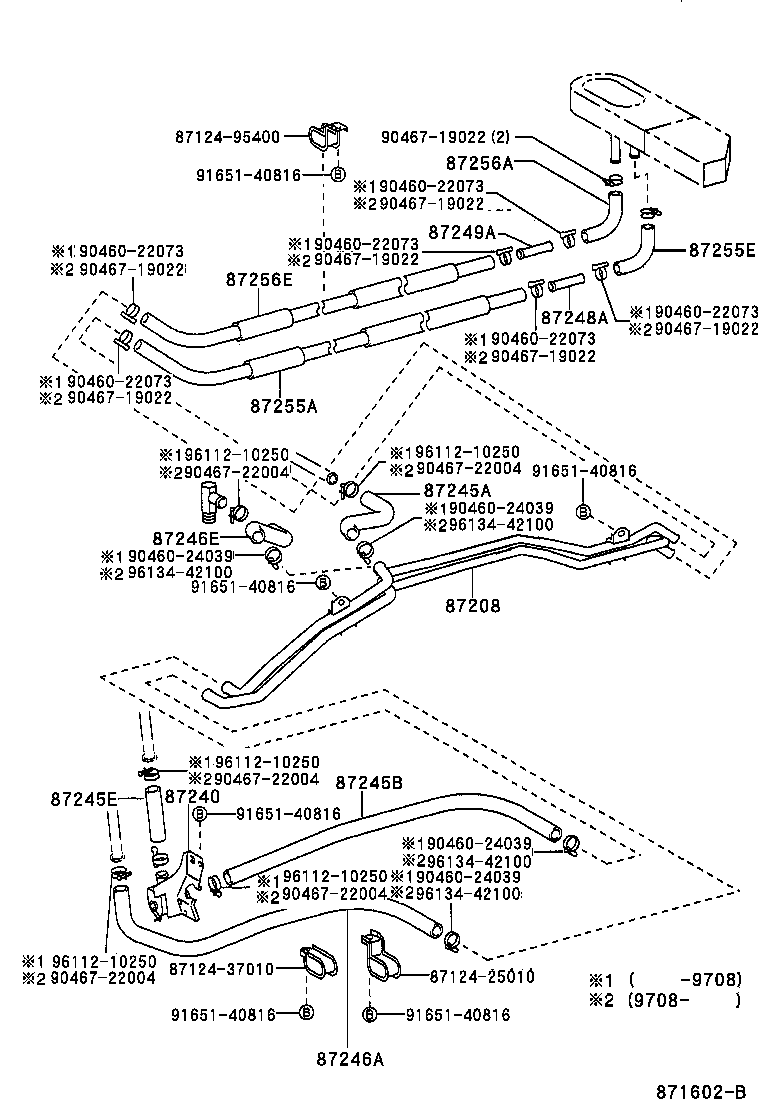

Click highlighted areas on diagram

W(REAR HEATER)

diagram 8712425010 8712437010 8712495400 87208 87240 87245A 87245B 87245E 87246A 87246E 87248A 87249A 87255A 87255E 87256A 87256E 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046722004 9046722004 9046722004 9046722004 9046722004 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-25090

LY100

 1
87208-25170

LY100

 1
87240 - VALVE ASSY, HEATER WATER
87240-37010

LY100,YY100

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30300

LY100

*H,L=250

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

LY100

*H,L=390

 1
87245-25390

LY100..LHD

L=390

 1
99556-30500

LY100

*H,L=390

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY100,YY100

*H,L=90

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25400

LY100..LHD

L=480

 1
99556-30500

LY100

*H,L=480

 1
99556-30500

LY100

*H,L=480

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-25380

LY100..LHD

L=250

 1
99556-30300

LY100

*H,L=250

 1
99556-30300

LY100

*H,L=250

 1
Common parts
87124-25010
87124-37010
87124-95400
90460-22073
90460-24039
90467-19022
90467-22004
91651-40816
96112-10250
96134-42100

(9505- )LY100

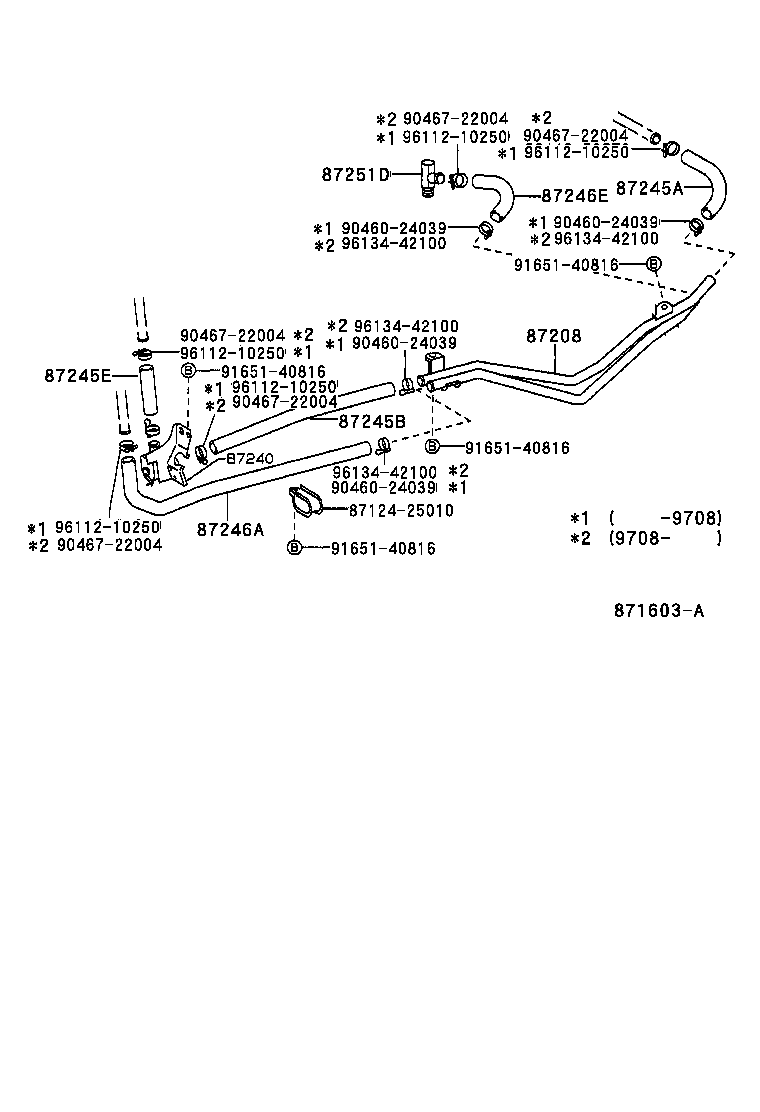

Click highlighted areas on diagram

diagram 8712425010 87208 87245A 87245B 87245E 87246A 87246E 87251D 9046024039 9046024039 9046024039 9046024039 9046722004 9046722004 9046722004 9046722004 9046722004 9165140816 9165140816 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-25090

LY100

 1
87208-25170

LY100

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30300

LY100

*H,L=250

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

LY100

*H,L=390

 1
87245-25390

LY100..LHD

L=390

 1
99556-30500

LY100

*H,L=390

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY100,YY100

*H,L=90

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25400

LY100..LHD

L=480

 1
99556-30500

LY100

*H,L=480

 1
99556-30500

LY100

*H,L=480

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-25380

LY100..LHD

L=250

 1
99556-30300

LY100

*H,L=250

 1
99556-30300

LY100

*H,L=250

 1
Common parts
87124-25010
90460-24039
90467-22004
91651-40816
96112-10250
96134-42100
