LY100L-TBMBSW (1995)

Toyota Dyna 100

Production May 1995 - Aug 2001
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )IV ; (9505- )LY100..LHD..CBU

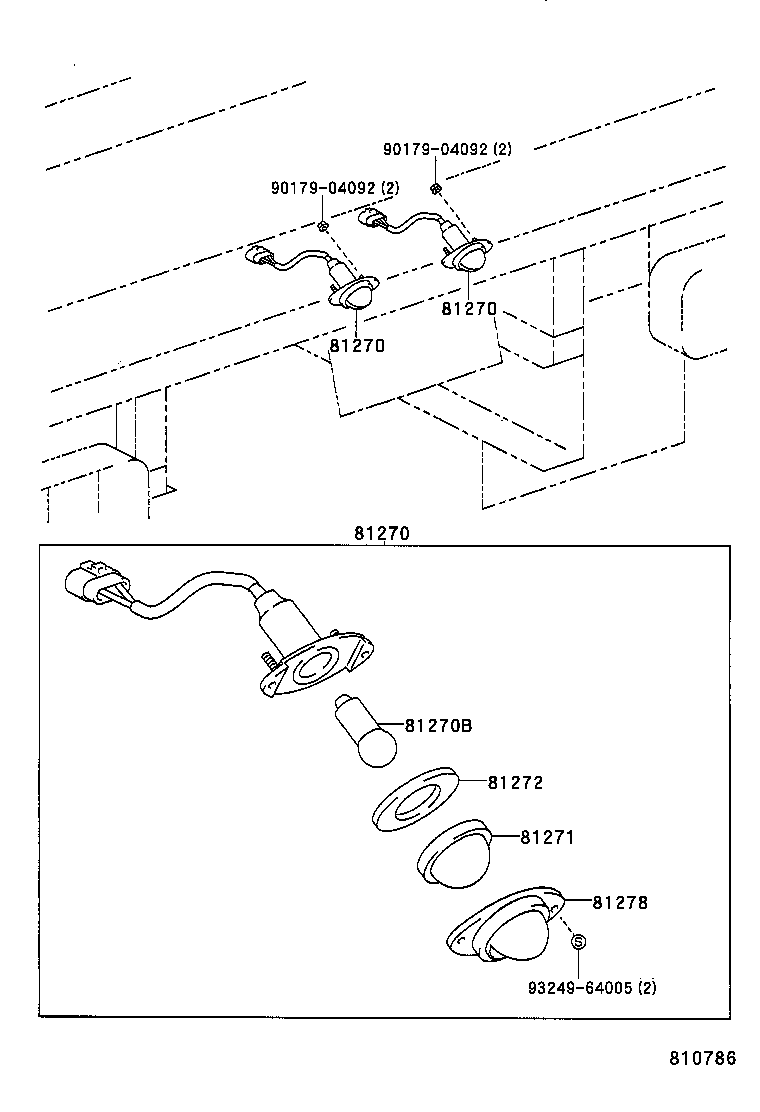

Click highlighted areas on diagram

diagram 81270 81270 81270 81270B 81271 81272 81278 9017904092 9017904092 9324964005
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-37030

LY100,YY100..ARL,EUR

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-37030

LY100,YY100..ARL,EUR

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-37030

LY100,YY100..ARL,EUR

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

LY100,YY100..ARL,EUR

12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10010

LY100,YY100..ARL,EUR

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-37020

LY100,YY100..ARL,EUR

 2
81278 - COVER, LICENSE PLATE LAMP
81276-95016

LY100,YY100..ARL,EUR

 2
Common parts
90179-04092
93249-64005
