LY100L-TBMBSW (1995)
Toyota Dyna 100
(9505- )
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28011-54380 |
2L..LY100 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54320 |
2L..LY100..EUR 12V 2.7KW,W(80D26R BATTERY X2) |
1 | ||
| 28100-54470 |
2L..LY100..EUR 12V 2.7KW,W(BATTERY X 2) |
1 | ||
| 28100-54340 |
2L..LY100 12V 2.0KW |
1 | ||
| 28100-54380 |
2L..LY100 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-54380 |
2L..LY100 |
1 | ||
| 28115-54011 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-46080 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28199-74110 |
2L..LY100 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54380 |
2L..LY100 |
1 | ||
| 28120-56081 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2L..LY100 |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2L..LY100 |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54380 |
2L..LY100 |
1 | ||
| 28130-54430 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28139B - WIRE, LEAD | ||||
| 28139-54251 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28139-54380 |
2L..LY100 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54380 |
2L..LY100 |
1 | ||
| 28140-77090 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-54380 |
2L..LY100 |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-54430 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28150-54320 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28150-54340 |
2L..LY100 |
1 | ||
| 28150-54380 |
2L..LY100 |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28159-54380 |
2L..LY100 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54140 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28160-54380 |
2L..LY100 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
2L..LY100 NO.2 |
1 | ||
| 90099-10208 |
2L..LY100 NO.1 |
1 | ||
| 90099-10107 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.1 |
1 | ||
| 90099-10119 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
2L..LY100 NO.2 |
1 | ||
| 90099-10208 |
2L..LY100 NO.1 |
1 | ||
| 90099-10107 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.1 |
1 | ||
| 90099-10119 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
2L..LY100 |
1 | ||
| 28165-77090 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54380 |
2L..LY100 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-54380 |
2L..LY100 |
1 | ||
| 28175-56310 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54380 |
2L..LY100 |
1 | ||
| 28226-54340 |
2L..LY100 |
1 | ||
| 28226-54320 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28226-17030 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54220 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28226-72010 |
2L,2Y..LY100,YY100 |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
2L,2Y..LY100,YY100 |
5 | ||
| 28228-56080 |
2L..LY100..EUR W(80D26R BATTERY X2) |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2L..LY100 |
1 | ||
| 28229-56080 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28235-54380 |
2L..LY100 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28254-54380 |
2L..LY100 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28254-64130 |
2L..LY100 |
1 | ||
| Common parts | ||||
| 28176-54380 | ||||
| 90099-00253 | ||||
| 90099-00271 | ||||
| 90099-04453 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 93219-15008 | ||||
| 94115-51200 | ||||
| 94130-61200 | ||||
| 94531-00500 | ||||

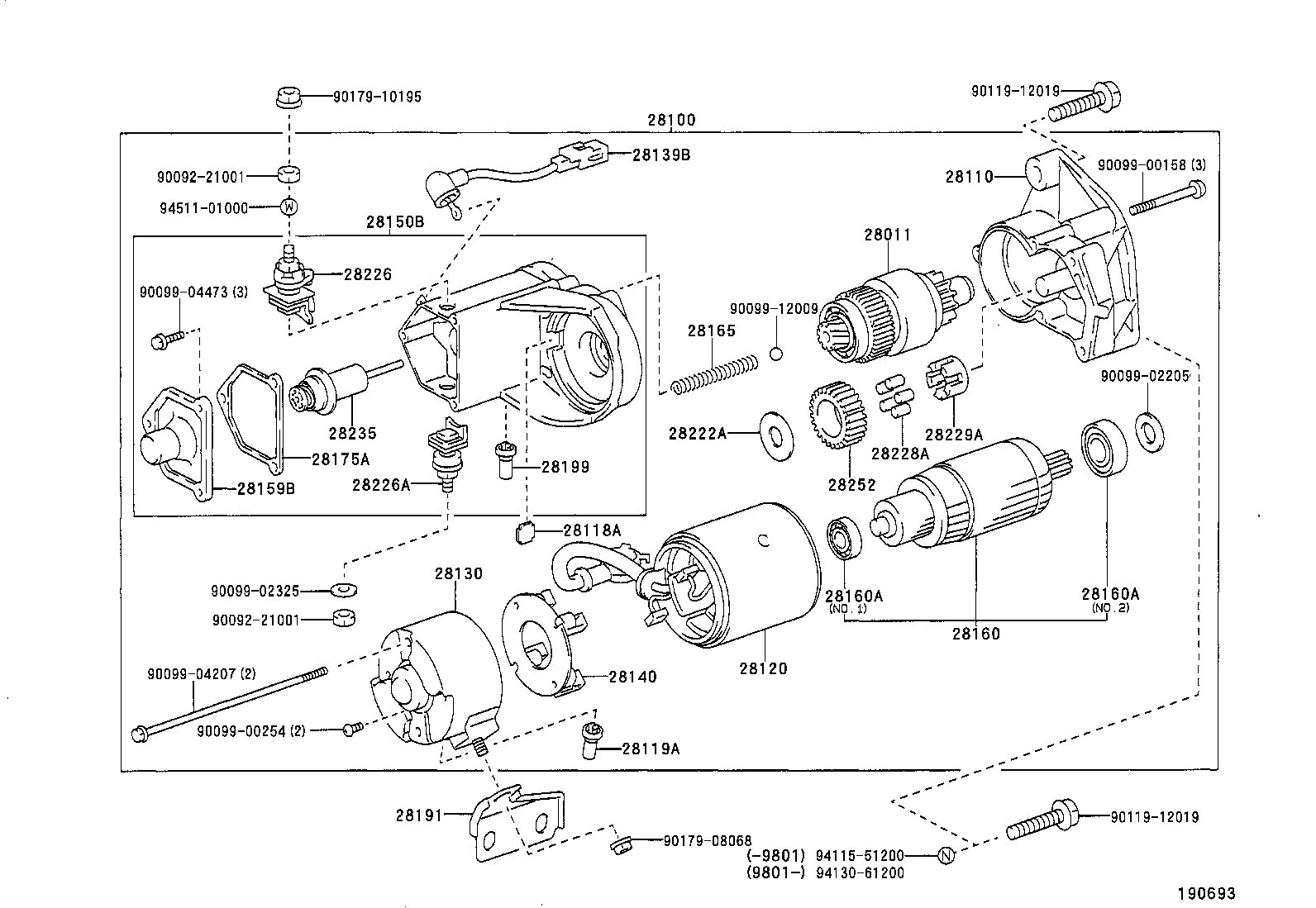

(9505- )
12V 2.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28011-54380 |
2L..LY100 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54320 |
2L..LY100..EUR 12V 2.7KW,W(80D26R BATTERY X2) |
1 | ||
| 28100-54470 |
2L..LY100..EUR 12V 2.7KW,W(BATTERY X 2) |
1 | ||
| 28100-54340 |
2L..LY100 12V 2.0KW |
1 | ||
| 28100-54380 |
2L..LY100 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-54380 |
2L..LY100 |
1 | ||
| 28115-54011 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28118A - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
2L..LY100..EUR |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-46080 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28199-74110 |
2L..LY100 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54380 |
2L..LY100 |
1 | ||
| 28120-56081 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54380 |
2L..LY100 |
1 | ||
| 28130-54430 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28139B - WIRE, LEAD | ||||
| 28139-54251 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28139-54380 |
2L..LY100 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54380 |
2L..LY100 |
1 | ||
| 28140-77090 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-54430 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28150-54320 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28150-54340 |
2L..LY100 |
1 | ||
| 28150-54380 |
2L..LY100 |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28159-54380 |
2L..LY100 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54140 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28160-54380 |
2L..LY100 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
2L..LY100 NO.2 |
1 | ||
| 90099-10208 |
2L..LY100 NO.1 |
1 | ||
| 90099-10107 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.1 |
1 | ||
| 90099-10119 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
2L..LY100 NO.2 |
1 | ||
| 90099-10208 |
2L..LY100 NO.1 |
1 | ||
| 90099-10107 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.1 |
1 | ||
| 90099-10119 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
2L..LY100 |
1 | ||
| 28165-77090 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-54380 |
2L..LY100 |
1 | ||
| 28175-56310 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54010 |
2L..LY100..EUR |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-54190 |
2L..LY100..EUR |
1 | ||
| 28222A - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
2L..LY100..EUR |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54380 |
2L..LY100 |
1 | ||
| 28226-54340 |
2L..LY100 |
1 | ||
| 28226-54320 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28226-17030 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54220 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28226-72010 |
2L,2Y..LY100,YY100 |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
2L,2Y..LY100,YY100 |
5 | ||
| 28228-56080 |
2L..LY100..EUR W(80D26R BATTERY X2) |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2L..LY100 |
1 | ||
| 28229-56080 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28235-54380 |
2L..LY100 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28254-64130 |
2L..LY100 |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00158 | ||||
| 90099-00254 | ||||
| 90099-02205 | ||||
| 90099-02325 | ||||
| 90099-04207 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08068 | ||||
| 90179-10195 | ||||
| 94115-51200 | ||||
| 94130-61200 | ||||
| 94511-01000 | ||||
(9505- )
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28011-54380 |
2L..LY100 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54320 |
2L..LY100..EUR 12V 2.7KW,W(80D26R BATTERY X2) |
1 | ||
| 28100-54470 |
2L..LY100..EUR 12V 2.7KW,W(BATTERY X 2) |
1 | ||
| 28100-54340 |
2L..LY100 12V 2.0KW |
1 | ||
| 28100-54380 |
2L..LY100 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-54380 |
2L..LY100 |
1 | ||
| 28115-54011 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54380 |
2L..LY100 |
1 | ||
| 28120-56081 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54380 |
2L..LY100 |
1 | ||
| 28130-54430 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54380 |
2L..LY100 |
1 | ||
| 28140-77090 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-54380 |
2L..LY100 |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-54430 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28150-54320 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28150-54340 |
2L..LY100 |
1 | ||
| 28150-54380 |
2L..LY100 |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28159-54380 |
2L..LY100 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54140 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28160-54380 |
2L..LY100 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
2L..LY100 NO.2 |
1 | ||
| 90099-10208 |
2L..LY100 NO.1 |
1 | ||
| 90099-10107 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.1 |
1 | ||
| 90099-10119 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
2L..LY100 NO.2 |
1 | ||
| 90099-10208 |
2L..LY100 NO.1 |
1 | ||
| 90099-10107 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.1 |
1 | ||
| 90099-10119 |
2L..LY100..EUR W(80D26R BATTERY X2),NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
2L..LY100 |
1 | ||
| 28165-77090 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54380 |
2L..LY100 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-54380 |
2L..LY100 |
1 | ||
| 28175-56310 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54380 |
2L..LY100 |
1 | ||
| 28226-54340 |
2L..LY100 |
1 | ||
| 28226-54320 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28226-17030 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54220 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28226-72010 |
2L,2Y..LY100,YY100 |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
2L,2Y..LY100,YY100 |
5 | ||
| 28228-56080 |
2L..LY100..EUR W(80D26R BATTERY X2) |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2L..LY100 |
1 | ||
| 28229-56080 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28235-54380 |
2L..LY100 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
2L..LY100..EUR W(80D26R BATTERY X2) |
1 | ||
| 28254-64130 |
2L..LY100 |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91612-61055 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
