LY100L-PSMASW3 (1995)

Toyota Dyna 100

Production May 1995 - Aug 2001
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

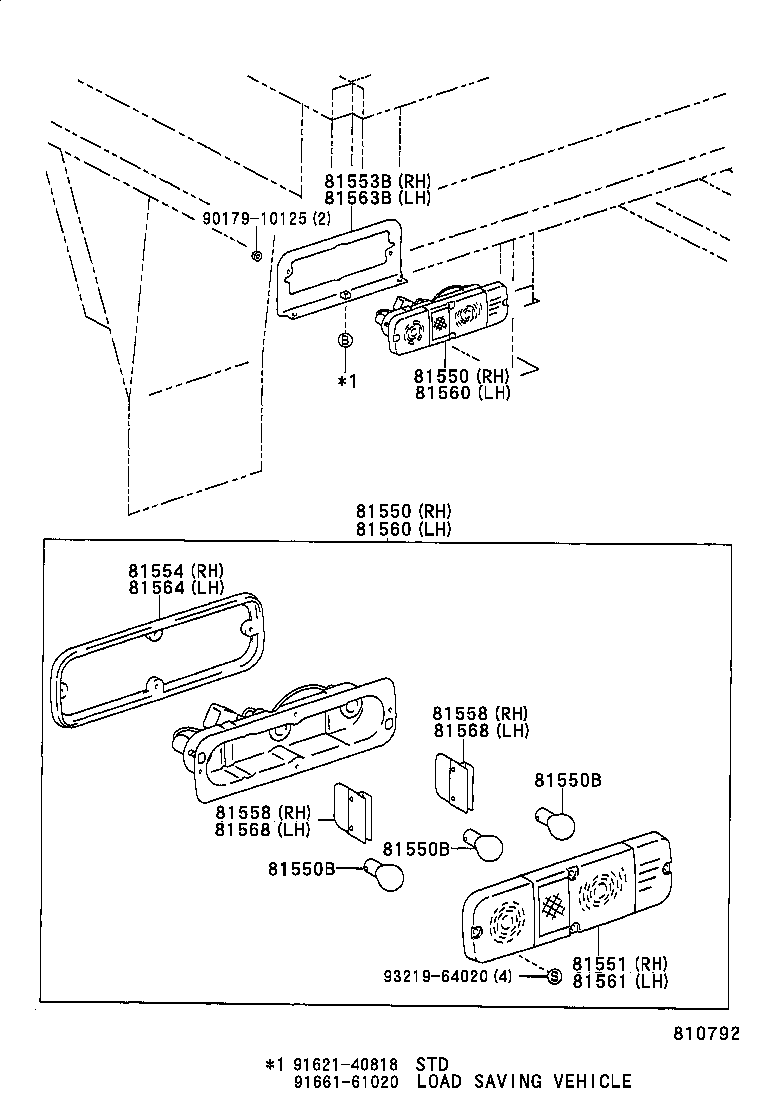

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81551 81553B 81554 81558 81558 81560 81560 81561 81563B 81564 81568 81568 9017910125 9162140818 9166161020 9321964020
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-25110

LY100,YY100..ARL,EUR

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-25110

LY100,YY100..ARL,EUR

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

YY100;LY100..RHD;LY100..LHD..EUR

12V 21/5W,TAIL & STOP

 2
99132-11210

YY100;LY100..RHD;LY100..LHD..EUR

12V 21W,TURN & BACK UP

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

YY100;LY100..RHD;LY100..LHD..EUR

12V 21/5W,TAIL & STOP

 2
99132-11210

YY100;LY100..RHD;LY100..LHD..EUR

12V 21W,TURN & BACK UP

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

YY100;LY100..RHD;LY100..LHD..EUR

12V 21/5W,TAIL & STOP

 2
99132-11210

YY100;LY100..RHD;LY100..LHD..EUR

12V 21W,TURN & BACK UP

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-35061

LY100,YY100..ARL,EUR

 1
81553B - BRACKET SUB-ASSY, RR COMB LAMP, RH
75103-25011

LY100,YY100..IV

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-26040

LY100,YY100..ARL,EUR

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-26040

LY100,YY100..ARL,EUR

 2
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-26040

LY100,YY100..ARL,EUR

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-25100

LY100,YY100..ARL,EUR

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-25100

LY100,YY100..ARL,EUR

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-35061

LY100,YY100..ARL,EUR

 1
81563B - BRACKET SUB-ASSY, RR COMB LAMP, LH
75104-25011

LY100,YY100..IV

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-26040

LY100,YY100..ARL,EUR

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-26040

LY100,YY100..ARL,EUR

 2
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-26040

LY100,YY100..ARL,EUR

 2
Common parts
90179-10125
91621-40818
91661-61020
93219-64020
