LY100L-PSMASW3 (1995)
Toyota Dyna 100
Production
May 1995
-
Aug 2001
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

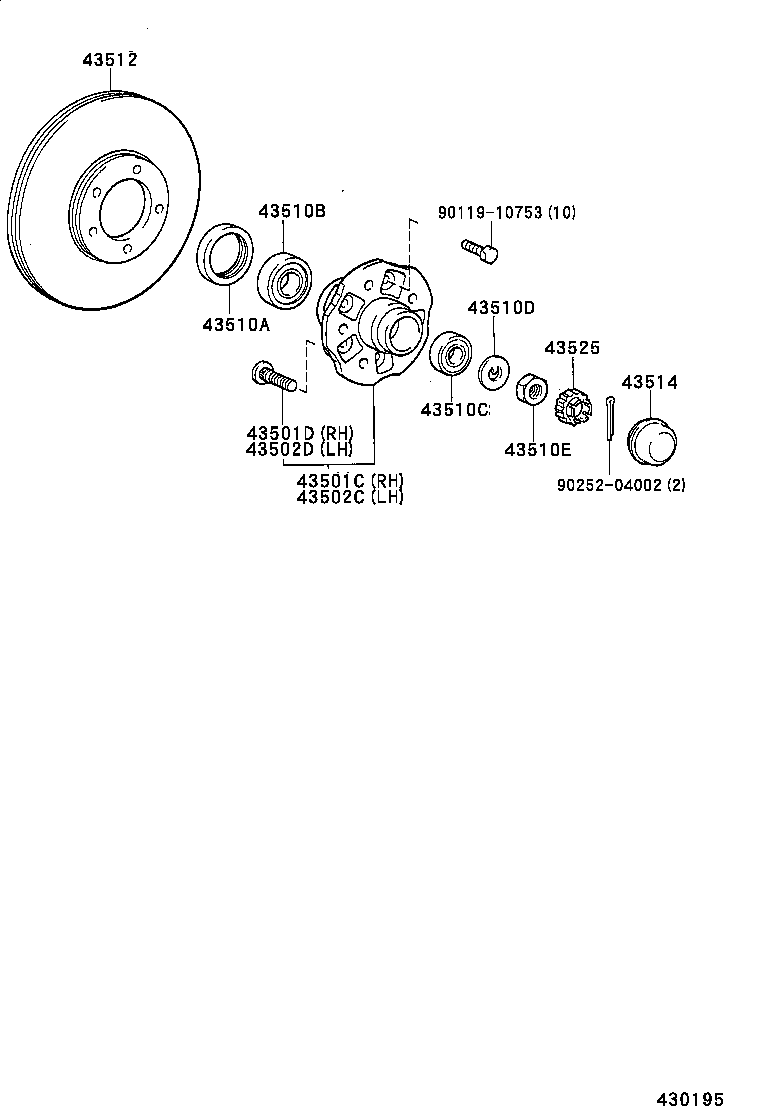

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-26050 |
LY100,YY100 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02047 |
LY100,YY100 |
5 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-26050 |
LY100,YY100 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02047 |
LY100,YY100 |
5 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-50005 |
LY100,YY100 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-34001 |
LY100,YY100 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-21001 |
LY100,YY100 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-20007 |
LY100,YY100 |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-19185 |
LY100,YY100 |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-26070 |
LY100,YY100 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-35010 |
LY100,YY100 |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-22010 |
LY100,YY100 |
2 | ||
| Common parts | ||||
| 90119-10753 | ||||
| 90252-04002 | ||||
