LY100L-PSMASW3 (1995)
Toyota Dyna 100
Production
May 1995
-
Aug 2001
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

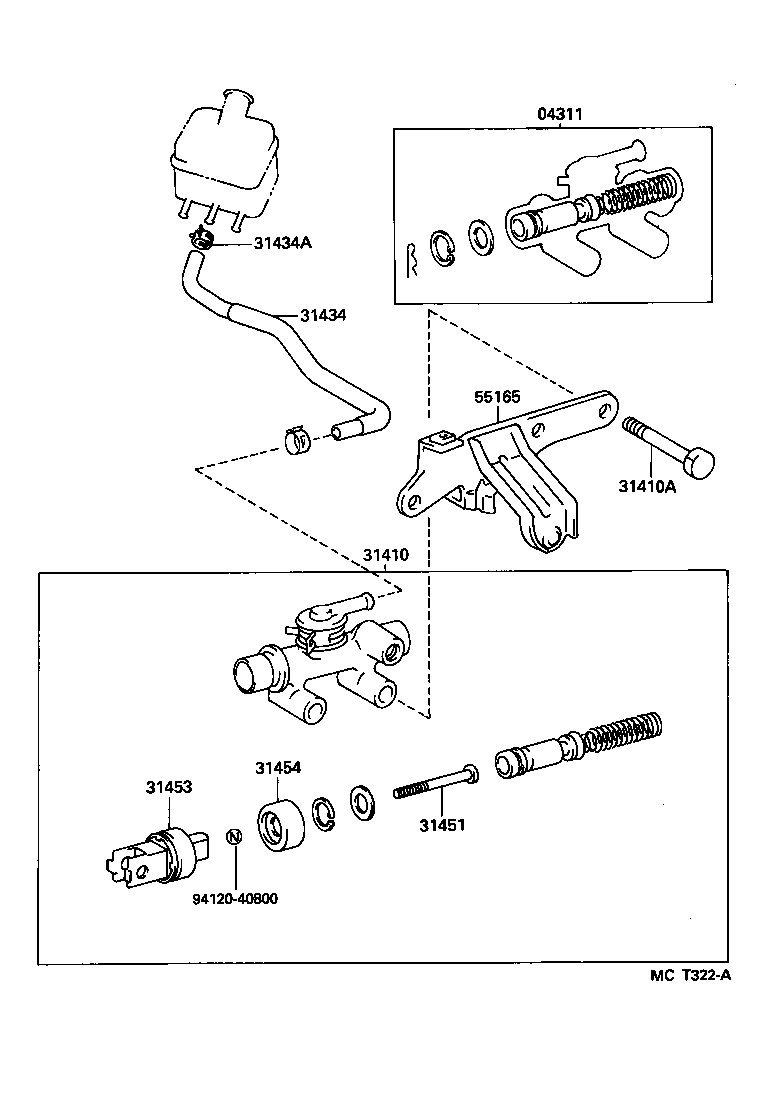

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12110 |
LY100,YY100 |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-37040 |
LY100 |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 91611-60865 |
LY100,YY100 |
2 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-37060 |
LY100,YY100..LHD |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41300 |
LY100,YY100 |
2 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-36040 |
LY100 |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-28020 |
LY100 |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
LY100,YY100 |
1 | ||
| 55165 - SUPPORT, CLUTCH MASTER CYLINDER | ||||
| 55165-37020 |
LY100,YY100..LHD |
1 | ||
| 55165-37020 |
LY100,YY100 |
1 | ||
| Common parts | ||||
| 94120-40800 | ||||
