RZU100R-TYMMK3 (1997)
Toyota Dyna200
Production
Mar 1997
-
Sep 2000
Engine
3RZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9703-0009)RZU100..RHD

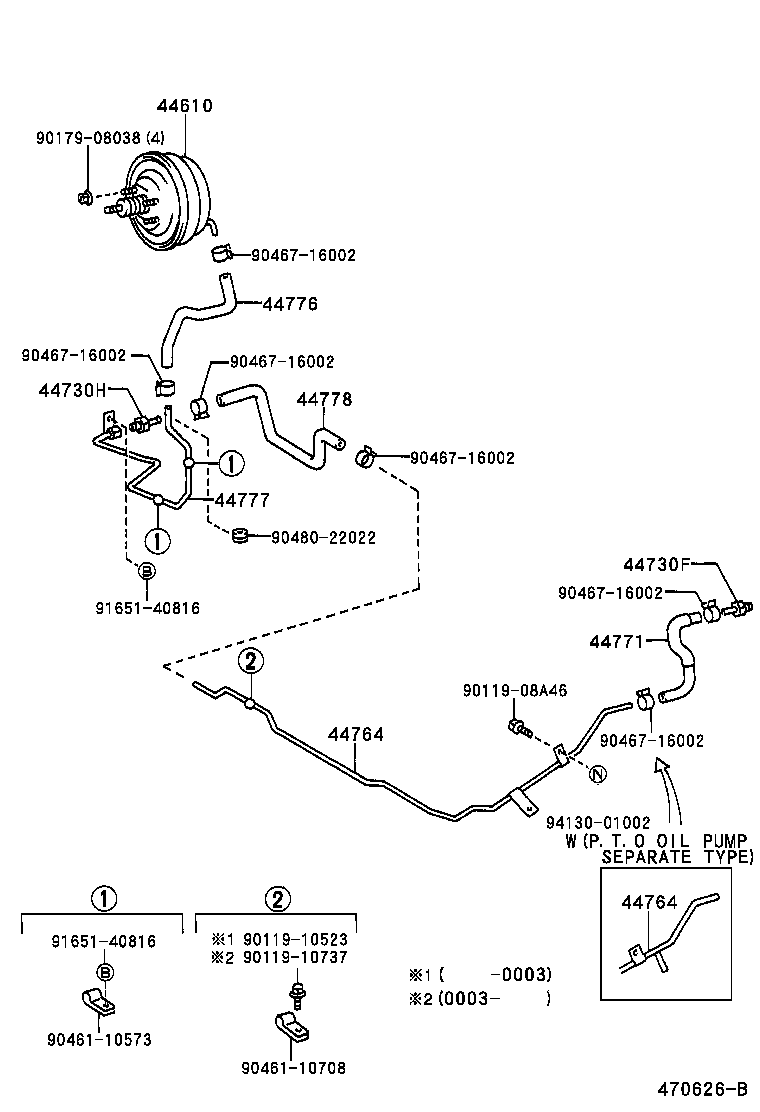

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37060 |
RZU100,YU210..RHD |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
RZU100 |
1 | ||
| 44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR) | ||||
| 44730-20100 |
RZU100,YU210..RHD |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-37070 |
RZU100..RHD |
1 | ||
| 44912-37060 |
RZU100..20T W(P.T.O OIL PUMP SEPARATE TYPE) |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-37070 |
RZU100..RHD |
1 | ||
| 44912-37060 |
RZU100..20T W(P.T.O OIL PUMP SEPARATE TYPE) |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44774-37030 |
RZU100..RHD |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37020 |
BU142..30T;BU10#,110,111,140,141,211,221,RZU100,YU210..RHD |
1 | ||
| 44776-37020 |
BU142..30T;BU10#,111,141,211,221,RZU100,YU210..RHD |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-37010 |
RZU100..RHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37030 |
RZU100,YU210..RHD |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90119-10523 | ||||
| 90119-10737 | ||||
| 90179-08038 | ||||
| 90461-10573 | ||||
| 90461-10708 | ||||
| 90467-16002 | ||||
| 90480-22022 | ||||
| 91651-40816 | ||||
| 94130-01002 | ||||
