RZU100R-TYMMK3 (1997)
Toyota Dyna200
Production
Mar 1997
-
Sep 2000
Engine
3RZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9703- )3RZFE

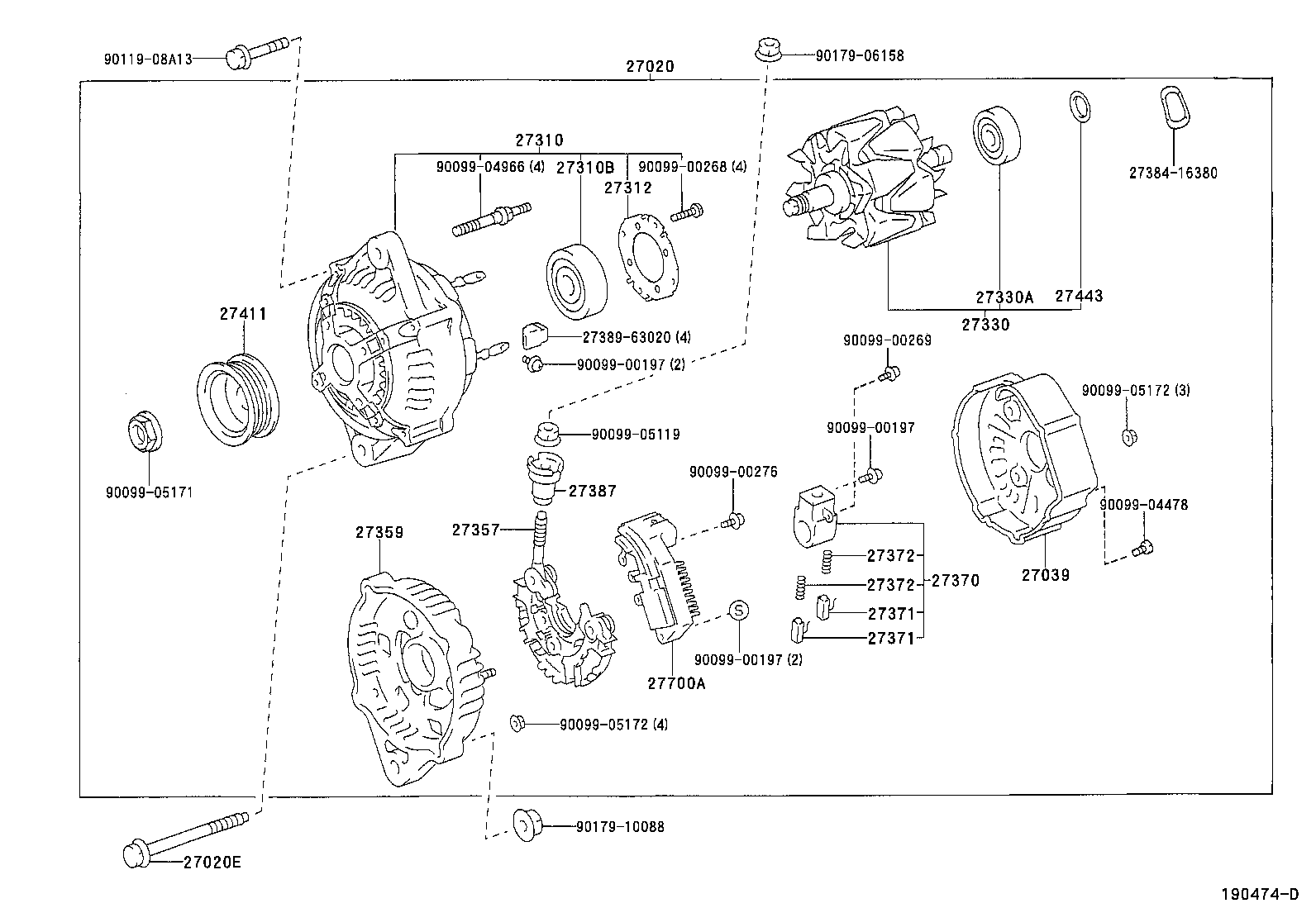

Click highlighted areas on diagram
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75100 |
3RZFE..RZU100 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
3RZFE..RZU100 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-75100 |
3RZFE..RZU100 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
15BFT..BU212,222..RHD;14B,3RZFE..BU111,RZU100..IV3 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
15BFT..BU212,222..RHD;14B,3RZFE..BU111,RZU100..IV3 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64570 |
3RZFE..RZU100 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70170 |
3RZFE..RZU100 |
1 | ||
| 27387-70171 |
3RZFE..RZU100..RHD 12V 70A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
14B,15B#,3B,3RZFE..BU10#,11#,14#,21#,22#,RZU100 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-66040 |
3RZFE..RZU100 |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 27389-63020 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08A13 | ||||
| 90179-06158 | ||||
| 90179-10088 | ||||
