RZU100R-TYMMK3 (1997)

Toyota Dyna200

Production Mar 1997 - Sep 2000
Engine 3RZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9703- )3RZFE

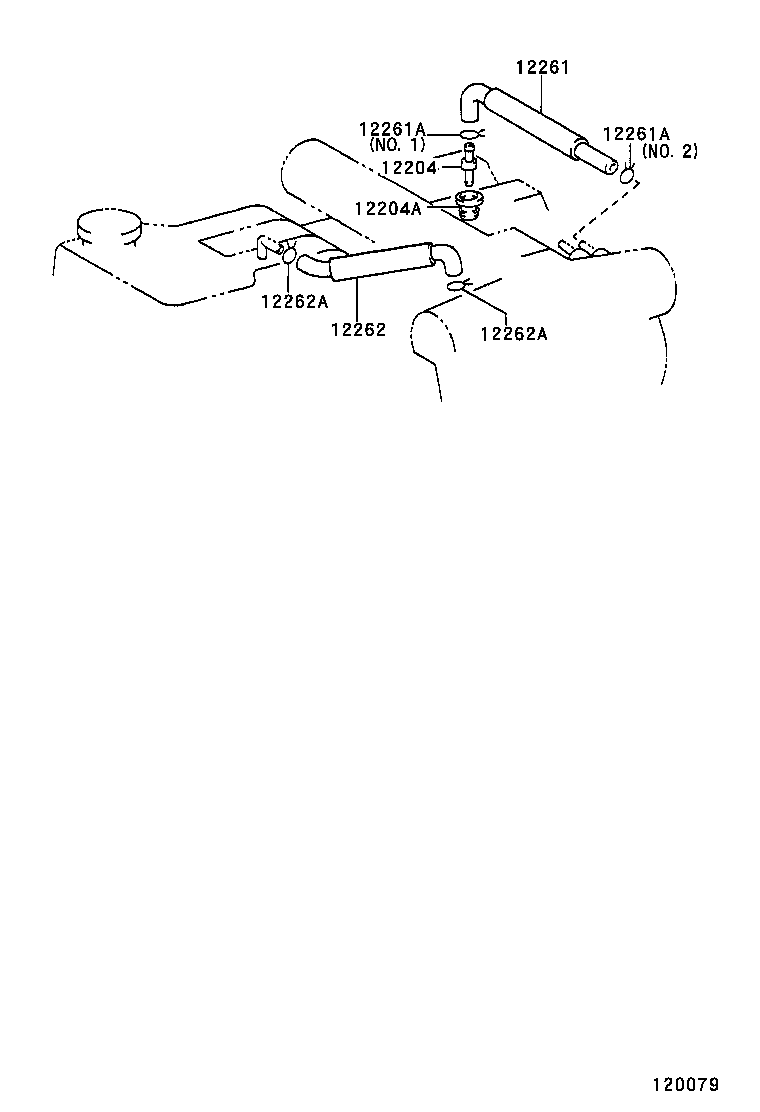

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-75010

3RZFE..RZU100

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

3RZFE..RZU100

 1
12261 - HOSE, VENTILATION
12261-75030

3RZFE..RZU100

 1
12261-75080

3RZFE..RZU100

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

3RZFE..RZU100

 2
90467-14001

3RZFE..RZU100

NO.1

 1
90467-22010

3RZFE..RZU100

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

3RZFE..RZU100

 2
90467-14001

3RZFE..RZU100

NO.1

 1
90467-22010

3RZFE..RZU100

NO.2

 1
