RZU100L-TQMGK3 (1999)

Toyota Dyna200

Production Aug 1999 - Dec 2002
Engine 3RZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

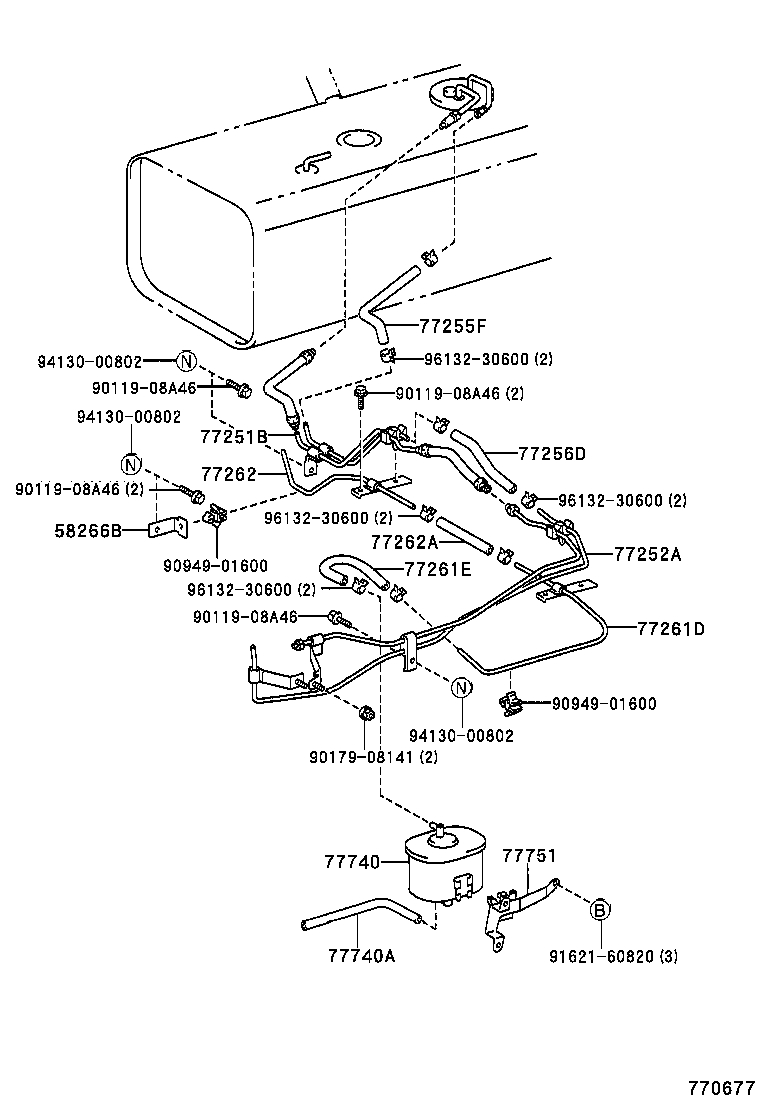

ILLUST NO. 2 OF 2(9908- )15T

Click highlighted areas on diagram

diagram 58266B 77251B 77252A 77255F 77256D 77261D 77261E 77262 77262A 77740 77740A 77751 9011908A46 9011908A46 9011908A46 9011908A46 9017908141 9094901600 9094901600 9162160820 9413000802 9413000802 9413000802 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77205-37030

RZU100

 1
77252A - TUBE, FUEL MAIN, NO.2
77206-37420

RZU100..15T

 1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
95333-06030

BU222;BU221,RZU100..GEN

 1
95333-06030

BU221,RZU100;BU222..ARL,SA

 1
77261D - TUBE, FUEL TANK TO CANISTER
77028-37020

RZU100..15T

 1
77740 - CANISTER ASSY, CHARCOAL
77704-37040

RZU100..15T

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90447-08160

RZU100..15T

L=440

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-37020

RZU100..15T

 1
Common parts
90119-08A46
90179-08141
90949-01600
91621-60820
94130-00802
96132-30600
