BU223L-TKFQW3 (1999)

Toyota Dyna200

Production Aug 1999 - Aug 2003
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )15BFTE

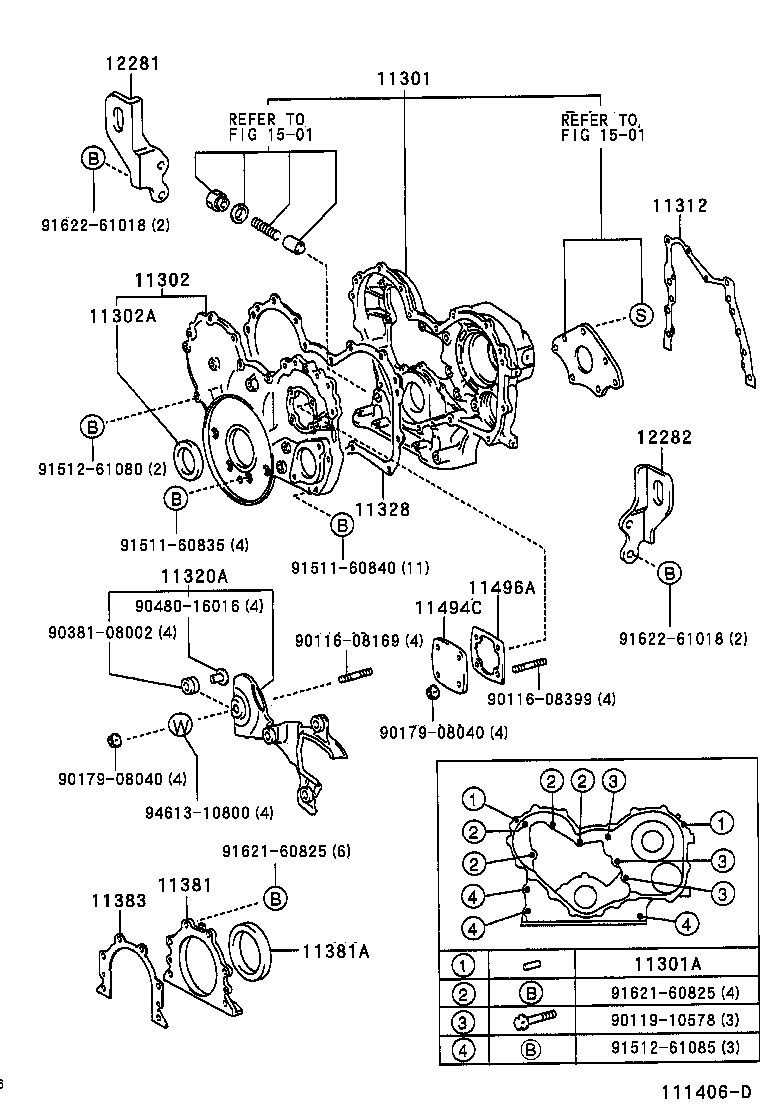

Click highlighted areas on diagram

diagram 11301 11301A 11302 11302A 11312 11320A 11328 11381 11381A 11383 11494C 11496A 12281 12282 1501 1501 9011608169 9011608399 9011910578 9017908040 9017908040 9038108002 9048016016 9151160835 9151160840 9151261080 9151261085 9162160825 9162160825 9162261018 9162261018 9461310800
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-58040

15BFTE..BU213,223

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

14B,15B#,3B..BU10#,11#,14#,21#,22#

L=18,OD=8

 2
90250-08120

14B,15B#..BU10#,111,14#,21#,22#

L=18,OD=8

 2
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-58060

15BFTE..BU213,223

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50013

14B,15B#..BU10#,111,14#,21#,22#

 1
90311-50013

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
90311-50013

15BF..BU212;15BFT..BU212..CBU;15BFT..BU212..LHD;14B,15B#..BU10#,111,14#,211,213,22#

 1
11312 - GASKET, FRONT END PLATE
11312-58010

15BFTE..BU213,223

 1
11320A - COVER ASSY, TIMING GEAR, NO.2
11320-58030

15BFTE..BU213,223

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-58020

15BFTE..BU213,223

 1
11328-56050

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-58010

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
11381-58011

14B,15B#..BU10#,111,14#,21#,22#

 1
11381A - SEAL, ENGINE REAR OIL
90311-95011

14B,15B#..BU10#,111,14#,21#,22#

 1
90311-95011

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56040

14B,15B#..BU10#,111,14#,21#,22#

 1
11383-56040

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
11494C - PLATE, OIL HOLE COVER
11494-58020

15BFTE..BU213,223

 1
11496A - GASKET, OIL HOLE COVER
11496-58010

15BFTE..BU213,223

 1
12281 - HANGER, ENGINE, NO.1
12281-58010

15BFTE..BU213,223

 1
12282 - HANGER, ENGINE, NO.2
12282-58030

15BFTE..BU213,223

 1
Common parts
90116-08169
90116-08399
90119-10578
90179-08040
90381-08002
90480-16016
91511-60835
91511-60840
91512-61080
91512-61085
91621-60825
91622-61018
94613-10800
Linked diagrams
1501
