BU221R-TKMRSN3 (1995)

Toyota Dyna200

Production May 1995 - May 2000
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(9505- )BU10#,11#,14#,21#,22#

Click highlighted areas on diagram

E/G,T/M,T/F

diagram 8271136080 83420 83530 84210 84210 84225A 84540C 8889925080 89422A 89427 89429 89491 89491A 9043012221 9043018008 9043018008 9165160614
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20030

BU10#,11#,14#,21#,22#,YU210

YAZAKI

 1
83420-16040

BU10#,11#,14#,21#,22#,YU210

DENSO

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30100

BU10#,11#,14#,21#,22#,YU210

YAZAKI

 1
83530-14070

BU10#,11#,14#,21#,22#,YU210

DENSO

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60030

BU10#,11#,14#,21#,22#,YU210

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60030

BU10#,11#,14#,21#,22#,YU210

 1
84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)
84540-36090

BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-37020

BU10#,11#,14#,211,212,221,222

 1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
90430-27001

BU10#,11#,14#,21#,22#

 1
Common parts
82711-36080
88899-25080
90430-12221
90430-18008
91651-60614

ILLUST NO. 5 OF 7(9505- )

Click highlighted areas on diagram

IG. & COMBINATION SW.

diagram 8271114110 8271130070 84110 84140 84310 84312 84329 84450 84650 9014940013 9046315003 9046400232 9331913008 9331915012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80191

BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-37010

BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-37050

BU222..TD..SA;BU212..TD..CBU;BU101..RHD..GEN;BU212,222..RHD..DSL..(ARL,GEN);BU100,110,111,14#,211,221..RHD..DSL..(CBU,IV3)

W(EXHAUST BRAKE)

 1
84312 - PLATE, HORN CONTACT
84312-20011

BU10#,11#,14#,21#,22#,YU210

 1
84329 - SWITCH, TURN SIGNAL
84329-37020

BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-37030

BU222..TD..SA;BU211,221..CBU,IV3;BU142,YU210..ARL,EUR,SA;BU212,222..ARL,EUR,GEN,TAIW;BU101,102,111,112,141..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(GEN,TAIW)

W(TILT & TELESCOPIC STEERING)

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-37050

BU222..TD..SA;BU212..TD..CBU;BU101..RHD..GEN;BU212,222..RHD..DSL..(ARL,GEN);BU100,110,111,14#,211,221..RHD..DSL..(CBU,IV3)

W(EXHAUST BRAKE)

 1
Common parts
82711-14110
82711-30070
90149-40013
90463-15003
90464-00232
93319-13008
93319-15012

ILLUST NO. 6 OF 7(9505- )

Click highlighted areas on diagram

DOOR,ROOF,FLOOR

diagram 58484A 81420 83381A 83389A 83391 83790 84233 84340 84480 84550 84640C 84640C 84731R 84732A 84734B 84763D 84810 84820 84931B 86650L 89593 9015940009 9015940009 9017908038 9017910155 9020110008 9020110041 9033325001 9162640616 9165160616 9165640616 9331214010 9412040800 9412041000 9412041000 9413061000
Part # Description Qty Price
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-28020

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
84340 - SWITCH ASSY, STOP LAMP
84340-36070

BU10#,11#,14#,21#,22#,YU210

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-37010

BU10#,11#,14#,21#,22#,YU210

 1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-37040

BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW

NO.2

 1
84640-36060

BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW

NO.1

 1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-37040

BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW

NO.2

 1
84640-36060

BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW

NO.1

 1
86650L - BUZZER ASSY, VACUUM WARNING
86650-37020

RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

 1
89593 - SENSOR, AIR CLEANER WARNING
89593-26010

BU10#,11#,14#,21#,22#,YU210..ARL,GEN,SA,TAIW

 1
89593-26010

BU142;BU10#,11#,140,141,21#,22#,YU210..ARL,GEN,SA,TAIW

 1
Common parts
90159-40009
90179-08038
90179-10155
90201-10008
90201-10041
90333-25001
91626-40616
91651-60616
91656-40616
93312-14010
94120-40800
94120-41000
94130-61000

ILLUST NO. 3 OF 7(9505- )RHD

Click highlighted areas on diagram

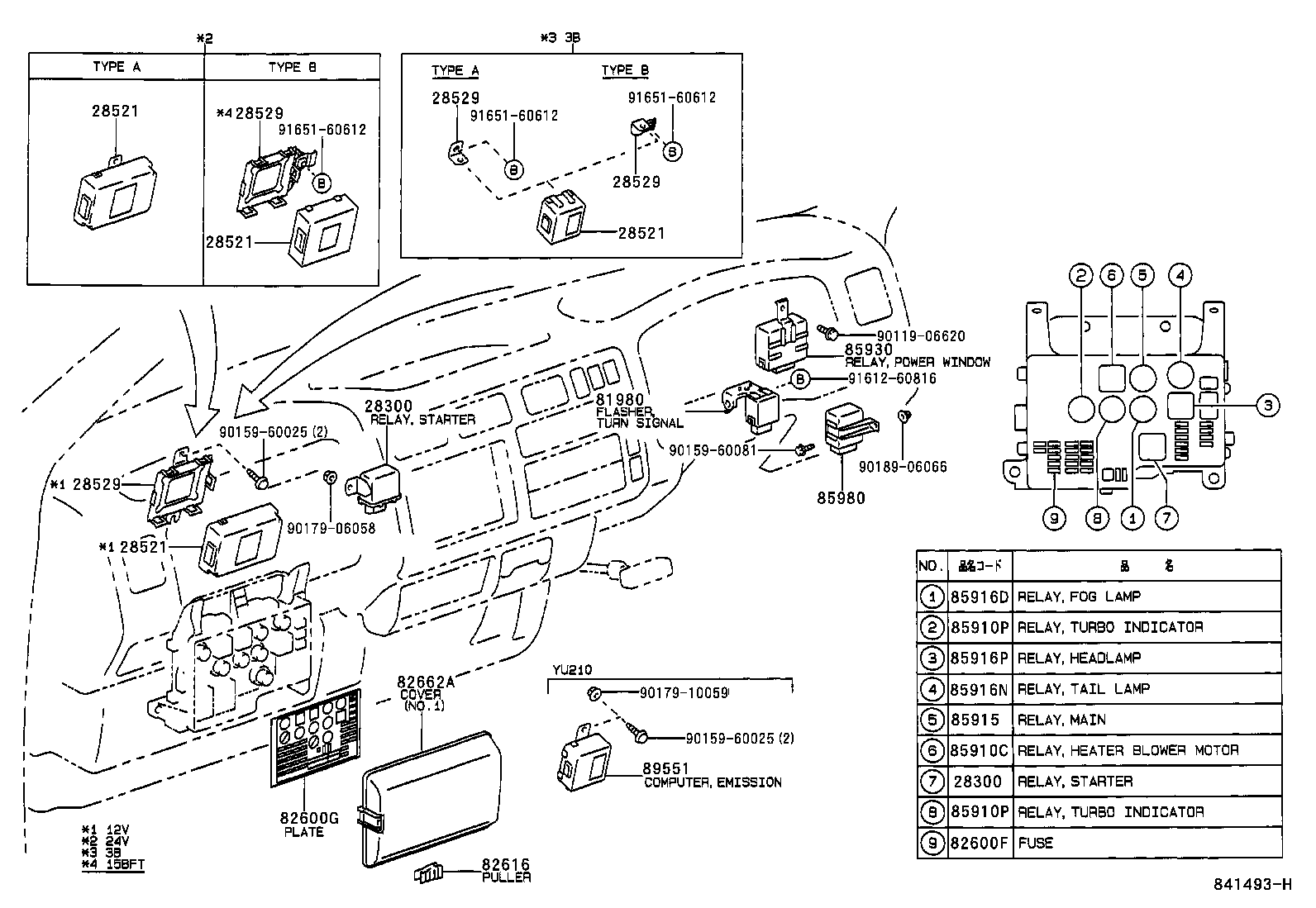

INPANE & COWL RELAY

diagram 28300 28300 28521 28521 28521 28521 28529 28529 28529 28529 81980 82600F 82600G 82616 82662A 85910C 85910P 85910P 85915 85916D 85916N 85916P 85930 85980 89551 9011906620 9015960025 9015960025 9015960081 9017906058 9017910059 9018906066 9161260816 9165160612 9165160612 9165160612
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-58020

14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2

 1
28300 - RELAY ASSY, STARTER
28300-58020

14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-37041

BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU212,RZU100..RHD..(20T,25T,30T)..GEN;BU100,101,11#,14#,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

 1
82600G - PLATE, CAUTION(FOR FUSE)
82683-37040

BU212,222..DSL;BU212..40T..GEN;BU10#,11#,14#,211,221,YU210..DM1,T1,T2,T3,TW1,TW2

 1
82683-37041

BU212,222..RHD..DSL;BU212..LHD..40T..TD;BU100,101,110,111,14#,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

 1
82616 - PULLER, FUSE
82616-20010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37010B0

BU212..TD..CBU;BU212..(GEN,TAIW)..IV3;BU10#,111,112,14#,211,22#,YU210..EUR,GEN,SA,TAIW

BLUISH GRAY,TRIM1#

 1
82662-37010B0

BU222..EUR;BU212..30T..TD..CBU;BU212..LHD..40T..TD;BU212,222..RHD..(25T,40T)..(GEN,SA);BU102,RZU100..(15T,20T)..(EFI,TD)..(TB,TS);BU101,111,14#,211,213,221,223,YU210..EUR,GEN,SA

BLUISH GRAY,TRIM1#

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002

RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

 1
85916N - RELAY, TAIL LAMP
90987-02004

RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

 1
85916P - RELAY, HEADLAMP
90987-02006

RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

 1
Common parts
90119-06620
90159-60025
90159-60081
90179-06058
90179-10059
90189-06066
91612-60816
91651-60612

ILLUST NO. 2 OF 7(9505- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 2302 2302 2332264010 2332264010 2334454010 2334454010 28610 28610 28610A 28611 28611 82600F 82620A 82661 82662A 82662A 82663 82663 8271124420 82825A 83390 83390 85988A 85996B 89620 9017906058 9017906058 9017906058 9017906158 9017906274 9017906274 9017906307 9017906307 9017908143 9095001001 9165140816 9165160816 9165160825 9165160825 9413000802
Part # Description Qty Price
82661 - COVER, RELAY BLOCK, NO.1
82661-37010

BU10#,11#,14#,RZU100

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37010B0

BU212..TD..CBU;BU212..(GEN,TAIW)..IV3;BU10#,111,112,14#,211,22#,YU210..EUR,GEN,SA,TAIW

BLUISH GRAY,TRIM1#

 1
82662-37010B0

BU222..EUR;BU212..30T..TD..CBU;BU212..LHD..40T..TD;BU212,222..RHD..(25T,40T)..(GEN,SA);BU102,RZU100..(15T,20T)..(EFI,TD)..(TB,TS);BU101,111,14#,211,213,221,223,YU210..EUR,GEN,SA

BLUISH GRAY,TRIM1#

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37010B0

BU212..TD..CBU;BU212..(GEN,TAIW)..IV3;BU10#,111,112,14#,211,22#,YU210..EUR,GEN,SA,TAIW

BLUISH GRAY,TRIM1#

 1
82662-37010B0

BU222..EUR;BU212..30T..TD..CBU;BU212..LHD..40T..TD;BU212,222..RHD..(25T,40T)..(GEN,SA);BU102,RZU100..(15T,20T)..(EFI,TD)..(TB,TS);BU101,111,14#,211,213,221,223,YU210..EUR,GEN,SA

BLUISH GRAY,TRIM1#

 1
82825A - COVER, RELAY
82825-37010

BU10#,11#,14#,RZU100

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-12340

BU10#,11#,14#,21#,22#,YU210

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-12340

BU10#,11#,14#,21#,22#,YU210

 1
85988A - BRACKET, RELAY, NO.4
85988-37010

BU211,212,221,222,YU210

 1
85996B - BRACKET, RELAY, NO.2
85996-37020

BU21#,22#,YU210

 1
Common parts
23322-64010
23344-54010
82711-24420
90179-06058
90179-06158
90179-06274
90179-06307
90179-08143
90950-01001
91651-40816
91651-60816
91651-60825
94130-00802
Linked diagrams
2302

ILLUST NO. 7 OF 7(9505- )

Click highlighted areas on diagram

REAR BODY

diagram 27679 27679 27690 27690 27690 27690 83320 83361 86650B 9011908668 9011908668 9017910132 9161160825 9161161025 93319A4010 9413000802
Part # Description Qty Price
27679 - BRACKET, EXHAUST BRAKE(FOR SOLENOID)
27679-56010

14B..BU101..CBU;14B..BU101..ST..IV3;14B..BU101..LHD..WT..IV3;14B,15B#,3B..BU100,102,14#

W(EXHAUST BRAKE)

 1
27679-93100

3B..BU100..ST..IV3;14B,15BF,3B..BU10#,14#..WT

W(P.T.O)

 1
27679-93103

3RZFE..RZU100..20T;3B..BU100..ST..IV3;14B,15B#,3B..BU10#,14#..WT

W(P.T.O)

 1
27679 - BRACKET, EXHAUST BRAKE(FOR SOLENOID)
27679-56010

14B..BU101..CBU;14B..BU101..ST..IV3;14B..BU101..LHD..WT..IV3;14B,15B#,3B..BU100,102,14#

W(EXHAUST BRAKE)

 1
27679-93100

3B..BU100..ST..IV3;14B,15BF,3B..BU10#,14#..WT

W(P.T.O)

 1
27679-93103

3RZFE..RZU100..20T;3B..BU100..ST..IV3;14B,15B#,3B..BU10#,14#..WT

W(P.T.O)

 1
27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-56131

15BFT..BU212..CBU;15BFT..BU222..EUR,SA;15BF..BU212,222..RHD;15BFT..BU212..LHD..40T;14B..BU211,212,221,222..CBU,IV3

 1
27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-56131

15BFT..BU212..CBU;15BFT..BU222..EUR,SA;15BF..BU212,222..RHD;15BFT..BU212..LHD..40T;14B..BU211,212,221,222..CBU,IV3

 1
27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-56131

15BFT..BU212..CBU;15BFT..BU222..EUR,SA;15BF..BU212,222..RHD;15BFT..BU212..LHD..40T;14B..BU211,212,221,222..CBU,IV3

 1
27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-56131

15BFT..BU212..CBU;15BFT..BU222..EUR,SA;15BF..BU212,222..RHD;15BFT..BU212..LHD..40T;14B..BU211,212,221,222..CBU,IV3

 1
83320 - GAGE ASSY, FUEL SENDER
83320-80317

BU10#,11#,14#,21#,22#,YU210..DM1,DM6,DM7,T3,TW1

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
86650B - BUZZER ASSY, REVERSE WARNING
86650-95418

RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

 1
Common parts
90119-08668
90179-10132
91611-60825
91611-61025
93319-A4010
94130-00802

ILLUST NO. 4 OF 7(9505- )RHD

Click highlighted areas on diagram

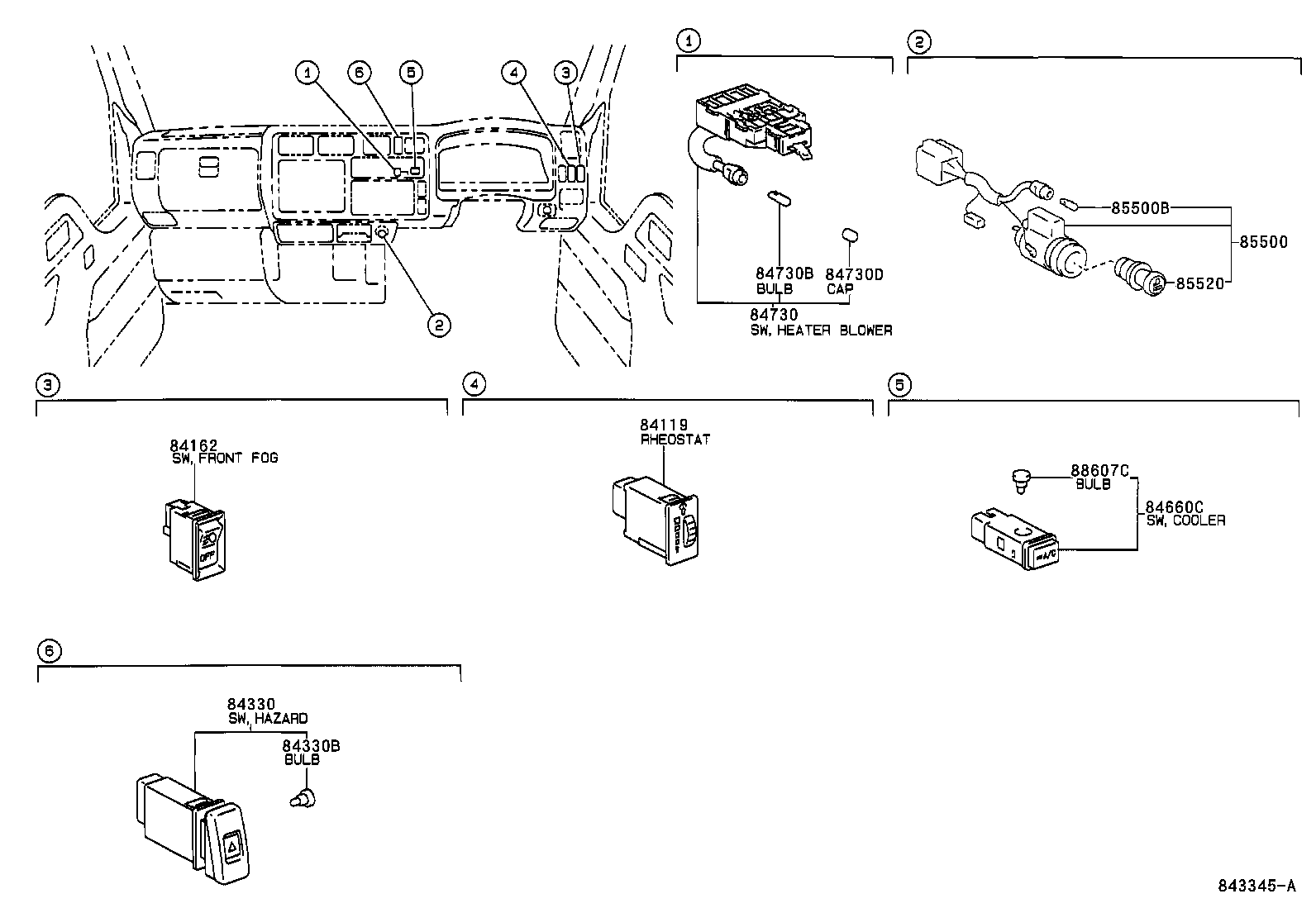

INPANE SW.

diagram 84119 84162 84330 84330B 84660C 84730 84730B 84730D 85500 85500B 85520 88607C
Part # Description Qty Price
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-37050

RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10320

RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

14V 0.84W

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-42010

BU222..ARL,SA;BU212..TD..CBU;BU100,101,110,111,14#,211,212,221,RZU100,YU210..RHD..(CBR,DSL,EFI)..(CBU,IV3)

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-37040

RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

12V

 1
85500B - BULB, CIGARETTE LIGHTER
90981-11014

RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

14V 1.4W

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-17020

RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

12V

 1
