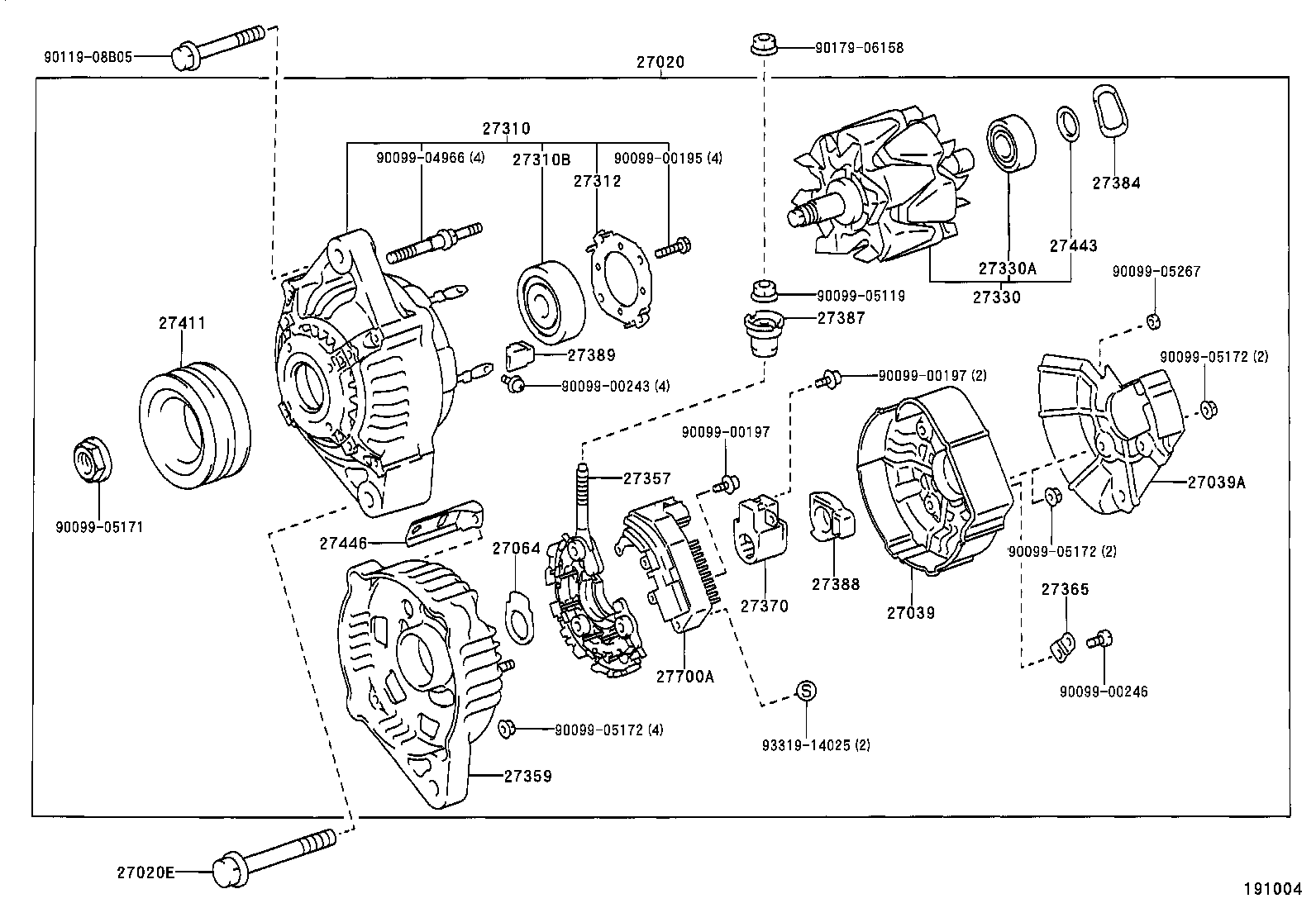

BU213L-TKFRW3 (1999)
Toyota Dyna200
(9908- )15BFTE
24V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58210 |
14B,15BF,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 12V 50A |
1 | ||
| 27060-58370 |
15BFTE..BU213,223 24V 50A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10240 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 90148-10001 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11190 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 27039-58400 |
15BFTE..BU213,223 |
1 | ||
| 27039A - COVER, ALTERNATOR REAR END, NO.2 | ||||
| 27041-58400 |
15BFTE..BU213,223 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72171 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 27310-58400 |
15BFTE..BU213,223 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10198 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72120 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72150 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10154 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 90099-10140 |
15BFT,15BFTE..BU102,142,213,223..20T,30T,40T |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72150 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 27359-58400 |
15BFTE..BU213,223 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-10080 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 12V 50A |
1 | ||
| 27387-42021 |
15BFTE..BU213,223 24V 50A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-46220 |
15BFTE..BU213,223 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
15BFTE..BU213,223 |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58060 |
14B,15BF,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 27411-58330 |
15BFTE..BU213,223 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
15BFT..BU212..RHD..IV3;15BFT,15BFTE..BU102,142,213,223..20T,30T,40T |
1 | ||
| 27443-63020 |
14B,15B#,3RZFE..BU10#,111,14#,21#,22#,RZU100 |
1 | ||
| 27443-63020 |
14B,15B#,3B,3RZFE..BU10#,11#,14#,21#,22#,RZU100 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-50260 |
15BFTE..BU213,223 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58050 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 27700-58060 |
15BFT..BU212..RHD..IV3;15BFT,15BFTE..BU102,142,213,223..20T,30T,40T |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 90119-08B05 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
