BU212R-PKMQSQ3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 15BF
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9505- )15BFT..BU212,222..LHD..GEN ; (9505-)14B,15BF,15BFTE,3B ; (9902- )

Click highlighted areas on diagram

diagram 19529 23301A 23301A 23303 23322 23322A 23338 23347 23910B 23921 23921 23921 84461B 9017908141 9017908141 9056009041 9056009041 9151160835 9151160835 9151160850 9151160860 9162160825 9162160825 9162160825 9331915008 9331915008
Part # Description Qty Price
19529 - CLAMP
19529-56020

15BFT..BU222..SA;14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF..BU212,222;15BFT..BU212,222..LHD..GEN

 1
23301A - CAP ASSY, FUEL FILTER
23301-58190

15BFT..BU222..SA;14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF..BU212,222;15BFT..BU212,222..LHD..GEN

 1
23301A - CAP ASSY, FUEL FILTER
23301-58190

15BFT..BU222..SA;14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF..BU212,222;15BFT..BU212,222..LHD..GEN

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-56040

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223

 1
23921 - SUPPORT, FUEL FILTER
23921-58100

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE..BU212,213,222,223

 1
23921-58100

15BFT..BU222..SA;14B..BU211..CBU,IV2;14B..BU211..30T..IV3;14B,15BF,15BFTE..BU212,213,22#;14B,15BFT..BU211,212..LHD..40T..IV3

 1
23921 - SUPPORT, FUEL FILTER
23921-58100

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE..BU212,213,222,223

 1
23921-58100

15BFT..BU222..SA;14B..BU211..CBU,IV2;14B..BU211..30T..IV3;14B,15BF,15BFTE..BU212,213,22#;14B,15BFT..BU211,212..LHD..40T..IV3

 1
23921 - SUPPORT, FUEL FILTER
23921-58100

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE..BU212,213,222,223

 1
23921-58100

15BFT..BU222..SA;14B..BU211..CBU,IV2;14B..BU211..30T..IV3;14B,15BF,15BFTE..BU212,213,22#;14B,15BFT..BU211,212..LHD..40T..IV3

 1
84461B - SWITCH, LEVEL WARNING
84461-36110

BU211,221..GEN;BU211..30T..SA;BU222..ARL,SA,TAIW;BU212,222..LHD..TD..GEN;BU10#,11#,14#,212,213,223..DSL,TDEFI

 1
Common parts
90179-08141
90560-09041
91511-60835
91511-60850
91511-60860
91621-60825
93319-15008

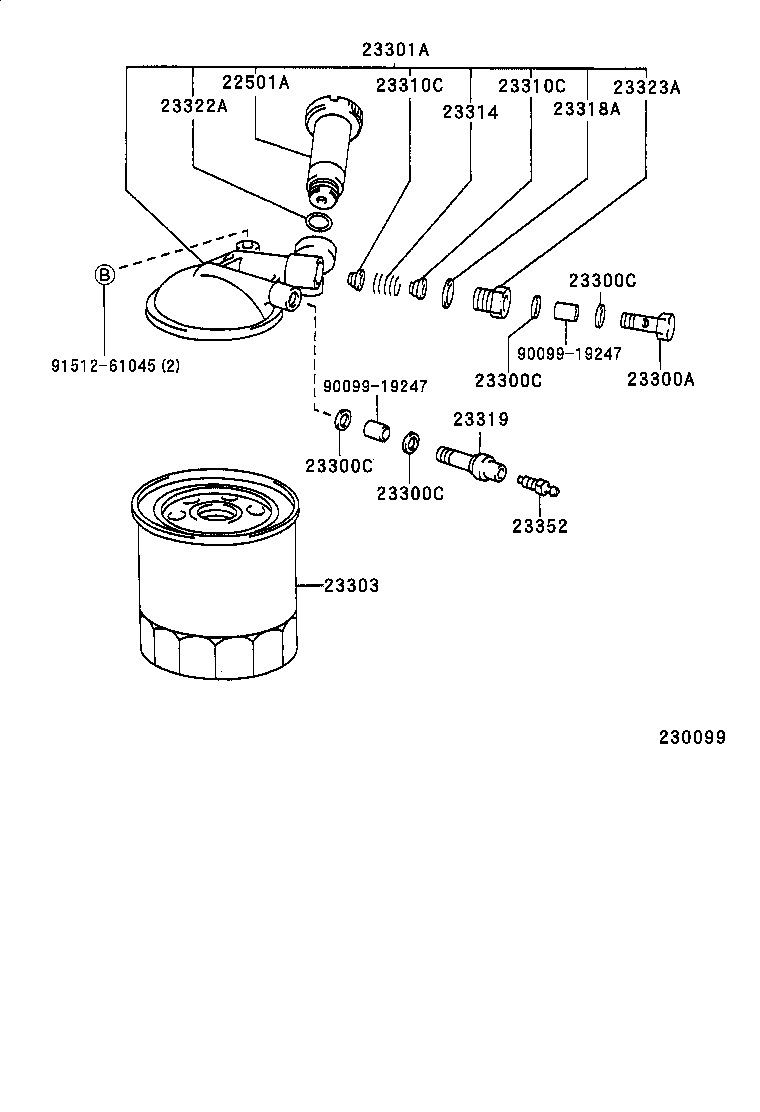

(9605- )15BFT..BU102,142 ; (9703- )15BFT..BU212,222..RHD..GEN ; (9808- )15

Click highlighted areas on diagram

diagram 22501A 23300A 23300C 23300C 23300C 23300C 23301A 23303 23310C 23310C 23314 23318A 23319 23322A 23323A 23352 9009919247 9009919247 9151261045
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-58190

15BFT..BU222..SA;14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF..BU212,222;15BFT..BU212,222..LHD..GEN

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-56040

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223

 1
Common parts
90099-19247
91512-61045
