BU212L-TKMRX3 (1995)
Toyota Dyna200

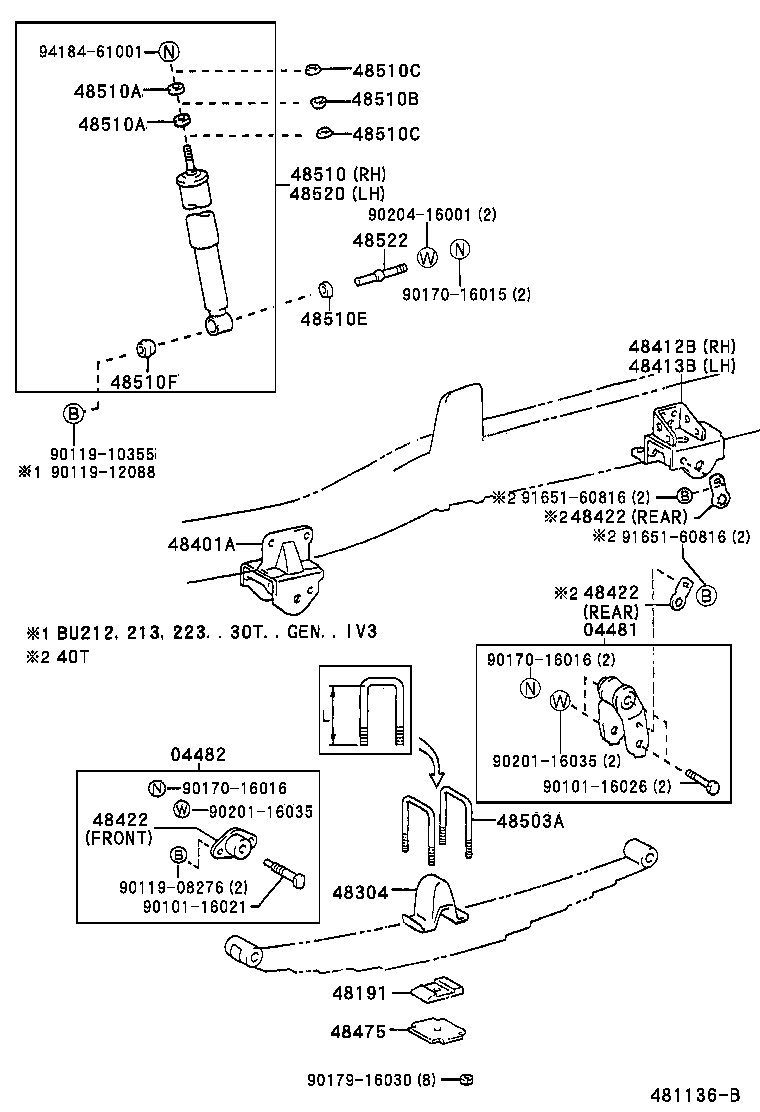

ILLUST NO. 1 OF 2(9505-9703)BU21#,22#,YU210
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36100 |
BU21#,22#,YU210 |
2 | ||
| 04481-36100 |
BU21#,22#,YU210 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36040 |
BU21#,22#,YU210 |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-35020 |
BU21#,223,YU210;BU101,221,222..WT..(20T,40T)..TB |
2 | ||
| 48191-35020 |
BU21#,223,YU210;BU100,101,221,222..WT..(20T,40T)..TB |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36110 |
BU21#,22#..40T |
2 | ||
| 48304-36110 |
BU21#,22#..40T |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48411-36140 |
BU21#,22#..40T RH |
1 | ||
| 48412-36140 |
BU21#,22#..40T LH |
1 | ||
| 48411-36140 |
BU21#,22#..40T RH |
1 | ||
| 48412-36140 |
BU21#,22#..40T LH |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48433-36060 |
BU21#,22#,YU210 |
1 | ||
| 48433-36060 |
BU21#,22#,YU210 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48434-36060 |
BU21#,22#,YU210 |
1 | ||
| 48434-36060 |
BU21#,22#,YU210 |
1 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
BU211..30T..SA;BU10#,11#,14#,213,223,RZU100,YU210;BU211,212,221,222..ARL,EUR,GEN,TAIW |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16033 |
BU21#,22#..40T..(ARL,EUR,GEN,TAIW) L=135 |
1 | ||
| 90117-16017 |
BU211..GEN;BU212..LHD..40T;BU211,YU210..30T..SA;BU212..RHD..(ARL,GEN);BU213,22#..40T..(ARL,EUR,GEN,TAIW) L=130 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80020 |
BU21#,22#..40T |
1 | ||
| 48511-80037 |
BU21#,22#..40T |
1 | ||
| 48511-80037 |
BU21#,22#..40T MARK 48511-36140 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90948-01003 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90948-01003 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90948-02007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90948-02002 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90948-02002 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| 90948-03004 |
BU213,223..40T;BU10#,111,14#,211,212,221,222,RZU100,YU210 |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16011 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| 90385-16011 |
BU213,223..40T;BU10#,111,14#,211,212,221,222,RZU100,YU210 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80037 |
BU21#,22#..40T |
1 | ||
| 48511-80037 |
BU21#,22#..40T MARK 48511-36140 |
1 | ||
| 48511-80020 |
BU21#,22#..40T |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25020 |
BU213,223..40T;BU10#,111,14#,211,212,221,222,RZU100,YU210 |
2 | ||
| 48522-25020 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| Common parts | ||||
| 90101-16021 | ||||
| 90101-16026 | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90119-12088 | ||||
| 90170-16015 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 90204-16001 | ||||
| 91651-60816 | ||||
| 94184-61001 | ||||
ILLUST NO. 2 OF 2(9505- )TD..SA ; (9505- )BU213,223..40T ;(9505- )BU211,221,YU210 ; (9505-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B400 |
BU212..LHD..40T..TD;BU211,221,222..LHD..40T..(GEN,TAIW) 8-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B390 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,DRIVER SIDE |
1 | ||
| 48101-3B400 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48112-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48112-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48112-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48113-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48113-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48113-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48102-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48102-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48102-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B390 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,DRIVER SIDE |
1 | ||
| 48115-3B400 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,PASSENGER SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-3B400 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48103-3B390 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48103-3B390 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48103-3B400 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-3B390 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48117-3B400 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48117-3B390 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48117-3B400 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-3B390 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48118-3B400 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48118-3B400 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48118-3B390 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B390 |
BU212..LHD..40T..TD;BU211,221,222..LHD..40T..(GEN,TAIW) 8-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B550 |
BU222..TD..SA;BU212..RHD..(25T,30T);BU21#,22#..40T..(EUR,GEN,TAIW) |
2 | ||
| 48147-3B390 |
BU21#,22#..40T..(GEN,TAIW) |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(9505- )BU211,221 ; (9505- )BU212..TD..IV3; (9505- )BU222..ARL,GEN,TAIW ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B400 |
BU212..LHD..40T..TD;BU211,221,222..LHD..40T..(GEN,TAIW) 8-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B390 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,DRIVER SIDE |
1 | ||
| 48101-3B400 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48112-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48112-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48112-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48113-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48113-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48113-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48102-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48102-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48102-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B390 |
BU212..LHD..40T..TD;BU211,221,222..LHD..40T..(GEN,TAIW) 8-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B550 |
BU222..TD..SA;BU212..RHD..(25T,30T);BU21#,22#..40T..(EUR,GEN,TAIW) |
2 | ||
| 48147-3B390 |
BU21#,22#..40T..(GEN,TAIW) |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(9505- )BU211,221 ; (9505- )BU213,223..30T; (9505- )BU212..TD..IV3 ; (950
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B400 |
BU212..LHD..40T..TD;BU211,221,222..LHD..40T..(GEN,TAIW) 8-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B390 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,DRIVER SIDE |
1 | ||
| 48101-3B400 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48112-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48112-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48112-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48113-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48113-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48113-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48102-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48102-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48102-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B390 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,DRIVER SIDE |
1 | ||
| 48115-3B400 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,PASSENGER SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-3B400 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48103-3B390 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48103-3B390 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48103-3B400 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-3B390 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48117-3B400 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48117-3B390 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48117-3B400 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-3B390 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48118-3B400 |
BU222..TD..SA;BU212,222..LHD..40T;BU211,213,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48118-3B400 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN PASSENGER SIDE |
1 | ||
| 48118-3B390 |
BU222..TD..(EUR,SA);BU21#,221,223..40T..GEN DRIVER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B390 |
BU212..LHD..40T..TD;BU211,221,222..LHD..40T..(GEN,TAIW) 8-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B550 |
BU222..TD..SA;BU212..RHD..(25T,30T);BU21#,22#..40T..(EUR,GEN,TAIW) |
2 | ||
| 48147-3B390 |
BU21#,22#..40T..(GEN,TAIW) |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(9505- )BU101..TB ; (9505- )BU142..ARL,EUR; (9505- )BU101..RHD..GEN,SA ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B400 |
BU212..LHD..40T..TD;BU211,221,222..LHD..40T..(GEN,TAIW) 8-LEAF |
1 | ||
| 48110-3B400 |
BU212..LHD..40T..TD;BU211,221,222..LHD..40T..(GEN,TAIW) 8-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 90389-16015 |
BU21#,22#,YU210 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B390 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,DRIVER SIDE |
1 | ||
| 48101-3B390 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,DRIVER SIDE |
1 | ||
| 48101-3B400 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,PASSENGER SIDE |
1 | ||
| 48101-3B400 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48112-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48112-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48112-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48112-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48112-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48112-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48112-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48113-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48113-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48113-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48113-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48113-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48113-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48113-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48102-3B390 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,DRIVER SIDE |
1 | ||
| 48102-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48102-3B400 |
BU222..LHD;BU222..TD..SA;BU211,221..40T..GEN;BU212..LHD..40T..TD 8-LEAF,PASSENGER SIDE |
1 | ||
| 48102-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48102-3B390 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,DRIVER SIDE |
1 | ||
| 48102-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48102-3B400 |
BU222..TD..(EUR,SA);BU211,212,221..40T..GEN 8-LEAF,PASSENGER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B390 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,DRIVER SIDE |
1 | ||
| 48115-3B390 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,DRIVER SIDE |
1 | ||
| 48115-3B400 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,PASSENGER SIDE |
1 | ||
| 48115-3B400 |
BU211,221..40T..GEN;BU212..LHD..40T..TD;BU222..LHD..(GEN,TAIW) 8-LEAF,PASSENGER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B390 |
BU212..LHD..40T..TD;BU211,221,222..LHD..40T..(GEN,TAIW) 8-LEAF |
1 | ||
| 48110-3B390 |
BU212..LHD..40T..TD;BU211,221,222..LHD..40T..(GEN,TAIW) 8-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B550 |
BU222..TD..SA;BU212..RHD..(25T,30T);BU21#,22#..40T..(EUR,GEN,TAIW) |
2 | ||
| 48147-3B550 |
BU222..TD..SA;BU212..RHD..(25T,30T);BU21#,22#..40T..(EUR,GEN,TAIW) |
2 | ||
| 48147-3B390 |
BU21#,22#..40T..(GEN,TAIW) |
2 | ||
| 48147-3B390 |
BU21#,22#..40T..(GEN,TAIW) |
2 | ||
| Common parts | ||||
| 90179-10043 | ||||
ILLUST NO. 1 OF 2(9703- )BU21#,22#,YU210
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36100 |
BU21#,22#,YU210 |
2 | ||
| 04481-36100 |
BU21#,22#,YU210 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36040 |
BU21#,22#,YU210 |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-35020 |
BU21#,223,YU210;BU101,221,222..WT..(20T,40T)..TB |
2 | ||
| 48191-35020 |
BU21#,223,YU210;BU100,101,221,222..WT..(20T,40T)..TB |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36110 |
BU21#,22#..40T |
2 | ||
| 48304-36110 |
BU21#,22#..40T |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48411-36140 |
BU21#,22#..40T RH |
1 | ||
| 48412-36140 |
BU21#,22#..40T LH |
1 | ||
| 48411-36140 |
BU21#,22#..40T RH |
1 | ||
| 48412-36140 |
BU21#,22#..40T LH |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48433-36060 |
BU21#,22#,YU210 |
1 | ||
| 48433-36060 |
BU21#,22#,YU210 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48434-36060 |
BU21#,22#,YU210 |
1 | ||
| 48434-36060 |
BU21#,22#,YU210 |
1 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36040 |
BU21#,22#..40T REAR |
4 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48422-36050 |
BU21#,22#,YU210 FRONT |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
BU211..30T..SA;BU10#,11#,14#,213,223,RZU100,YU210;BU211,212,221,222..ARL,EUR,GEN,TAIW |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16033 |
BU21#,22#..40T..(ARL,EUR,GEN,TAIW) L=135 |
1 | ||
| 90117-16017 |
BU211..GEN;BU212..LHD..40T;BU211,YU210..30T..SA;BU212..RHD..(ARL,GEN);BU213,22#..40T..(ARL,EUR,GEN,TAIW) L=130 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80020 |
BU21#,22#..40T |
1 | ||
| 48511-80037 |
BU21#,22#..40T |
1 | ||
| 48511-80037 |
BU21#,22#..40T MARK 48511-36140 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90948-01003 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90948-01003 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90948-02007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90948-02002 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90948-02002 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| 90948-03004 |
BU213,223..40T;BU10#,111,14#,211,212,221,222,RZU100,YU210 |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16011 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| 90385-16011 |
BU213,223..40T;BU10#,111,14#,211,212,221,222,RZU100,YU210 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80037 |
BU21#,22#..40T |
1 | ||
| 48511-80037 |
BU21#,22#..40T MARK 48511-36140 |
1 | ||
| 48511-80020 |
BU21#,22#..40T |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25020 |
BU213,223..40T;BU10#,111,14#,211,212,221,222,RZU100,YU210 |
2 | ||
| 48522-25020 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| Common parts | ||||
| 90101-16021 | ||||
| 90101-16026 | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90119-12088 | ||||
| 90170-16015 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 90204-16001 | ||||
| 91651-60816 | ||||
| 94184-61001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
