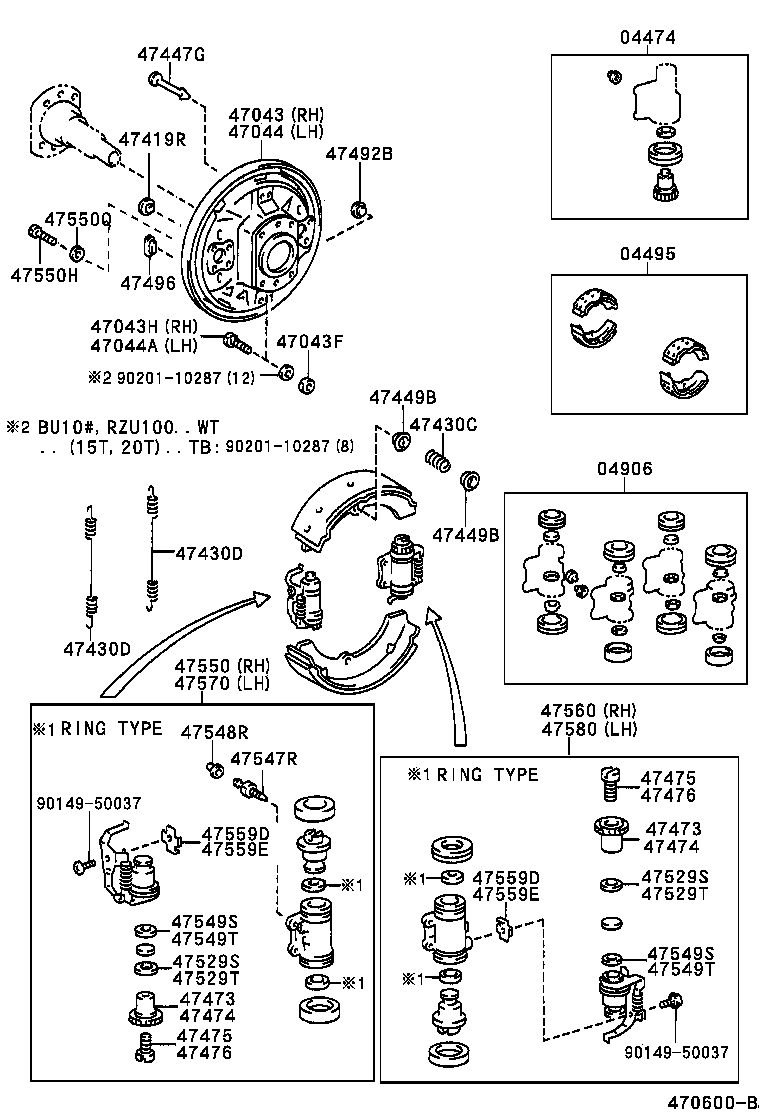

BU212L-TKMQSU3 (1995)
Toyota Dyna200
(9505-9905)BU10#,11#,14#,21#,221,RZU100,YU210..WT ; (9905- )BU100..IV3..TS
W(AUTO ADJUSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36020 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB RH |
2 | ||
| 04474-36030 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB LH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36190 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) MARK NBK LN519 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36170 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36120 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T1,T3,TW1,TW2)..(15T,175T,20T,25T,30T) |
12 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10019 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T1,T3,TW1,TW2)..(15T,175T,20T,25T,30T) |
6 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36120 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10019 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T1,T3,TW1,TW2)..(15T,175T,20T,25T,30T) |
6 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
BU211,YU210..30T;BU10#,11#,14#,212,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU101..WT..GEN;BU211,YU210..30T;BU100,102,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU101..WT..GEN;BU211,YU210..30T;BU100,102,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU211,YU210..30T;BU10#,11#,14#,212,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36200 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
16 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36200 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36200 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36200 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||

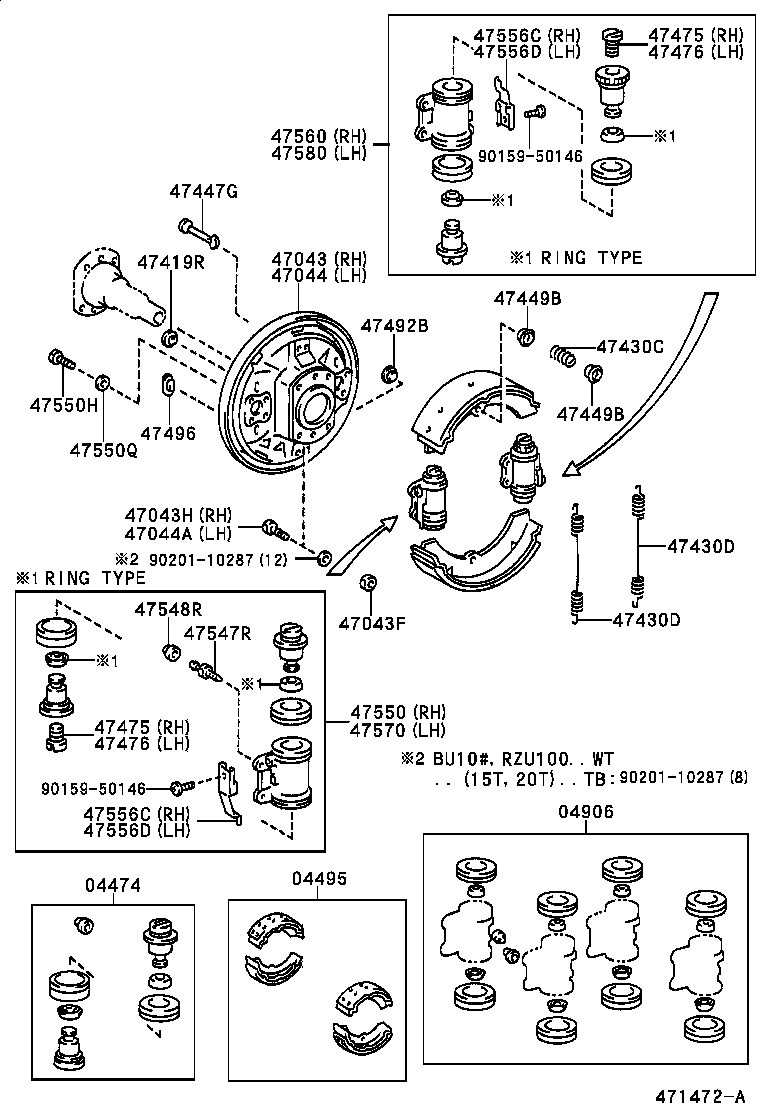

(9505- )WT..15T,20T,25T,30T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36020 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB RH |
2 | ||
| 04474-36030 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB LH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36190 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) MARK NBK LN519 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36170 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36120 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T1,T3,TW1,TW2)..(15T,175T,20T,25T,30T) |
12 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10019 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T1,T3,TW1,TW2)..(15T,175T,20T,25T,30T) |
6 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36120 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10019 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T1,T3,TW1,TW2)..(15T,175T,20T,25T,30T) |
6 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
BU211,YU210..30T;BU10#,11#,14#,212,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU101..WT..GEN;BU211,YU210..30T;BU100,102,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU101..WT..GEN;BU211,YU210..30T;BU100,102,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU211,YU210..30T;BU10#,11#,14#,212,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36200 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
16 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36200 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36200 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36200 |
BU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB |
1 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||
