BU212L-TKMQSU3 (1995)

Toyota Dyna200

Production May 1995 - Oct 1996
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )14B..BU211,212,221,222

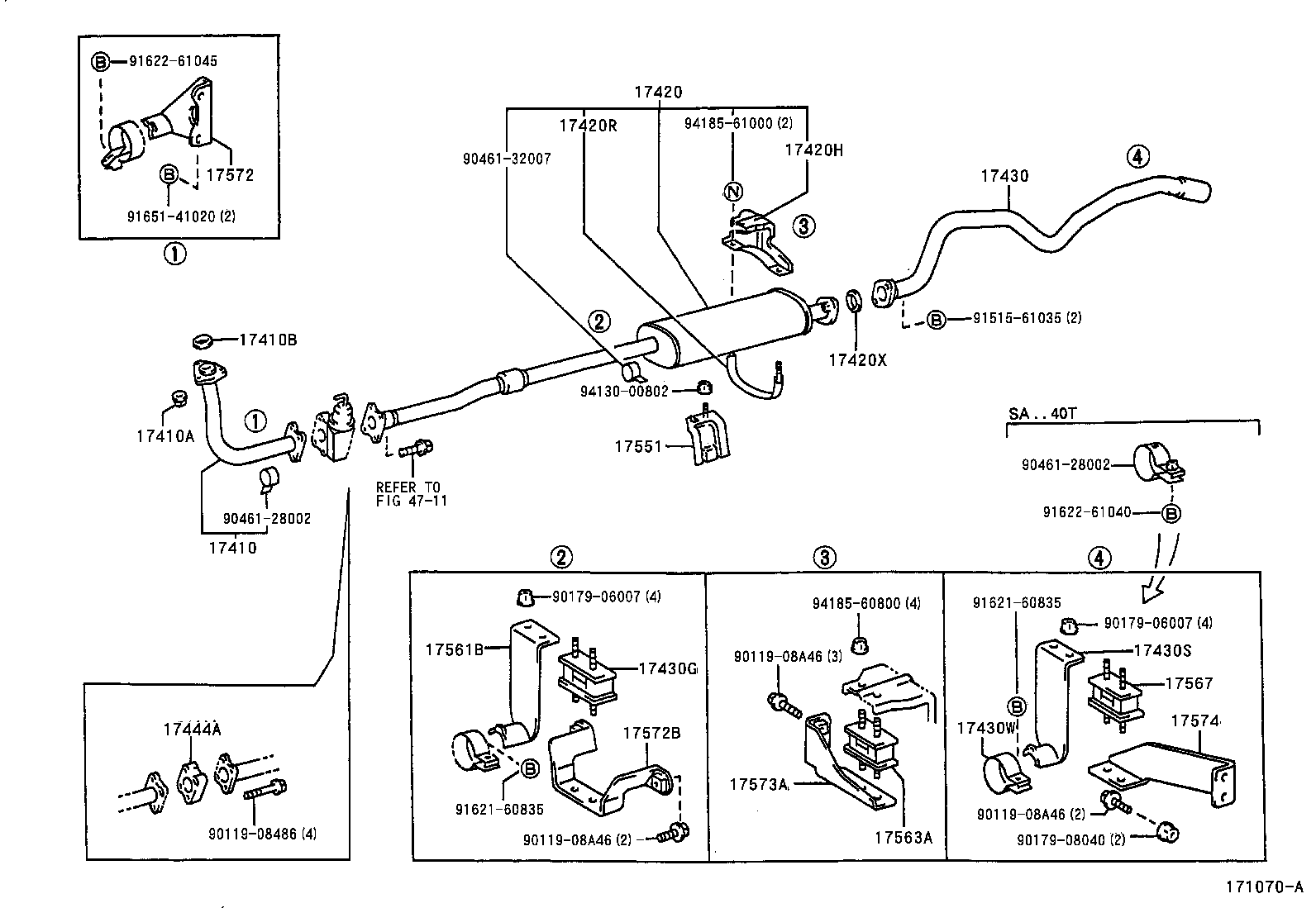

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420H 17420R 17420X 17430 17430G 17430S 17430W 17444A 17551 17561B 17563A 17567 17572 17572B 17573A 17574 4711 9011908486 9011908A46 9011908A46 9011908A46 9017906007 9017906007 9017908040 9046128002 9046128002 9046132007 9151561035 9162160835 9162160835 9162261040 9162261045 9165141020 9413000802 9418560800 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58102

14B,15BF,15BFTE..BU21#,22#

 1
17410-58190

14B,15BF,3B..BU10#,11#,14#

 1
17410-58191

14B,15BF,3B..BU10#,11#,14#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

14B,15B#,3B,3RZFE,4Y..BU10#,11#,14#,21#,22#,RZU100,YU210

 3
17410B - GASKET, EXHAUST PIPE
90917-06067

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-58280

14B..BU211,212

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-58030

14B,15BF,15BFT,3B..BU100,102,11#,14#;14B,3RZFE..BU101,RZU100..(175T,20T,30T)..(GEN,SA)

 1
17576-56040

14B,15B#,4Y..BU211,212,22#,YU210

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020

14B,4Y..BU211,212,221,222,YU210

 1
17504-58020

14B,15BF,15BFT,3B..BU100,102,11#,14#;14B,3RZFE..BU101,RZU100..(175T,20T,30T)..(GEN,SA)

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06042

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58250

14B..BU211,212,221,222

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-17010

14B,15B#..BU212..GEN,TAIW;14B,15B#,3B,4Y..BU14#,211,22#,YU210

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010

15BF..BU222..SA;15BF..BU212..TW1;14B..BU211..30T..SA;14B,15BF..BU142,211,221..ARL,GEN;14B,15BF,15BFT..BU101,142,212,222..GEN,SA,TAIW;14B,15BF,15BFT,3B,3RZFE,4Y..BU100,102,11#,140,141,RZU100,YU210

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007

14B,4Y..BU211,YU210..30T..SA;14B,3RZFE..BU211,212,221,222,RZU100..GEN,TAIW

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-47010

15BFT..BU212,222..LHD;14B,15BF..BU212..GEN,TAIW;14B,15BF,3B,4Y..BU14#,211,22#,YU210

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-58010

14B,15B#,4Y..BU21#,22#,YU210

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-17010

15BF..BU212..TW1;14B,15B#..BU142,212,222..GEN,SA,TAIW;14B,15BF,3B,3RZFE,4Y..BU10#,11#,14#,211,221,RZU100,YU210

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58170

14B,15BF,15BFT..BU211,212,221,222

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-58030

14B,15B#,4Y..BU21#,22#,YU210..GEN,SA,TAIW

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-58040

14B,15BF,15BFT,3B,3RZFE..BU10#,14#,RZU100..WT

 1
17573-58061

14B,15B#,4Y..BU21#,22#,YU210..EUR,GEN,SA,TAIW

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-58040

3RZFE..RZU100..15T;14B..BU211..30T..SA;14B,15BF,15BFT..BU142,211,221..ARL,GEN;14B,15BF,15BFT..BU101,212,222..WT..(GEN,SA,TAIW);14B,15BF,15BFT,3B,4Y..BU100,102,140,141,YU210..WT

 1
Common parts
90119-08486
90119-08A46
90179-06007
90179-08040
90461-28002
90461-32007
91515-61035
91621-60835
91622-61040
91622-61045
91651-41020
94130-00802
94185-60800
94185-61000
Linked diagrams
4711
