BU211R-TKMQSN3 (1995)
Toyota Dyna200

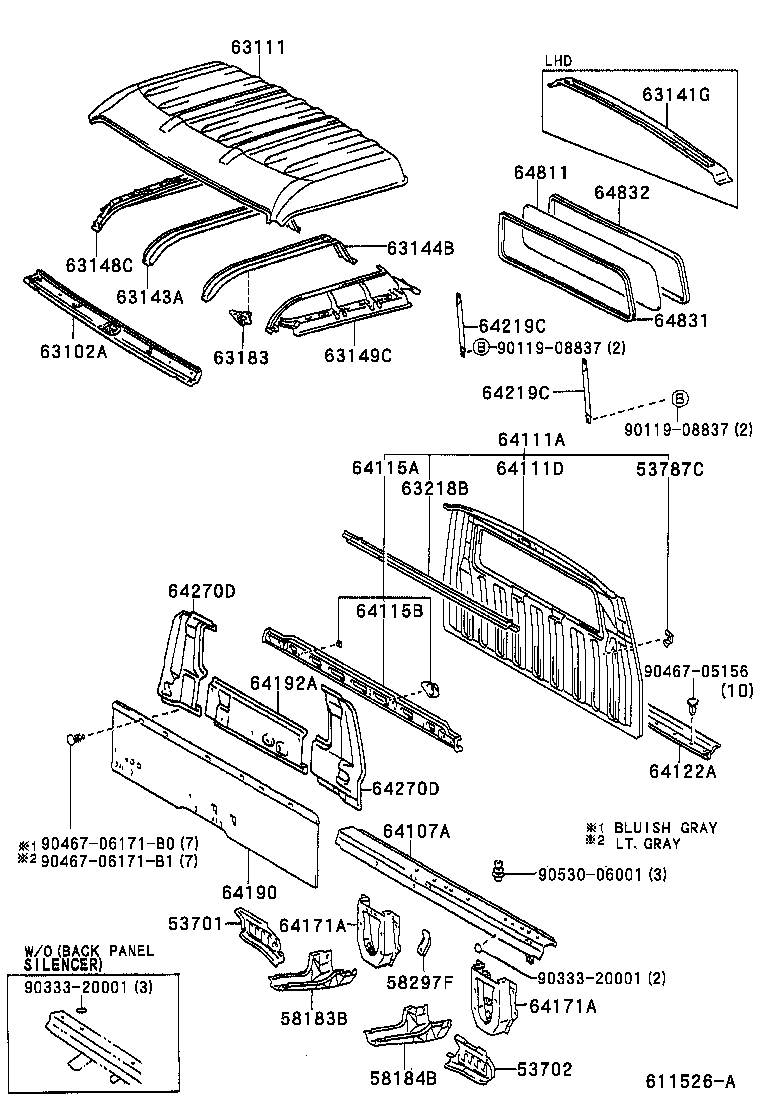

(9505-0105)BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53717-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53717-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53718-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53718-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58183-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58184-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58297F - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 | ||||
| 58297-95402 |
BU101,111,140,141,21#,22#,YU210..RHD..(DM1,T1,T3)..(CBR,DSL) |
1 | ||
| 58297-95402 |
BU222..ARL,SA;BU212..RHD..T3;BU101,102,111,14#,211,221,YU210..RHD..(GEN,SA) |
1 | ||
| 58297-95402 |
BU222..ARL,SA;BU212..RHD..T3;BU10#,111,14#,211,221,YU210..RHD..(GEN,SA) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-95423 |
BU212..TW1;BU212..40T..TD;BU211,221,YU210;BU222..RHD..GEN |
1 | ||
| 63132-37040 |
BU222..EUR;BU212,222..RHD;BU212..LHD..40T..TD;BU211,213,221,223,YU210 |
1 | ||
| 63132-37010 |
BU10#,111,14#,RZU100 |
1 | ||
| 63132-95418 |
RZU100..RHD;BU10#,111,112,14#..GEN,SA,TAIW |
1 | ||
| 63132-37040 |
BU21#,22#,YU210 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95412 |
BU212..40T..TD;BU222..RHD..GEN;BU211,221,YU210..T3 W(ROOF VENTILATOR) |
1 | ||
| 63111-37010 |
RZU100..RHD;BU10#,111,112,14#..(15T,20T,25T,30T)..(GEN,SA,TAIW) |
1 | ||
| 63111-95412 |
BU211,221,YU210..T3;BU212,222..GEN..IV3 W(ROOF VENTILATOR) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-95403 |
BU212..(GEN,SA)..IV3;BU211,221,222,YU210..T3..(EUR,GEN,SA) |
2 | ||
| 63141-37010 |
RZU100..RHD;BU10#,111,112,14#..(DM1,DM6,DM7,T1,T2,T3,T4)..(EUR,GEN,SA,TAIW) |
1 | ||
| 63141-95403 |
BU212..(GEN,SA,TAIW)..IV3;BU211,221,222,YU210..T3..(EUR,GEN,SA,TAIW) |
2 | ||
| 64107A - FRAME SUB-ASSY, BACK | ||||
| 64107-37131 |
BU211,221,YU210..RHD |
1 | ||
| 64107-37111 |
BU101,102,111,14#..RHD..(GEN,SA) |
1 | ||
| 64107-37132 |
BU212,222..SA;BU212..TD..CBU;BU211,221,YU210..RHD |
1 | ||
| 64107-37371 |
BU222..ARL,SA;BU212..TD..CBU;BU211,212,221,YU210..RHD..T3..(CBR,DSL) |
1 | ||
| 64107-37111 |
BU101..SA;BU101..T1..IV3;BU101..RHD..GEN..CBU;BU102,111,14#..RHD..(GEN,SA) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-37360 |
BU211,221,YU210..RHD |
1 | ||
| 64100-37361 |
BU21#,221,YU210..RHD..(CBR,DSL)..(GEN,SA) |
1 | ||
| 64100-37361 |
BU212..RHD..GEN;BU211,221,YU210..RHD THAILAND PACKAGE |
1 | ||
| 64100-37361 |
BU212..RHD..GEN;BU211,221,YU210..RHD THAILAND PACKAGE |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) RH |
1 | ||
| 64026-37030 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) RH |
1 | ||
| 64026-37030 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95410 |
BU100,21#,22#,YU210..175T,30T,40T *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211,221,YU210..SA;BU211..RHD..40T..GEN..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211,222,YU210..EUR,SA;BU211,212..RHD..40T..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211..RHD..40T..GEN..IV3;BU212..RHD..(GEN,SA)..IV3;BU211,221,222,YU210..EUR,SA *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU211,222,YU210..SA;BU211,212..RHD..40T..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95409 |
BU10#,11#,14#..20T,25T,30T *TEM,T=3.5 |
1 | ||
| 64811-37080 |
BU100,21#,22#,YU210..175T,30T,40T *TEM,T=3.5,GREEN |
1 | ||
| 64811-37070 |
BU142..(20T,25T)..(ARL,GEN);BU10#,11#,140,141,RZU100..(15T,20T,25T,30T)..(DSL,EFI) *TEM,T=3.5,GREEN |
1 | ||
| 64811-95410 |
BU211,222,YU210..SA;BU212..RHD..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37050 |
BU222;BU101..ARL;BU212..DSL;BU212..TD..CBU;BU211..30T..IV3;BU211,212..LHD..40T..IV3;BU101,211..(175T,30T,40T)..GEN..(CBU,IV2);BU102,142,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64831-95406 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 64831-37050 |
BU21#,22#;BU101..ARL;BU142..30T;BU100,102,YU210..RHD;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64831-95406 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64831-37050 |
BU101..ARL;BU101..175T..GEN;BU212,222..ARL,GEN,SA;BU102,142,211,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64831-37050 |
BU101..ARL;BU142..30T;BU102,21#,22#,YU210;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-37040 |
BU222;BU101..ARL;BU212..DSL;BU212..TD..CBU;BU211..30T..IV3;BU211,212..LHD..40T..IV3;BU101,211..(175T,30T,40T)..GEN..(CBU,IV2);BU102,142,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64832-37040 |
BU21#,22#;BU101..ARL;BU142..30T;BU100,102,YU210..RHD;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832-37040 |
BU101..ARL;BU101..175T..GEN;BU212,222..ARL,GEN,SA;BU102,142,211,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64832-37040 |
BU101..ARL;BU142..30T;BU102,21#,22#,YU210;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832-95013 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64832-95013 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| Common parts | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90467-05156 | ||||
| 90467-06040 | ||||
| 90467-06171B0 | ||||
| 90467-06171C0 | ||||
| 90530-04005B0 | ||||
| 90530-06001 | ||||

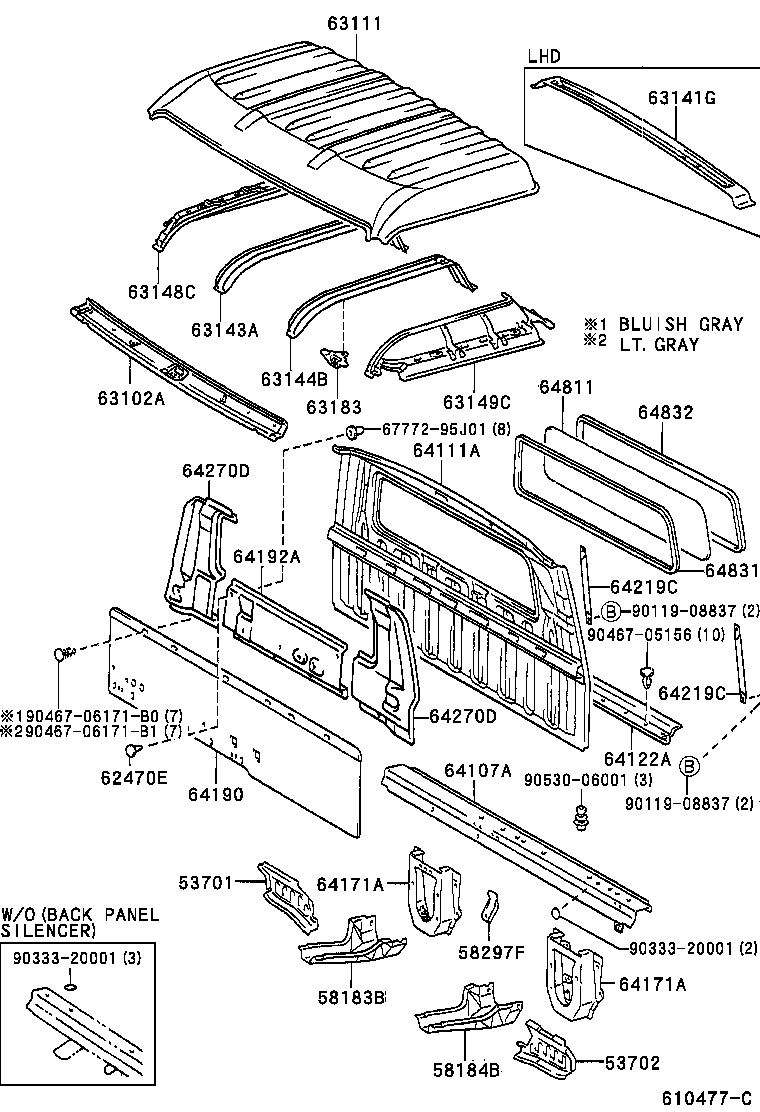

(9505-0105)BU211,212,221,222,YU210..T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53717-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53717-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53718-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53718-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58183-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58184-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58297F - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 | ||||
| 58297-95402 |
BU101,111,140,141,21#,22#,YU210..RHD..(DM1,T1,T3)..(CBR,DSL) |
1 | ||
| 58297-95402 |
BU222..ARL,SA;BU212..RHD..T3;BU101,102,111,14#,211,221,YU210..RHD..(GEN,SA) |
1 | ||
| 58297-95402 |
BU222..ARL,SA;BU212..RHD..T3;BU10#,111,14#,211,221,YU210..RHD..(GEN,SA) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-95423 |
BU212..TW1;BU212..40T..TD;BU211,221,YU210;BU222..RHD..GEN |
1 | ||
| 63132-37040 |
BU222..EUR;BU212,222..RHD;BU212..LHD..40T..TD;BU211,213,221,223,YU210 |
1 | ||
| 63132-37010 |
BU10#,111,14#,RZU100 |
1 | ||
| 63132-95418 |
RZU100..RHD;BU10#,111,112,14#..GEN,SA,TAIW |
1 | ||
| 63132-37040 |
BU21#,22#,YU210 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95412 |
BU212..40T..TD;BU222..RHD..GEN;BU211,221,YU210..T3 W(ROOF VENTILATOR) |
1 | ||
| 63111-37010 |
RZU100..RHD;BU10#,111,112,14#..(15T,20T,25T,30T)..(GEN,SA,TAIW) |
1 | ||
| 63111-95412 |
BU211,221,YU210..T3;BU212,222..GEN..IV3 W(ROOF VENTILATOR) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-95403 |
BU212..(GEN,SA)..IV3;BU211,221,222,YU210..T3..(EUR,GEN,SA) |
2 | ||
| 63141-37010 |
RZU100..RHD;BU10#,111,112,14#..(DM1,DM6,DM7,T1,T2,T3,T4)..(EUR,GEN,SA,TAIW) |
1 | ||
| 63141-95403 |
BU212..(GEN,SA,TAIW)..IV3;BU211,221,222,YU210..T3..(EUR,GEN,SA,TAIW) |
2 | ||
| 64107A - FRAME SUB-ASSY, BACK | ||||
| 64107-37131 |
BU211,221,YU210..RHD |
1 | ||
| 64107-37111 |
BU101,102,111,14#..RHD..(GEN,SA) |
1 | ||
| 64107-37132 |
BU212,222..SA;BU212..TD..CBU;BU211,221,YU210..RHD |
1 | ||
| 64107-37371 |
BU222..ARL,SA;BU212..TD..CBU;BU211,212,221,YU210..RHD..T3..(CBR,DSL) |
1 | ||
| 64107-37111 |
BU101..SA;BU101..T1..IV3;BU101..RHD..GEN..CBU;BU102,111,14#..RHD..(GEN,SA) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-37360 |
BU211,221,YU210..RHD |
1 | ||
| 64100-37361 |
BU21#,221,YU210..RHD..(CBR,DSL)..(GEN,SA) |
1 | ||
| 64100-37361 |
BU212..RHD..GEN;BU211,221,YU210..RHD THAILAND PACKAGE |
1 | ||
| 64100-37361 |
BU212..RHD..GEN;BU211,221,YU210..RHD THAILAND PACKAGE |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) RH |
1 | ||
| 64026-37030 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64025-37010 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) RH |
1 | ||
| 64026-37030 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95410 |
BU100,21#,22#,YU210..175T,30T,40T *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211,221,YU210..SA;BU211..RHD..40T..GEN..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211,222,YU210..EUR,SA;BU211,212..RHD..40T..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211..RHD..40T..GEN..IV3;BU212..RHD..(GEN,SA)..IV3;BU211,221,222,YU210..EUR,SA *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU211,222,YU210..SA;BU211,212..RHD..40T..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95409 |
BU10#,11#,14#..20T,25T,30T *TEM,T=3.5 |
1 | ||
| 64811-37080 |
BU100,21#,22#,YU210..175T,30T,40T *TEM,T=3.5,GREEN |
1 | ||
| 64811-37070 |
BU142..(20T,25T)..(ARL,GEN);BU10#,11#,140,141,RZU100..(15T,20T,25T,30T)..(DSL,EFI) *TEM,T=3.5,GREEN |
1 | ||
| 64811-95410 |
BU211,222,YU210..SA;BU212..RHD..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37050 |
BU222;BU101..ARL;BU212..DSL;BU212..TD..CBU;BU211..30T..IV3;BU211,212..LHD..40T..IV3;BU101,211..(175T,30T,40T)..GEN..(CBU,IV2);BU102,142,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64831-95406 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 64831-37050 |
BU21#,22#;BU101..ARL;BU142..30T;BU100,102,YU210..RHD;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64831-95406 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64831-37050 |
BU101..ARL;BU101..175T..GEN;BU212,222..ARL,GEN,SA;BU102,142,211,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64831-37050 |
BU101..ARL;BU142..30T;BU102,21#,22#,YU210;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-37040 |
BU222;BU101..ARL;BU212..DSL;BU212..TD..CBU;BU211..30T..IV3;BU211,212..LHD..40T..IV3;BU101,211..(175T,30T,40T)..GEN..(CBU,IV2);BU102,142,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64832-37040 |
BU21#,22#;BU101..ARL;BU142..30T;BU100,102,YU210..RHD;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832-37040 |
BU101..ARL;BU101..175T..GEN;BU212,222..ARL,GEN,SA;BU102,142,211,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64832-37040 |
BU101..ARL;BU142..30T;BU102,21#,22#,YU210;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832-95013 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64832-95013 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| Common parts | ||||
| 67772-95J01 | ||||
| 90119-08837 | ||||
| 90333-20001 | ||||
| 90467-05156 | ||||
| 90467-06171B0 | ||||
| 90467-06171B1 | ||||
| 90530-06001 | ||||
(0105- )BU211,212,221,222,YU210..T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53717-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53717-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53718-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53718-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53787C - BRACKET, AIR CLEANER INLET, NO.5 | ||||
| 53787-95400 |
BU222..ARL,SA;BU211,212,221,YU210..T3 |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58183-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58184-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58297F - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 | ||||
| 58297-95402 |
BU101,111,140,141,21#,22#,YU210..RHD..(DM1,T1,T3)..(CBR,DSL) |
1 | ||
| 58297-95402 |
BU222..ARL,SA;BU212..RHD..T3;BU101,102,111,14#,211,221,YU210..RHD..(GEN,SA) |
1 | ||
| 58297-95402 |
BU222..ARL,SA;BU212..RHD..T3;BU10#,111,14#,211,221,YU210..RHD..(GEN,SA) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-95423 |
BU212..TW1;BU212..40T..TD;BU211,221,YU210;BU222..RHD..GEN |
1 | ||
| 63132-37040 |
BU222..EUR;BU212,222..RHD;BU212..LHD..40T..TD;BU211,213,221,223,YU210 |
1 | ||
| 63132-37010 |
BU10#,111,14#,RZU100 |
1 | ||
| 63132-95418 |
RZU100..RHD;BU10#,111,112,14#..GEN,SA,TAIW |
1 | ||
| 63132-37040 |
BU21#,22#,YU210 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95412 |
BU212..40T..TD;BU222..RHD..GEN;BU211,221,YU210..T3 W(ROOF VENTILATOR) |
1 | ||
| 63111-37010 |
RZU100..RHD;BU10#,111,112,14#..(15T,20T,25T,30T)..(GEN,SA,TAIW) |
1 | ||
| 63111-95412 |
BU211,221,YU210..T3;BU212,222..GEN..IV3 W(ROOF VENTILATOR) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-95403 |
BU212..(GEN,SA)..IV3;BU211,221,222,YU210..T3..(EUR,GEN,SA) |
2 | ||
| 63141-37010 |
RZU100..RHD;BU10#,111,112,14#..(DM1,DM6,DM7,T1,T2,T3,T4)..(EUR,GEN,SA,TAIW) |
1 | ||
| 63141-95403 |
BU212..(GEN,SA,TAIW)..IV3;BU211,221,222,YU210..T3..(EUR,GEN,SA,TAIW) |
2 | ||
| 63218B - CHANNEL, ROOF DRIP, REAR | ||||
| 63218-95400 |
BU10#,111,14#,RZU100..DM1,DM6,T1,T2,T3,T4 |
1 | ||
| 63218-95401 |
BU21#,22#,YU210 |
1 | ||
| 64107A - FRAME SUB-ASSY, BACK | ||||
| 64107-37131 |
BU211,221,YU210..RHD |
1 | ||
| 64107-37111 |
BU101,102,111,14#..RHD..(GEN,SA) |
1 | ||
| 64107-37132 |
BU212,222..SA;BU212..TD..CBU;BU211,221,YU210..RHD |
1 | ||
| 64107-37371 |
BU222..ARL,SA;BU212..TD..CBU;BU211,212,221,YU210..RHD..T3..(CBR,DSL) |
1 | ||
| 64107-37111 |
BU101..SA;BU101..T1..IV3;BU101..RHD..GEN..CBU;BU102,111,14#..RHD..(GEN,SA) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-37360 |
BU211,221,YU210..RHD |
1 | ||
| 64100-37361 |
BU21#,221,YU210..RHD..(CBR,DSL)..(GEN,SA) |
1 | ||
| 64100-37361 |
BU212..RHD..GEN;BU211,221,YU210..RHD THAILAND PACKAGE |
1 | ||
| 64100-37361 |
BU212..RHD..GEN;BU211,221,YU210..RHD THAILAND PACKAGE |
1 | ||
| 64111D - PANEL, UPPER BACK | ||||
| 64111-37270 |
BU211,212,221,222,YU210..T3 |
1 | ||
| 64111-37260 |
BU10#,111,14#,RZU100..DM1,DM6,T1,T2,T3,T4 |
1 | ||
| 64115A - REINFORCEMENT, BACK, UPPER | ||||
| 64105-37080 |
BU211,212,221,222,YU210..RHD..(GEN,SA) |
1 | ||
| 64105-37050 |
BU10#,111,14#..RHD..(20T,25T,30T) |
1 | ||
| 64115B - REINFORCEMENT, BACK PANEL | ||||
| 64115-37030 |
BU10#,111,14#..DM1,DM6,T1,T2,T3 |
1 | ||
| 64115-37040 |
BU211,212,221,222,YU210..T3 |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) RH |
1 | ||
| 64026-37030 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) RH |
1 | ||
| 64026-37030 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95410 |
BU100,21#,22#,YU210..175T,30T,40T *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211,221,YU210..SA;BU211..RHD..40T..GEN..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211,222,YU210..EUR,SA;BU211,212..RHD..40T..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211..RHD..40T..GEN..IV3;BU212..RHD..(GEN,SA)..IV3;BU211,221,222,YU210..EUR,SA *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU211,222,YU210..SA;BU211,212..RHD..40T..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95409 |
BU10#,11#,14#..20T,25T,30T *TEM,T=3.5 |
1 | ||
| 64811-37080 |
BU100,21#,22#,YU210..175T,30T,40T *TEM,T=3.5,GREEN |
1 | ||
| 64811-37070 |
BU142..(20T,25T)..(ARL,GEN);BU10#,11#,140,141,RZU100..(15T,20T,25T,30T)..(DSL,EFI) *TEM,T=3.5,GREEN |
1 | ||
| 64811-95410 |
BU211,222,YU210..SA;BU212..RHD..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37050 |
BU222;BU101..ARL;BU212..DSL;BU212..TD..CBU;BU211..30T..IV3;BU211,212..LHD..40T..IV3;BU101,211..(175T,30T,40T)..GEN..(CBU,IV2);BU102,142,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64831-95406 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 64831-37050 |
BU21#,22#;BU101..ARL;BU142..30T;BU100,102,YU210..RHD;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64831-95406 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64831-37050 |
BU101..ARL;BU101..175T..GEN;BU212,222..ARL,GEN,SA;BU102,142,211,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64831-37050 |
BU101..ARL;BU142..30T;BU102,21#,22#,YU210;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-37040 |
BU222;BU101..ARL;BU212..DSL;BU212..TD..CBU;BU211..30T..IV3;BU211,212..LHD..40T..IV3;BU101,211..(175T,30T,40T)..GEN..(CBU,IV2);BU102,142,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64832-37040 |
BU21#,22#;BU101..ARL;BU142..30T;BU100,102,YU210..RHD;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832-37040 |
BU101..ARL;BU101..175T..GEN;BU212,222..ARL,GEN,SA;BU102,142,211,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64832-37040 |
BU101..ARL;BU142..30T;BU102,21#,22#,YU210;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832-95013 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64832-95013 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| Common parts | ||||
| 90119-08837 | ||||
| 90333-20001 | ||||
| 90467-05156 | ||||
| 90467-06171B0 | ||||
| 90467-06171B1 | ||||
| 90530-06001 | ||||
(0105- )BU10#,111,14#,RZU100..DM1,DM6,T1,T2,T3,T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53717-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53717-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53718-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 53718-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58183-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58184-37030 |
BU21#,22#,YU210..T3 |
1 | ||
| 58297F - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 | ||||
| 58297-95402 |
BU101,111,140,141,21#,22#,YU210..RHD..(DM1,T1,T3)..(CBR,DSL) |
1 | ||
| 58297-95402 |
BU222..ARL,SA;BU212..RHD..T3;BU101,102,111,14#,211,221,YU210..RHD..(GEN,SA) |
1 | ||
| 58297-95402 |
BU222..ARL,SA;BU212..RHD..T3;BU10#,111,14#,211,221,YU210..RHD..(GEN,SA) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-95423 |
BU212..TW1;BU212..40T..TD;BU211,221,YU210;BU222..RHD..GEN |
1 | ||
| 63132-37040 |
BU222..EUR;BU212,222..RHD;BU212..LHD..40T..TD;BU211,213,221,223,YU210 |
1 | ||
| 63132-37010 |
BU10#,111,14#,RZU100 |
1 | ||
| 63132-95418 |
RZU100..RHD;BU10#,111,112,14#..GEN,SA,TAIW |
1 | ||
| 63132-37040 |
BU21#,22#,YU210 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95412 |
BU212..40T..TD;BU222..RHD..GEN;BU211,221,YU210..T3 W(ROOF VENTILATOR) |
1 | ||
| 63111-37010 |
RZU100..RHD;BU10#,111,112,14#..(15T,20T,25T,30T)..(GEN,SA,TAIW) |
1 | ||
| 63111-95412 |
BU211,221,YU210..T3;BU212,222..GEN..IV3 W(ROOF VENTILATOR) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-95403 |
BU212..(GEN,SA)..IV3;BU211,221,222,YU210..T3..(EUR,GEN,SA) |
2 | ||
| 63141-37010 |
RZU100..RHD;BU10#,111,112,14#..(DM1,DM6,DM7,T1,T2,T3,T4)..(EUR,GEN,SA,TAIW) |
1 | ||
| 63141-95403 |
BU212..(GEN,SA,TAIW)..IV3;BU211,221,222,YU210..T3..(EUR,GEN,SA,TAIW) |
2 | ||
| 63218B - CHANNEL, ROOF DRIP, REAR | ||||
| 63218-95400 |
BU10#,111,14#,RZU100..DM1,DM6,T1,T2,T3,T4 |
1 | ||
| 63218-95401 |
BU21#,22#,YU210 |
1 | ||
| 64107A - FRAME SUB-ASSY, BACK | ||||
| 64107-37131 |
BU211,221,YU210..RHD |
1 | ||
| 64107-37111 |
BU101,102,111,14#..RHD..(GEN,SA) |
1 | ||
| 64107-37132 |
BU212,222..SA;BU212..TD..CBU;BU211,221,YU210..RHD |
1 | ||
| 64107-37371 |
BU222..ARL,SA;BU212..TD..CBU;BU211,212,221,YU210..RHD..T3..(CBR,DSL) |
1 | ||
| 64107-37111 |
BU101..SA;BU101..T1..IV3;BU101..RHD..GEN..CBU;BU102,111,14#..RHD..(GEN,SA) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-37360 |
BU211,221,YU210..RHD |
1 | ||
| 64100-37361 |
BU21#,221,YU210..RHD..(CBR,DSL)..(GEN,SA) |
1 | ||
| 64100-37361 |
BU212..RHD..GEN;BU211,221,YU210..RHD THAILAND PACKAGE |
1 | ||
| 64100-37361 |
BU212..RHD..GEN;BU211,221,YU210..RHD THAILAND PACKAGE |
1 | ||
| 64111D - PANEL, UPPER BACK | ||||
| 64111-37270 |
BU211,212,221,222,YU210..T3 |
1 | ||
| 64111-37260 |
BU10#,111,14#,RZU100..DM1,DM6,T1,T2,T3,T4 |
1 | ||
| 64115A - REINFORCEMENT, BACK, UPPER | ||||
| 64105-37080 |
BU211,212,221,222,YU210..RHD..(GEN,SA) |
1 | ||
| 64105-37050 |
BU10#,111,14#..RHD..(20T,25T,30T) |
1 | ||
| 64115B - REINFORCEMENT, BACK PANEL | ||||
| 64115-37030 |
BU10#,111,14#..DM1,DM6,T1,T2,T3 |
1 | ||
| 64115-37040 |
BU211,212,221,222,YU210..T3 |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) RH |
1 | ||
| 64026-37030 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) RH |
1 | ||
| 64026-37030 |
BU111,21#,221..DM6,T3;BU100,102,110,112,140,142,222,YU210..(DM1,T3)..(ARL,EUR,SA,TAIW) LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64026-37031 |
BU21#,22#,YU210..T3 LH |
1 | ||
| 64025-37011 |
BU21#,22#,YU210..T3 RH |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95410 |
BU100,21#,22#,YU210..175T,30T,40T *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211,221,YU210..SA;BU211..RHD..40T..GEN..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211,222,YU210..EUR,SA;BU211,212..RHD..40T..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU142..TW1;BU211..RHD..40T..GEN..IV3;BU212..RHD..(GEN,SA)..IV3;BU211,221,222,YU210..EUR,SA *TEM,T=3.5 |
1 | ||
| 64811-95410 |
BU211,222,YU210..SA;BU211,212..RHD..40T..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64811-95409 |
BU10#,11#,14#..20T,25T,30T *TEM,T=3.5 |
1 | ||
| 64811-37080 |
BU100,21#,22#,YU210..175T,30T,40T *TEM,T=3.5,GREEN |
1 | ||
| 64811-37070 |
BU142..(20T,25T)..(ARL,GEN);BU10#,11#,140,141,RZU100..(15T,20T,25T,30T)..(DSL,EFI) *TEM,T=3.5,GREEN |
1 | ||
| 64811-95410 |
BU211,222,YU210..SA;BU212..RHD..(GEN,SA)..IV3 *TEM,T=3.5 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37050 |
BU222;BU101..ARL;BU212..DSL;BU212..TD..CBU;BU211..30T..IV3;BU211,212..LHD..40T..IV3;BU101,211..(175T,30T,40T)..GEN..(CBU,IV2);BU102,142,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64831-95406 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 64831-37050 |
BU21#,22#;BU101..ARL;BU142..30T;BU100,102,YU210..RHD;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64831-95406 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64831-37050 |
BU101..ARL;BU101..175T..GEN;BU212,222..ARL,GEN,SA;BU102,142,211,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64831-37050 |
BU101..ARL;BU142..30T;BU102,21#,22#,YU210;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-37040 |
BU222;BU101..ARL;BU212..DSL;BU212..TD..CBU;BU211..30T..IV3;BU211,212..LHD..40T..IV3;BU101,211..(175T,30T,40T)..GEN..(CBU,IV2);BU102,142,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64832-37040 |
BU21#,22#;BU101..ARL;BU142..30T;BU100,102,YU210..RHD;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832-37040 |
BU101..ARL;BU101..175T..GEN;BU212,222..ARL,GEN,SA;BU102,142,211,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA) |
1 | ||
| 64832-37040 |
BU101..ARL;BU142..30T;BU102,21#,22#,YU210;BU101,142,RZU100..LHD..(T4,TW1,TW2) |
1 | ||
| 64832-95013 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64832-95013 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| Common parts | ||||
| 71962-95400 | ||||
| 74711-95404 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90467-05156 | ||||
| 90467-06040 | ||||
| 90467-06171B0 | ||||
| 90467-06171C0 | ||||
| 90530-04005B0 | ||||
| 90530-06001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
