BU211R-TKMQS3 (1995)
Toyota Dyna200

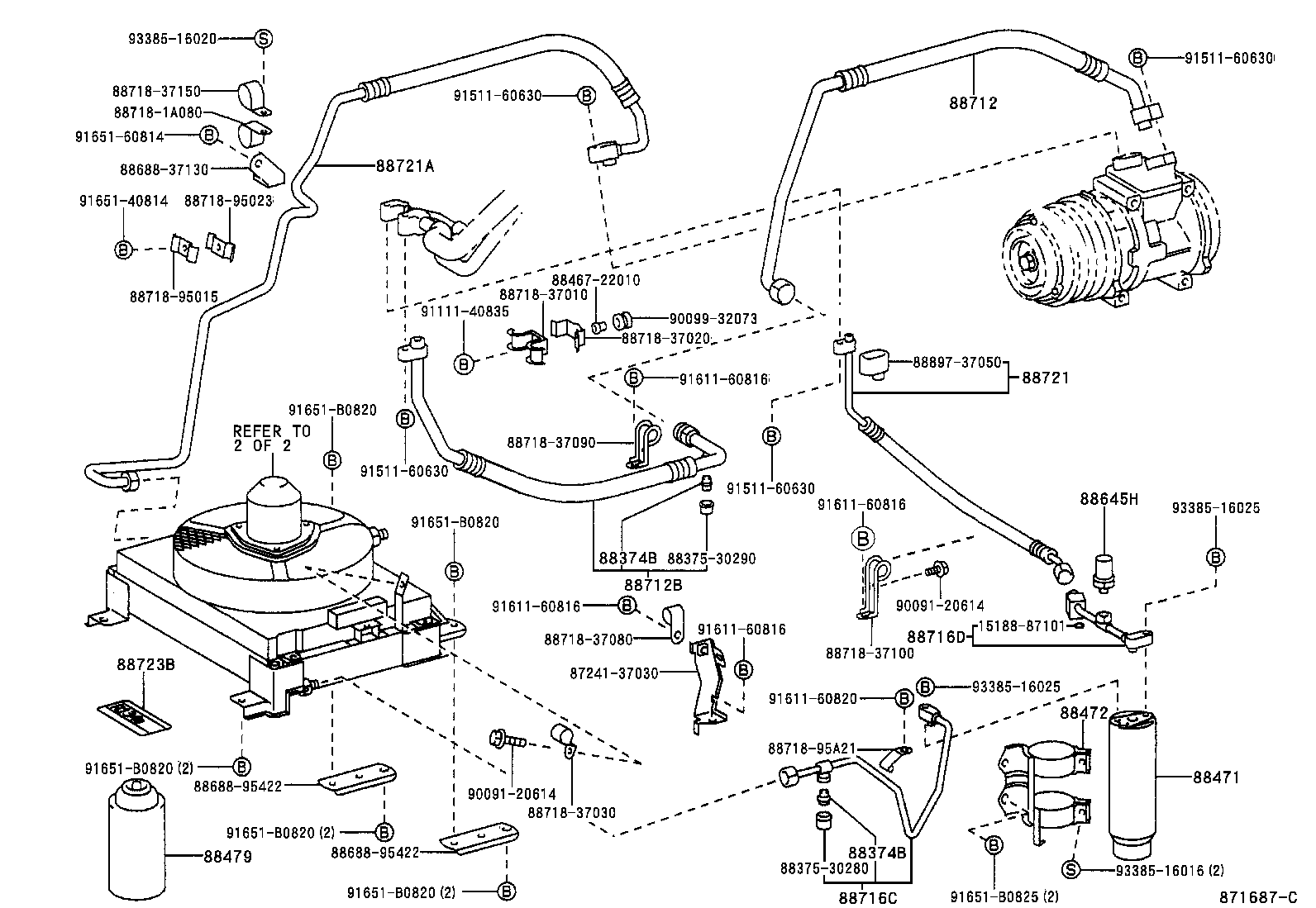

ILLUST NO. 1 OF 3(9505- )BU211,221..RHD ; (9505- )BU222..RHD..ARL,GEN ; (9505- )BU212..RHD.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
BU212,222..LHD..TD..GEN;BU212,RZU100..(DSL,EFI)..IV3;BU10#,11#,14#,211,22#..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,GEN,TAIW)..(CBU,IV3) |
2 | ||
| 88374-30010 |
BU222;BU212..30T..GEN;BU10#,11#,14#,21#,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW) |
2 | ||
| 88374-30010 |
BU212,222,RZU100..(ARL,GEN)..IV3;BU10#,11#,14#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
BU212,222..LHD..TD..GEN;BU212,RZU100..(DSL,EFI)..IV3;BU10#,11#,14#,211,22#..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,GEN,TAIW)..(CBU,IV3) |
2 | ||
| 88374-30010 |
BU222;BU212..30T..GEN;BU10#,11#,14#,21#,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW) |
2 | ||
| 88374-30010 |
BU212,222,RZU100..(ARL,GEN)..IV3;BU10#,11#,14#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
BU140,222..EUR,TAIW;BU21#,221..ARL,GEN,TAIW |
1 | ||
| 88471-20050 |
BU212,222..(ARL,GEN,TAIW)..IV3;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..(EUR,GEN)..(CBU,IV3) MAKER OPTION |
1 | ||
| 88471-34010 |
BU101,102,11#,141..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..GEN DEALER OPTION |
1 | ||
| 88471-20050 |
BU212..LHD;BU212,222..ARL;BU101,111,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MAKER OPTION |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-37070 |
BU100,101,110,111,14#,RZU100..RHD..(DSL,EFI)..(ARL,GEN) |
1 | ||
| 88472-37060 |
BU211..RHD..GEN..(CBU,IV3);BU212,221,222..RHD..DSL..(ARL,GEN)..IV3 |
1 | ||
| 88472-37060 |
BU212..RHD..(ARL,GEN)..IV3;BU211,221,222..RHD..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
BU102..TAIW;BU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU100,101,11#,14#,211,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) 200G |
2 | ||
| 90986-02008 |
BU212..ARL;BU212..LHD;BU141,211,222..(ARL,GEN)..(CBU,IV3);BU101,111,142,221..(DM1,T1,T2,T3,TW2)..DSL 200G |
2 | ||
| 90986-02007 |
BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) 250G |
1 | ||
| 90986-02007 |
BU102..TAIW;BU212,222,RZU100..(20T,30T,40T)..(ARL,GEN,TAIW)..IV3;BU100,101,11#,14#,211,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) 250G |
1 | ||
| 90986-02008 |
BU212..(ARL,GEN)..IV3;BU100,101,111,142..(DM1,T1,T2,T3,TW2)..DSL;BU141,211,221,222,RZU100..(DM6,T3,TW1)..(ARL,GEN)..(CBU,IV3) 200G |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
BU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 88645-60030 |
BU212..ARL;BU212..LHD;BU101,111,14#,211,213,22#,RZU100..(DM1,T1,T2,T3,T4,TW1,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-37430 |
BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW) |
1 | ||
| 88712-37390 |
BU212,222..ARL,TAIW;BU211,221..GEN..(CBU,IV3) |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-37310 |
BU100,101,110,111,14#..RHD..DSL..(ARL,GEN) |
1 | ||
| 88712-37360 |
BU211..RHD..GEN..(CBU,IV3);BU212,221,222..RHD..DSL..(ARL,GEN)..IV3 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-37190 |
BU212..RHD..(ARL,GEN)..IV3;BU211,221,222..RHD..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 88716-37190 |
BU211..RHD..GEN..(CBU,IV3);BU212,221,222..RHD..DSL..(ARL,GEN)..IV3 |
1 | ||
| 88716-37150 |
BU100,101,110,111,14#,RZU100..RHD..(DSL,EFI)..(ARL,GEN) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-37240 |
BU212..RHD..(ARL,GEN)..IV3;BU211,221,222..RHD..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 88716-37240 |
BU211..RHD..GEN..(CBU,IV3);BU212,221,222..RHD..DSL..(ARL,GEN)..IV3 |
1 | ||
| 88721 - PIPE, COOLER REFRIGERANT SUCTION, NO.5 | ||||
| 88721-37190 |
BU211..RHD..GEN..(CBU,IV3);BU212,221,222..RHD..DSL..(ARL,GEN)..IV3 |
1 | ||
| 88721-37180 |
BU100,101,110,111,14#,RZU100..RHD..(DSL,EFI)..(ARL,GEN) |
1 | ||
| 88721-37190 |
BU212..RHD..(ARL,GEN)..IV3;BU211,221,222..RHD..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-37130 |
BU212,222..ARL,TAIW;BU211,221..GEN..(CBU,IV3) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
BU212..ARL;BU212..LHD;BU101,111,14#,211,213,22#,RZU100..(DM1,T1,T2,T3,T4,TW1,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 88723-20040 |
BU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 15188-87101 | ||||
| 87241-37030 | ||||
| 88375-30280 | ||||
| 88375-30290 | ||||
| 88467-22010 | ||||
| 88688-37130 | ||||
| 88688-95422 | ||||
| 88718-1A080 | ||||
| 88718-37010 | ||||
| 88718-37020 | ||||
| 88718-37030 | ||||
| 88718-37080 | ||||
| 88718-37090 | ||||
| 88718-37100 | ||||
| 88718-37150 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95A21 | ||||
| 88897-37050 | ||||
| 90091-20614 | ||||
| 90099-32073 | ||||
| 91111-40835 | ||||
| 91511-60630 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40814 | ||||
| 91651-60814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-16025 | ||||

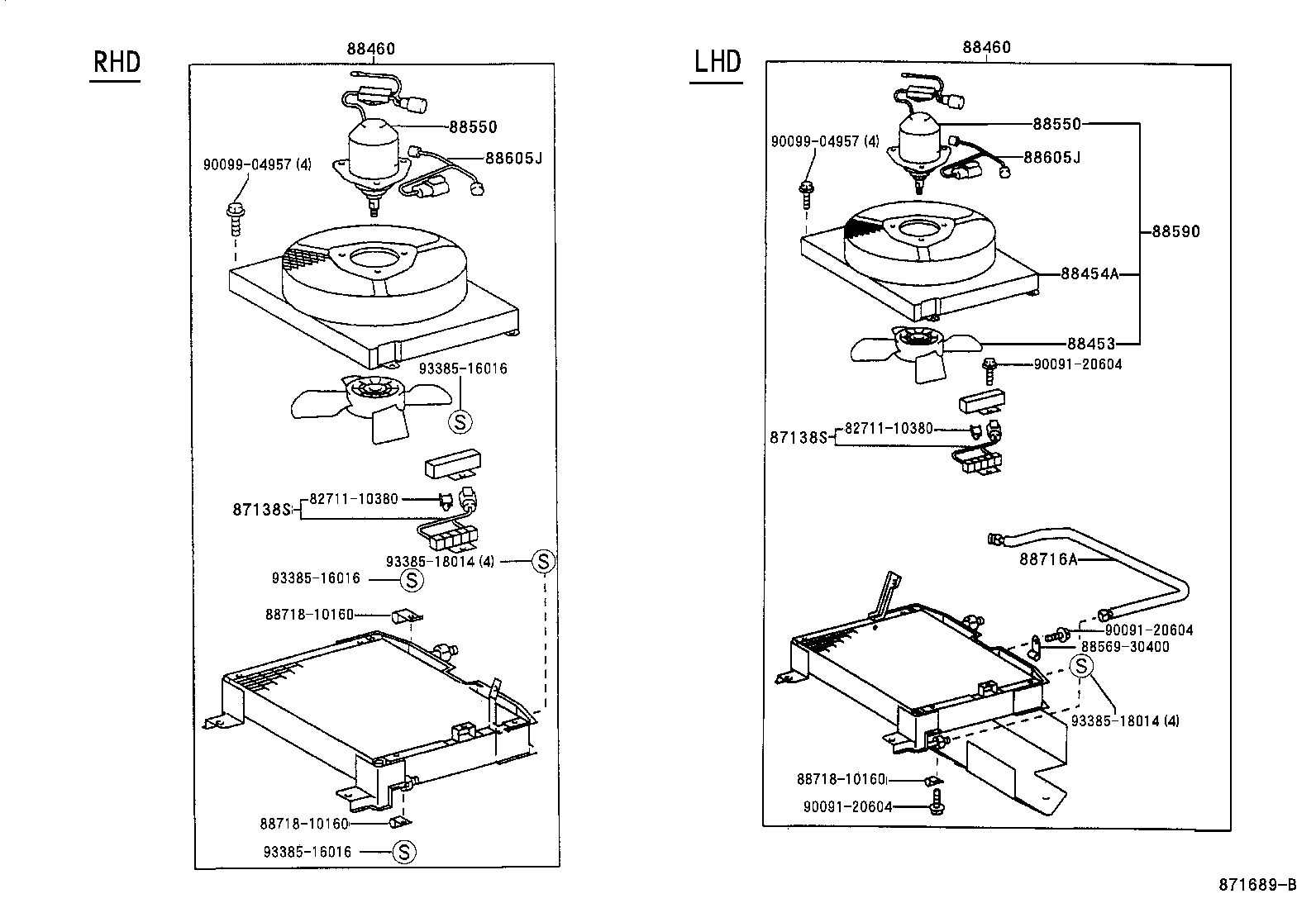

ILLUST NO. 2 OF 3(9505- )BU212..TD..IV3 ; (9505- )BU211,213,221,223 ; (9505- )BU222..ARL,GE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 87138-37020 |
RZU100;BU102,212..ARL,TAIW;BU212..LHD..40T..TD;BU100,101,11#,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) DEALER OPTION |
1 | ||
| 87138S - RESISTOR, BLOWER | ||||
| 87138-37020 |
RZU100;BU102,212..ARL,TAIW;BU212..LHD..40T..TD;BU100,101,11#,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) DEALER OPTION |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-37190 |
BU211..RHD..GEN..(CBU,IV3);BU212,221,222..RHD..DSL..(ARL,GEN)..IV3 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-37190 |
BU211..RHD..GEN..(CBU,IV3);BU212,221,222..RHD..DSL..(ARL,GEN)..IV3 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-37050 |
BU101..LHD..WT;BU101..RHD..GEN;BU101..20T..GEN..TB;BU212..LHD..40T..TD;BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) ALGERIA SPEC OR CHINA SPEC |
1 | ||
| 87104-37050 |
BU101..CBU;BU140..EUR;BU211..TW1;BU101..ST..IV3;BU100..ST..20T;BU140,141..RHD;BU211..RHD..CBU;BU101..LHD..WT..IV3;BU212,221..LHD..40T;BU211..RHD..30T..GEN..IV3 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-37050 |
BU101..LHD..WT;BU101..RHD..GEN;BU101..20T..GEN..TB;BU212..LHD..40T..TD;BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) ALGERIA SPEC OR CHINA SPEC |
1 | ||
| 87104-37050 |
BU101..CBU;BU140..EUR;BU211..TW1;BU101..ST..IV3;BU100..ST..20T;BU140,141..RHD;BU211..RHD..CBU;BU101..LHD..WT..IV3;BU212,221..LHD..40T;BU211..RHD..30T..GEN..IV3 |
1 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88648-37040 |
BU212..40T..GEN;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN NO.2 |
1 | ||
| 88648-37040 |
BU212..TAIW;BU212..40T..GEN;BU10#,111,112,140,141,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW) NO.2 |
1 | ||
| 88648-37040 |
RZU100;BU212..LHD..40T..TD;BU10#,111,112,140,141,211,221..(DM1,DM7,T1,T2,T3,TW1,TW2)..(175T,20T,25T,30T,40T)..(ARL,GEN)..(CBU,IV3) NO.2 |
1 | ||
| 88605-37190 |
BU212..ARL;BU212..LHD..40T..TD;BU101,110,141,142,222..RHD..DSL..(ARL,GEN);BU100,111,140,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) NO.1 |
1 | ||
| 88648-37040 |
BU101..LHD..WT;BU101..RHD..GEN;BU101..20T..GEN..TB;BU212..LHD..40T..TD;BU102,11#,141,211,221..(DM1,DM7,T2,T3,TW1)..(20T,25T,30T,40T)..DSL..GEN..(CBU,IV3) NO.2 |
1 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88648-37040 |
BU212..40T..GEN;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN NO.2 |
1 | ||
| 88648-37040 |
BU212..TAIW;BU212..40T..GEN;BU10#,111,112,140,141,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW) NO.2 |
1 | ||
| 88648-37040 |
RZU100;BU212..LHD..40T..TD;BU10#,111,112,140,141,211,221..(DM1,DM7,T1,T2,T3,TW1,TW2)..(175T,20T,25T,30T,40T)..(ARL,GEN)..(CBU,IV3) NO.2 |
1 | ||
| 88605-37190 |
BU212..ARL;BU212..LHD..40T..TD;BU101,110,141,142,222..RHD..DSL..(ARL,GEN);BU100,111,140,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) NO.1 |
1 | ||
| 88648-37040 |
BU101..LHD..WT;BU101..RHD..GEN;BU101..20T..GEN..TB;BU212..LHD..40T..TD;BU102,11#,141,211,221..(DM1,DM7,T2,T3,TW1)..(20T,25T,30T,40T)..DSL..GEN..(CBU,IV3) NO.2 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 88569-30400 | ||||
| 88718-10160 | ||||
| 90091-20604 | ||||
| 90099-04957 | ||||
| 93385-16016 | ||||
| 93385-18014 | ||||
ILLUST NO. 3 OF 3(9505- )BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
