BU211L-TKMRS (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU110,111,140,141,211,212..DM1,T3..CBU ; (9610- )BU211..TW1

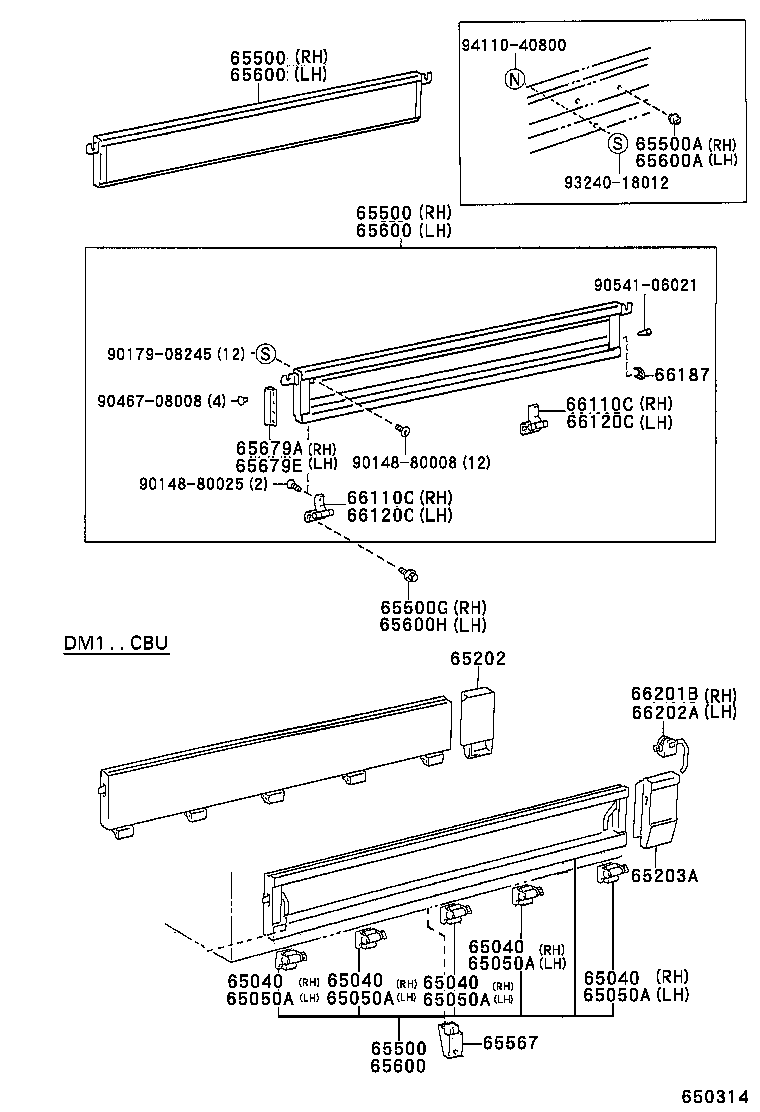

Click highlighted areas on diagram

diagram 65040 65040 65040 65040 65040 65050A 65050A 65050A 65050A 65050A 65202 65203A 65500 65500 65500 65500A 65500G 65567 65600 65600 65600 65600A 65600H 65679A 65679E 66110C 66110C 66120C 66120C 66187 66201B 66202A 9014880008 9014880025 9017908245 9046708008 9054106021 9324018012 9411040800
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-37210

BU211,212..T3..CBU

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-37210

BU211,212..T3..CBU

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-37210

BU211,212..T3..CBU

 1
65500A - PLUG, HOLE(FOR REAR BODY SIDE PANEL)
90950-01753

BU140,141,211,212..T3..CBU

 2
65500G - BOLT, W/WASHER(FOR SIDE GATE, RH)
90119-08464

BU140,141,211,212..T3..CBU

 14
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-37210

BU211,212..T3..CBU

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-37210

BU211,212..T3..CBU

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-37210

BU211,212..T3..CBU

 1
65600A - PLUG, HOLE(FOR SIDE GATE, LH)
90950-01753

BU140,141,211,212..T3..CBU

 2
65600H - BOLT, W/WASHER(FOR SIDE GATE, LH)
90119-08464

BU140,141,211,212..T3..CBU

 14
65679A - SEAL, SIDE GATE
65679-37010

BU140,141,211,212,221..CBU

 1
65679E - SEAL, SIDE GATE
65679-37010

BU140,141,211,212,221..CBU

 1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65050-37090

BU211,212..T3..CBU

1ST,7TH

 2
65010-37050

BU211,212..T3..CBU

2ND,3RD,4TH,5TH,6TH

 5
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65050-37090

BU211,212..T3..CBU

1ST,7TH

 2
65010-37050

BU211,212..T3..CBU

2ND,3RD,4TH,5TH,6TH

 5
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
65010-37050

BU211,212..T3..CBU

2ND,3RD,4TH,5TH,6TH

 5
65050-37090

BU211,212..T3..CBU

1ST,7TH

 2
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
65010-37050

BU211,212..T3..CBU

2ND,3RD,4TH,5TH,6TH

 5
65050-37090

BU211,212..T3..CBU

1ST,7TH

 2
66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2
66187-37010

BU140,141,211,212,221..CBU

 1
Common parts
90148-80008
90148-80025
90179-08245
90467-08008
90541-06021
93240-18012
94110-40800
