BU211L-TKMQS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2003
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU212..LHD..30T..DSL ; (9505- )BU211,221,222..LHD..DSL

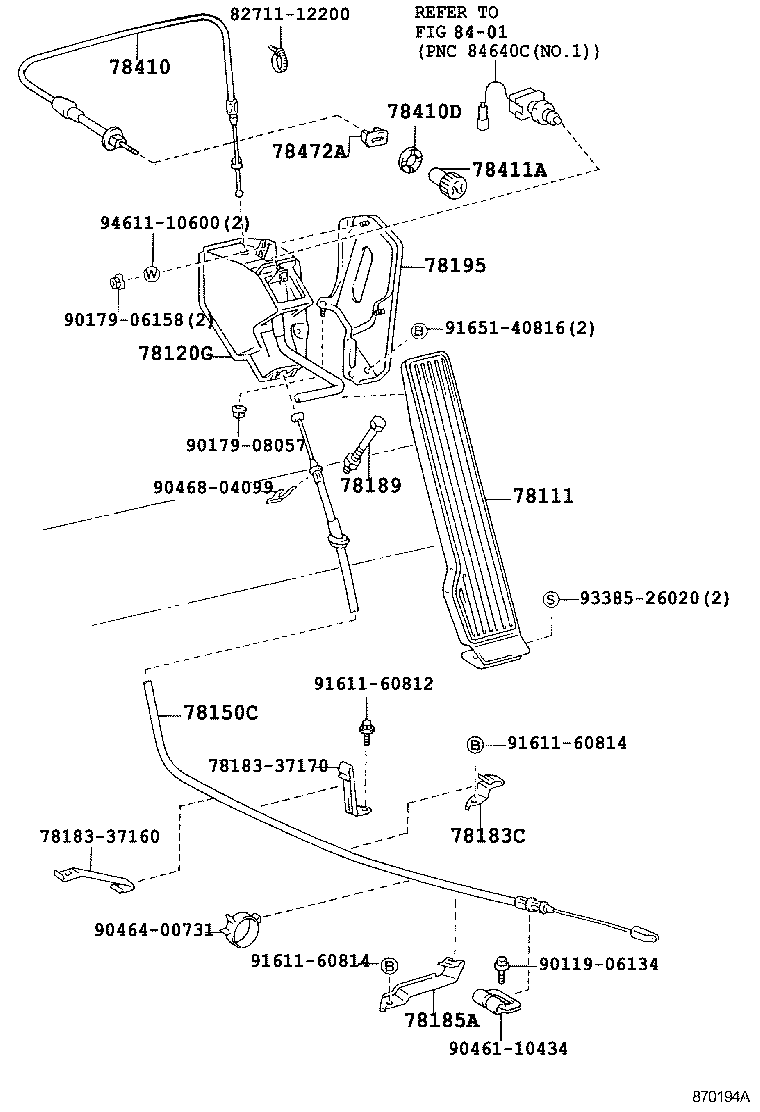

Click highlighted areas on diagram

diagram 78111 78120G 78150C 7818337160 7818337170 78183C 78185A 78189 78195 78410 78410D 78411A 78472A 8271112200 8401 9011906134 9017906158 9017908057 9046110434 9046400731 9046804099 9161160812 9161160814 9161160814 9165140816 9338526020 9461110600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78010-37010

BU101,111,14#,21#,221,223,RZU100..LHD..GEN

 1
78010-37010

BU10#,111,112,14#,21#,22#,RZU100..LHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78202-95401

BU222..LHD..(GEN,TAIW);BU10#,111,112,140,141,211,212,221..LHD

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-37191

BU212..TAIW;BU211,221,222..LHD..DSL

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-37010

BU211,221..GEN;BU211..30T..SA;BU10#,11#,14#,212,222,RZU100..DSL,EFI

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78183-37140

BU211,221..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU101,111,112,141..DM1,DM6,T1,T2,T3,TW2

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95402

BU101,111,14#,211,212,221,RZU100..LHD..GEN

 1
78208-95402

BU10#,111,112,14#,211,212,221,222,RZU100..LHD

 1
78195 - BRACKET, ACCELERATOR LINK
78195-37020

BU222..LHD..(GEN,TAIW);BU10#,111,112,140,141,211,212,221,RZU100..LHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78404-37030

BU10#,111,112,140,141,21#,22#..LHD

 1
78404-37070

BU10#,111,112,140,141,211,212,221,222..LHD..(GEN,TAIW)

 1
78410D - NUT, THROTTLE
78314-95010

BU10#,11#,14#,211,212,221,222

 1
78314-95010

BU10#,111,14#,211,212,221,222

 1
78314-95010

BU10#,111,14#,211,212,221,222..ARL,GEN,SA

 1
78314-95010

BU10#,111,14#,211,212,221,222

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-95J01

BU10#,111,14#,211,212,221,222

 1
78411-22010

BU10#,11#,14#,21#,22#

 1
78411-95J01

BU10#,111,14#,211,212,221,222..ARL,GEN,SA

 1
78411-95J01

BU10#,111,14#,211,212,221,222

 1
78411-95J01

BU10#,11#,14#,211,212,221,222

 1
78472A - SUPPORT, THROTTLE CONTROL CABLE
78472-95700B0

BU10#,11#,14#,211,212,221,222,YU210

BLUISH GRAY,TRIM1#

 1
78472-95700B0

BU10#,111,14#,211,212,221,222,YU210..ARL,GEN,SA

BLUISH GRAY,TRIM1#

 1
Common parts
78183-37160
78183-37170
82711-12200
90119-06134
90179-06158
90179-08057
90461-10434
90464-00731
90468-04099
91611-60812
91611-60814
91651-40816
93385-26020
94611-10600
Linked diagrams
8401
