BU211L-TKMQS3 (1995)
Toyota Dyna200

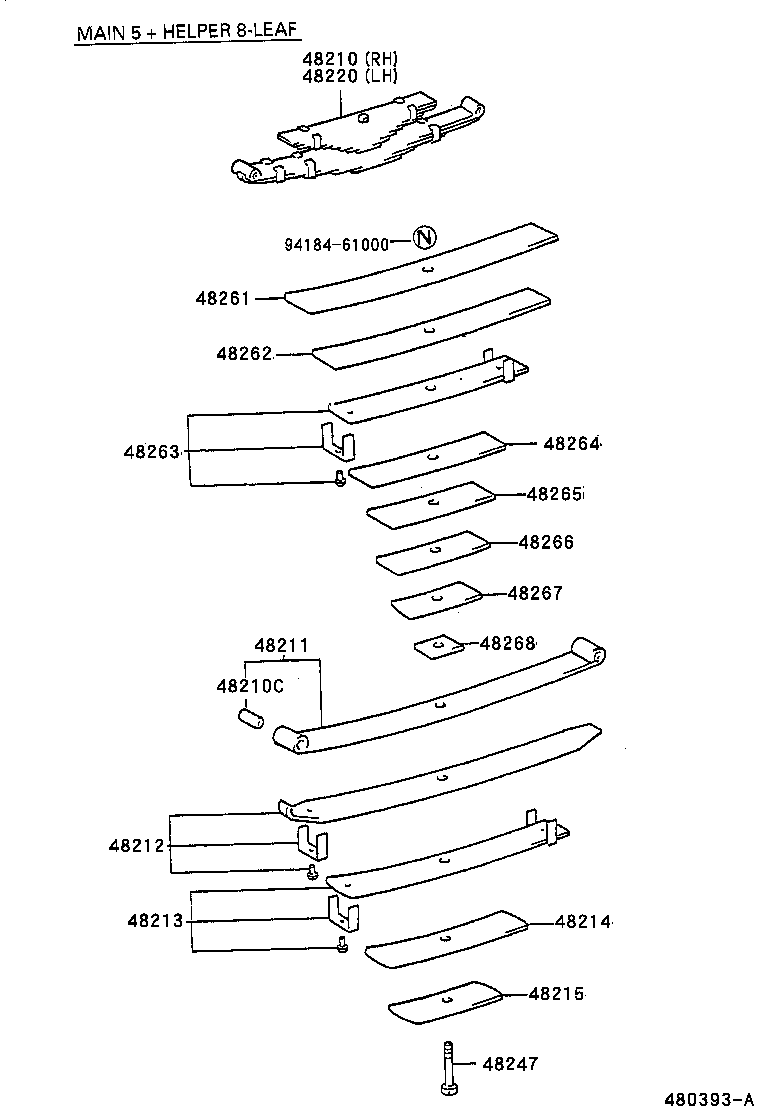

ILLUST NO. 2 OF 2(9505- )BU211 ; (9505- )BU212..30T,40T..ARL,GEN,TAIW ; (9908- )BU213,223..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU MAIN 5+HELPER 7-LEAF,REINFORCED REAR SUSPENSION |
1 | ||
| 48210-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL MAIN 5+HELPER 5-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU21#,223,YU210..25T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48201-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48202-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48203-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48214-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48215-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL MAIN 5+HELPER 5-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48210-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU MAIN 5+HELPER 7-LEAF,REINFORCED REAR SUSPENSION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU14#..20T,25T;BU21#,223,YU210..25T,30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48218-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48219-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48204-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48222-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48223-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU21#,223..LHD..30T;BU212..30T..TD..CBU;BU211..RHD..30T..CBU |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU21#,223..LHD..30T;BU212..30T..TD..CBU;BU211..RHD..30T..CBU |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU21#,223..LHD..30T;BU212..30T..TD..CBU;BU211..RHD..30T..CBU |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||
ILLUST NO. 2 OF 2(9505- )LHD..40T..TD..GEN ; (9505- )BU21#,223..40T..DSL,TDEFI ; (9505- )BU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU MAIN 5+HELPER 7-LEAF,REINFORCED REAR SUSPENSION |
1 | ||
| 48210-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL MAIN 5+HELPER 5-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU21#,223,YU210..25T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48201-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48202-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48203-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48214-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48215-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL MAIN 5+HELPER 5-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48210-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU MAIN 5+HELPER 7-LEAF,REINFORCED REAR SUSPENSION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU14#..20T,25T;BU21#,223,YU210..25T,30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48218-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48219-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48204-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48222-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48223-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU21#,223..LHD..30T;BU212..30T..TD..CBU;BU211..RHD..30T..CBU |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||

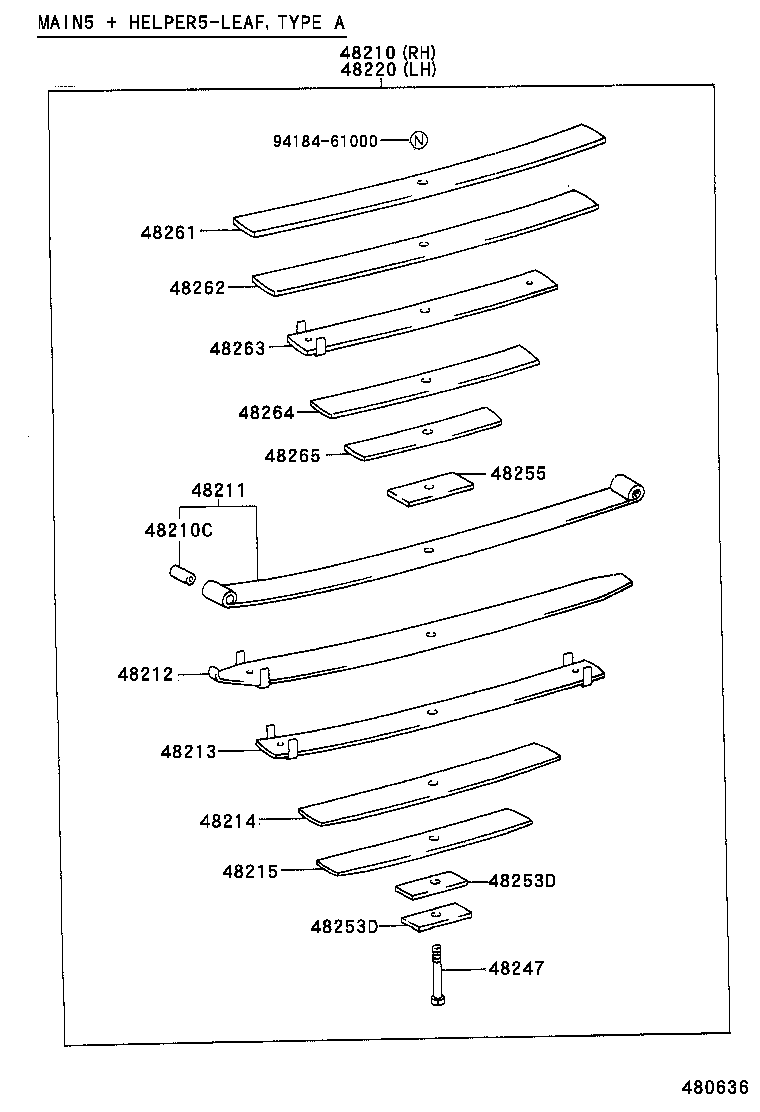

ILLUST NO. 2 OF 2(9505- )BU212..25T ; (9505- )BU211,YU210..30T ; (9505- )BU212..RHD..30T..D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU MAIN 5+HELPER 7-LEAF,REINFORCED REAR SUSPENSION |
1 | ||
| 48210-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL MAIN 5+HELPER 5-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU21#,223,YU210..25T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48201-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48202-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48203-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48214-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48215-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL MAIN 5+HELPER 5-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48210-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU MAIN 5+HELPER 7-LEAF,REINFORCED REAR SUSPENSION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU14#..20T,25T;BU21#,223,YU210..25T,30T |
2 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48216-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48216-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
4 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48253-36530 |
BU212..25T;BU100,101..WT..GEN;BU212..RHD..30T..DSL;BU102,211,YU210..30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48218-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48219-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48204-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48222-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48223-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||
ILLUST NO. 2 OF 2(9505- )BU211,221 ; (9505- )BU212..TD..IV3; (9505- )BU222..ARL,GEN,TAIW ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU MAIN 5+HELPER 7-LEAF,REINFORCED REAR SUSPENSION |
1 | ||
| 48210-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL MAIN 5+HELPER 5-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU21#,223,YU210..25T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48201-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48202-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48203-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48214-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48215-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINF0RCED REAR SUSPENSION |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL MAIN 5+HELPER 5-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48210-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU MAIN 5+HELPER 7-LEAF,REINFORCED REAR SUSPENSION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU14#..20T,25T;BU21#,223,YU210..25T,30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48218-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48219-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48204-37090 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48222-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU211..LHD..30T;BU211..RHD..30T..CBU REINFORCED REAR SUSPENSION |
2 | ||
| 48223-3B060 |
BU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU21#,223..LHD..30T;BU212..30T..TD..CBU;BU211..RHD..30T..CBU |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU21#,223..LHD..30T;BU212..30T..TD..CBU;BU211..RHD..30T..CBU |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU21#,223..LHD..30T;BU212..30T..TD..CBU;BU211..RHD..30T..CBU |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 1 OF 2(9505- )BU14#,211,YU210 ; (9505- )BU212..ARL,GEN,TAIW ; (9908- )BU213,223.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36110 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36080 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36110 |
BU140..EUR;BU211,212..25T,30T;BU102,142,213,223,YU210..(20T,25T,30T)..(CBR,TD,TDEFI) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
BU112;BU140..EUR;BU101,102,142,21#,RZU100,YU210..25T,30T L=300 |
4 | ||
| 90117-16025 |
BU140..EUR;BU212..30T;BU112,142,211,YU210..(20T,25T,30T)..(EUR,GEN,SA,TAIW) L=305 |
2 | ||
| 90117-16018 |
RZU100..RHD;BU101,102,142,213,223..LHD..(25T,30T);BU110,111,211,212,YU210..(DM1,T3,TW1)..(20T,25T,30T) L=300 |
4 | ||
| 90117-16025 |
BU211,212,YU210..25T,30T;BU142,213,223..LHD..(25T,30T) L=305 |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
BU112;BU140..EUR;BU101,102,142,21#,RZU100,YU210..25T,30T L=300 |
4 | ||
| 90117-16025 |
BU140..EUR;BU212..30T;BU112,142,211,YU210..(20T,25T,30T)..(EUR,GEN,SA,TAIW) L=305 |
2 | ||
| 90117-16018 |
RZU100..RHD;BU101,102,142,213,223..LHD..(25T,30T);BU110,111,211,212,YU210..(DM1,T3,TW1)..(20T,25T,30T) L=300 |
4 | ||
| 90117-16025 |
BU211,212,YU210..25T,30T;BU142,213,223..LHD..(25T,30T) L=305 |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36110 |
BU140..EUR;BU211,212..25T,30T;BU102,142,213,223,YU210..(20T,25T,30T)..(CBR,TD,TDEFI) |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36200 |
BU21#,223,YU210..25T,30T |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36210 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36210 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36190 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-36090 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-36090 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36030 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48422-37010 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36090 |
BU211,212..25T,30T;BU140,YU210..EUR,SA;BU112,142,213,223..LHD..(20T,25T,30T) |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36050 |
BU140..EUR;BU142,212..25T,30T;BU101,102,141,211,213,223,YU210..30T |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36040 |
BU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36040 |
BU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80445 |
BU212..25T,30T;BU212,222..RHD..GEN..IV3;BU141,142,211,213,223,RZU100,YU210..(20T,30T)..(GEN,SA) |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90385-16011 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90385-16011 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
BU212,222..RHD..GEN..IV3;BU11#,141,21#,RZU100,YU210..20T,30T |
2 | ||
| 90948-03007 |
BU212,222..RHD..GEN..IV3;BU141,21#,RZU100,YU210..20T,30T;BU100,102,11#..DM1,DM6,DM7,T2,T4 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU10#,11#,14#,21#,22#,RZU100,YU210..WT |
2 | ||
| 90948-03004 |
BU10#,111,14#,21#,22#,RZU100,YU210..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
BU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB;BU212,222..RHD..GEN..IV3;BU141,21#,RZU100,YU210..20T,30T |
2 | ||
| 90948-03007 |
BU212,222..LHD..40T..GEN;BU141,21#,222..(25T,40T)..DSL;BU10#,11#,140,142,221..(DM1,DM6,DM7,T3,TW1)..WT |
2 | ||
| 90948-03003 |
BU212..25T,30T;BU10#..WT..(15T,20T)..TB;BU212,222..RHD..GEN..IV3;BU141,142,211,213,223,RZU100,YU210..(15T,20T,30T)..(GEN,SA) |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90948-03004 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80445 |
BU212..25T,30T;BU212,222..RHD..GEN..IV3;BU141,142,211,213,223,RZU100,YU210..(20T,30T)..(GEN,SA) |
1 | ||
| 48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR | ||||
| 48542-26020 |
BU141..SA;BU141..30T;BU141..LHD;BU10#,142,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48542-26020 |
BU10#,14#,21#,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90101-16021 | ||||
| 90105-16021 | ||||
| 90119-10355 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91611-61020 | ||||
| 91651-60820 | ||||
| 94184-61001 | ||||
| 94184-61201 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
