Toyota Dyna200 BU211 EXHAUST BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
GR
DYNA200
BU211L-TKMQS3 (1995)
4710 - EXHAUST BRAKE TUBE & CLAMP

BU211L-TKMQS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2003

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )BU10#,111,112,14#..LHD

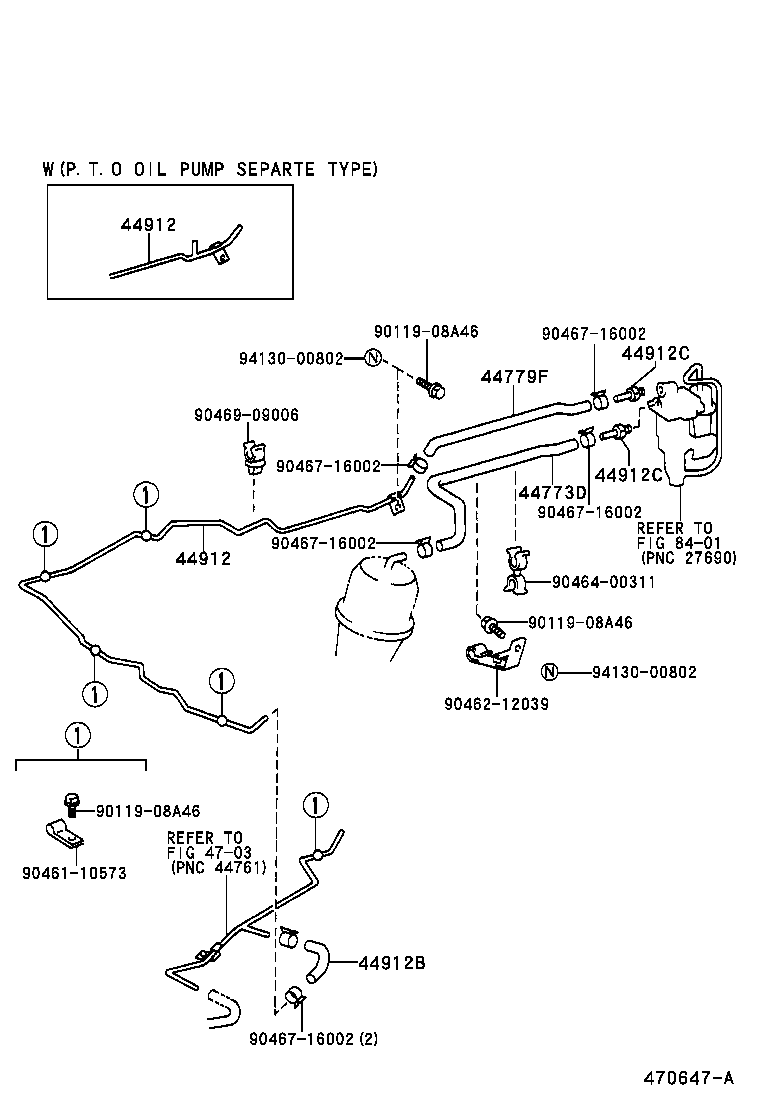

Click highlighted areas on diagram

Part #	Description	Period	Qty
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36041	BU211..LHD..30T..IV3 W(*EB)	05/1995 - 08/1997	1
44773-37050	BU211..LHD..30T..IV3 W(*EB)	08/1997 - 12/2999	1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36041	BU211..LHD..30T..IV3 W(*EB)	05/1995 - 08/1997	1
44773-37050	BU211..LHD..30T..IV3 W(*EB)	08/1997 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
95446-09180	BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142	05/1995 - 03/1997	1
44779-36010	BU211..LHD..30T..IV3 W(*EB)	05/1995 - 12/2999	1
95446-09180	BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN	03/1997 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
95446-09180	BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142	05/1995 - 03/1997	1
44779-36010	BU211..LHD..30T..IV3 W(*EB)	05/1995 - 12/2999	1
95446-09180	BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN	03/1997 - 12/2999	1
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002	BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142	05/1995 - 03/1997	1
90407-51002	BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN	03/1997 - 12/2999	1
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002	BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142	05/1995 - 03/1997	1
90407-51002	BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN	03/1997 - 12/2999	1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37090	BU10#,14#..LHD	03/1998 - 12/2999	1
44912-37030	BU211..LHD..30T W(*EB)	05/1995 - 12/2999	1
44912-37110	BU211..LHD..30T W(*EB & P.T.O OIL PUMP SEPARATE TYPE)	05/1995 - 12/2999	1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37090	BU10#,14#..LHD	03/1998 - 12/2999	1
44912-37030	BU211..LHD..30T W(*EB)	05/1995 - 12/2999	1
44912-37110	BU211..LHD..30T W(*EB & P.T.O OIL PUMP SEPARATE TYPE)	05/1995 - 12/2999	1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37090	BU10#,14#..LHD	03/1998 - 12/2999	1
44912-37030	BU211..LHD..30T W(*EB)	05/1995 - 12/2999	1
44912-37110	BU211..LHD..30T W(*EB & P.T.O OIL PUMP SEPARATE TYPE)	05/1995 - 12/2999	1
44912B - HOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)
95446-09110	BU212;BU102,110,111..RHD;BU142,211,213,22#..30T,40T	05/1995 - 08/2000	1
95446-09110	BU21#,22#;BU102,111,142..RHD..GEN	08/2000 - 12/2999	1
95446-09130	BU10#,111,112,14#..LHD	05/1995 - 12/2999	1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142	05/1995 - 03/1997	1
90404-51319	BU211..LHD..30T..IV3 W(*EB)	05/1995 - 12/2999	2
90404-51319	BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN	03/1997 - 12/2999	1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142	05/1995 - 03/1997	1
90404-51319	BU211..LHD..30T..IV3 W(*EB)	05/1995 - 12/2999	2
90404-51319	BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN	03/1997 - 12/2999	1
Common parts
90119-08A46
90119-10523
90119-10737
90461-10573
90461-10708
90467-16002
94130-00802
94130-01002

(9505- )BU21#,22#..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36041	BU211..LHD..30T..IV3 W(*EB)	05/1995 - 08/1997	1
44773-37050	BU211..LHD..30T..IV3 W(*EB)	08/1997 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
95446-09180	BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142	05/1995 - 03/1997	1
44779-36010	BU211..LHD..30T..IV3 W(*EB)	05/1995 - 12/2999	1
95446-09180	BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN	03/1997 - 12/2999	1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37090	BU10#,14#..LHD	03/1998 - 12/2999	1
44912-37030	BU211..LHD..30T W(*EB)	05/1995 - 12/2999	1
44912-37110	BU211..LHD..30T W(*EB & P.T.O OIL PUMP SEPARATE TYPE)	05/1995 - 12/2999	1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37090	BU10#,14#..LHD	03/1998 - 12/2999	1
44912-37030	BU211..LHD..30T W(*EB)	05/1995 - 12/2999	1
44912-37110	BU211..LHD..30T W(*EB & P.T.O OIL PUMP SEPARATE TYPE)	05/1995 - 12/2999	1
44912B - HOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)
95446-09110	BU212;BU102,110,111..RHD;BU142,211,213,22#..30T,40T	05/1995 - 08/2000	1
95446-09110	BU21#,22#;BU102,111,142..RHD..GEN	08/2000 - 12/2999	1
95446-09130	BU10#,111,112,14#..LHD	05/1995 - 12/2999	1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142	05/1995 - 03/1997	1
90404-51319	BU211..LHD..30T..IV3 W(*EB)	05/1995 - 12/2999	2
90404-51319	BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN	03/1997 - 12/2999	1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142	05/1995 - 03/1997	1
90404-51319	BU211..LHD..30T..IV3 W(*EB)	05/1995 - 12/2999	2
90404-51319	BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN	03/1997 - 12/2999	1
Common parts
90119-08A46
90461-10573
90462-12039
90464-00311
90467-16002
90469-09006
94130-00802
Linked diagrams
4703
8401

BU211L-TKMQS3 (1995)

(9505- )BU10#,111,112,14#..LHD

(9505- )BU21#,22#..LHD
