BU211L-TKMQS3 (1995)
Toyota Dyna200
ILLUST NO. 3 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-36050 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| 47910-37010 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| 47910-37050 |
BU140,YU210;BU211,221..SA;BU212,222..RHD;BU211,221..LHD;BU212..LHD..40T..TD;BU141,142..(20T,25T)..(ARL,GEN) |
1 | ||
| 47910-37050 |
BU211,221..LHD;BU14#..(20T,25T)..DSL;BU21#,221,YU210..ARL,SA |
1 | ||
| 47910-37050 |
BU211..SA;BU211,221..LHD;BU14#..(20T,25T)..(ARL,GEN);BU212,222,YU210..ARL,GEN,SA |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-36050 |
BU211..LHD..30T SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-36061 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-36050 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| 47933-36051 |
BU222..EUR;BU211,221..SA;BU212,222..RHD;BU101,RZU100,YU210;BU100,14#..20T,25T;BU212..LHD..40T..TD;BU102,211,221..LHD..WT |
1 | ||
| 47933-36051 |
BU211..SA;BU211,221..LHD;BU14#..20T,25T;BU101,212,222,RZU100,YU210 |
1 | ||
| 47933-36051 |
BU141..25T;BU222..EUR;BU211,221..SA;BU212,222..RHD;BU211,221..LHD;BU212..LHD..40T..TD;BU10#,140,142,RZU100,YU210 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| 90201-08062 |
BU211..SA;BU211,221..LHD;BU14#..20T,25T;BU101,212,222,RZU100,YU210 |
1 | ||
| 90201-08062 |
BU222..EUR;BU211,221..SA;BU212,222..RHD;BU101,RZU100,YU210;BU100,14#..20T,25T;BU212..LHD..40T..TD;BU102,211,221..LHD..WT |
1 | ||
| 90201-08062 |
BU141..25T;BU222..EUR;BU211,221..SA;BU212,222..RHD;BU211,221..LHD;BU212..LHD..40T..TD;BU10#,110,112,140,142,RZU100,YU210 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
BU211,221..LHD SAUDI ARABIA & GULF SPEC OR W(LSPV) |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 90179-08146 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 2 OF 3(9505- )BU21#,YU210
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34105 |
BU21#,22#,YU210 |
1 | ||
| 96912-34107 |
BU21#,22#,YU210 |
1 | ||
| 96912-34007 |
BU10#,14#,RZU100..DM6,T1,T3,TW1,TW2 |
1 | ||
| 96912-34005 |
BU10#,14#,RZU100..DM6,T1,T3,TW1,TW2 |
1 | ||
| 96912-34107 |
BU21#,22#,YU210 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47325-37010 |
BU211,213..GEN;BU212..(GEN,TAIW)..IV3 |
1 | ||
| 47325-36150 |
BU211..LHD..30T W(LSPV) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47325-37010 |
BU211,213..GEN;BU212..(GEN,TAIW)..IV3 |
1 | ||
| 47325-36150 |
BU211..LHD..30T W(LSPV) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12049 |
BU211,212,YU210;BU10#,111,14#,213,RZU100..ARL,GEN |
1 | ||
| 90412-12049 |
BU211,212,YU210;BU10#,11#,14#,213,RZU100..ARL,GEN,TAIW |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47324-37130 |
BU211..LHD..30T W(LSPV) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10100 |
BU140..EUR;BU102,RZU100..RHD;BU142,212..25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 90413-10100 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10100 |
BU140..EUR;BU102,RZU100..RHD;BU142,212..25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 90413-10100 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37060 |
BU21#,YU210..25T,30T |
1 | ||
| 47327-37062 |
BU212..RHD..(25T,30T);BU211,213,223,YU210..30T |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37060 |
BU21#,YU210..25T,30T |
1 | ||
| 47327-37062 |
BU212..RHD..(25T,30T);BU211,213,223,YU210..30T |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47326-37040 |
BU21#,YU210..25T,30T |
1 | ||
| 47326-37042 |
BU212..RHD..(25T,30T);BU211,213,223,YU210..30T |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47326-37040 |
BU21#,YU210..25T,30T |
1 | ||
| 47326-37042 |
BU212..RHD..(25T,30T);BU211,213,223,YU210..30T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-36141 |
BU21#,223,YU210;BU102,221,222,RZU100..WT..(15T,20T,40T)..TB |
1 | ||
| 47353-36141 |
RZU100..15T;BU21#,22#,YU210 |
1 | ||
| 47353-36171 |
BU102..T3;BU100,101,14#,RZU100..175T,20T,25T,30T |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08779 | ||||
| 90461-10616 | ||||
| 90468-08044 | ||||
| 90949-01006 | ||||
| 91611-60812 | ||||
| 91611-61040 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||

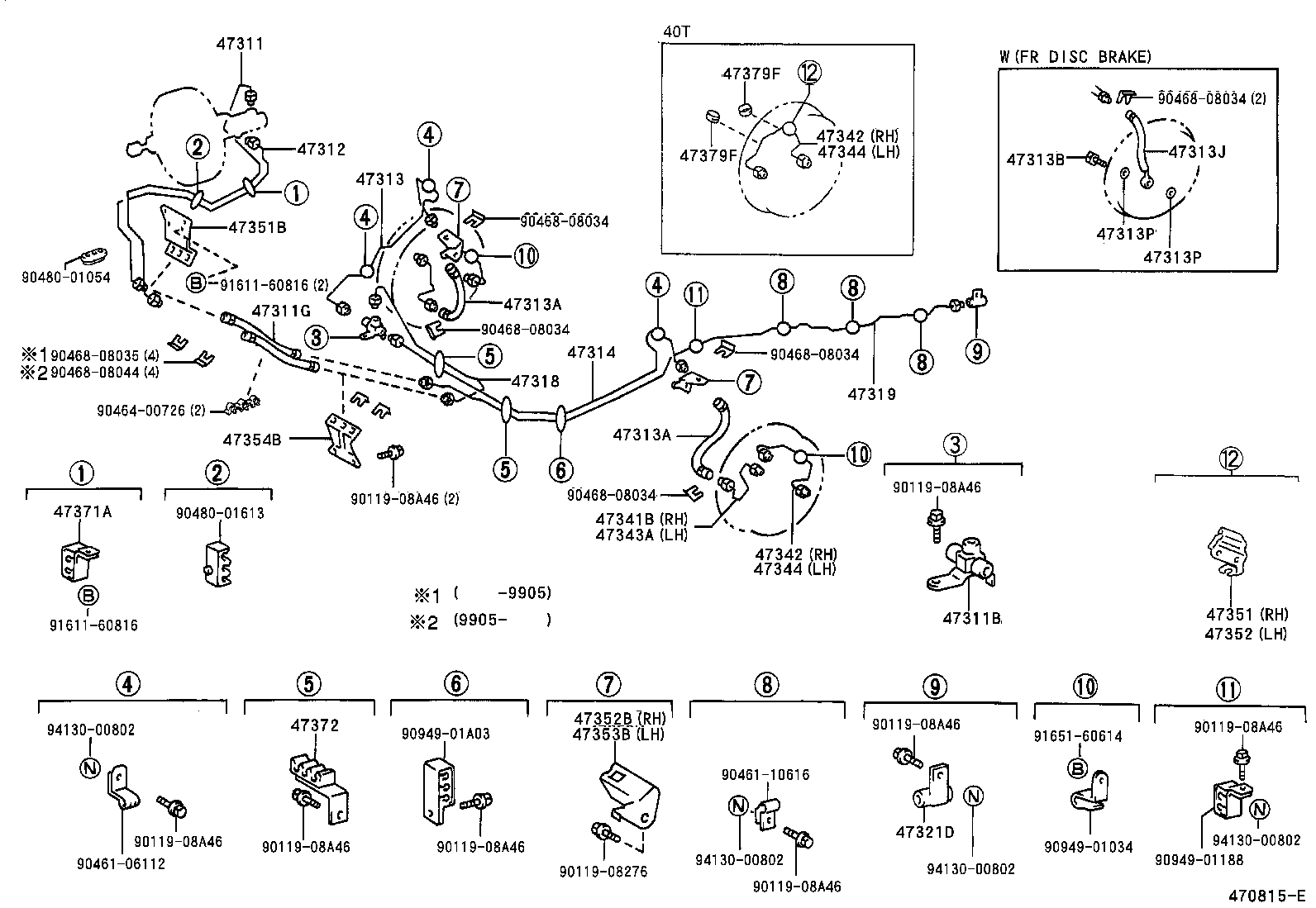

ILLUST NO. 1 OF 3(9505- )BU21#,22#..LHD..GEN,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37050 |
BU211..LHD..30T W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER) |
1 | ||
| 47311-37070 |
BU211..LHD..30T |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU10#,11#,14#,RZU100 |
1 | ||
| 90904-13022 |
BU21#,22#,YU210 |
1 | ||
| 90904-13022 |
BU21#,22#,YU210 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-34305 |
BU21#,22#,YU210 |
2 | ||
| 96932-34307 |
BU21#,22#,YU210 |
2 | ||
| 96932-34307 |
BU21#,22#,YU210 |
2 | ||
| 96932-33655 |
BU10#,111,112,14#..LHD |
2 | ||
| 96932-33655 |
BU10#,11#,14# |
2 | ||
| 96932-33657 |
BU10#,111,112,14#,RZU100..LHD |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47321-37070 |
BU211..LHD..30T |
1 | ||
| 47321-37050 |
BU211..LHD..30T W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37030 |
BU21#,22#,YU210 |
1 | ||
| 47313-37030 |
BU21#,22#,YU210 |
1 | ||
| 47313-37080 |
RZU100..RHD;BU10#,14#..ARL,GEN,SA,TAIW |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02566 |
BU21#,YU210..25T,30T |
2 | ||
| 90947-02744 |
BU211..30T..GEN;BU212..30T..ARL W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02A61 |
BU21#,YU210..25T,30T |
2 | ||
| 90947-02857 |
BU10#,14#,RZU100..(DM6,T3)..WT..(ARL,GEN,TAIW) |
2 | ||
| 90947-02B23 |
BU212..RHD..(25T,30T);BU211,213,223,YU210..30T |
2 | ||
| 90947-02B22 |
BU211..30T..GEN;BU212..30T..ARL W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02B19 |
BU102,RZU100..RHD;BU101,14#..T3..WT..(ARL,GEN) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02566 |
BU21#,YU210..25T,30T |
2 | ||
| 90947-02744 |
BU211..30T..GEN;BU212..30T..ARL W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02A61 |
BU21#,YU210..25T,30T |
2 | ||
| 90947-02857 |
BU10#,14#,RZU100..(DM6,T3)..WT..(ARL,GEN,TAIW) |
2 | ||
| 90947-02B23 |
BU212..RHD..(25T,30T);BU211,213,223,YU210..30T |
2 | ||
| 90947-02B22 |
BU211..30T..GEN;BU212..30T..ARL W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02B19 |
BU102,RZU100..RHD;BU101,14#..T3..WT..(ARL,GEN) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU211..LHD..30T..IV3 W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02521 |
BU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
BU211..LHD..30T..IV3 W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
BU211..LHD..30T..IV3 W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37090 |
RZU100..RHD;BU10#,14#..ARL,GEN,TAIW |
1 | ||
| 47314-37030 |
BU211,212,221,222,YU210..ARL,GEN,SA |
1 | ||
| 47314-37030 |
BU211,212,221,222,YU210..ARL,GEN,SA,TAIW |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47312-37050 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 47312-37030 |
BU21#,22#..LHD |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47322-37020 |
BU21#,22#..LHD |
1 | ||
| 47322-37050 |
BU10#,14#..LHD..(GEN,TAIW) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12049 |
BU211,212,YU210;BU10#,111,14#,213,RZU100..ARL,GEN |
1 | ||
| 90412-12049 |
BU211,212,YU210;BU10#,11#,14#,213,RZU100..ARL,GEN,TAIW |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-37020 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37050 |
BU10#,14#,RZU100 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-37030 |
BU21#,22#,YU210 |
1 | ||
| 47351-37030 |
BU21#,22#;BU100,101,110,111,14#,YU210..RHD |
1 | ||
| 47351-37030 |
BU21#,22#,YU210 |
1 | ||
| 47351-37040 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37020 |
BU10#,14#,RZU100 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47351-36170 |
BU21#,22#,YU210 |
1 | ||
| 47351-36170 |
BU21#,22#,YU210 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47352-36160 |
BU21#,22#,YU210 |
1 | ||
| 47352-36160 |
BU21#,22#,YU210 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37010 |
BU21#,22#,YU210 |
1 | ||
| 47354-37010 |
BU21#,22#,YU210 |
1 | ||
| 47354-37030 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01188 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90949-01188 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90949-01188 |
BU212..DSL;BU142..ARL,EUR;BU212..RHD..TD;BU101..LHD..ST..TS;BU101,211..LHD..30T;BU212..30T..TD..IV3;BU101,111,141,211,221..RHD;BU100,102,112,222,RZU100,YU210..ARL,GEN,SA |
1 | ||
| 90949-01188 |
BU212..DSL;BU142..ARL,EUR;BU212..RHD..TD;BU101..LHD..ST..TS;BU101,211..LHD..30T;BU212..30T..TD..IV3;BU102,112,222..ARL,GEN,SA;BU100,101,111,141,211,221,RZU100,YU210..RHD..(DM1,DM6,T1,T3,TW2) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-37010 |
BU21#,22#,YU210 |
2 | ||
| 47372-37010 |
BU21#,22#,YU210 |
2 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-08A46 | ||||
| 90461-06112 | ||||
| 90461-10616 | ||||
| 90464-00726 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| 90480-01054 | ||||
| 90480-01613 | ||||
| 90949-01034 | ||||
| 90949-01188 | ||||
| 90949-01A03 | ||||
| 91611-60816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 3(9505- )BU10#,14#..LHD..GEN,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37050 |
BU211..LHD..30T W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER) |
1 | ||
| 47311-37070 |
BU211..LHD..30T |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU10#,11#,14#,RZU100 |
1 | ||
| 90904-13022 |
BU21#,22#,YU210 |
1 | ||
| 90904-13022 |
BU21#,22#,YU210 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-34305 |
BU21#,22#,YU210 |
2 | ||
| 96932-34307 |
BU21#,22#,YU210 |
2 | ||
| 96932-34307 |
BU21#,22#,YU210 |
2 | ||
| 96932-33655 |
BU10#,111,112,14#..LHD |
2 | ||
| 96932-33655 |
BU10#,11#,14# |
2 | ||
| 96932-33657 |
BU10#,111,112,14#,RZU100..LHD |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47321-37070 |
BU211..LHD..30T |
1 | ||
| 47321-37050 |
BU211..LHD..30T W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37030 |
BU21#,22#,YU210 |
1 | ||
| 47313-37030 |
BU21#,22#,YU210 |
1 | ||
| 47313-37080 |
RZU100..RHD;BU10#,14#..ARL,GEN,SA,TAIW |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02566 |
BU21#,YU210..25T,30T |
2 | ||
| 90947-02744 |
BU211..30T..GEN;BU212..30T..ARL W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02A61 |
BU21#,YU210..25T,30T |
2 | ||
| 90947-02857 |
BU10#,14#,RZU100..(DM6,T3)..WT..(ARL,GEN,TAIW) |
2 | ||
| 90947-02B23 |
BU212..RHD..(25T,30T);BU211,213,223,YU210..30T |
2 | ||
| 90947-02B22 |
BU211..30T..GEN;BU212..30T..ARL W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02B19 |
BU102,RZU100..RHD;BU101,14#..T3..WT..(ARL,GEN) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02566 |
BU21#,YU210..25T,30T |
2 | ||
| 90947-02744 |
BU211..30T..GEN;BU212..30T..ARL W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02A61 |
BU21#,YU210..25T,30T |
2 | ||
| 90947-02857 |
BU10#,14#,RZU100..(DM6,T3)..WT..(ARL,GEN,TAIW) |
2 | ||
| 90947-02B23 |
BU212..RHD..(25T,30T);BU211,213,223,YU210..30T |
2 | ||
| 90947-02B22 |
BU211..30T..GEN;BU212..30T..ARL W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02B19 |
BU102,RZU100..RHD;BU101,14#..T3..WT..(ARL,GEN) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02566 |
BU21#,YU210..25T,30T |
2 | ||
| 90947-02744 |
BU211..30T..GEN;BU212..30T..ARL W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02A61 |
BU21#,YU210..25T,30T |
2 | ||
| 90947-02857 |
BU10#,14#,RZU100..(DM6,T3)..WT..(ARL,GEN,TAIW) |
2 | ||
| 90947-02B23 |
BU212..RHD..(25T,30T);BU211,213,223,YU210..30T |
2 | ||
| 90947-02B22 |
BU211..30T..GEN;BU212..30T..ARL W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02B19 |
BU102,RZU100..RHD;BU101,14#..T3..WT..(ARL,GEN) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU211..LHD..30T..IV3 W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU211..LHD..30T..IV3 W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02521 |
BU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
BU211..LHD..30T..IV3 W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
BU211..LHD..30T..IV3 W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
BU211..LHD..30T..IV3 W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
BU211..LHD..30T..IV3 W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37090 |
RZU100..RHD;BU10#,14#..ARL,GEN,TAIW |
1 | ||
| 47314-37030 |
BU211,212,221,222,YU210..ARL,GEN,SA |
1 | ||
| 47314-37030 |
BU211,212,221,222,YU210..ARL,GEN,SA,TAIW |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47312-37050 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 47312-37030 |
BU21#,22#..LHD |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47322-37020 |
BU21#,22#..LHD |
1 | ||
| 47322-37050 |
BU10#,14#..LHD..(GEN,TAIW) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12049 |
BU211,212,YU210;BU10#,111,14#,213,RZU100..ARL,GEN |
1 | ||
| 90412-12049 |
BU211,212,YU210;BU10#,11#,14#,213,RZU100..ARL,GEN,TAIW |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-37020 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-37020 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37030 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37050 |
BU10#,14#,RZU100 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-37030 |
BU21#,22#,YU210 |
1 | ||
| 47351-37030 |
BU21#,22#;BU100,101,110,111,14#,YU210..RHD |
1 | ||
| 47351-37030 |
BU21#,22#,YU210 |
1 | ||
| 47351-37040 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37020 |
BU10#,14#,RZU100 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37010 |
BU21#,22#,YU210 |
1 | ||
| 47354-37010 |
BU21#,22#,YU210 |
1 | ||
| 47354-37030 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01188 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90949-01188 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90949-01188 |
BU212..DSL;BU142..ARL,EUR;BU212..RHD..TD;BU101..LHD..ST..TS;BU101,211..LHD..30T;BU212..30T..TD..IV3;BU101,111,141,211,221..RHD;BU100,102,112,222,RZU100,YU210..ARL,GEN,SA |
1 | ||
| 90949-01188 |
BU212..DSL;BU142..ARL,EUR;BU212..RHD..TD;BU101..LHD..ST..TS;BU101,211..LHD..30T;BU212..30T..TD..IV3;BU102,112,222..ARL,GEN,SA;BU100,101,111,141,211,221,RZU100,YU210..RHD..(DM1,DM6,T1,T3,TW2) |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37020 |
BU10#,14# LH |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37020 |
BU10#,14# LH |
1 | ||
| Common parts | ||||
| 90105-10123 | ||||
| 90119-08587 | ||||
| 90119-08A46 | ||||
| 90179-08141 | ||||
| 90179-10058 | ||||
| 90461-08602 | ||||
| 90461-10616 | ||||
| 90464-00726 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| 90480-01054 | ||||
| 90480-01613 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 90949-01A02 | ||||
| 90949-01A03 | ||||
| 91611-60816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
