BU211L-TKMQS3 (1995)
Toyota Dyna200

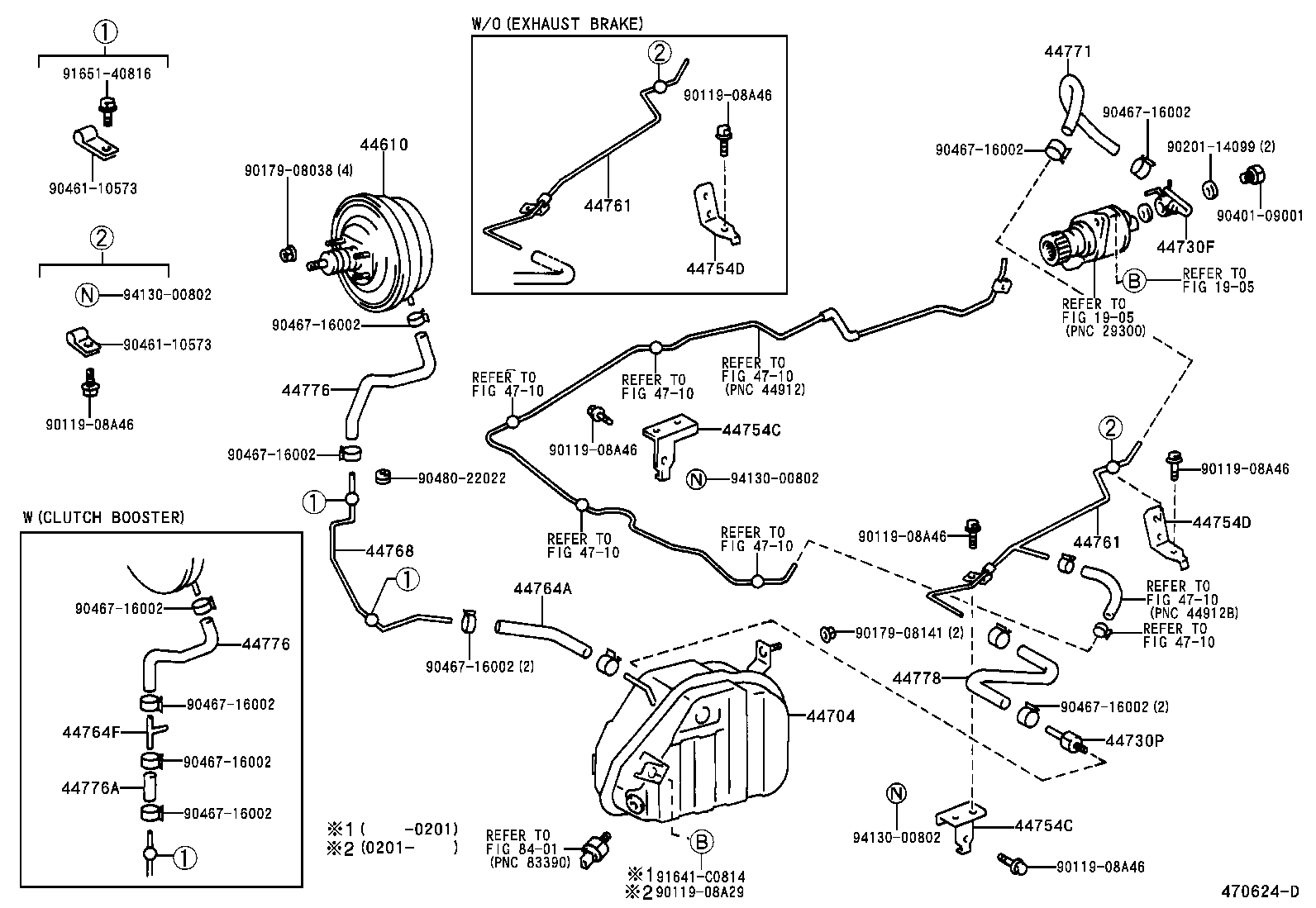

(9505- )BU10#,111,112,14#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37070 |
BU211..30T..GEN;BU100,110,111..DM1,DM6,T2;BU14#..(20T,25T)..(ARL,GEN) |
1 | ||
| 44610-37070 |
BU211..30T..GEN;BU101,111..DM1,DM6,T2;BU14#..(20T,25T)..(ARL,GEN) |
1 | ||
| 44610-37090 |
BU211..30T..GEN W(FR DISC BRAKE:RR AUTO ADJUSTER OR TANDEM BOOSTER) |
1 | ||
| 44610-37090 |
BU212..RHD..(25T,30T);BU101,14#,213,223..30T;BU101,14#,211..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37040 |
BU10#,111,112,14#,21#,22#..LHD |
1 | ||
| 44704-37040 |
BU10#,111,112,14#,21#,22#..LHD..GEN |
1 | ||
| 44704-37041 |
BU101,111,14#,21#,221,223..LHD |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09178 |
BU102,212,222..TAIW;BU100,101,11#,140,141,211,221..DM1,DM6,T1,T2,T3,TW1,TW2 |
1 | ||
| 90405-09178 |
BU101,111,141,211,221 |
1 | ||
| 90405-09164 |
BU101..GEN;BU212..30T..DSL;BU212..40T..ARL;BU212,222..LHD..TD..GEN;BU100,102,11#,14#,211,221,222..(DM1,DM7,T2,T3,TW1,TW2)..(175T,20T,25T,30T,40T)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) W(AIR CONDITIONER) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BU10#,11#,14#,21#,22# |
1 | ||
| 44730-60050 |
BU10#,111,14#,21#,22# |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 90445-17141 |
BU10#,11#,14#,21#,22# |
1 | ||
| 90445-17141 |
BU10#,11#,14#,21#,22#..ARL,GEN,SA |
1 | ||
| 90445-17141 |
BU10#,111,14#,21#,22#..ARL,GEN,SA |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37020 |
BU21#,22#..LHD..(GEN,TAIW) |
1 | ||
| 44768-37080 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37020 |
BU21#,22#..LHD..(GEN,TAIW) |
1 | ||
| 44768-37080 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 95446-09250 |
BU211..30T..SA;BU21#,22#..ARL,GEN,TAIW |
1 | ||
| 44774-37010 |
BU10#,11#,14#..DSL |
1 | ||
| 44774-37060 |
BU212..DSL;BU211..30T..SA;BU211,221..GEN;BU222..ARL,SA,TAIW;BU212,222..LHD..TD..GEN |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37010 |
BU10#,111,112,14#,211,221,RZU100..LHD |
1 | ||
| 44776-37040 |
BU211,221..LHD W(*CLB) |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37010 |
BU10#,11#,14#,21#,22# |
1 | ||
| 44778-37010 |
BU10#,111,14#,21#,22# |
1 | ||
| 44778-37010 |
BU21#,22#;BU100,101,110,111,14#..RHD |
1 | ||
| 44778-37050 |
BU10#,111,112,14#..LHD |
1 | ||
| Common parts | ||||
| 90119-08A29 | ||||
| 90179-08038 | ||||
| 90179-08141 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90461-10573 | ||||
| 90467-16002 | ||||
| 90480-22022 | ||||
| 91641-C0814 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 4710 | ||||
| 8401 | ||||
(9505- )BU21#,22#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37070 |
BU211..30T..GEN;BU100,110,111..DM1,DM6,T2;BU14#..(20T,25T)..(ARL,GEN) |
1 | ||
| 44610-37070 |
BU211..30T..GEN;BU101,111..DM1,DM6,T2;BU14#..(20T,25T)..(ARL,GEN) |
1 | ||
| 44610-37090 |
BU211..30T..GEN W(FR DISC BRAKE:RR AUTO ADJUSTER OR TANDEM BOOSTER) |
1 | ||
| 44610-37090 |
BU212..RHD..(25T,30T);BU101,14#,213,223..30T;BU101,14#,211..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37040 |
BU10#,111,112,14#,21#,22#..LHD |
1 | ||
| 44704-37040 |
BU10#,111,112,14#,21#,22#..LHD..GEN |
1 | ||
| 44704-37041 |
BU101,111,14#,21#,221,223..LHD |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09178 |
BU102,212,222..TAIW;BU100,101,11#,140,141,211,221..DM1,DM6,T1,T2,T3,TW1,TW2 |
1 | ||
| 90405-09178 |
BU101,111,141,211,221 |
1 | ||
| 90405-09164 |
BU101..GEN;BU212..30T..DSL;BU212..40T..ARL;BU212,222..LHD..TD..GEN;BU100,102,11#,14#,211,221,222..(DM1,DM7,T2,T3,TW1,TW2)..(175T,20T,25T,30T,40T)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) W(AIR CONDITIONER) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BU10#,11#,14#,21#,22# |
1 | ||
| 44730-60050 |
BU10#,111,14#,21#,22# |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-36060 |
BU211..LHD..30T |
1 | ||
| 44754-36060 |
BU211..LHD..30T W(*EB) |
2 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-36060 |
BU211..LHD..30T |
1 | ||
| 44754-36060 |
BU211..LHD..30T W(*EB) |
2 | ||
| 44754D - BRACKET, VACUUM TUBE, NO.2 | ||||
| 44458-37010 |
BU21#,22# |
1 | ||
| 44458-37010 |
BU21#,22# |
1 | ||
| 44754D - BRACKET, VACUUM TUBE, NO.2 | ||||
| 44458-37010 |
BU21#,22# |
1 | ||
| 44458-37010 |
BU21#,22# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37050 |
BU211..LHD..30T W(*EB) |
1 | ||
| 44761-37070 |
BU211..LHD..30T |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37050 |
BU211..LHD..30T W(*EB) |
1 | ||
| 44761-37070 |
BU211..LHD..30T |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 90445-17141 |
BU10#,11#,14#,21#,22# |
1 | ||
| 90445-17141 |
BU10#,11#,14#,21#,22#..ARL,GEN,SA |
1 | ||
| 90445-17141 |
BU10#,111,14#,21#,22#..ARL,GEN,SA |
1 | ||
| 44764F - WAY(FOR BOOSTER VACUUM TUBE) | ||||
| 90413-09038 |
BU221..LHD;BU211..CBU;BU211..30T..GEN..IV3;BU211..LHD..40T..IV3;BU142,212,222..ARL,GEN,TAIW |
1 | ||
| 90413-09038 |
BU212,222;BU142,211,213,221,223..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37020 |
BU21#,22#..LHD..(GEN,TAIW) |
1 | ||
| 44768-37080 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 95446-09250 |
BU211..30T..SA;BU21#,22#..ARL,GEN,TAIW |
1 | ||
| 44774-37010 |
BU10#,11#,14#..DSL |
1 | ||
| 44774-37060 |
BU212..DSL;BU211..30T..SA;BU211,221..GEN;BU222..ARL,SA,TAIW;BU212,222..LHD..TD..GEN |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37010 |
BU10#,111,112,14#,211,221,RZU100..LHD |
1 | ||
| 44776-37040 |
BU211,221..LHD W(*CLB) |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37010 |
BU10#,111,112,14#,211,221,RZU100..LHD |
1 | ||
| 44776-37040 |
BU211,221..LHD W(*CLB) |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 90445-17044 |
BU212,222;BU142,211,213,221,223..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 90445-17044 |
BU221..LHD;BU211..CBU;BU211..30T..GEN..IV3;BU211..LHD..40T..IV3;BU142,212,222..ARL,GEN,TAIW |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37010 |
BU10#,11#,14#,21#,22# |
1 | ||
| 44778-37010 |
BU10#,111,14#,21#,22# |
1 | ||
| 44778-37010 |
BU21#,22#;BU100,101,110,111,14#..RHD |
1 | ||
| 44778-37050 |
BU10#,111,112,14#..LHD |
1 | ||
| Common parts | ||||
| 90119-08A29 | ||||
| 90119-08A46 | ||||
| 90179-08038 | ||||
| 90179-08141 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90461-10573 | ||||
| 90467-16002 | ||||
| 90480-22022 | ||||
| 91641-C0814 | ||||
| 91651-40816 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 4710 | ||||
| 8401 | ||||
