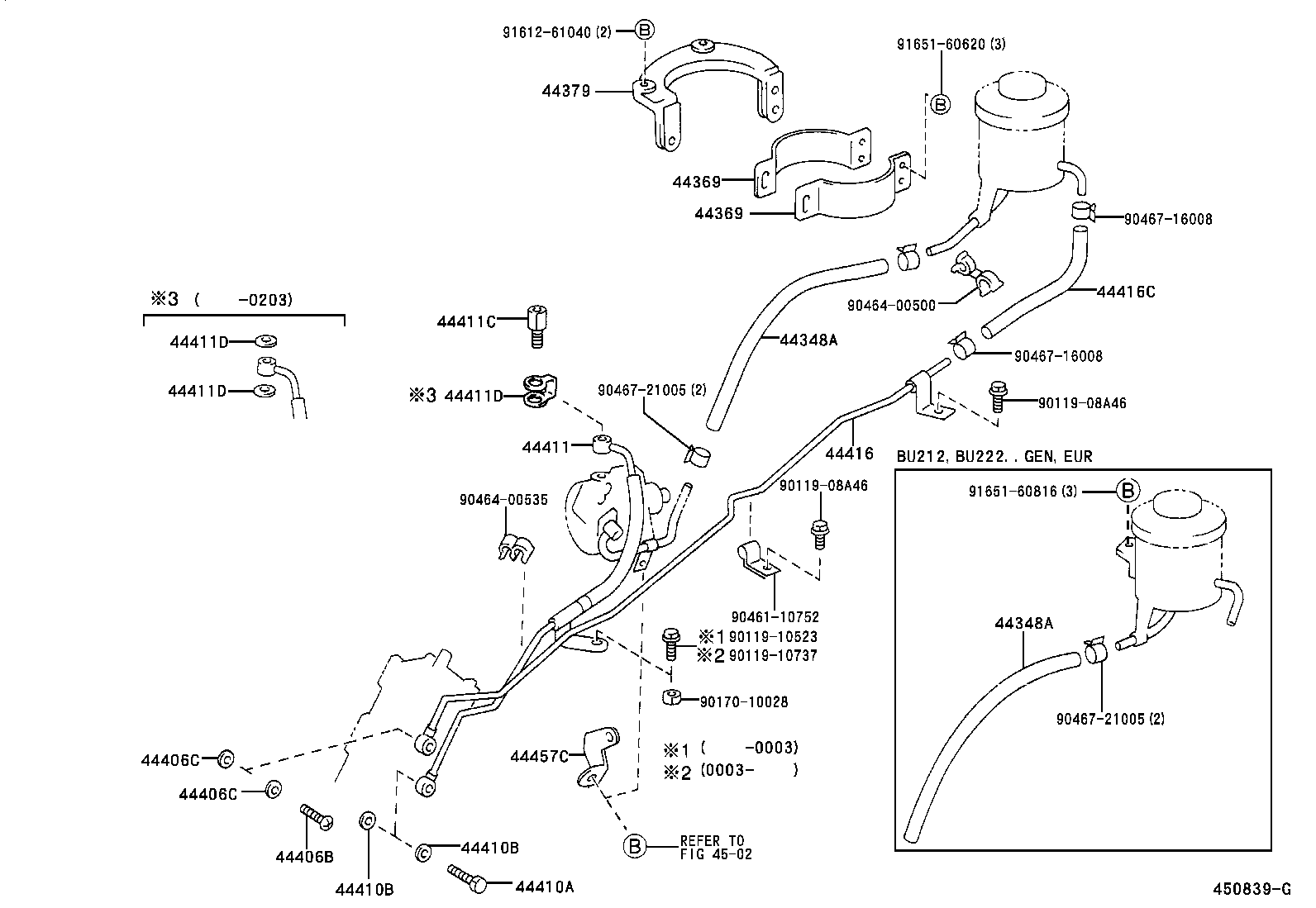

BU211L-TKMQS3 (1995)
Toyota Dyna200
(9505- )BU211,212,221,222..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36210 |
BU211..CBU;BU212,221..LHD..DSL;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,222..(DM1,T1,T2,T3,TW2)..DSL |
1 | ||
| 44348-36210 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36210 |
BU211..CBU;BU212,221..LHD..DSL;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,222..(DM1,T1,T2,T3,TW2)..DSL |
1 | ||
| 44348-36210 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36010 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36010 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
2 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-36090 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 90401-14003 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,TW1,TW2)..(175T,20T,25T,30T,40T)..(ARL,GEN) |
1 | ||
| 90401-14003 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
1 | ||
| 90401-14003 |
BU211..LHD..CBU;BU141,212,222,RZU100;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,213,221,223..(DM1,DM7,T1,T2,T3,TW2)..(175T,20T,30T,40T)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU211..LHD..CBU;BU141,212,222,RZU100;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
2 | ||
| 90430-14235 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU211..LHD..CBU;BU141,212,222,RZU100;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
2 | ||
| 90430-14235 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-14003 |
BU211..LHD..CBU;BU141,212,222,RZU100;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,213,221,223..(DM1,DM7,T1,T2,T3,TW2)..(175T,20T,30T,40T)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 90401-14003 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,TW1,TW2)..(175T,20T,25T,30T,40T)..(ARL,GEN) |
1 | ||
| 90401-14003 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 90401-14003 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU211..LHD..CBU;BU141,212,222,RZU100;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
2 | ||
| 90430-14235 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU211..LHD..CBU;BU141,212,222,RZU100;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
2 | ||
| 90430-14235 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37030 |
BU142..ARL,EUR;BU10#,11#,140,141..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44411-37030 |
BU141;BU142..ARL,EUR;BU10#,11#..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,GEN) |
1 | ||
| 44411-37021 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
1 | ||
| 44411-37021 |
BU211,212,221,222..LHD |
1 | ||
| 44411-37020 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
BU221..LHD;BU211..CBU;BU142,212..EUR,TAIW;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,222..(DM1,T1,T2,T3,TW2)..DSL |
1 | ||
| 90401-16027 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 90430-16168 |
BU211..LHD..CBU;BU141,212,222,RZU100;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
2 | ||
| 90430-16168 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 90430-16168 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
2 | ||
| 44327-30030 |
BU141,211,212,222..CBU,IV3;BU10#,111,142,213,221,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 90430-16168 |
BU211..LHD..CBU;BU141,212,222,RZU100;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
2 | ||
| 90430-16168 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 90430-16168 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
2 | ||
| 44327-30030 |
BU141,211,212,222..CBU,IV3;BU10#,111,142,213,221,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 90430-16168 |
BU211..LHD..CBU;BU141,212,222,RZU100;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
2 | ||
| 90430-16168 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 90430-16168 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
2 | ||
| 44327-30030 |
BU141,211,212,222..CBU,IV3;BU10#,111,142,213,221,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37020 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90445-18132 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 90445-18132 |
BU211..LHD..30T..IV3 VENEZUELA SPEC OR W(POWER STEERING) |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-36040 |
BU221..LHD;BU211..CBU;BU141,212,222;BU142..ARL,EUR;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44457-36040 |
BU222;BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44457-36040 |
BU211..LHD..30T..IV3 W/O IDLE UP OR VENEZUELA SPEC |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90119-10523 | ||||
| 90119-10737 | ||||
| 90170-10028 | ||||
| 90461-10752 | ||||
| 90464-00500 | ||||
| 90464-00535 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91612-61040 | ||||
| 91651-60620 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4502 | ||||
