BU142R-TKMMSQ3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 15BF
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )ARL

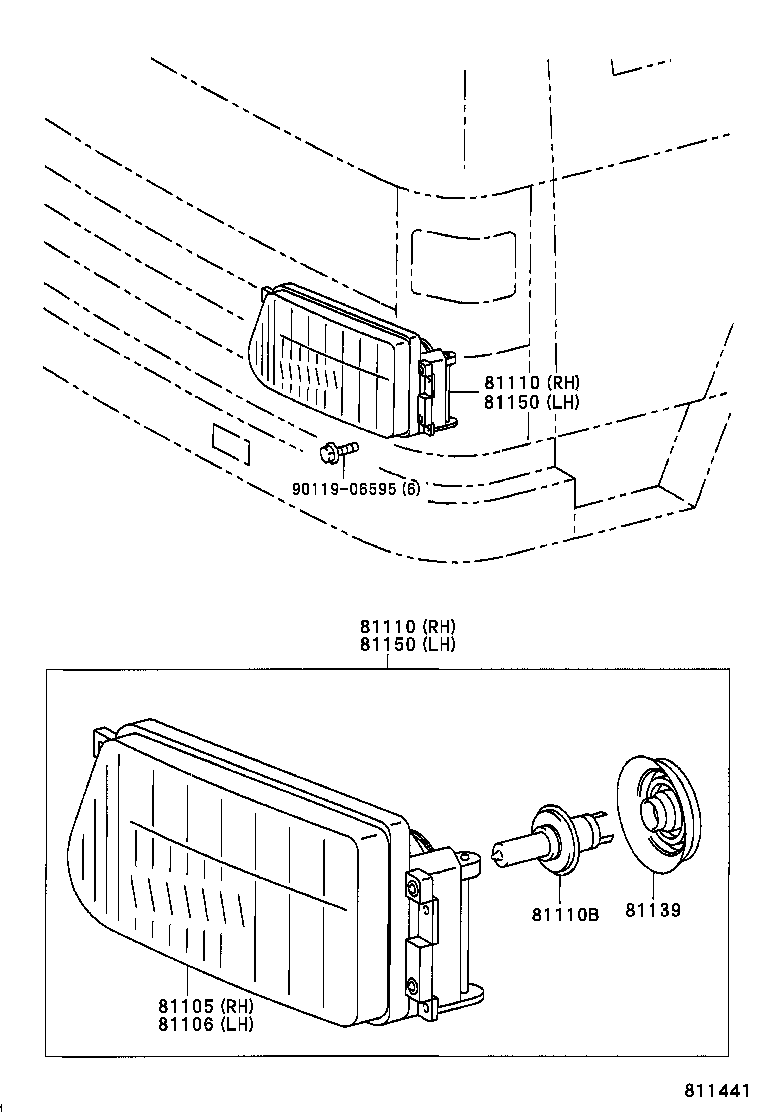

Click highlighted areas on diagram

diagram 81105 81106 81110 81110 81110B 81139 81150 81150 9011906595
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-37030

BU212..TD..CBU;BU101..RHD..ST..CBU;BU101,211..RHD..(20T,40T)..(ARL,GEN)..IV3;BU100,110,141,142,212,222..RHD..(175T,20T,30T,40T)..DSL..(ARL,GEN)

 1
81105-37030

BU100,110,142,212..RHD..DSL

 1
81105-37030

BU212..TD..CBU;BU101,142,222..ARL;BU212..DSL..(ARL,GEN)

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-37030

BU212..TD..CBU;BU101..RHD..ST..CBU;BU101,211..RHD..(20T,40T)..(ARL,GEN)..IV3;BU100,110,141,142,212,222..RHD..(175T,20T,30T,40T)..DSL..(ARL,GEN)

 1
81106-37030

BU100,110,142,212..RHD..DSL

 1
81106-37030

BU212..TD..CBU;BU101,142,222..ARL;BU212..DSL..(ARL,GEN)

 1
81110 - HEADLAMP ASSY, RH
81110-37030

BU100,110,142,212..RHD..DSL

 1
81110-37030

BU212..TD..CBU;BU101..RHD..ST..CBU;BU101,211..RHD..(20T,40T)..(ARL,GEN)..IV3;BU100,110,141,142,212,222..RHD..(175T,20T,30T,40T)..DSL..(ARL,GEN)

 1
81110-37030

BU212..TD..CBU;BU101,142,222..ARL;BU212..DSL..(ARL,GEN)

 1
81110 - HEADLAMP ASSY, RH
81110-37030

BU100,110,142,212..RHD..DSL

 1
81110-37030

BU212..TD..CBU;BU101..RHD..ST..CBU;BU101,211..RHD..(20T,40T)..(ARL,GEN)..IV3;BU100,110,141,142,212,222..RHD..(175T,20T,30T,40T)..DSL..(ARL,GEN)

 1
81110-37030

BU212..TD..CBU;BU101,142,222..ARL;BU212..DSL..(ARL,GEN)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22003

BU212,RZU100..DSL,EFI;BU100,102,110,112,140,142,222..ARL,EUR,TAIW

12V 60/55W,*HAL *WH

 2
90981-22003

RZU100;BU212..TD..CBU;BU142,222..ARL,EUR;BU101..RHD..ST..CBU;BU101,211..RHD..(20T,40T)..(ARL,GEN)..IV3;BU100,110,141,212..RHD..(175T,20T,30T,40T)..DSL..(ARL,GEN)

12V 60/55W,*HAL *WH

 2
90981-22003

BU212..TD..CBU;BU101,142,222..ARL,EUR;BU212,RZU100..(DSL,EFI)..(ARL,GEN)

12V 60/55W,*HAL *WH

 2
81139 - COVER, HEADLAMP SOCKET
81139-87641

BU212..RHD;BU102,112,222,RZU100;BU212..30T..GEN..IV3;BU100,110,142..ARL,EUR

 2
81139-87641

BU101,142..ARL,EUR;BU102,213,222,223,RZU100..ARL,EUR,GEN;BU142,212..RHD..(25T,30T,40T)..(ARL,GEN)

 2
81139-87641

BU142..ARL,EUR;BU142,212..RHD..TD;BU101..RHD..ST..CBU;BU212..30T..TD..IV3;BU212..DSL..(ARL,GEN);BU100,110,141..RHD..(175T,20T,30T);BU101,211..RHD..(20T,40T)..(ARL,GEN)..IV3;BU102,112,213,222,223,RZU100..ARL,EUR,GEN

 2
81139-87641

BU222;BU212..30T..GEN;BU111,221..RHD..GEN;BU101,211..RHD..WT..(20T,40T)..GEN..IV3;BU100,102,110,112,140,142,212..ARL,EUR,TAIW

 2
81150 - HEADLAMP ASSY, LH
81150-37030

BU212..TD..CBU;BU101..RHD..ST..CBU;BU101,211..RHD..(20T,40T)..(ARL,GEN)..IV3;BU100,110,141,142,212,222..RHD..(175T,20T,30T,40T)..DSL..(ARL,GEN)

 1
81150-37030

BU212..TD..CBU;BU101,142,222..ARL;BU212..DSL..(ARL,GEN)

 1
81150-37030

BU100,110,142,212..RHD..DSL

 1
81150 - HEADLAMP ASSY, LH
81150-37030

BU212..TD..CBU;BU101..RHD..ST..CBU;BU101,211..RHD..(20T,40T)..(ARL,GEN)..IV3;BU100,110,141,142,212,222..RHD..(175T,20T,30T,40T)..DSL..(ARL,GEN)

 1
81150-37030

BU212..TD..CBU;BU101,142,222..ARL;BU212..DSL..(ARL,GEN)

 1
81150-37030

BU100,110,142,212..RHD..DSL

 1
Common parts
90119-06595
